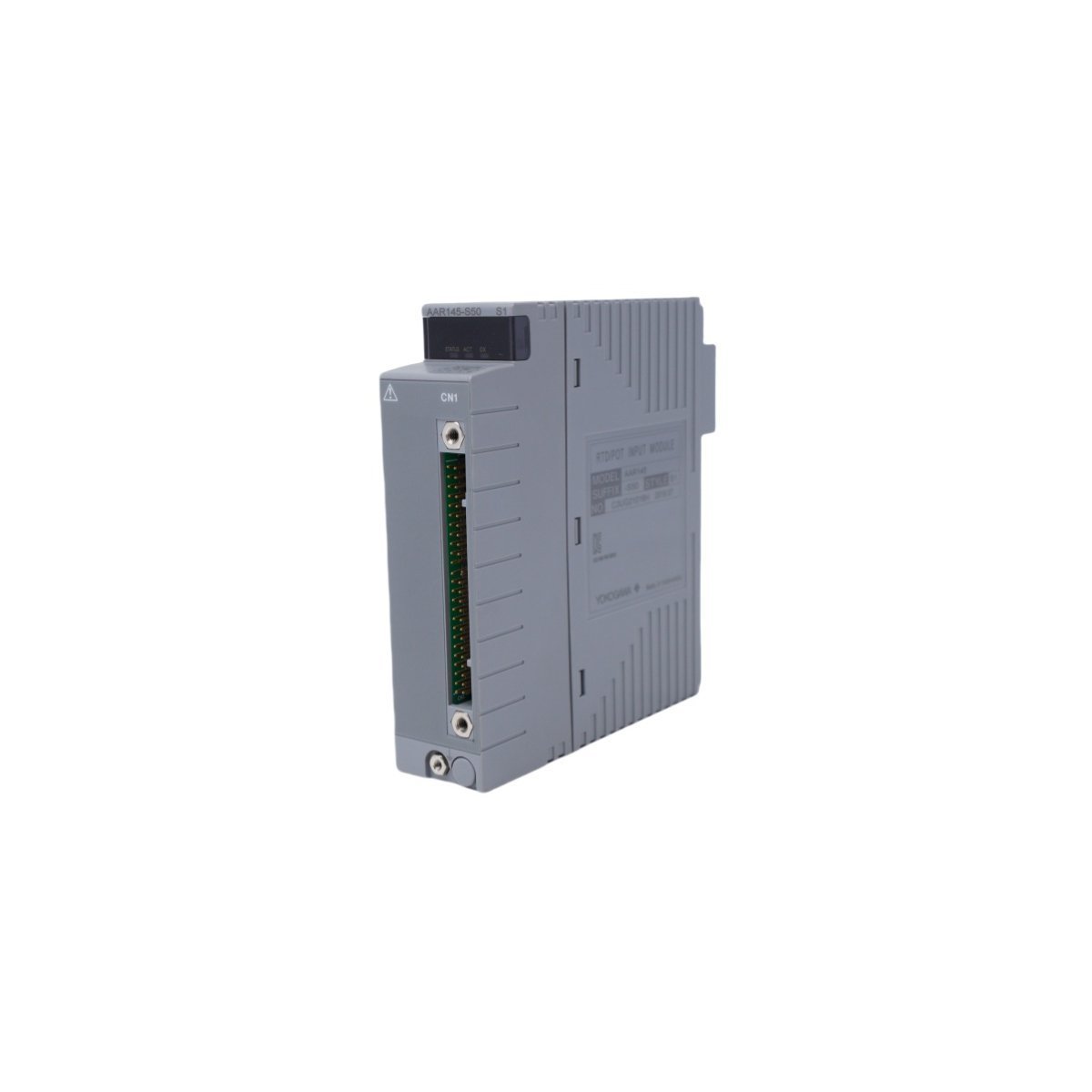

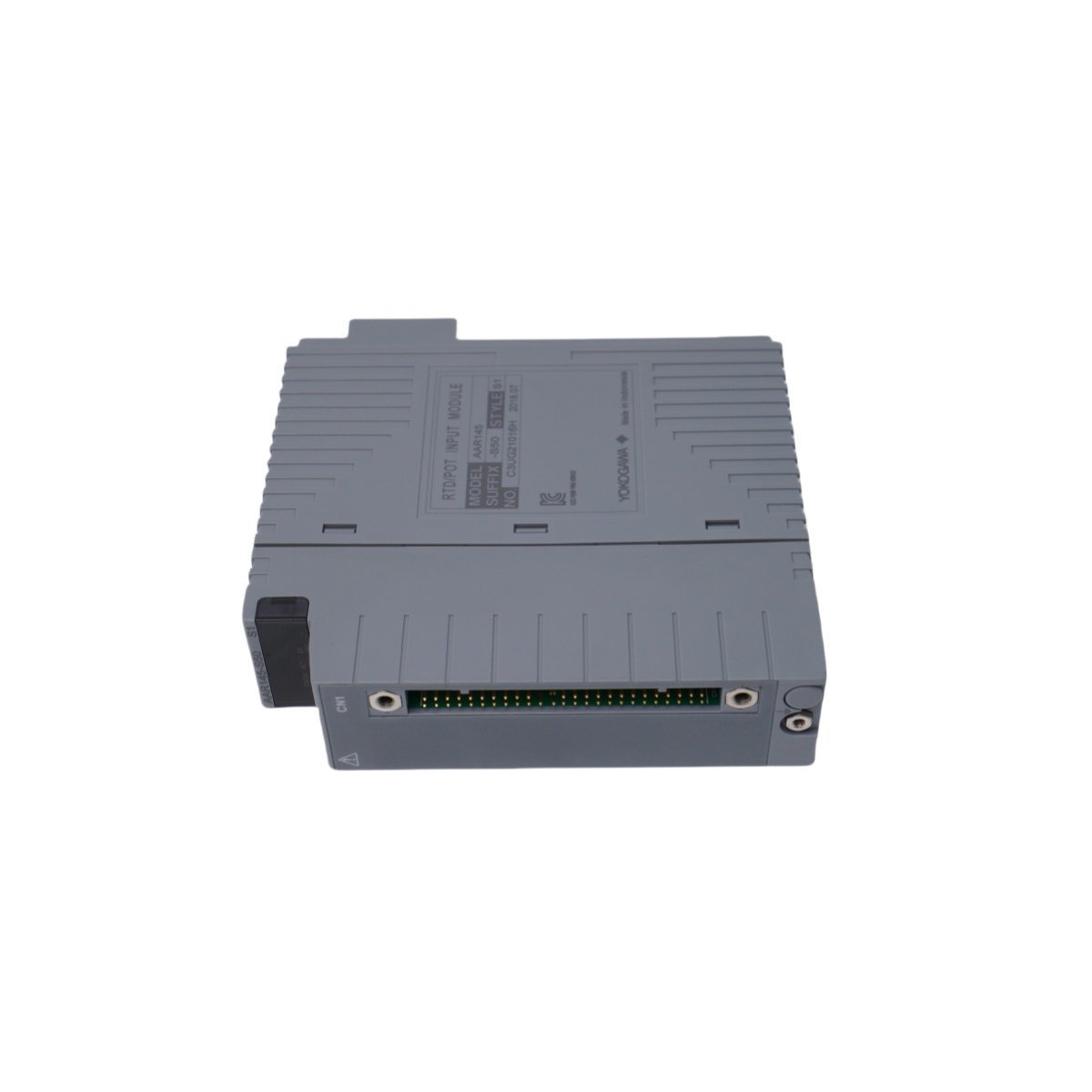

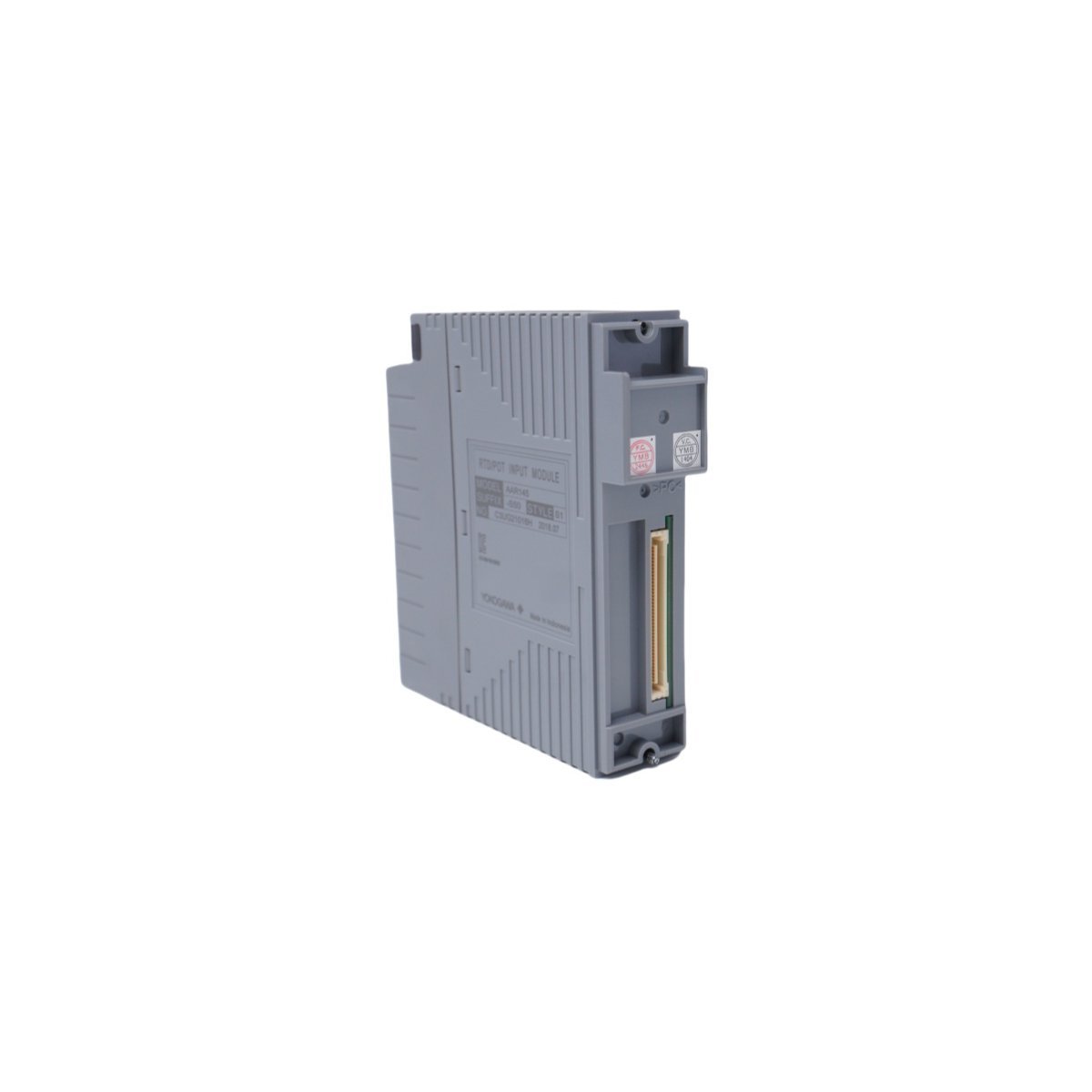

Yokogawa AAR145-S50 TC/RTD Input Module

The Yokogawa AAR145-S50 offers a high-performance solution for processing diverse analog signals in industrial environments. This module interfaces directly with thermocouples (TC), resistance temperature detectors (RTD), and potentiometers (POT). Furthermore, it handles low-voltage mV signals with exceptional precision. Each input channel remains completely isolated from the control system and other channels. This architecture prevents ground loops and ensures superior signal integrity. Consequently, it effectively monitors critical temperature and process variables in complex automation setups.

Primary Technical Specifications

Redundancy and System Reliability

Reliability is a core benefit of the AAR145-S50 hardware design. The module supports dual-redundant configurations to prevent system failure during process monitoring. Moreover, its hot-swappable capability allows technicians to replace units without interrupting live operations. This feature significantly reduces potential plant downtime during routine maintenance. The module also includes 16 isolated relay outputs for integrated control tasks. Therefore, it serves as both a measurement tool and a safety interface.

Robust Construction and Diagnostic Visibility

The AAR145-S50 excels in harsh conditions found in chemical and power plants. It operates efficiently within a wide temperature range from -20 to 60°C. Additionally, individual LED indicators provide immediate status updates for every channel. This visual feedback simplifies troubleshooting for on-site maintenance teams. The compact DIN-rail mounting style also maximizes available space within crowded control cabinets. Every unit meets international safety standards including CE and IEC 61010-1 compliance.
