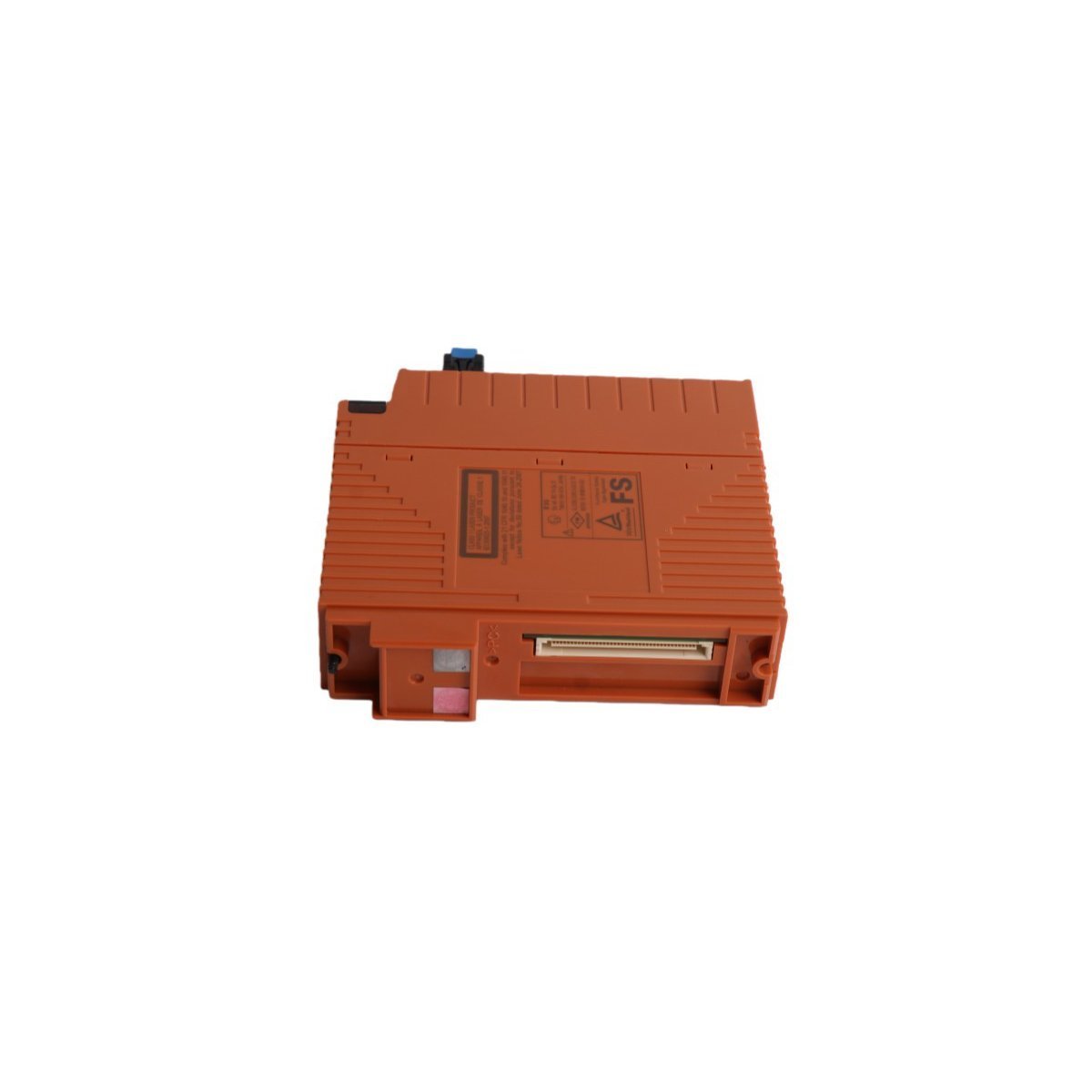

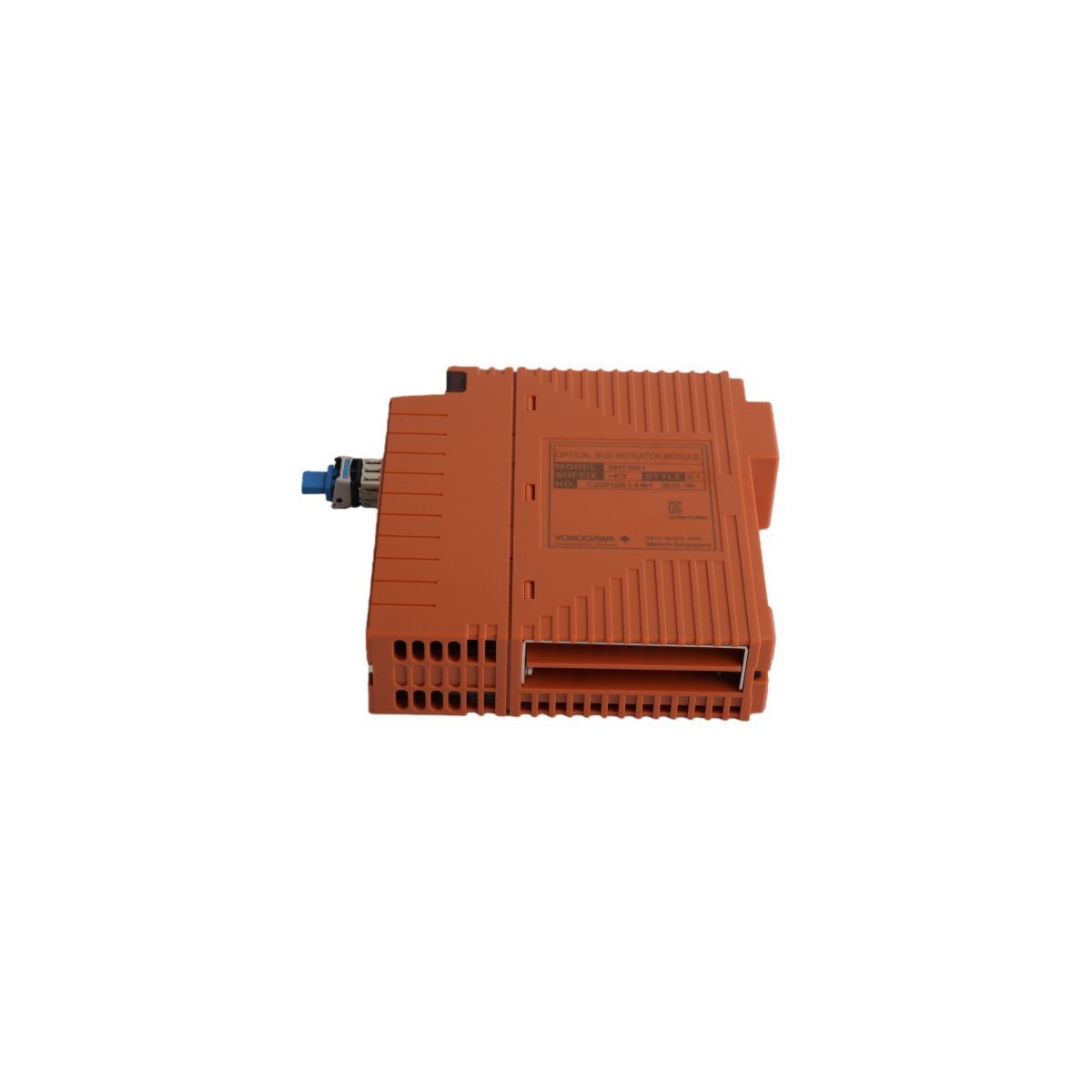

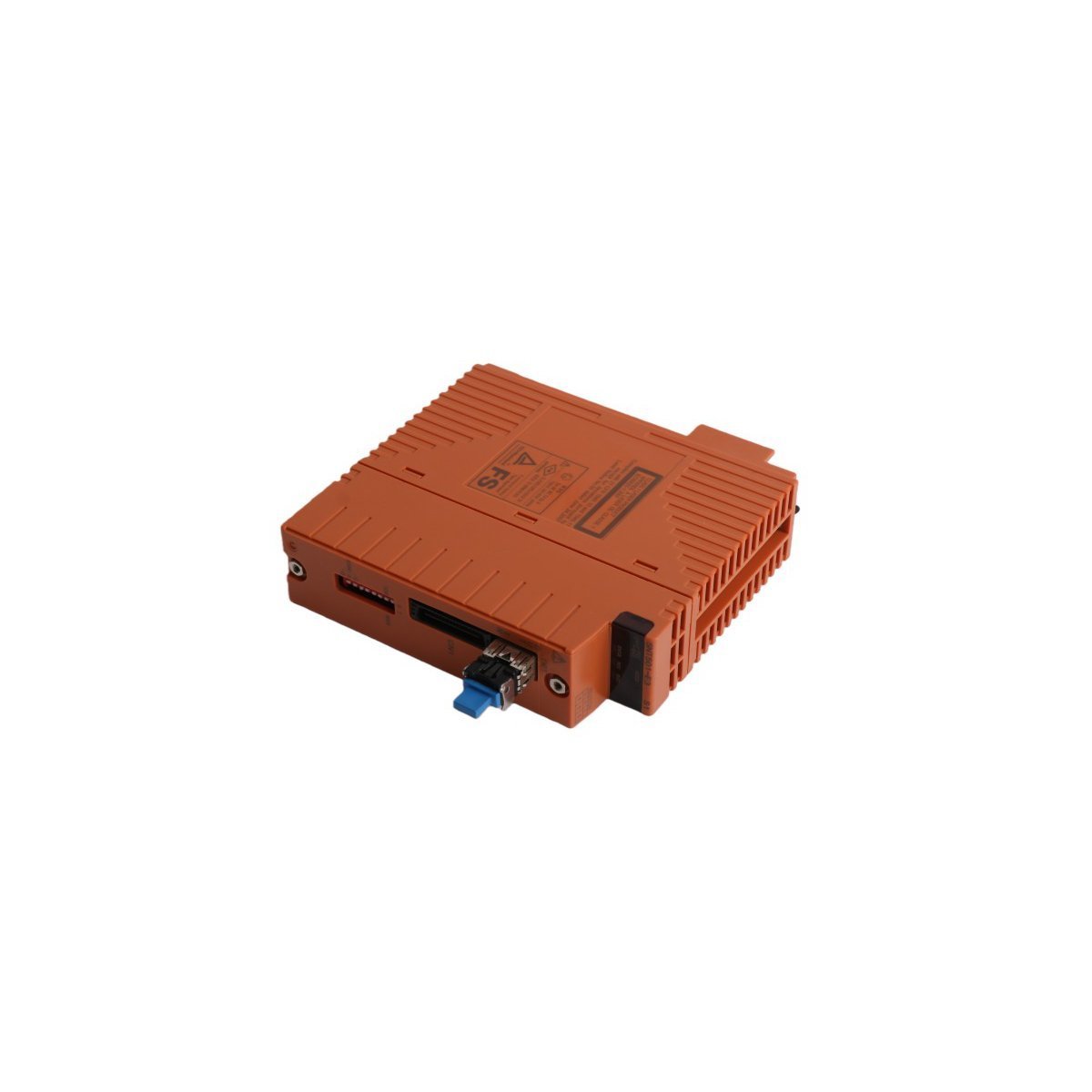

Yokogawa SNT501-13 Optical ESB Bus RepeaterModule

The Yokogawa SNT501-13 serves as a high-performance bridge for Extended Serial Backplane (ESB) communication. This module effectively converts electrical bus signals into optical data for long-range transmission. It enables safety instrumented systems to bridge distances up to 5 kilometers without signal degradation. Furthermore, the hardware maintains a consistent 128 Mbits/second data rate for real-time monitoring. This capability remains essential for distributed control architectures in sprawling industrial facilities. Consequently, the repeater supports rapid response times in critical safety environments.

Core Technical Specifications

Redundancy and Signal Integrity

The SNT501-13 design prioritizes continuous operation through a robust redundant architecture. It integrates dual-redundant pathways to prevent communication loss during a single point of failure. Moreover, the use of fiber optics provides natural immunity to electromagnetic interference (EMI). This feature ensures stable data flow in noisy environments like power plants and refineries. The module effectively isolates different sections of the plant from electrical surges. Therefore, it protects the central control logic from field-side electrical disturbances.

Integration and Maintenance Efficiency

Yokogawa engineered the SNT501-13 for straightforward deployment within standard ESB bus networks. The compact form factor allows for efficient use of cabinet space in control rooms. Furthermore, the module requires minimal software configuration for immediate synchronization with the host system. Technicians can easily monitor link status via integrated LED indicators on the front panel. These visual cues simplify diagnostic tasks during routine maintenance checks. Such design efficiency reduces the total cost of ownership for complex safety systems.
