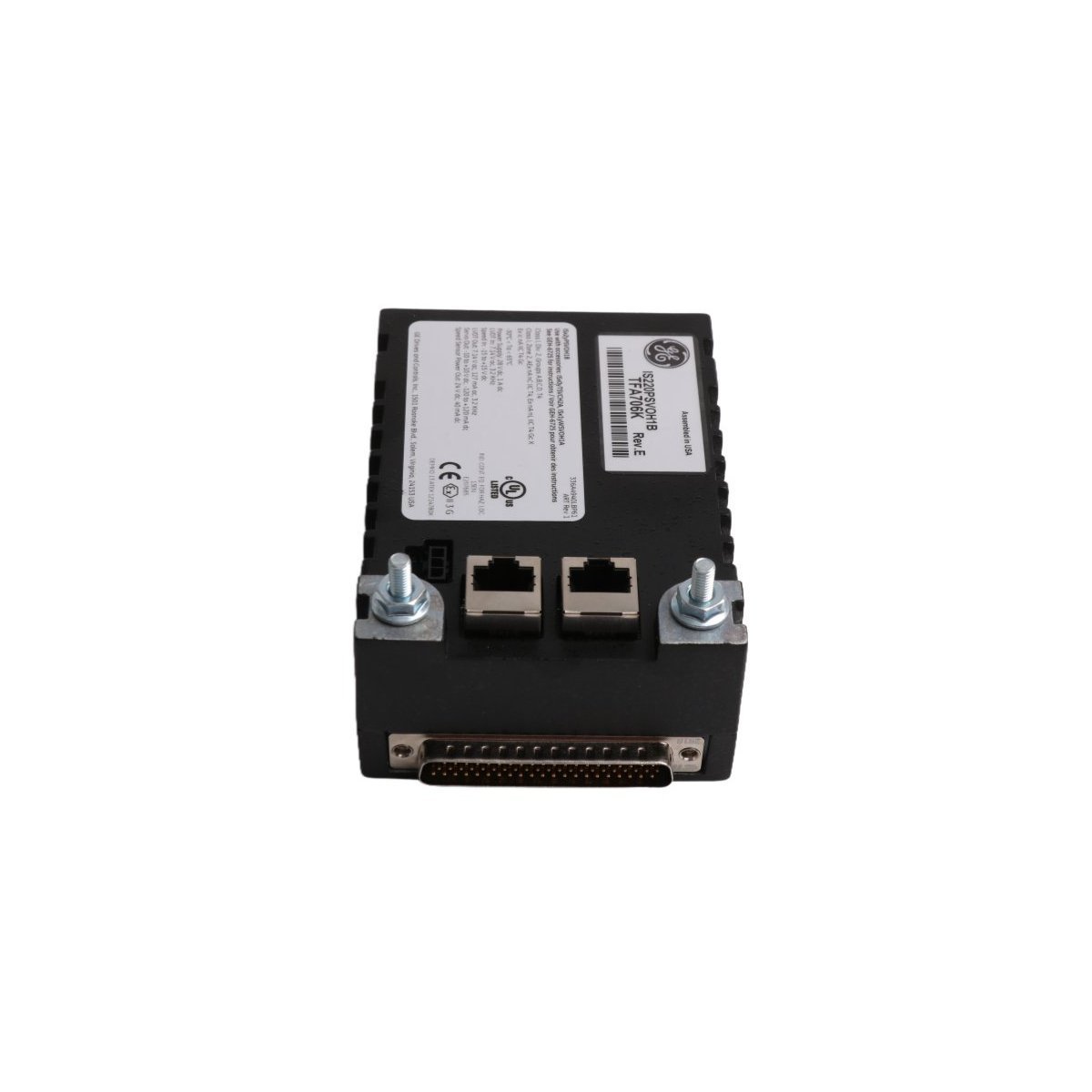

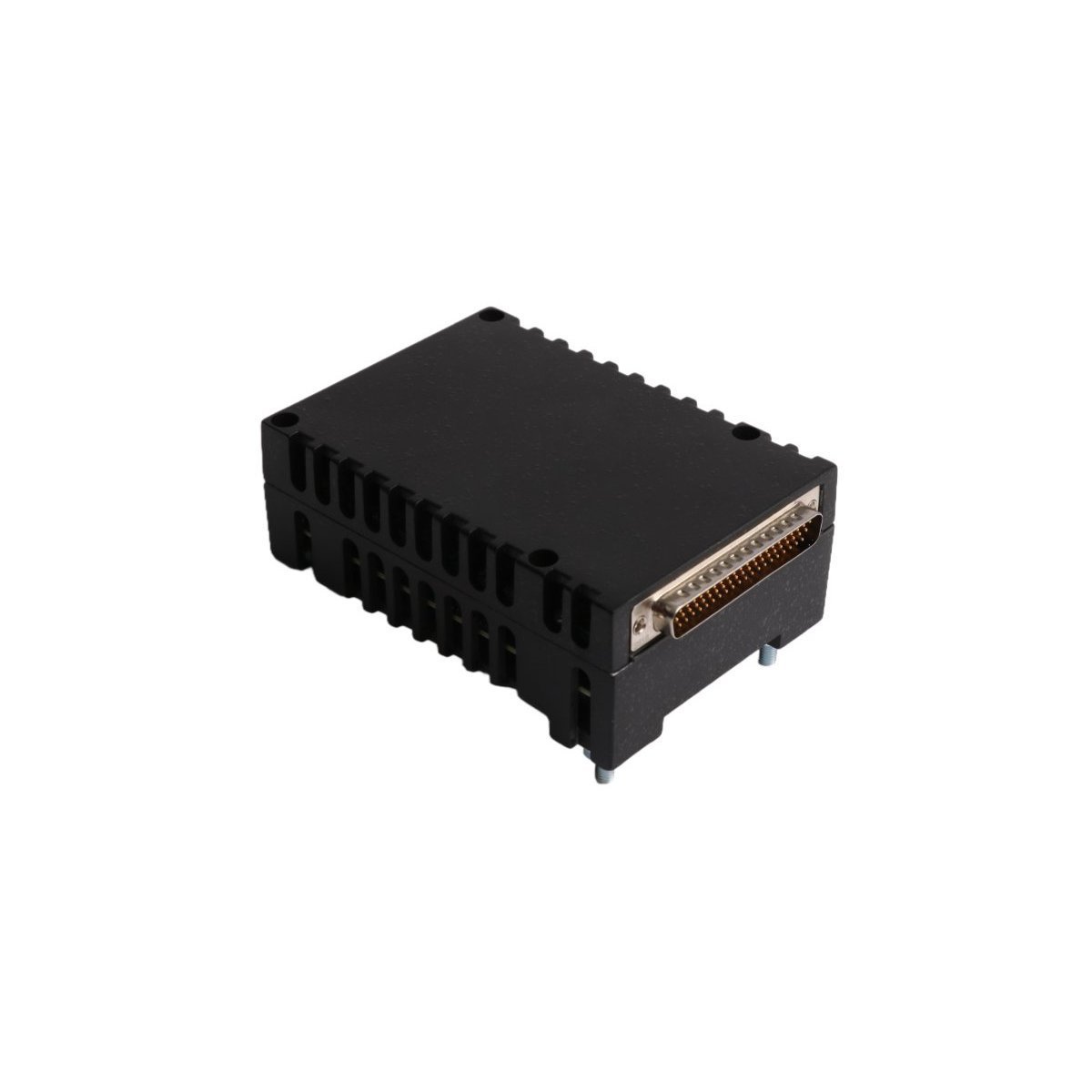

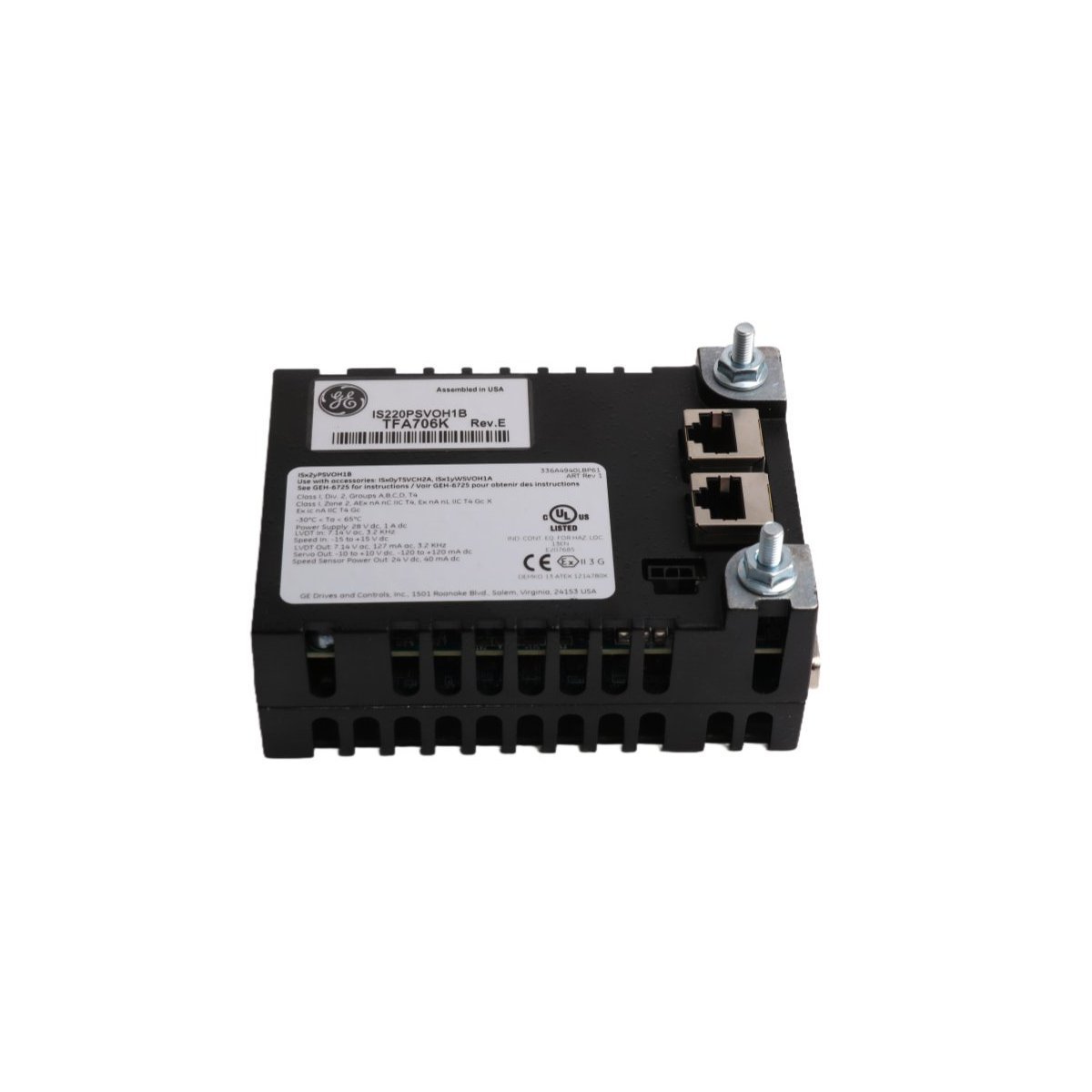

General Electric IS220PSVOH1B Servo I/o Module

The IS220PSVOH1B serves as a dedicated servo control module within the General Electric Mark VIe ecosystem. This I/O pack provides the necessary intelligence to manage electro-hydraulic servo valves. It specifically bridges the gap between the digital controller and the analog hydraulic hardware. The module typically mounts on a TSVO terminal board.

This unit controls two independent servo valve loops through a WSVO driver module. Consequently, it enables precise modulation of fuel and steam flow for turbine operation. The hardware includes a high-performance processing board. This board contains integrated power supplies and a local temperature sensor. These internal components monitor the health of the module in real-time.

Diagnostics and Configuration Management

The front panel features various LED indicators for rapid fault isolation. These LEDs track Ethernet connectivity, module power, and hardware status. Furthermore, specific “ENA” indicators show the enable status for each servo loop. Although an infrared port exists on the casing, this specific version does not utilize it.

Engineers configure the module using the ToolboxST software suite. The system supports an auto-reconfiguration feature for rapid hot-swapping. This process automatically downloads the correct firmware and parameters to a new pack. However, users must perform manual setup if they replace the underlying terminal board. The software also includes a trend recorder for monitoring actuator stroking and current ramping.

Reliability and Protective Features

GE engineered the IS220PSVOH1B for high-availability power generation environments. It utilizes soft-start circuitry to prevent electrical surges during power-up. This protection extends the lifespan of the internal electronics. Additionally, the module supports Triple Modular Redundant (TMR) configurations. This setup ensures the turbine remains operational even if one I/O pack fails. The rugged industrial design maintains signal integrity despite high-vibration conditions near the turbine.

Technical Performance Specifications
