General electric DS3800HIOD1H1G Digtal I/O Board

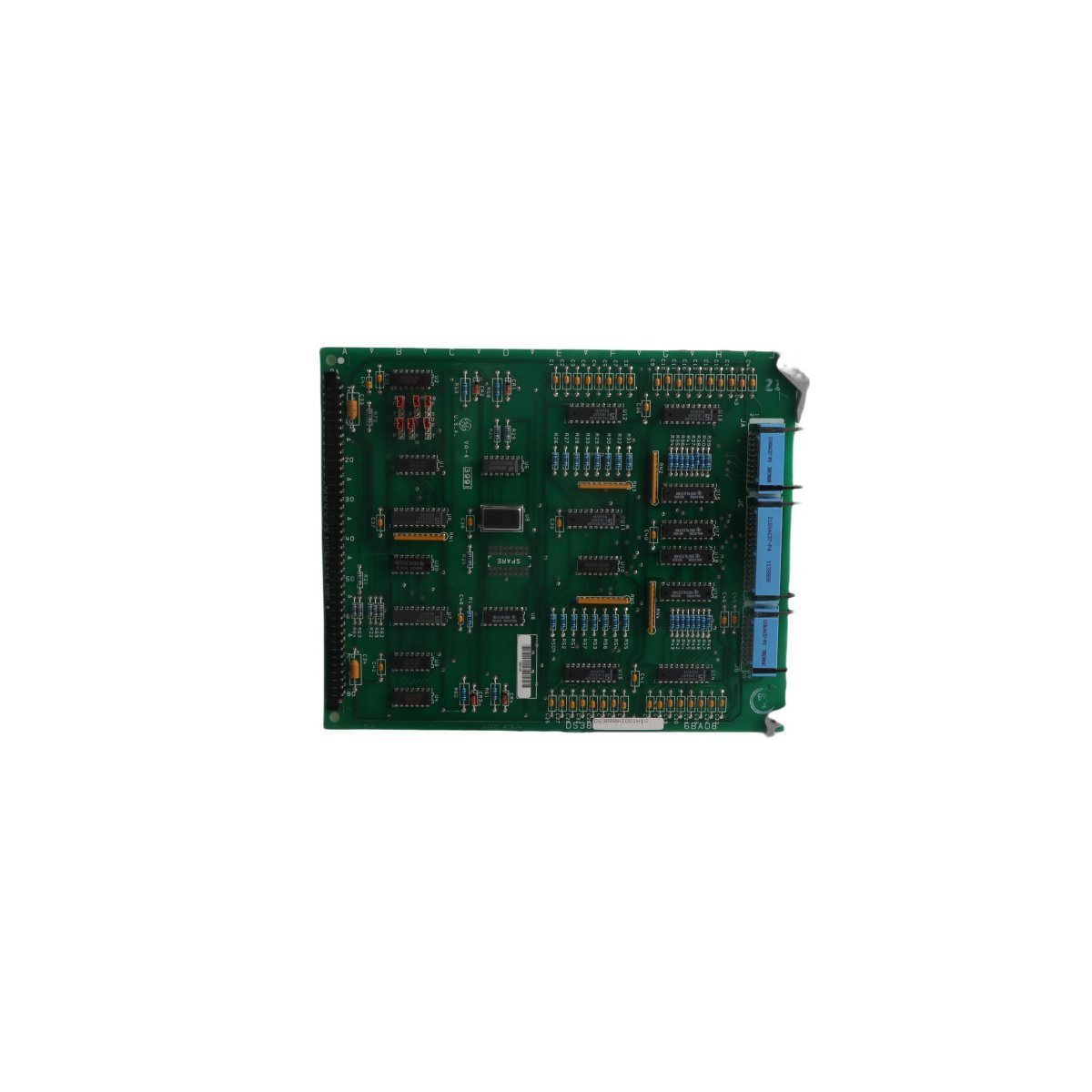

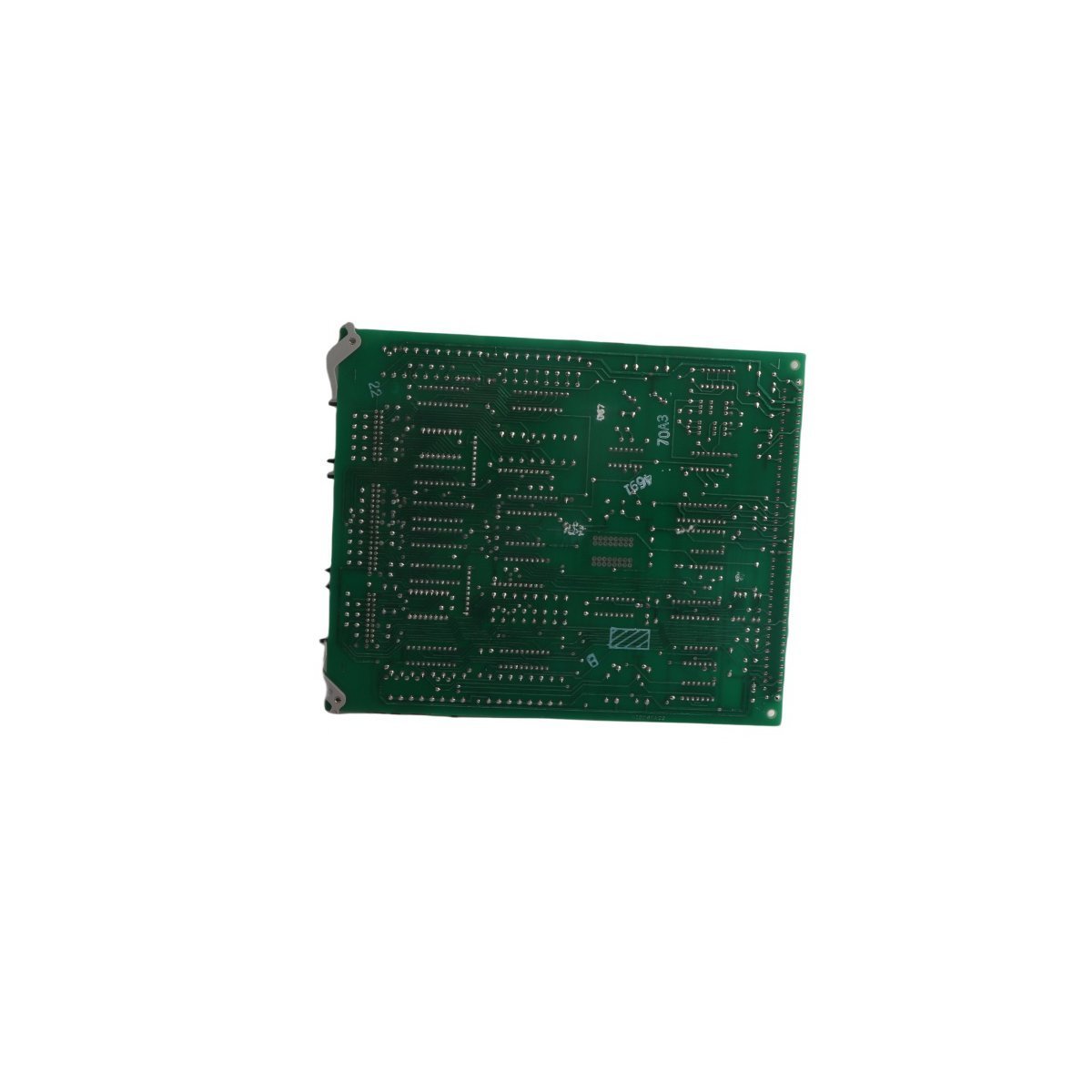

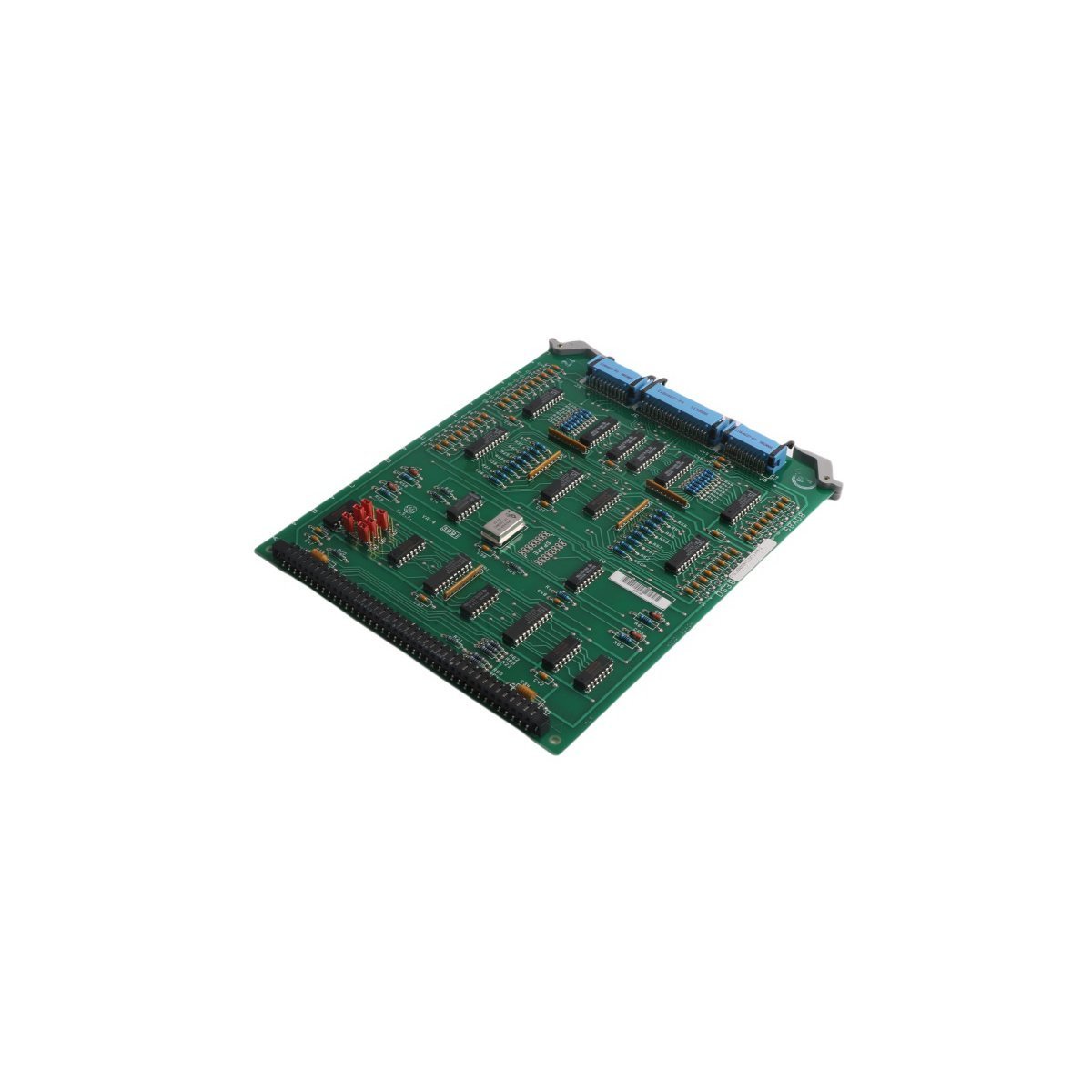

The GE DS3800HIOD1H1G is a specialized Digital I/O Board developed for use within General Electric’s industrial drive and Multilin control ecosystems. Functioning primarily as an input isolator, this circuit board facilitates the secure exchange of digital signals between field devices and the central processing unit. By providing electrical isolation, the board protects sensitive control logic from external electrical noise and voltage transients commonly found in heavy industrial environments.

Mechanical Design and Connectivity

• Primary Interface: One 40-pin ribbon cable connector for high-density signal routing.
• Auxiliary Ports: Two 10-pin connectors located between the extraction levers for localized I/O expansion.
• Configuration Headers: Six integrated jumpers allowing for hardware-level customization and address selection.

Technical Specifications
