General Electric IS220PIOAH1A Interface I/O Module

The GE IS220PIOAH1A serves as a high-performance communication bridge for the Mark VIe control platform. It manages specialized ARCNET I/O data streams to facilitate precise excitation control. This module bridges the gap between modern Ethernet-based networks and legacy turbine control logic. Consequently, it supports both the evolution and maintenance of sophisticated Speedtronic power generation systems.

Processing Architecture and Memory

This interface pack features a dedicated processor equipped with integrated RAM and Flash memory. During initial startup, the module executes comprehensive self-diagnostic checks automatically. It also verifies unique hardware IDs to ensure compatibility with the connected terminal board. Furthermore, an ARCNET controller chip works with CPLD logic to handle real-time excitation data. These components ensure synchronized communication across the entire distributed control system (DCS).

Network Connectivity and Power Safety

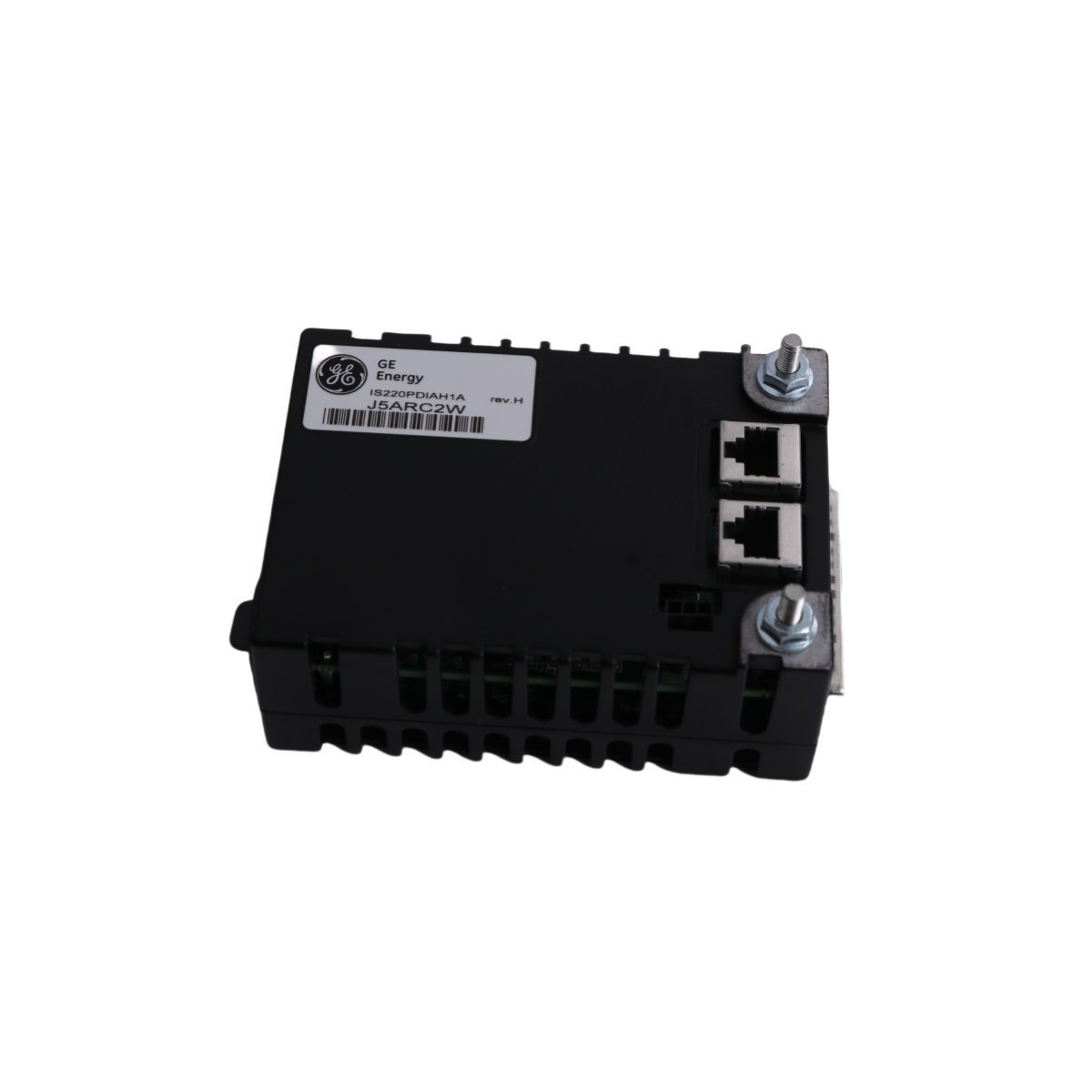

The hardware utilizes two RJ-45 Ethernet ports to maintain network stability. This dual-port design allows for either simplex operation or full network redundancy. Additionally, a built-in soft-start circuit regulates the internal 28V power system. This protection mechanism prevents current surges from damaging sensitive electronic components. Status LEDs on the module faceplate provide instant diagnostic feedback for field technicians.

System Installation and Compatibility

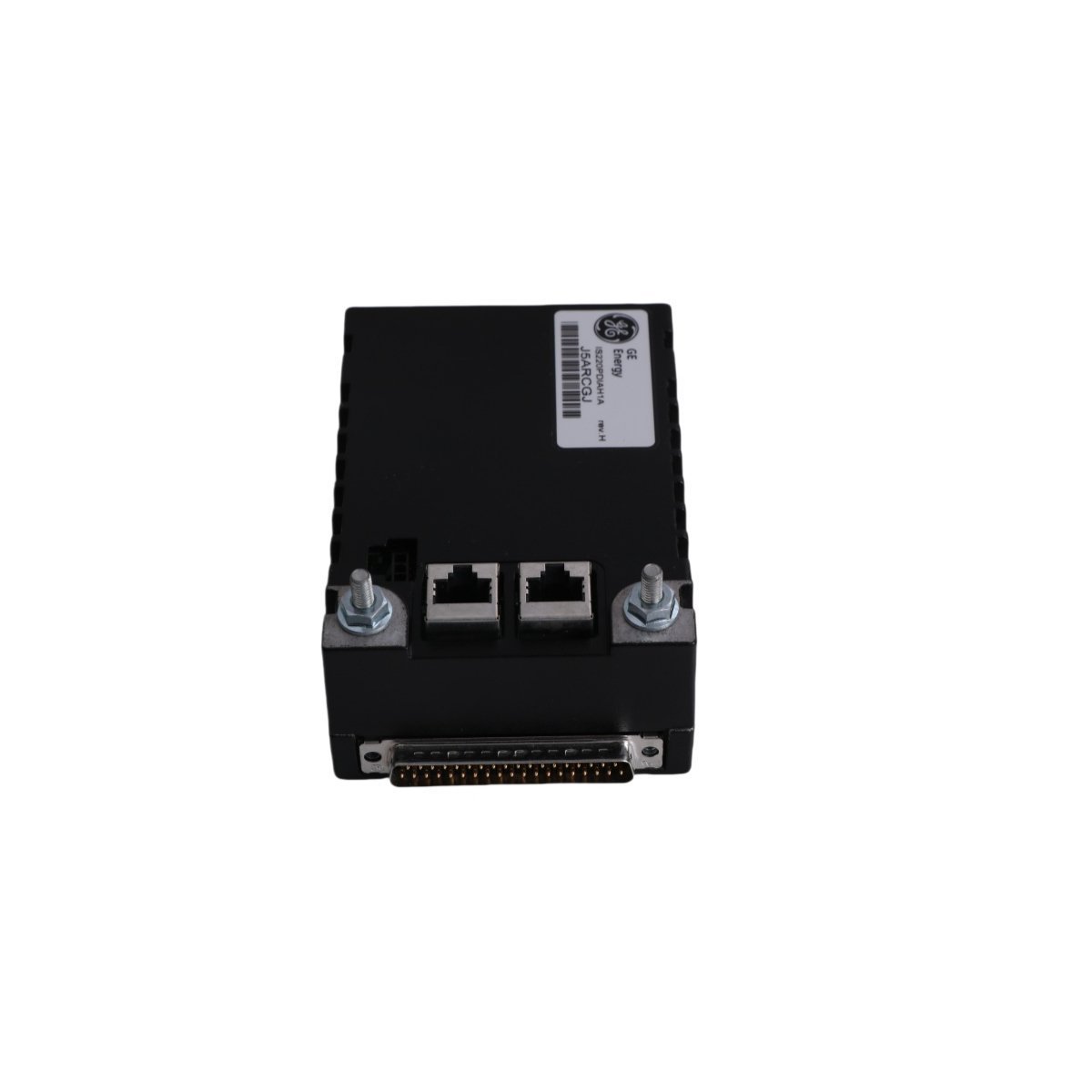

The IS220PIOAH1A mounts directly onto the JPDV terminal board for a secure mechanical fit. A high-density 37-pin connector facilitates all electrical signaling between the pack and the board. Although an infrared port exists on the circuit board, it remains inactive during standard industrial operation. This module effectively maintains control continuity for gas and steam turbine systems globally. Its rugged construction guarantees reliable service in demanding thermal and electrical environments.
