TU532-XC 1SAP417000R0001 ABB AC500 S500 I/O Terminal Units

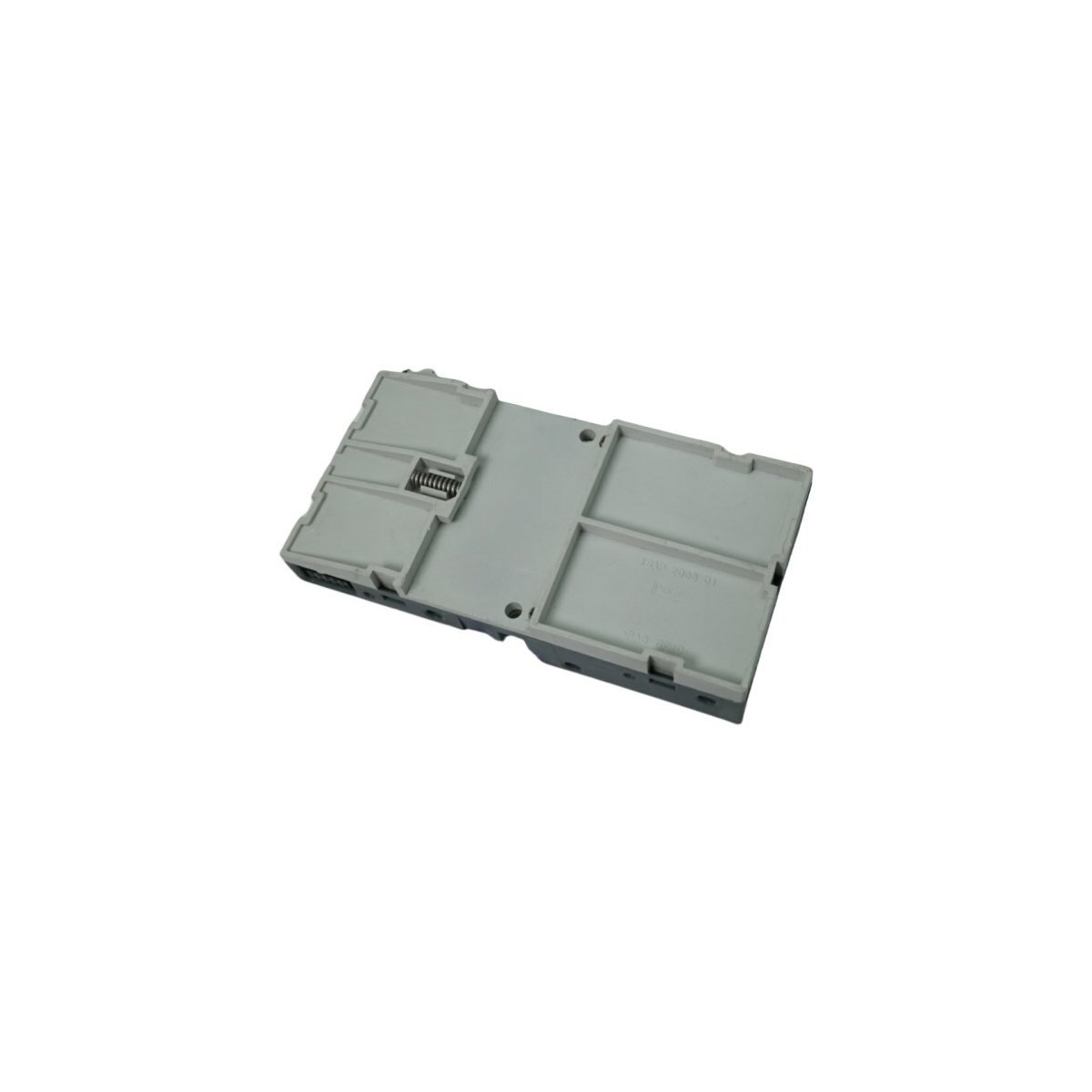

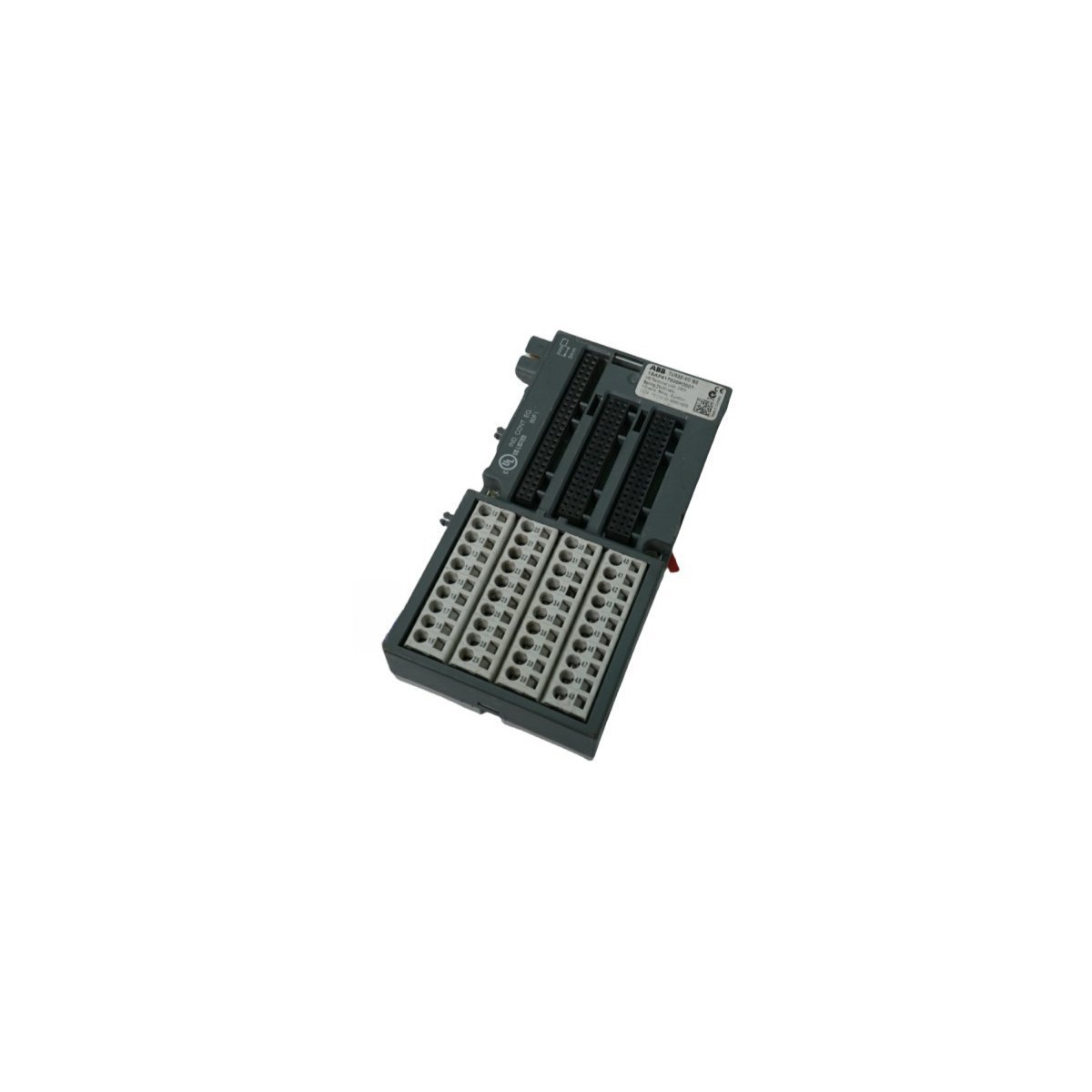

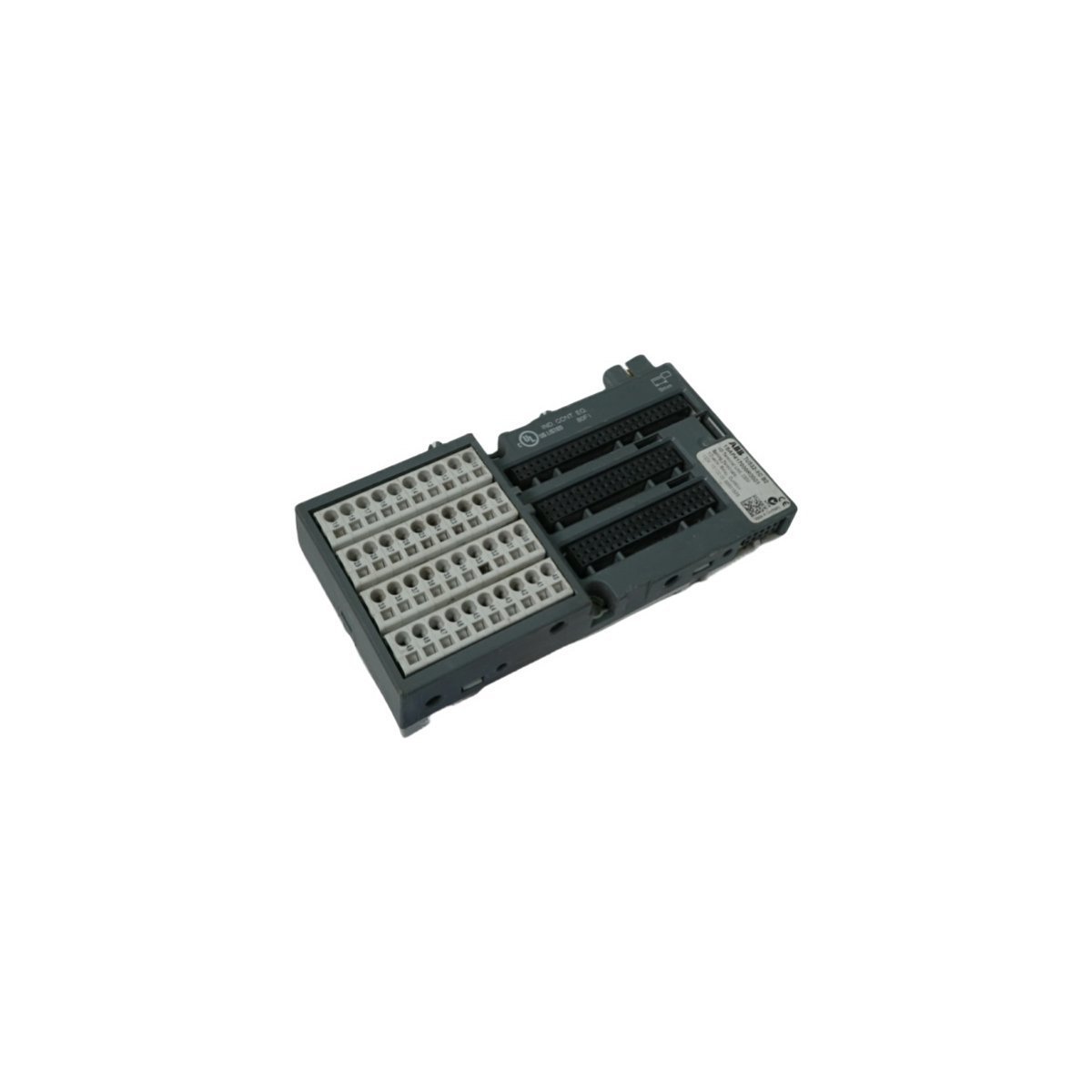

ABB TU532-XC 1SAP417000R0001 AC500 Terminal Unit

The ABB TU532-XC 1SAP417000R0001, also cataloged as the TU532-XC S500 I/O terminal unit, operates as a dedicated hardware component for field signal termination and I/O module bus interface expansion within ABB AC500 PLC platforms. Technicians snap S500 I/O modules directly onto the unit, while internal bus bars establish electrical continuity across backplane channels. The terminal unit carries power and communication lines directly from the central CPU or bus coupler to connected expansion modules, maintaining physical isolation between wiring channels under extreme environmental conditions (-XC extreme condition variant).

Hardware Specifications

Backplane Bus Communication Velocity and System Integration

The terminal unit establishes a high-speed inter-module backplane connection that maintains deterministic data transport across the AC500 system architecture. Internal printed circuits route power distribution and high-density signal lines while protecting internal logic traces from field-side voltage surges. Furthermore, the modular layout supports firmware flash compatibility across installed expansion units, since the base unit serves purely as an active signal matrix without restricting CPU-to-module communication speeds.

Frequently Asked Questions

Q: Does the terminal unit support hot-swapping of attached S500 I/O modules during active PLC execution?

A: Engineers can replace attached I/O modules while power remains applied to the terminal unit base, provided the central controller supports active module extraction and the field circuits are properly isolated.

Q: How does the “XC” suffix impact the hardware application envelope compared to standard terminal units?

A: The XC (Extended Conditions) rating certifies the unit to operate in wider temperature ranges (-40 to +70 deg C), high humidity environments, corrosive atmospheres (G3 coating), and elevated mechanical vibration zones.

Field Installation Guidelines

Field installation requires strict adherence to standard industrial wiring and grounding protocols:

1. Mount the terminal unit securely onto a standard 35 mm DIN rail, verifying that the mechanical locking latch engages fully.
2. Interlock adjacent terminal units via side-fit backplane connectors before wiring field terminals.
3. Strip field wiring leads to specified length and insert them into terminal clamps, ensuring solid metallic contact without loose strands.
4. Route signal cables away from high-voltage AC motor lines to prevent inductive noise coupling.
5. Connect external shield wires directly to the DIN rail ground clamp to establish continuous low-impedance grounding.
