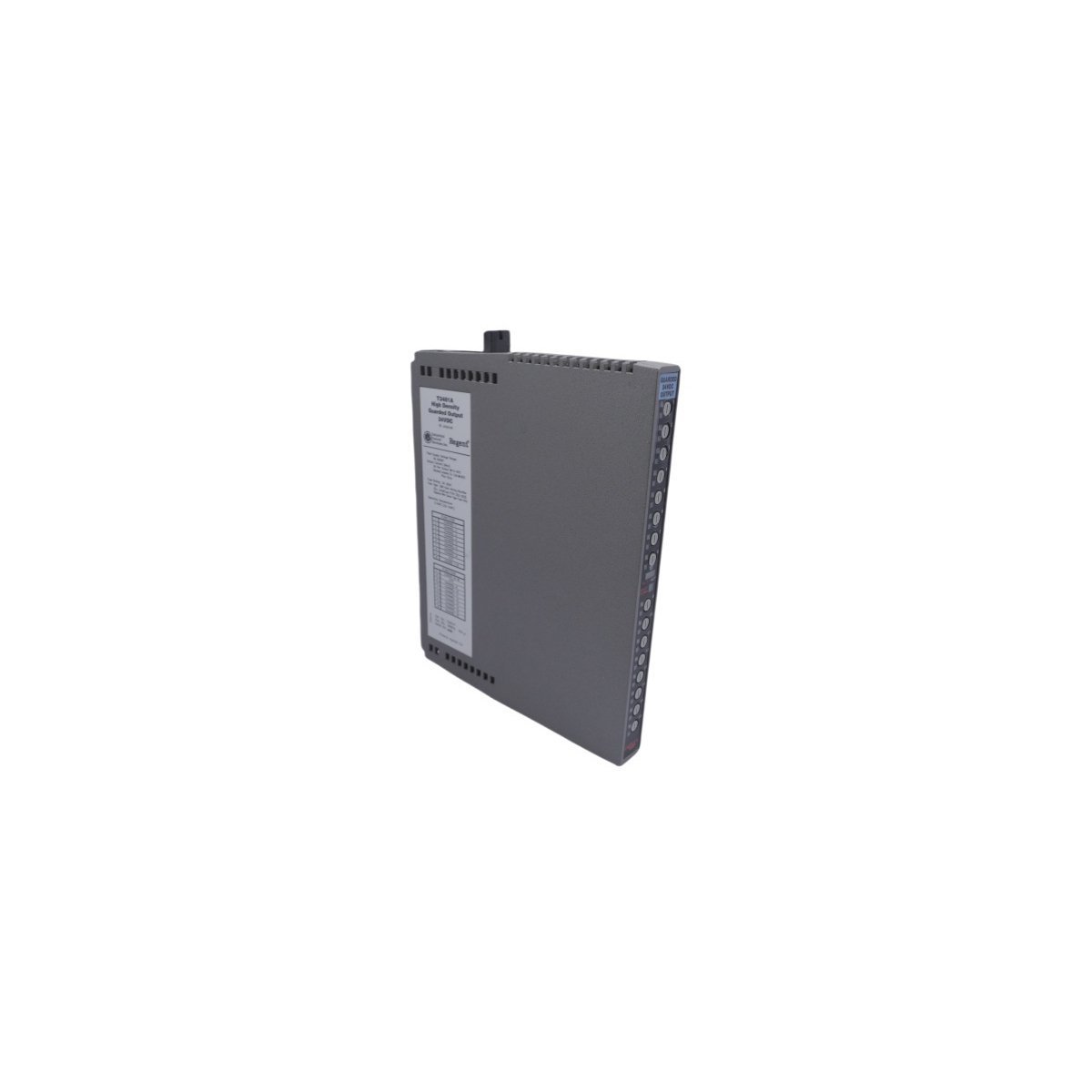

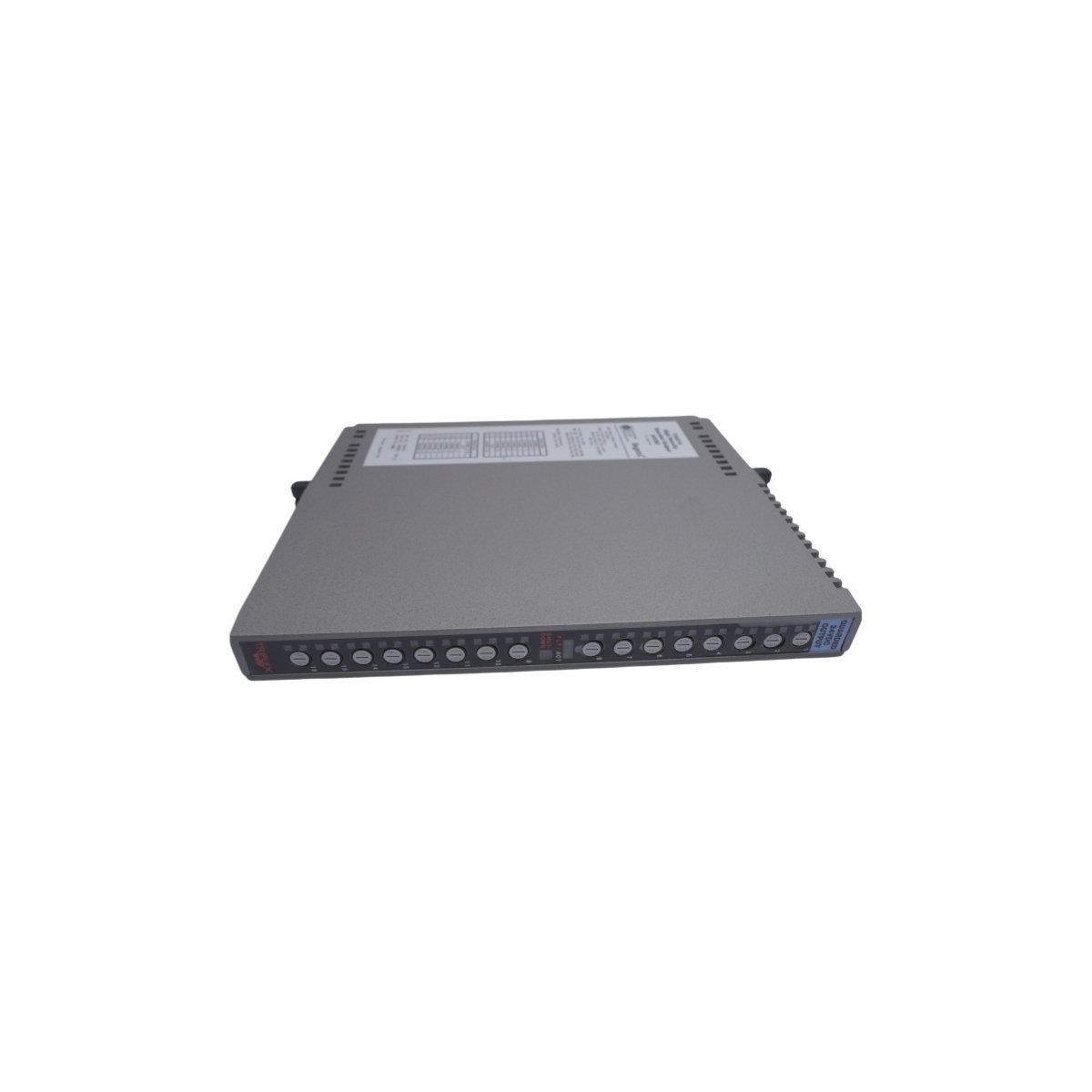

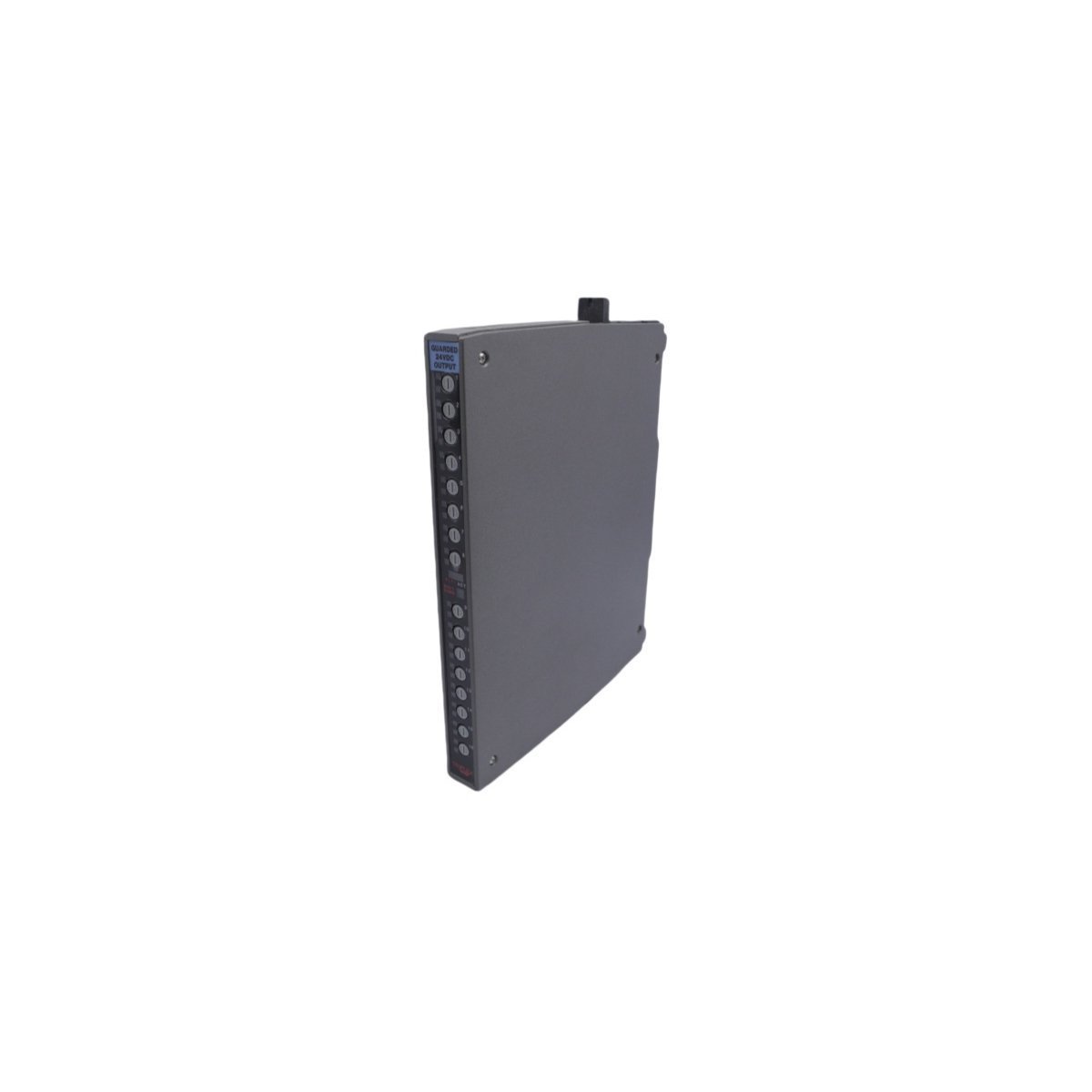

ICS Triplex T3481A Regent+Plus 24VDC High Density Guarded Output Module

Product Description

The ICS Triplex T3481A functions as a high-integrity High Density Guarded Output module within the Regent+Plus Control System ecosystem. This module provides a safe interface for driving 24VDC field actuators, such as solenoids and relays, while incorporating a specialized guarded mechanism. This design prevents unintended output activation caused by internal component failures or external electrical noise, making it a critical component for high-availability Safety Instrumented Systems (SIS).

Technical Specifications

The T3481A utilizes premium materials and a triplicated-ready architecture to maintain signal stability in demanding process environments.

• Manufacturer: ICS Triplex (Rockwell Automation)
• Model Number: T3481A
• Product Line: Regent+Plus Control System
• Module Type: High Density Guarded Output
• Number of Channels: 16 Channels
• Output Voltage: 24 VDC
• Current Rating: High-capacity output management per channel
• Operating Temperature: -40°C to +85°C
• Reliability: MTBF exceeding 1,000,000 hours
• Dimensions: 3.2 cm x 26.5 cm x 35.8 cm
• Weight: 1.82 kg
• Origin: USA

Functional Characteristics

The T3481A provides 16 independent output channels designed to manage high-density field wiring without compromising cabinet space. Each channel features a “guarded” logic circuit that requires a valid command sequence before allowing current to flow to the load. Consequently, this prevents accidental contact with live circuits and protects downstream equipment from surges. Furthermore, the module supports tool-free maintenance through a quick-disconnect interface, which allows technicians to replace units rapidly during scheduled maintenance windows.

Because the T3481A belongs to the Regent+Plus family, it thrives in environments characterized by extreme thermal fluctuations and electrical stress. The housing utilizes high-performance dielectric polymers that offer superior resistance to chemical exposure and vibration. Moreover, the module maintains an exceptional Mean Time Between Failures (MTBF) of over one million hours. This longevity ensures that the safety loop remains closed and reliable throughout the entire lifecycle of the industrial facility.

Engineering Advantages

Consequently, the T3481A simplifies the implementation of complex safety functions by providing high-density I/O in a compact form factor. Engineers can integrate this module into existing PLC or DCS architectures using standard connection protocols, which ensures scalability for future plant expansions. Therefore, the T3481A reduces the total cost of ownership by minimizing both the physical footprint of the control system and the likelihood of unscheduled downtime.

Additionally, the robust diagnostic capabilities of the T3481A allow for real-time monitoring of channel health. By identifying potential faults before they lead to a system trip, the module enhances the predictive maintenance capabilities of the facility. Consequently, the T3481A remains a preferred solution for operators in the oil and gas, power generation, and chemical processing industries who require the highest levels of safety and operational continuity.
