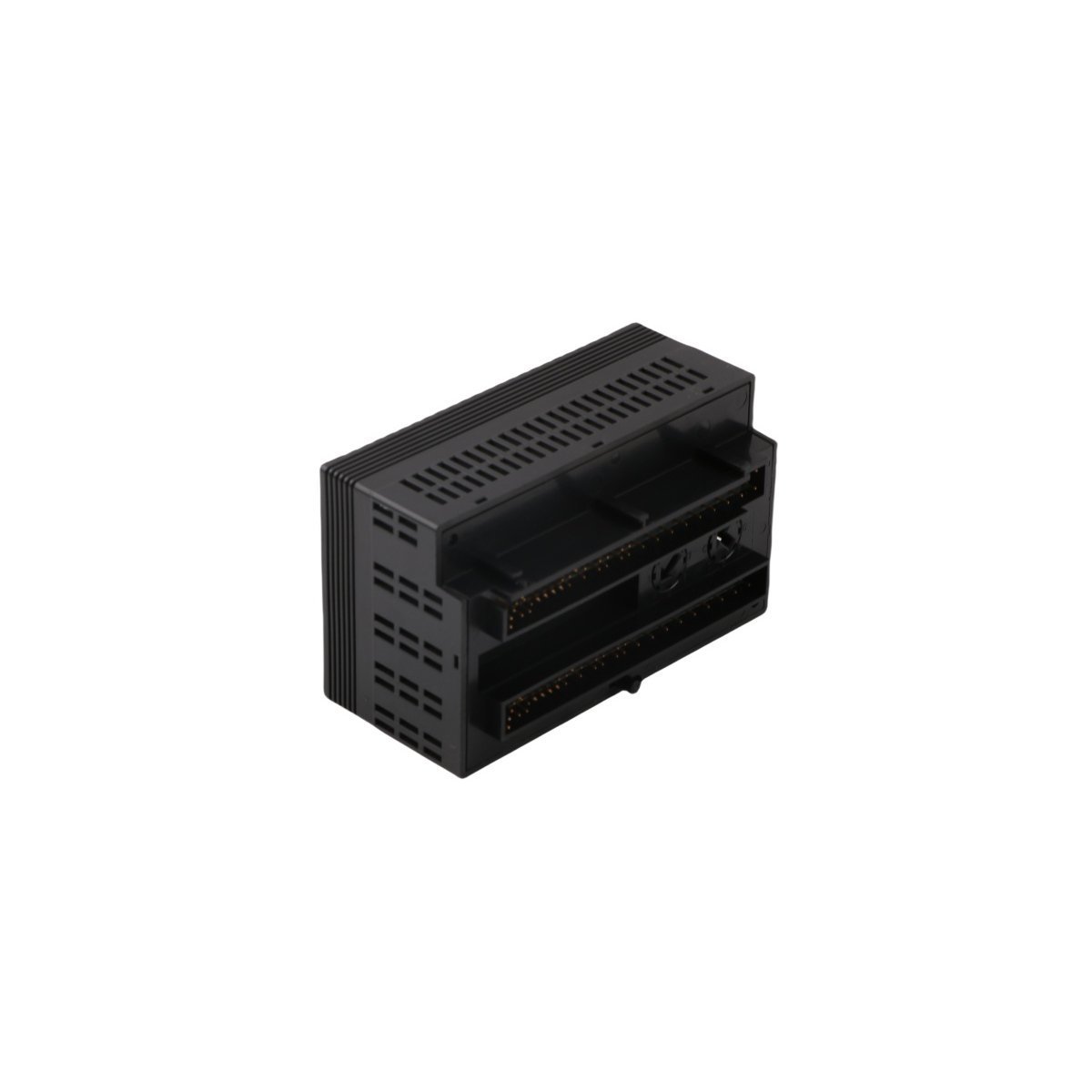

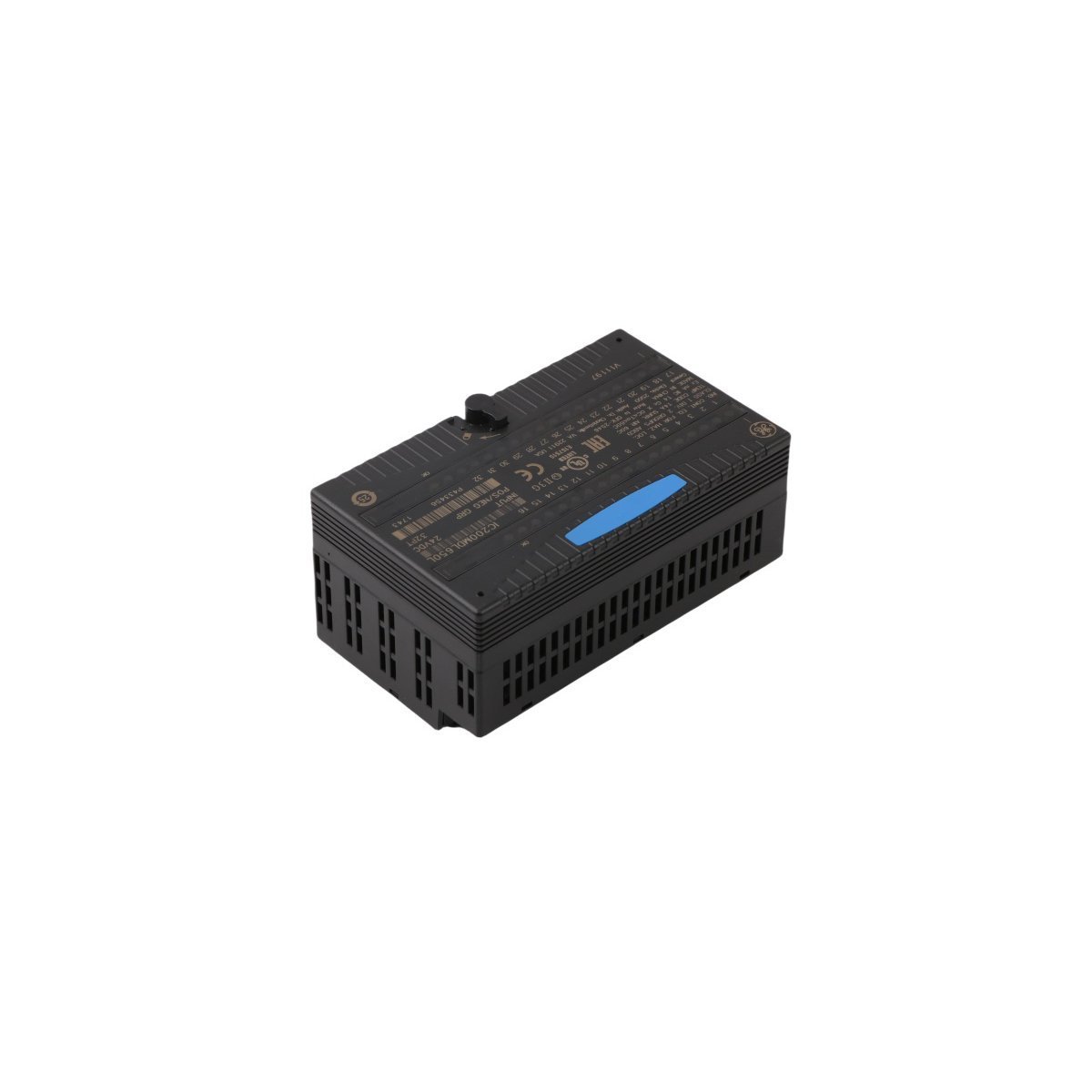

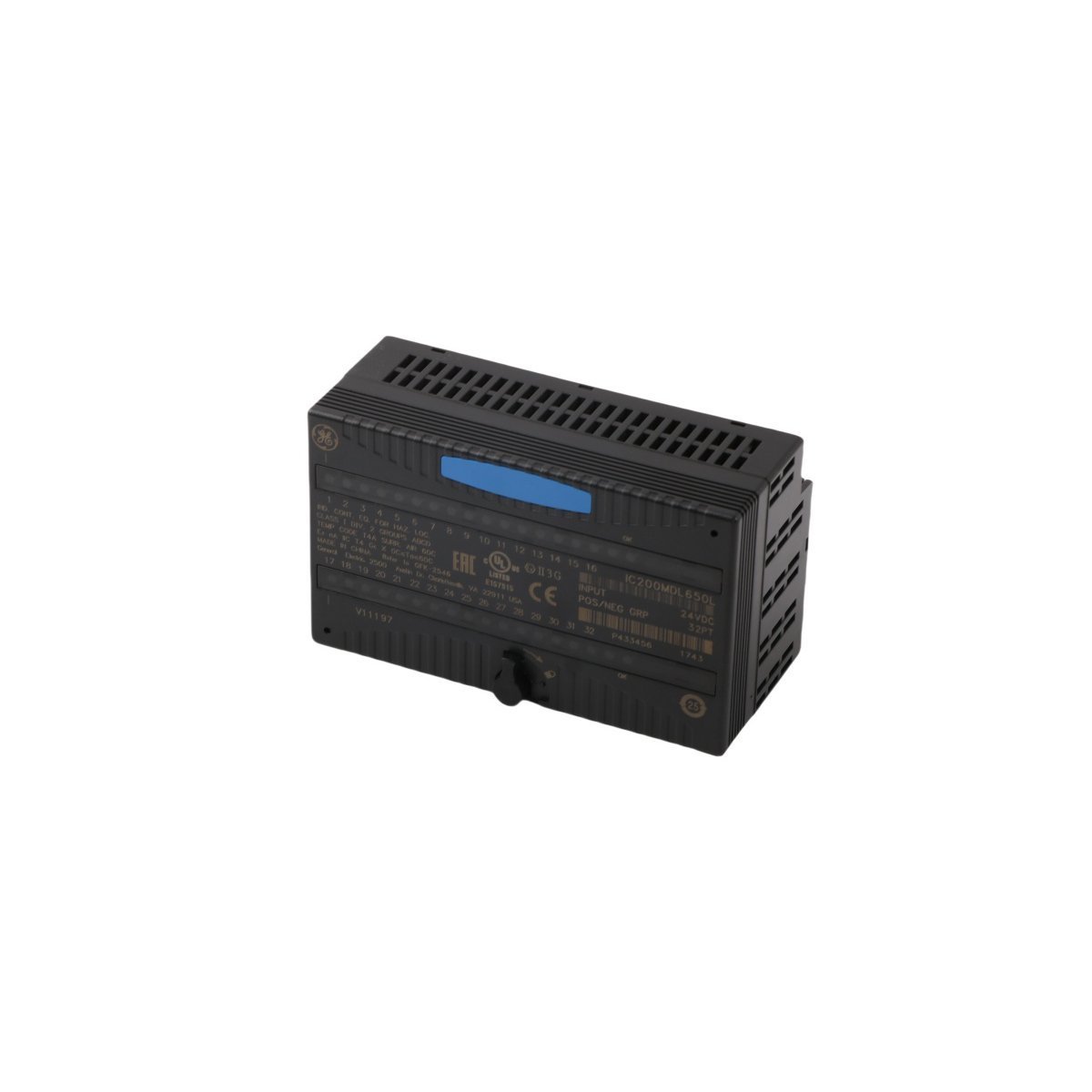

GE Fanuc IC200MDL650 VersaMax Discrete Input Module

The GE Fanuc IC200MDL650 serves as a high-density digital interface within the VersaMax I/O family. This module manages 32 discrete input points to monitor field device statuses effectively. It organizes these inputs into four distinct groups of eight points each. Because the design supports both sink and source configurations, it remains compatible with various sensor types. The module seamlessly communicates binary data to a central CPU or Network Interface Unit (NIU). Consequently, it provides reliable performance for high-speed manufacturing and process control applications.

Voltage and Signal Processing

This discrete module operates with a nominal input rating of 24 Volts DC. It remains functional across a broad voltage window ranging from 0 to 30 Volts DC. The internal circuitry utilizes a 10k Ohm input impedance to ensure signal stability. Furthermore, the hardware achieves a rapid response time of 0.5 milliseconds for both on and off transitions. An on-state condition requires a voltage between 15 and 30 Volts DC. This precise threshold prevents false triggering from electrical noise in industrial environments.

Key Technical Specifications

The following data outlines the physical and electrical profile of the IC200MDL650 module:

• Manufacturer: GE Fanuc (Emerson)
• Series: VersaMax I/O
• Model Number: IC200MDL650
• Input Type: Discrete DC (Sink/Source)
• Number of Points: 32 (4 groups of 8)
• Rated Voltage: 24 VDC
• Input Impedance: 10k Ohms
• Backplane Current: 50 mA @ 5 VDC
• Filter Times: 0ms, 1ms, or 7ms (Selectable)
• Dimensions: 11 x 5.8 x 6.5 cm
• Net Weight: 0.14 kg

Installation and Environment

The compact footprint of the IC200MDL650 facilitates high-density installation on standard DIN rails. Technicians should consider ambient temperature when planning the cabinet layout to optimize thermal performance. The module connects to field wiring through a separate terminal carrier for easier maintenance. This modular approach allows for hot-swapping under specific system conditions. Proper grounding of the common terminals ensures the 1500V isolation barrier protects the PLC backplane effectively.
