MU-TAIH02 51304453-100 Honeywell MU-T Series Analog Input Boards

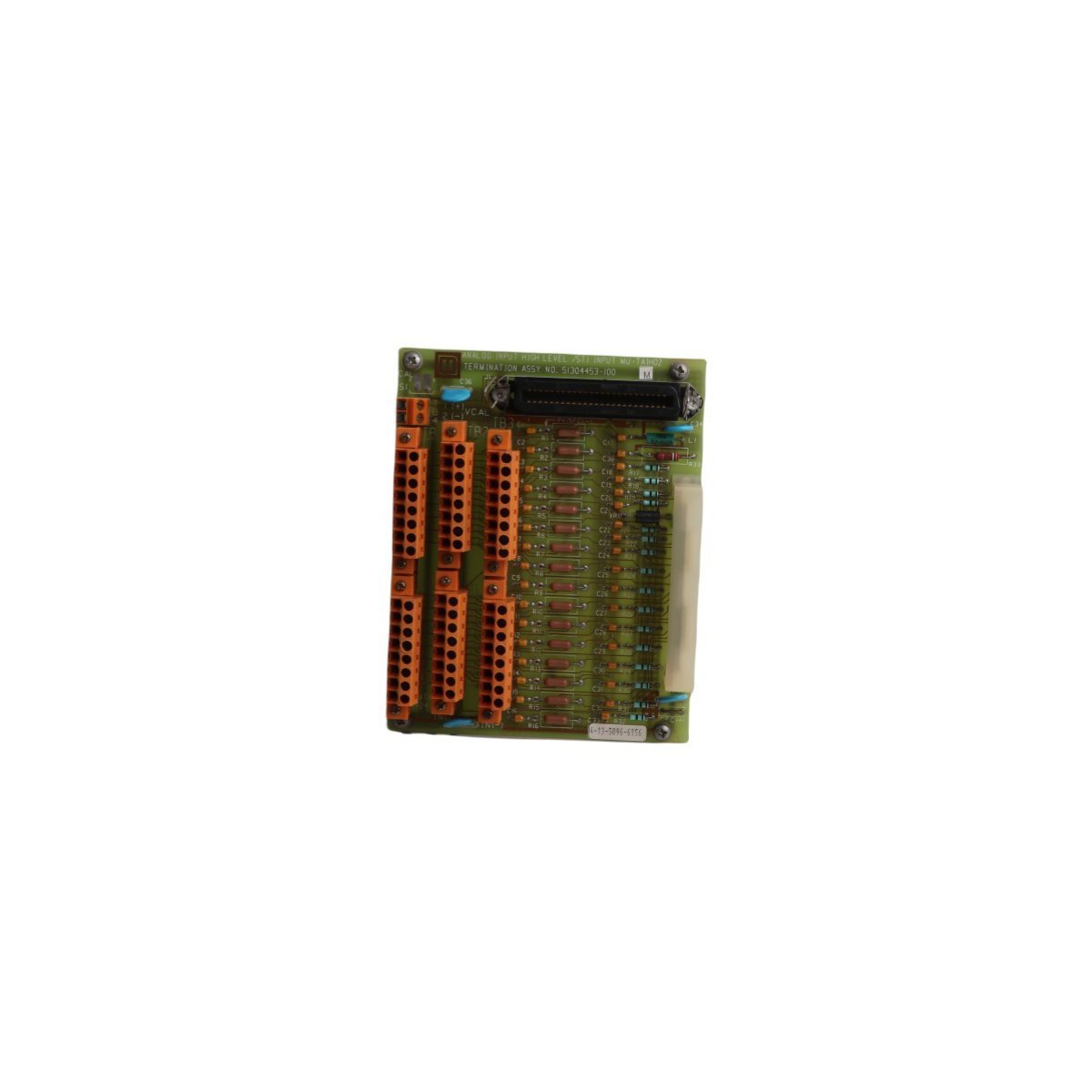

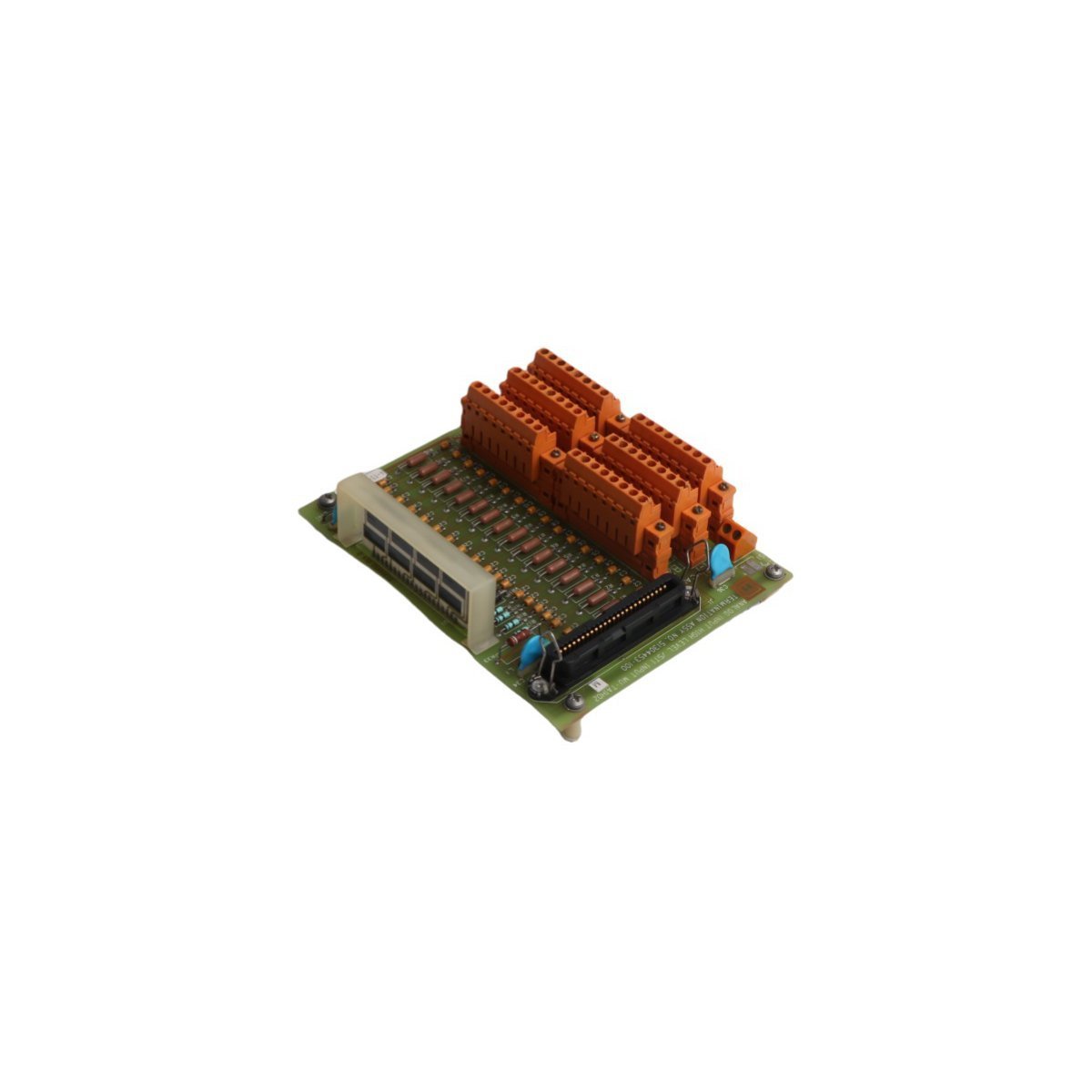

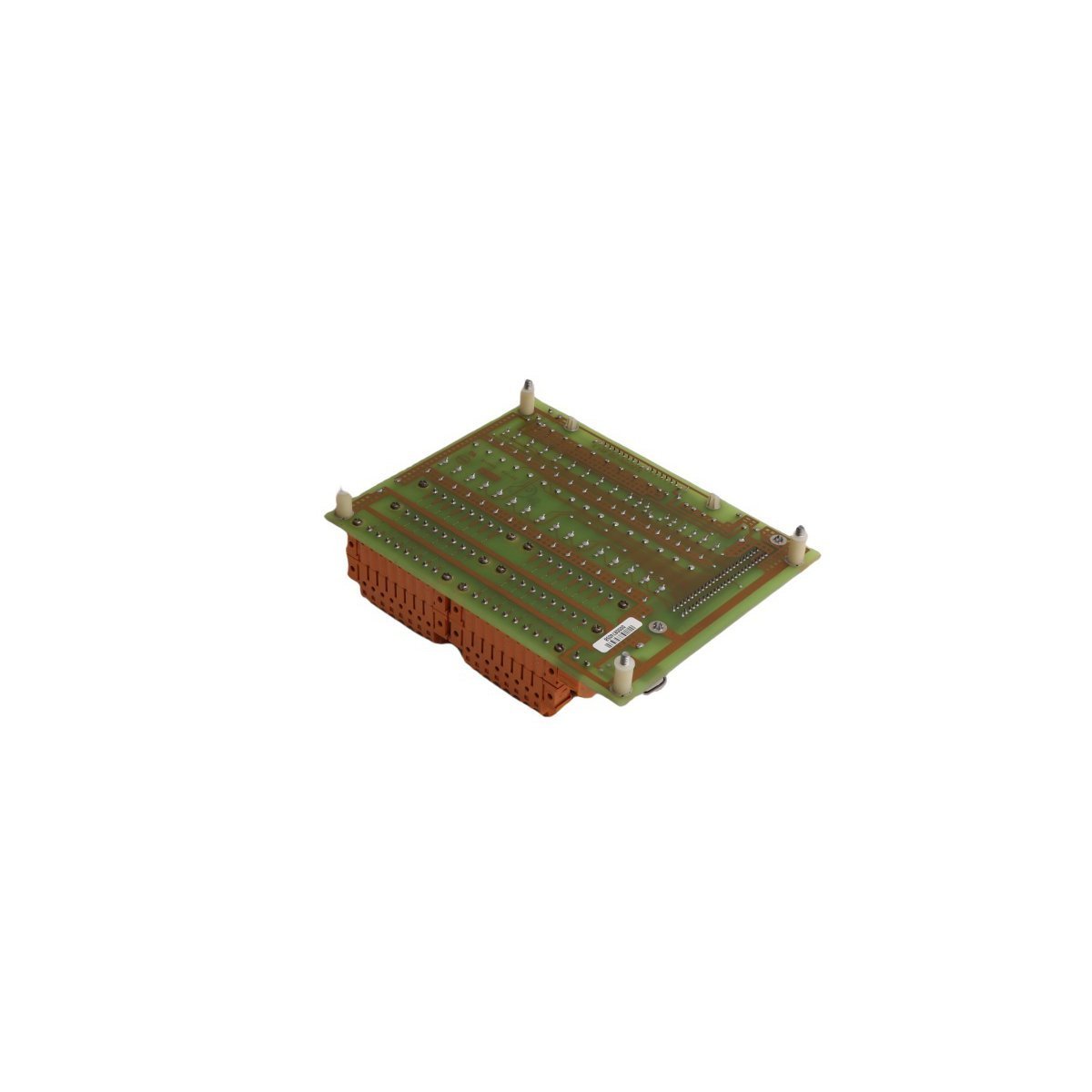

Honeywell MU-TAIH02 51304453-100 MU-T Series Analog Input STI Termination Board

Configured for 16-channel field signal conditioning in Honeywell Experion PKS and PM/APM controller assemblies, the Honeywell MU-TAIH02 51304453-100 (MU-TAIH02 Analog Input STI Termination Board) provides direct physical/electrical execution. The assembly routes differential analog current and voltage inputs from process transmitters directly to system I/O processors across high-density ribbon cables.

Hardware Specifications

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

The termination assembly conditions incoming field signals before passing them to central processing racks. When field instruments transmit process variables using the 4-20 mA HART loop protocol, internal precision precision-shunt resistors convert current signals to proportional 1-5 VDC levels without attenuating modulated high-frequency digital data. Furthermore, dedicated surge suppression networks and channel-to-channel isolation barriers protect downstream analog-to-digital converters from ground loops and high-voltage electrical noise.

Frequently Asked Questions

Q: How do technicians convert the board channels between 4-20 mA current and 1-5 VDC voltage inputs?

A: Field engineers select input modes by positioning hardware jumpers on the terminal board, which engages or disengages internal 250-ohm precision shunt resistors across individual channel terminals.

Q: Can maintenance staff disconnect field wiring without interrupting power to the High-Performance Process Manager (HPM) rack?

A: Yes, maintenance personnel can safely remove individual screw terminal blocks or field wires while the system remains powered because the passive board limits transient current paths.

Q: Does the board support redundant cable connections to the Analog Input IOP card?

A: Yes, dual ribbon cable connectors on the board allow engineers to establish redundant signal paths back to dual High-Level Analog Input (HLAI) processor cards.

Field Installation Guidelines

Mount the MU-TAIH02 termination board securely onto the DIN rail or vertical cabinet channel, confirming that retaining clips click into place. Next, wire field transmitter cables to the screw terminals, ensuring that technicians strip conductors to 6 mm and torque terminals to manufacturer specifications. Route low-level analog input wiring through dedicated cable channels, maintaining physical separation from high-voltage AC power leads and inductive motor control circuits. Finally, terminate cable shield drain wires at the designated system earth bar to eliminate ground loop currents and minimize electromagnetic interference.
