Key Technical Specifications
The following specifications define the electrical and physical profile of the DS200TCQCG1BJF:
- Manufacturer: General Electric (GE)
- Series: Mark V Speedtronic
- Model Number: DS200TCQCG1BJF
- Product Type: Analog IO Expander / RST Overflow Board
- Interface Ports: 40-pin (3), 34-pin (3), 16-pin (1)
- Configuration: 24 Onboard Jumpers
- Control Elements: Solder-integrated Relays
- Shipping Weight: 0.44 kg
- Board Dimensions: 28 x 21.3 x 3.5 cm
- Country of Origin: USA
The GE DS200TCQCG1BJF serves as a high-performance expansion module within the Speedtronic Mark V turbine control system. Engineers often identify this component as the RST Overflow Board or the Analog IO Expander. Its primary purpose involves scaling the analog input and output capabilities of the central controller. By providing additional signal pathways, it allows the DCS to manage complex turbine operations effectively. This board supports critical monitoring and control tasks for gas and steam power generation units. Its integration ensures seamless data flow across the entire control rack.

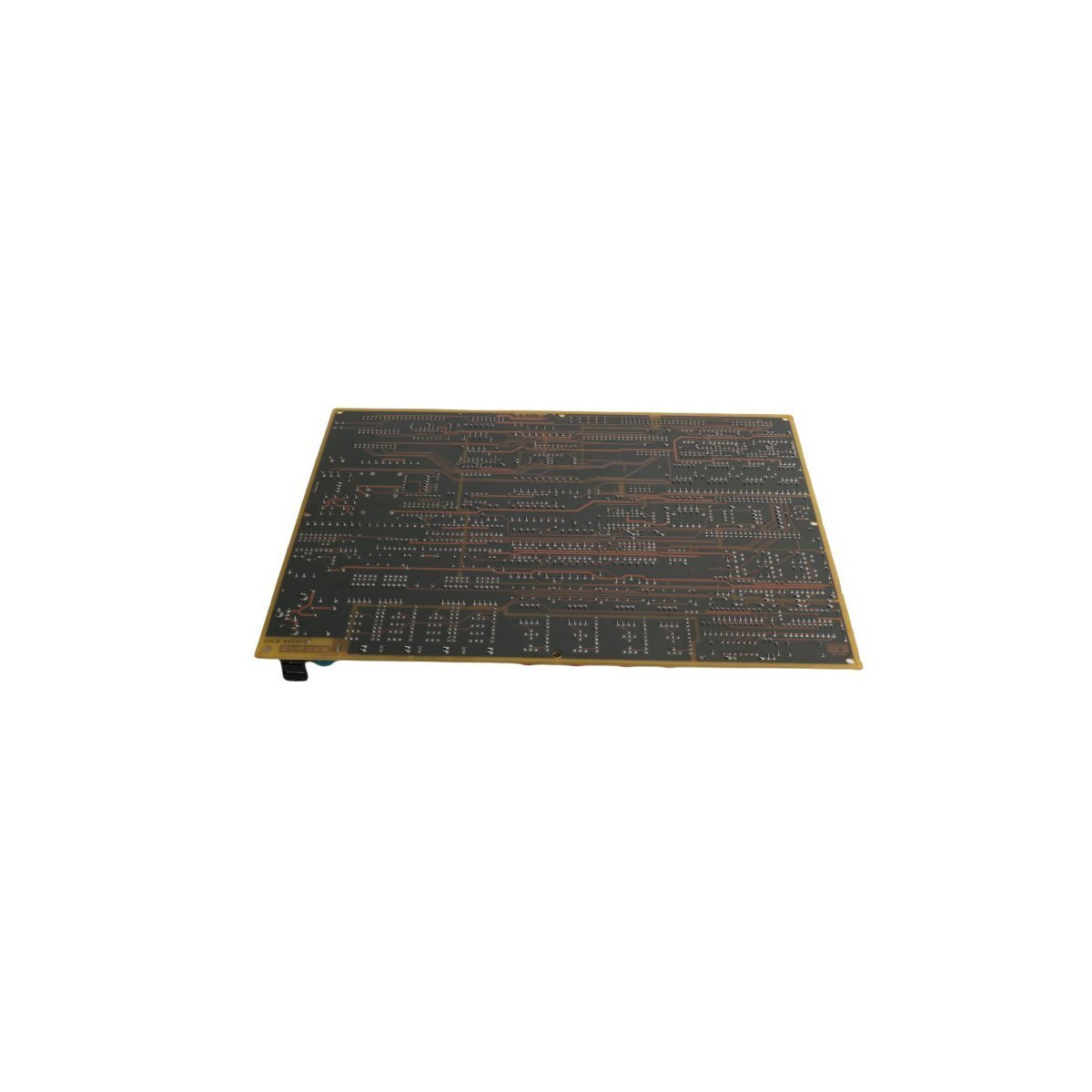

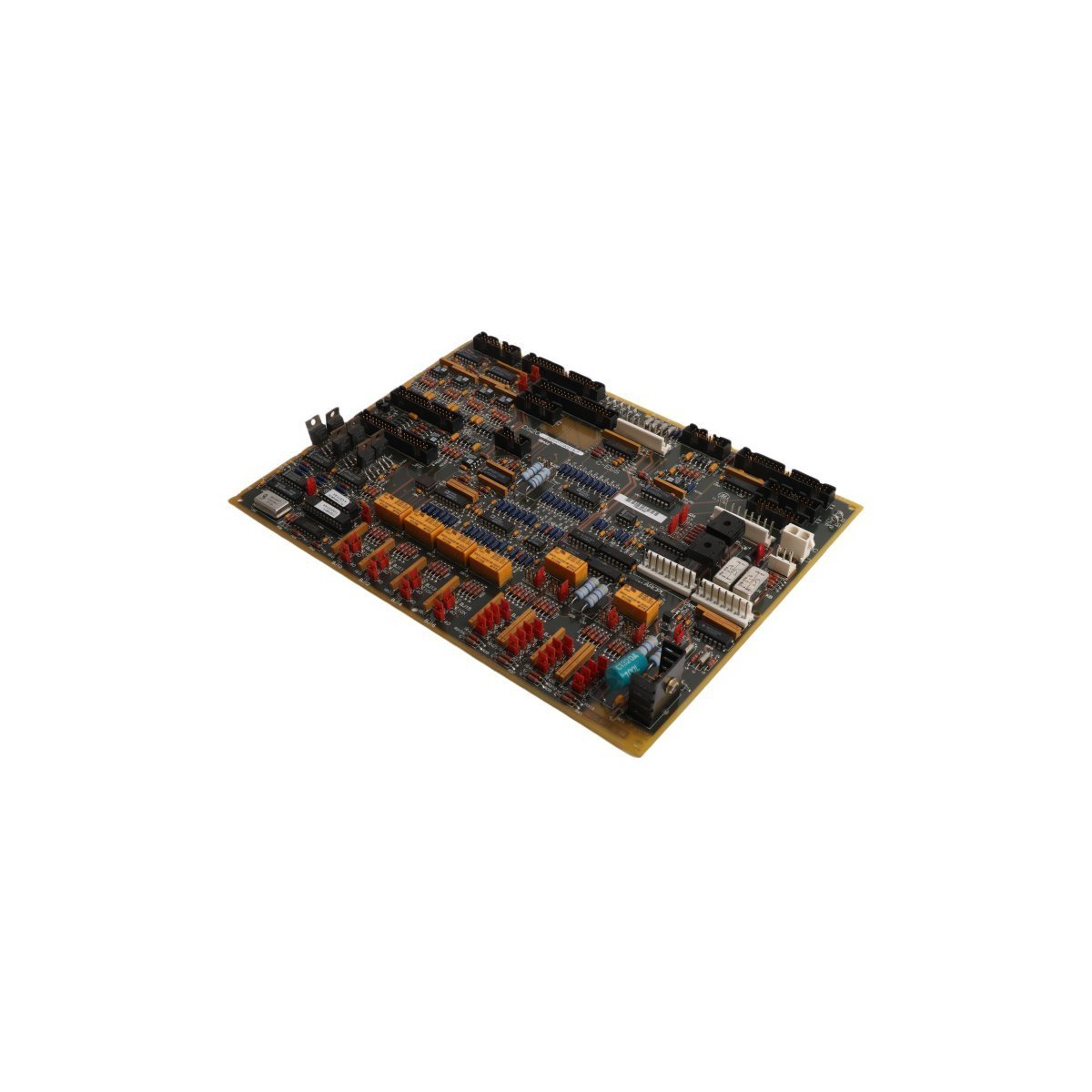

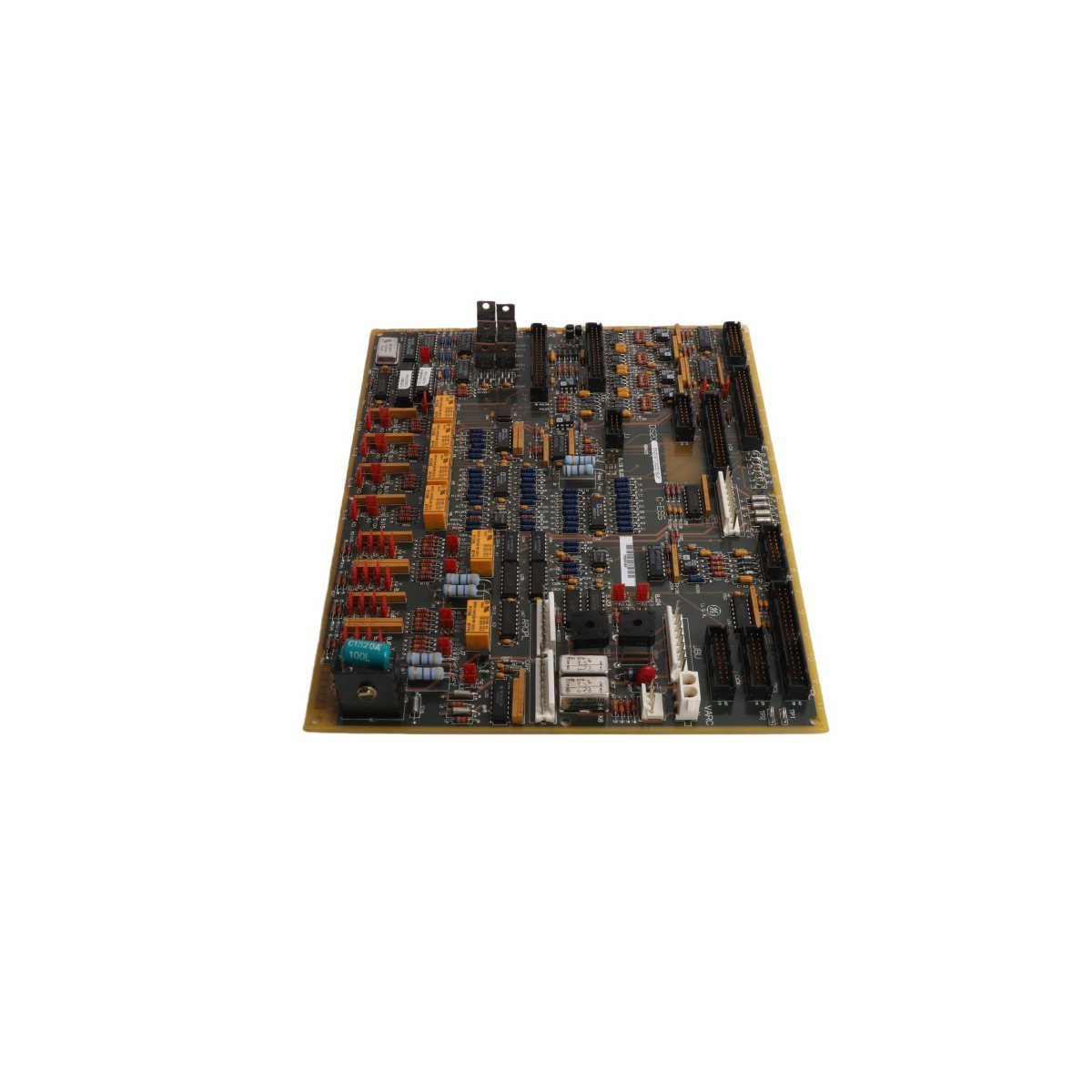

Hardware Architecture and Configuration
This specific model features a sophisticated physical layout designed for industrial reliability. The assembly includes 24 manual jumpers that allow for precise hardware customization. These jumpers enable technicians to set signal levels and routing paths during commission. Furthermore, the board contains several high-density connectors to facilitate data exchange. The JC port utilizes a 16-pin configuration, while the JFF, JE, and 6PL ports use 40-pin connectors. Additionally, 34-pin connectors labeled JFF, 1PL, and JA complete the interface array. These physical links ensure robust electrical contact for all analog signals.
Signal Integrity and Installation Best Practices
Maintaining low signal noise remains vital for accurate turbine control. The DS200TCQCG1BJF connects to other system components via multiple ribbon cables. Proper routing of these cables prevents electromagnetic interference from neighboring power lines. Technicians should always cross signal and power cables at 90-degree angles. Parallel cable runs may lead to signal degradation or false data readings. Moreover, the board includes integrated relays that manage circuit activation. These relays are factory-soldered to the PCB and require no periodic maintenance or adjustment.
