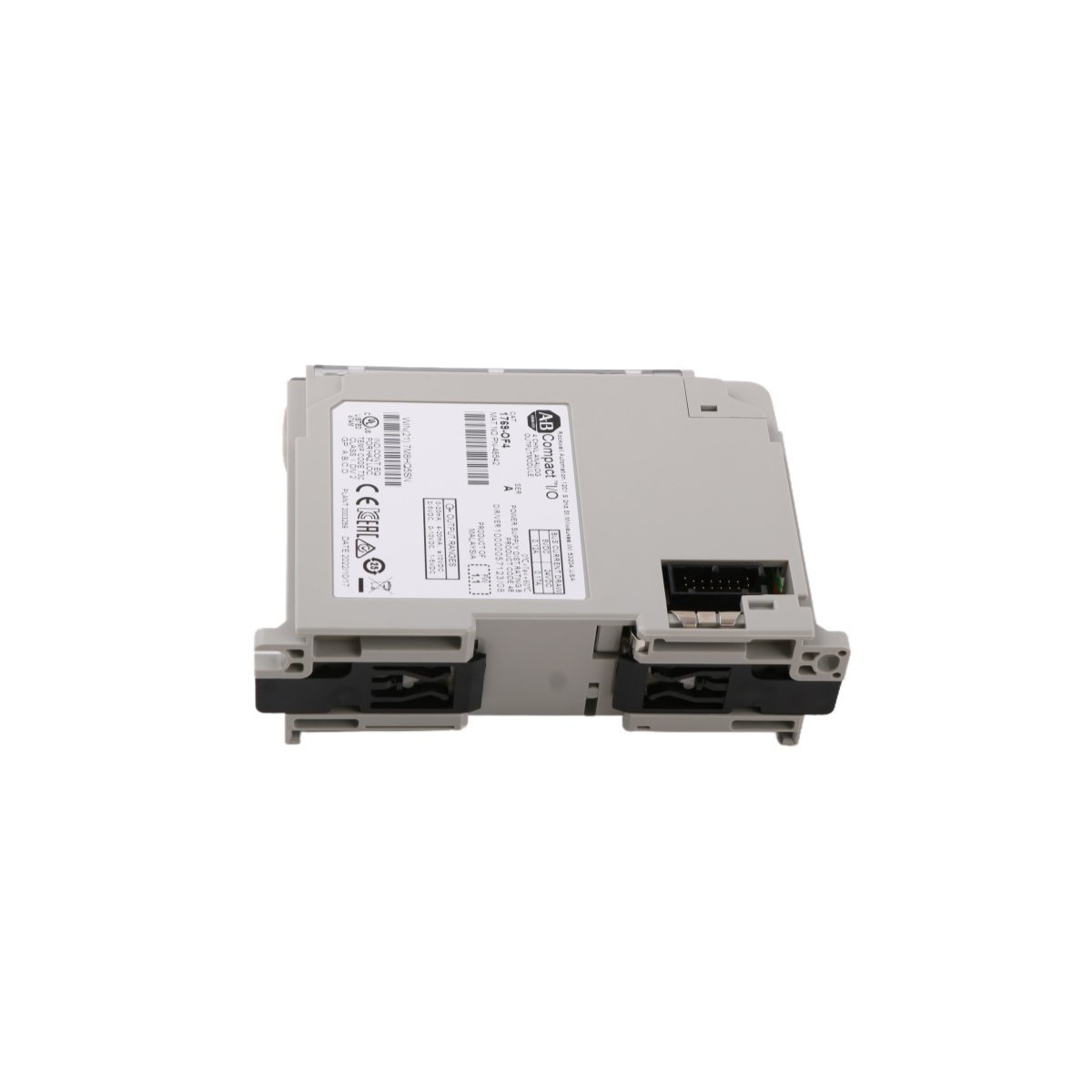

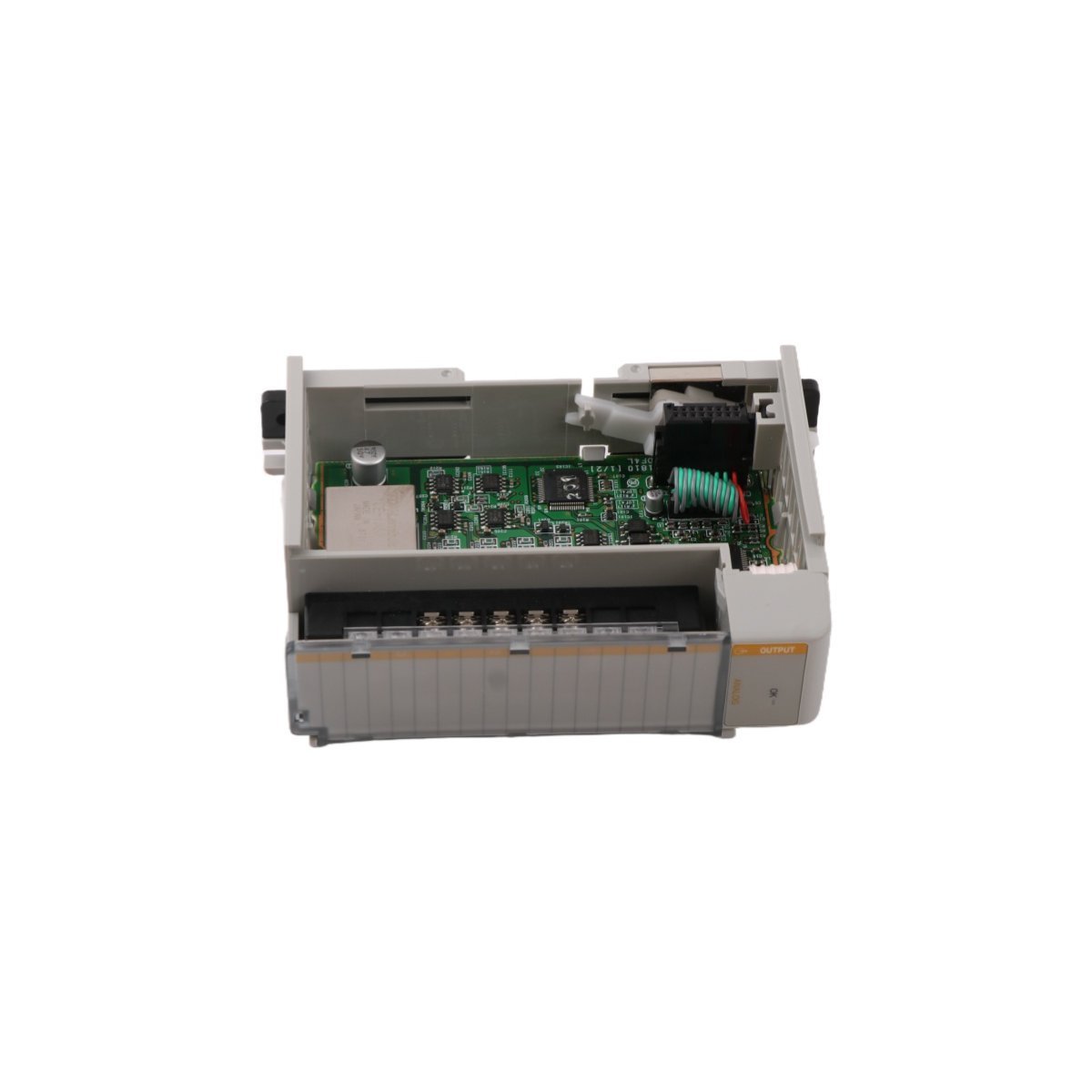

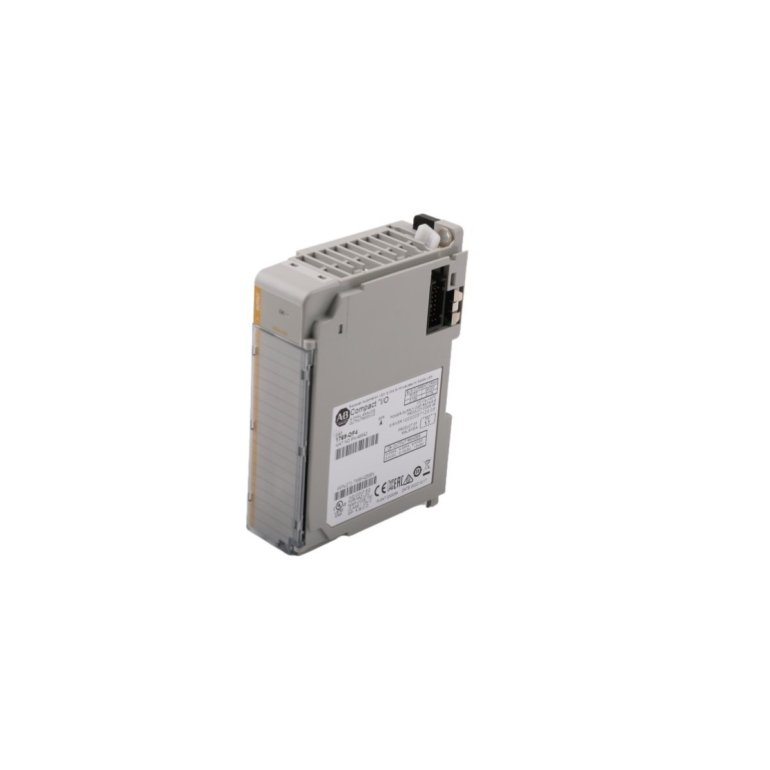

Allen-Bradley 1769-OF4 Compact I/O Module

The Allen-Bradley 1769-OF4 serves as a premium analog output solution for MicroLogix 1500 and CompactLogix controller systems.¹ This module features four single-ended channels that transmit precise command signals to various industrial field devices. Because engineers need flexibility, the 1769-OF4 supports multiple output ranges including ±10V DC, 0 to 10V DC, 0 to 20 mA, and 4 to 20 mA. Additionally, the integrated 15-bit digital-to-analog converter ensures that every signal remains consistent and highly accurate. This level of precision makes the module a reliable choice for managing critical industrial hardware.

Technical Specifications

Robust Installation and Circuit Safeguards

Reliability remains a core benefit of the 1769-OF4 circuit architecture. The module incorporates built-in overvoltage and short-circuit protection to insulate the backplane logic from external electrical faults. To maintain optimal signal quality, users should install the module within eight slots of the system power supply. Although the unit has a compact footprint, it limits output ripple to just ±0.05%. This feature effectively prevents electrical noise from disrupting sensitive chart recorders or instrumentation. Moreover, the rugged American-made housing supports continuous operation even in ambient temperatures reaching 60°C.

Standard Industrial Implementations

The 1769-OF4 provides a versatile interface for many common automation tasks:

• Motor Speed Control: Sending precise frequency setpoints to VFDs and servo controllers.
• Fluid Management: Adjusting proportional control valves for flow and pressure regulation.
• Thermal Regulation: Controlling power levels for industrial ovens and heating elements.
• Signal Mirroring: Transmitting process variables to analog displays and remote monitoring stations.
