10300/1/1 10300/1/1 Honeywell FSC System Watchdog Modules

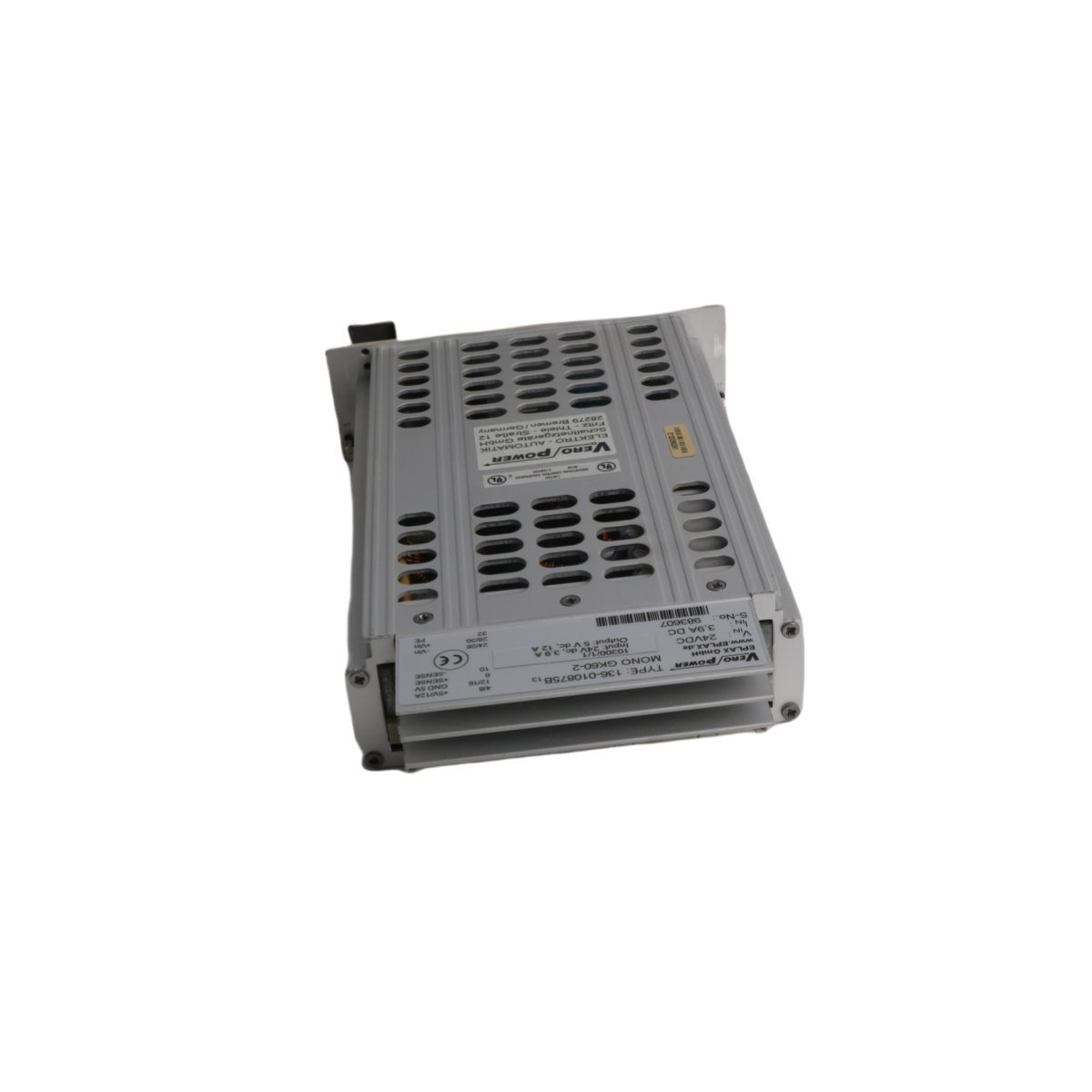

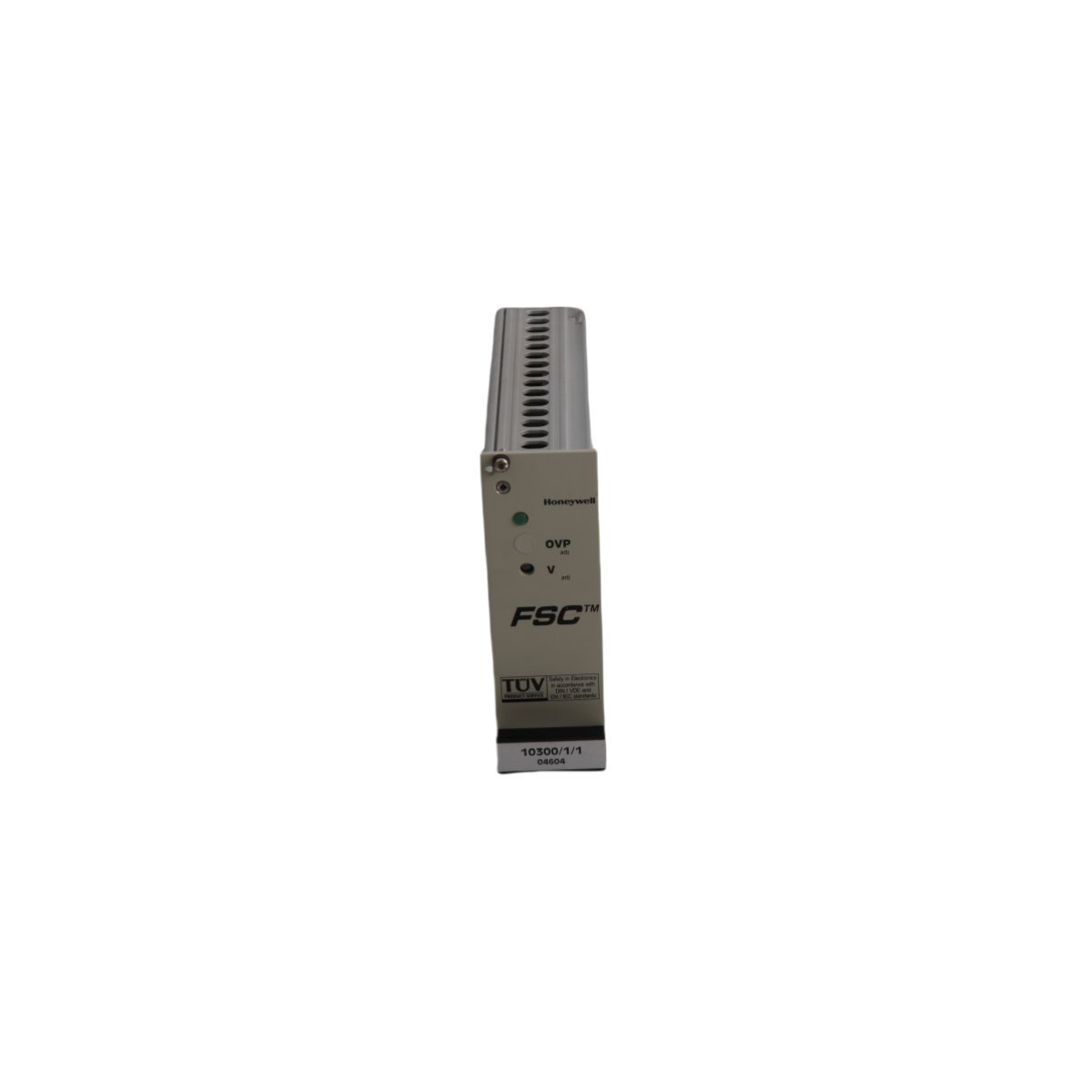

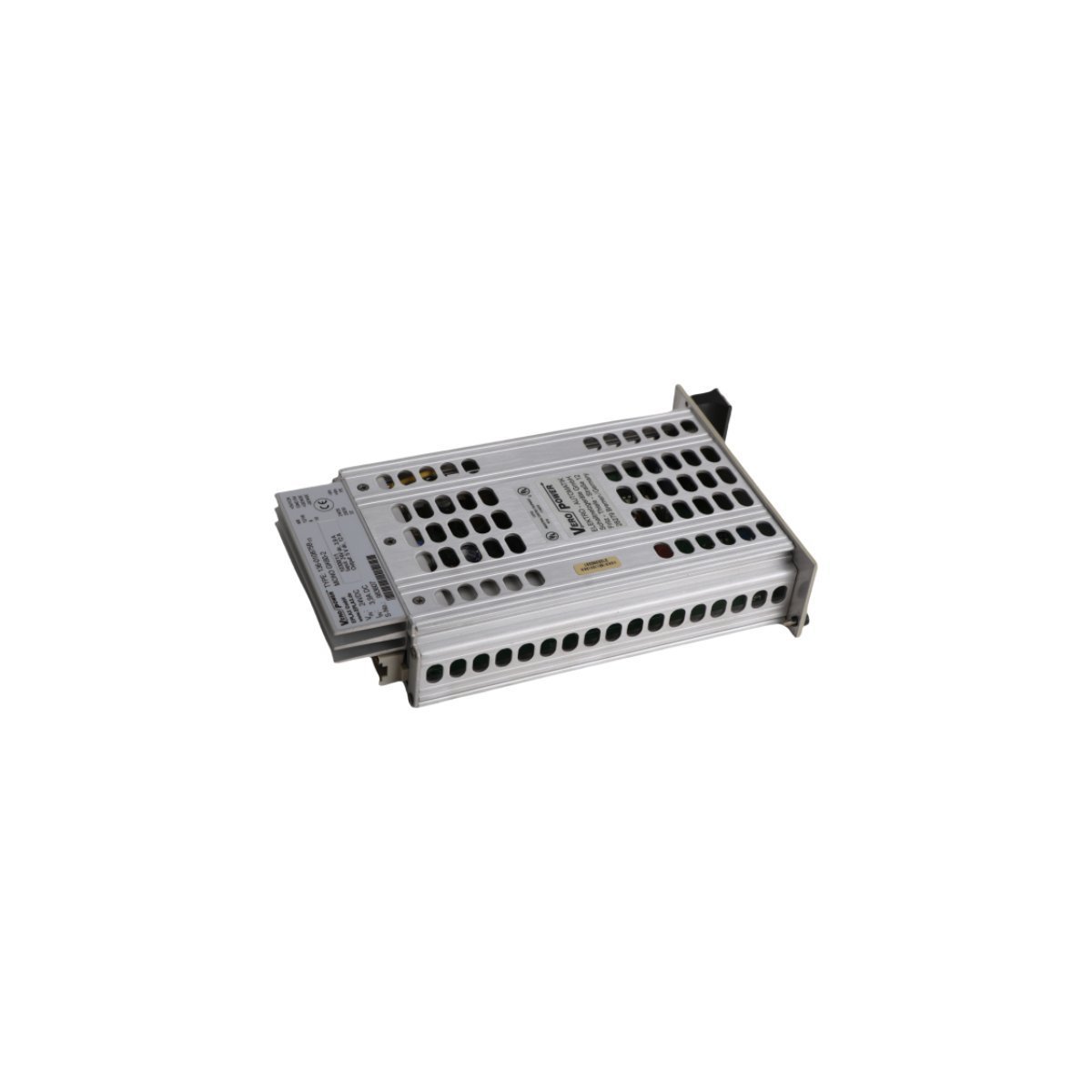

Honeywell 10300/1/1 FSC Watchdog Converter Module

The Honeywell 10300/1/1, also cataloged as the 10300/1/1 Watchdog Converter Module, operates as a dedicated hardware component for power conversion and system fault monitoring within Fail Safe Control (FSC) platforms. Engineers configure the module to down-step 24 VDC input power to 5 VDC at 12 A while concurrently tracking system heartbeat signals to trigger fail-safe isolation upon software execution stalls.

Hardware Specifications

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

The module processes system status signals while maintaining galvanic separation between power conversion circuits and internal backplane logic pathways. Although field transmitters pass analog values over 4-20 mA HART loop protocol connections to adjacent input cards, the 10300/1/1 module delivers steady regulated power without introducing switching noise into field signals. High-voltage channel-to-channel isolation prevents ground loop currents from propagating across power rails, which safeguards field input/output channels from electrical noise coupling.

Frequently Asked Questions

Q: How does the watchdog function respond when the main processor stops transmitting heartbeat pulses?

A: The watchdog timer circuit detects missing clock pulses within milliseconds, whereupon it drops system ready contacts to force controlled safety shutdown outputs.

Q: Does the 10300/1/1 power converter module provide overvoltage protection on its 5 VDC output rail?

A: Yes, internal crowbar sensing circuits continuously monitor output levels, and they immediately clamp voltage surges to prevent damage to sensitive backplane microprocessors.

Q: Can maintenance staff hot-swap the 10300/1/1 converter module while the FSC rack remains energized?

A: Field technicians must shut down power to the rack slot prior to removal because extracting the module interrupts primary 5 VDC power distribution to neighboring cards.

Field Installation Guidelines

Engineers must mount the 10300/1/1 module securely into the designated FSC rack slot and tighten top and bottom retaining screws to establish chassis ground continuity. Next, technicians should verify that 24 VDC input supply wiring meets cross-sectional wire gauge requirements before applying system power. Installers must route input power leads through designated wire ducts, maintaining adequate physical separation from sensitive analog signal lines and fiber communications to prevent noise coupling. Finally, maintenance teams should verify cabinet earthing points to ensure static charge dissipation from the module frame to primary plant earth.
