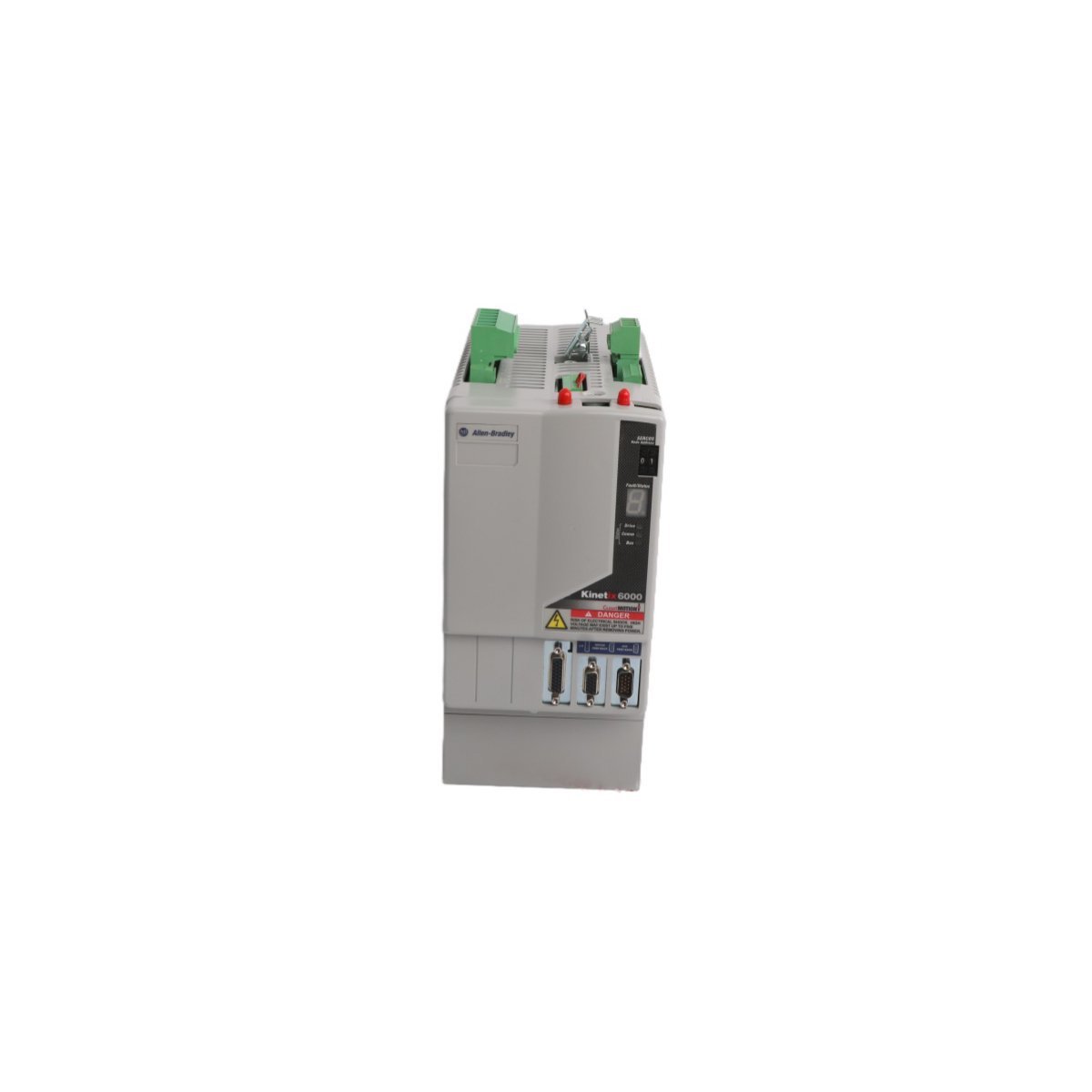

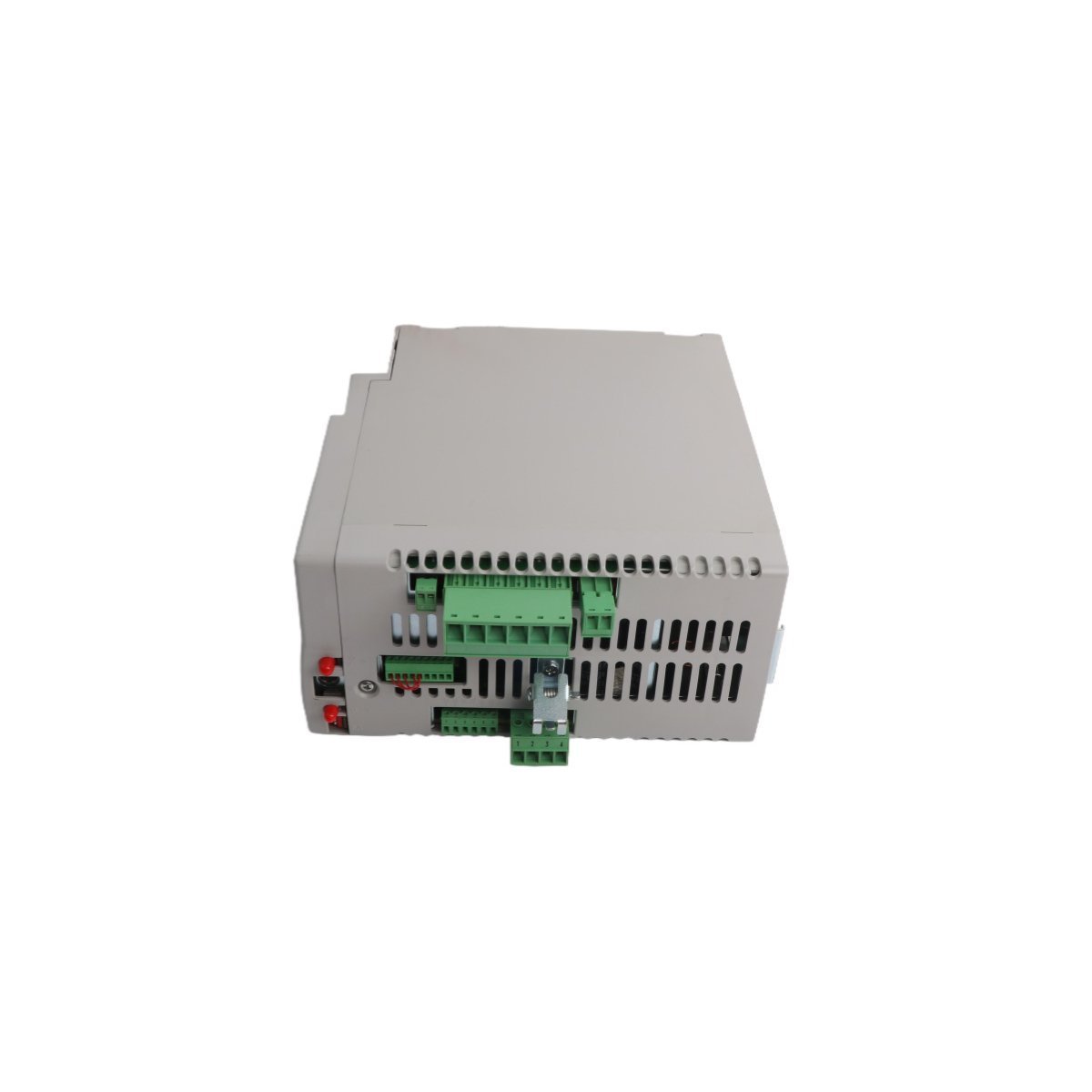

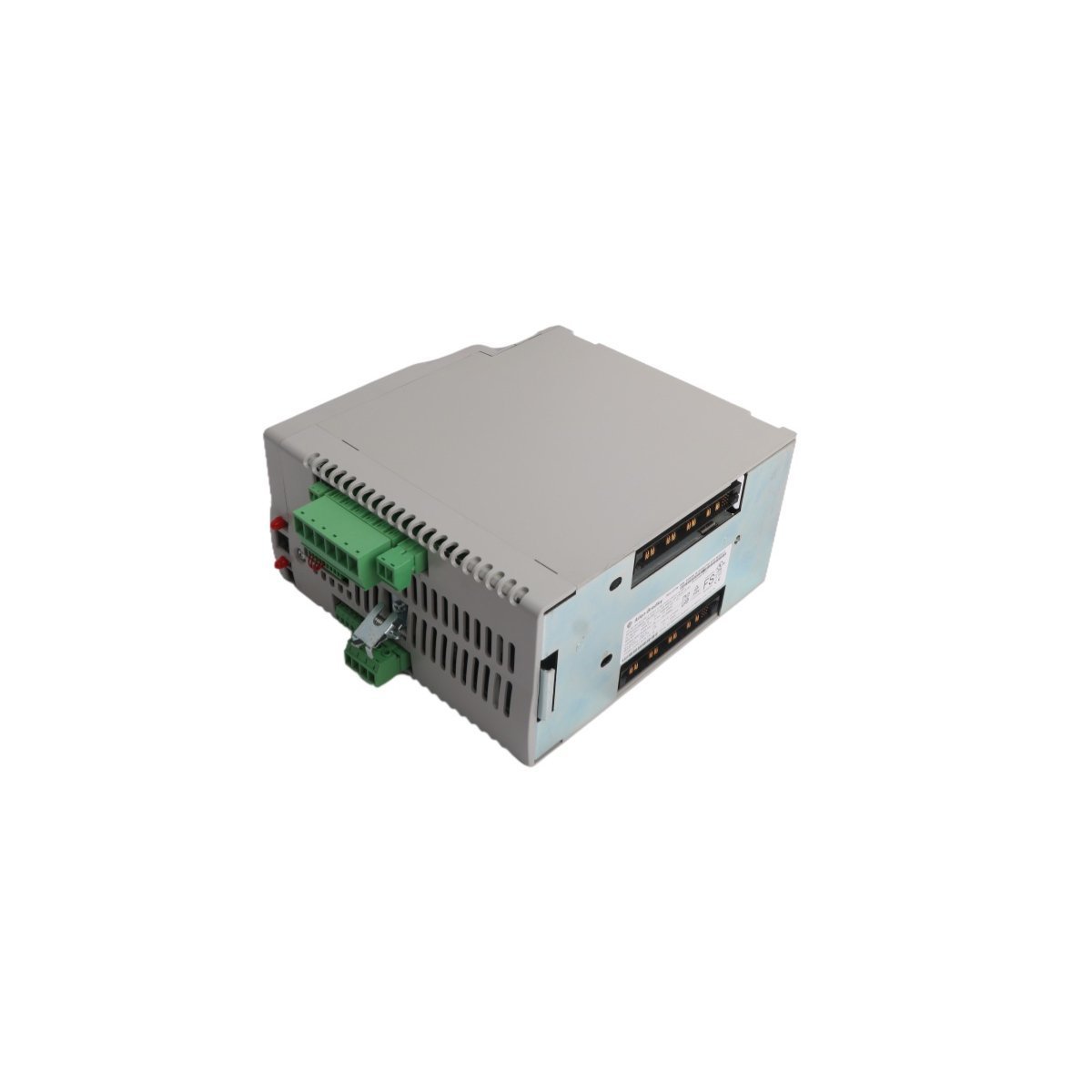

Allen-Bradley 2094-BC01-M01-S Kinetix 6000 Integrated Axis Module

Allen-Bradley 2094-BC01-M01-S Integrated Axis Module

The Allen-Bradley 2094-BC01-M01-S, also cataloged as the 2094-BC01-M01-S Integrated Axis Module, operates as a dedicated hardware component for multi-axis motion control and power conversion within Kinetix 6000 drive systems.

Hardware Specifications

PLC and Drive Control Characteristics

The 2094-BC01-M01-S integrates seamlessly into deterministic networks via the SERCOS interface. This fiber-optic communication architecture provides high-speed, noise-resistant data exchange essential for synchronized multi-axis motion. The module manages both inverter and converter stages within a singular footprint, maintaining firmware compatibility with the Kinetix 6000 multi-axis drive family. Users manage I/O density and axis scaling through the Kinetix system software, ensuring synchronous execution of motion commands across the backplane bus.

Frequently Asked Questions

Q: Does the 2094-BC01-M01-S support hot-swapping during active operation?

A: No. The hardware requires complete power isolation and discharge of the internal DC bus before removing the module from the power rail to prevent electrical arcing and component damage.

Q: Can this module operate without a secondary safety relay for SIL3 compliance?

A: While the module includes built-in Safe Torque Off (STO) functionality certified to SIL3, the system integrator must verify that the machine-level safety circuit wiring complies with ISO 13849-1 requirements.

Field Installation Guidelines

• Mechanical Mounting: Secure the module onto the dedicated power rail system. Ensure the rear connectors seat firmly into the backplane to establish the DC bus and control power distribution.
• Grounding: Connect the chassis ground terminal to a low-impedance ground bus. High-frequency noise generated by the PWM switching requires a robust, dedicated grounding path to protect sensitive communication circuits.
• Cable Routing: Separate SERCOS fiber optic cables from high-voltage motor power leads. High-voltage interference degrades signal integrity on the fiber interface.
• Termination: Ensure fiber optic connectors remain clean and properly seated. Inspect the ring or linear topology termination to confirm signal loop integrity before applying input voltage.
