Product Summary

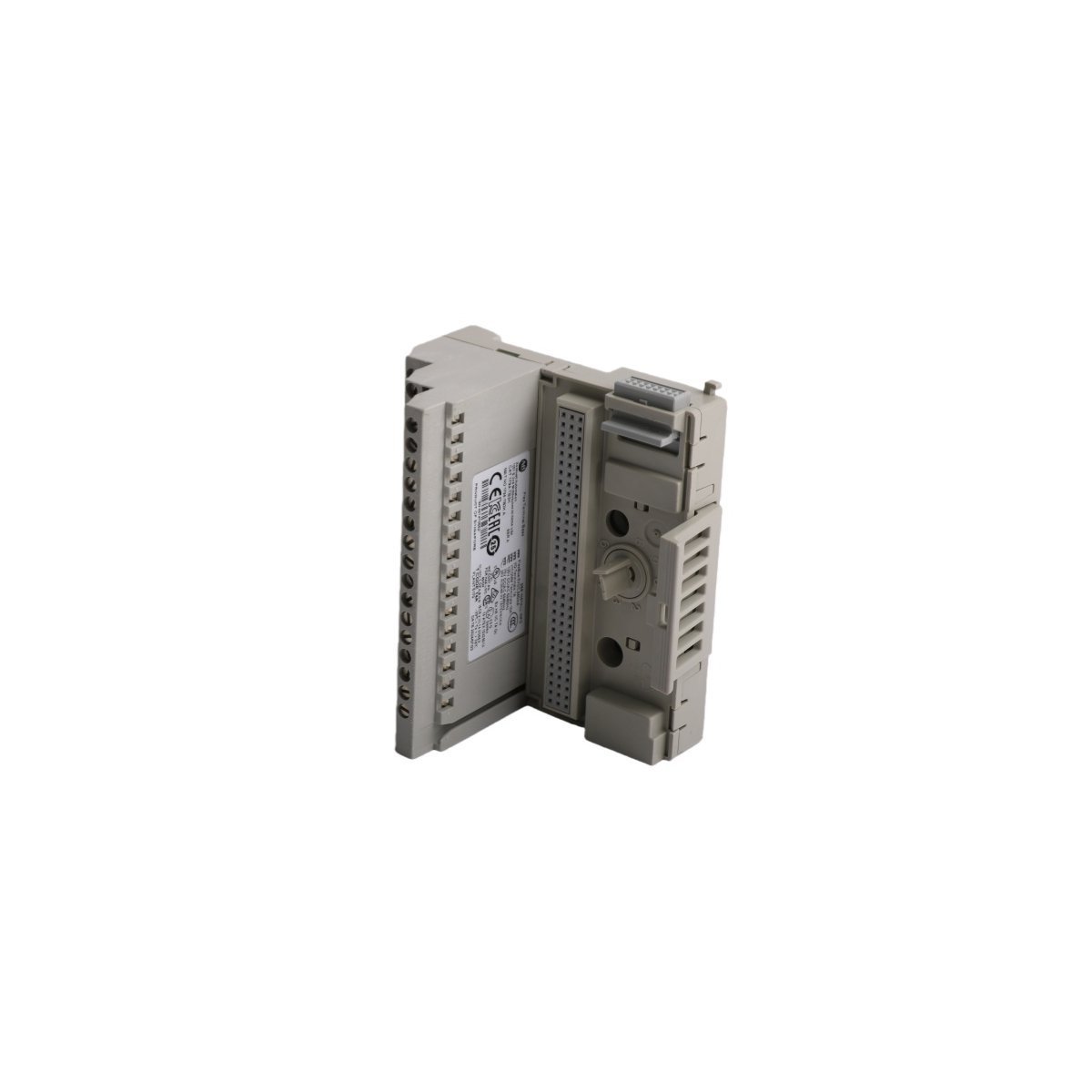

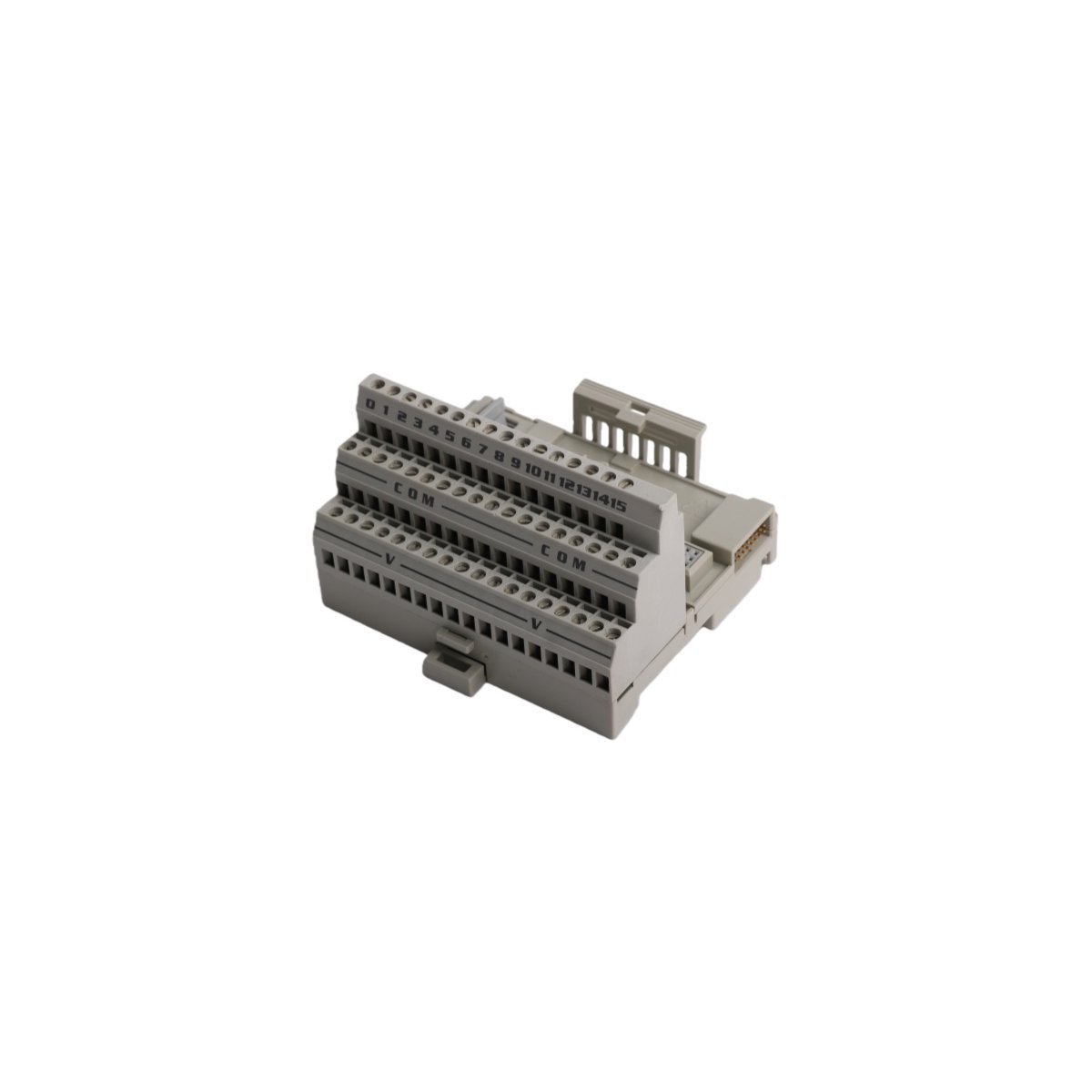

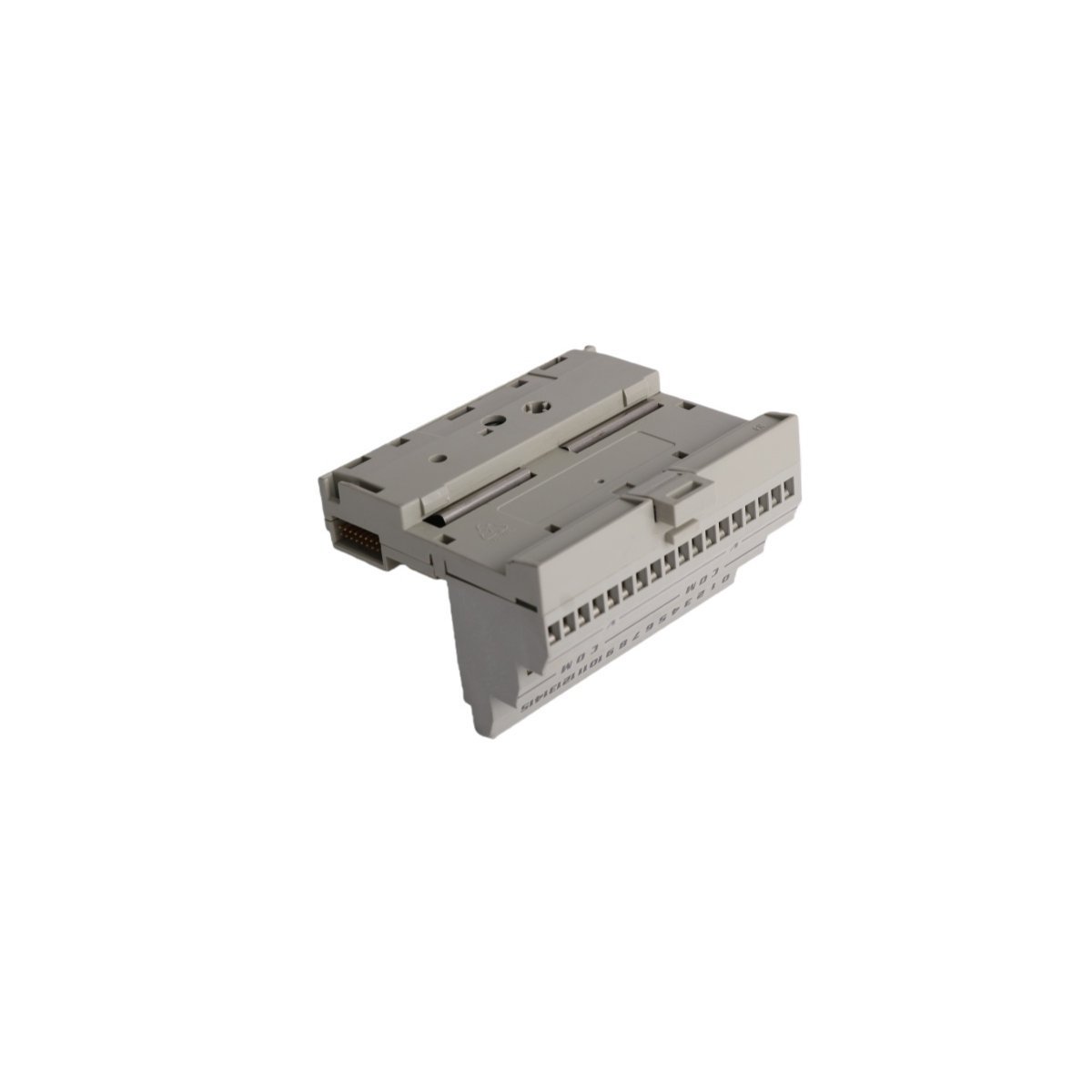

The 1794-TB3K Allen-Bradley FLEX I/O terminal base serves as a foundational component for industrial signal termination. It provides secure mechanical mounting and electrical connectivity for high-performance I/O modules.
Technical Overview of 1794-TB3K Base Units
The 1794-TB3K functions as a critical interface component within complex industrial control cabinets. It enables seamless field wiring integration for discrete, analog, and specialty FLEX I/O modules. By utilizing a sophisticated three-level terminal configuration, this unit optimizes cabinet space while ensuring highly organized signal distribution. Its architecture supports straightforward field device connections, allowing maintenance teams to perform rapid module replacements without disconnecting existing wiring. Engineers trust the 1794-TB3K for its ability to maintain consistent connectivity in demanding automation environments.
Key Technical Specifications
- Terminal Type: 3-Level Screw-Clamp
- Maximum Voltage: 125V AC/DC
- Current Capacity: 10A
- Wire Size Compatibility: 24 to 16 AWG
- Tightening Torque: 0.56 to 0.79 Nm
- Protection Rating: IP20
- Operating Temperature: -20 to 70 °C
System Integration and Reliability Features
Installation of the 1794-TB3K proceeds efficiently due to its native compatibility with standard DIN rails. The unit features a robust locking mechanism that secures the entire I/O assembly during high-vibration conditions, which is essential for heavy manufacturing. Furthermore, the base supports power daisy-chaining, which significantly simplifies the overall power distribution topology across the I/O rack. Rockwell Automation designed this base to withstand harsh industrial conditions, ensuring superior signal integrity and long-term hardware durability. For more information on configuring your I/O layout, please visit our ControlLogix and FLEX I/O resource page. Our team also provides comprehensive industrial networking solutions to help you scale your automation infrastructure effectively. If you are currently upgrading your plant floor, we recommend reviewing the latest I/O module compatibility guides to ensure seamless system integration.
