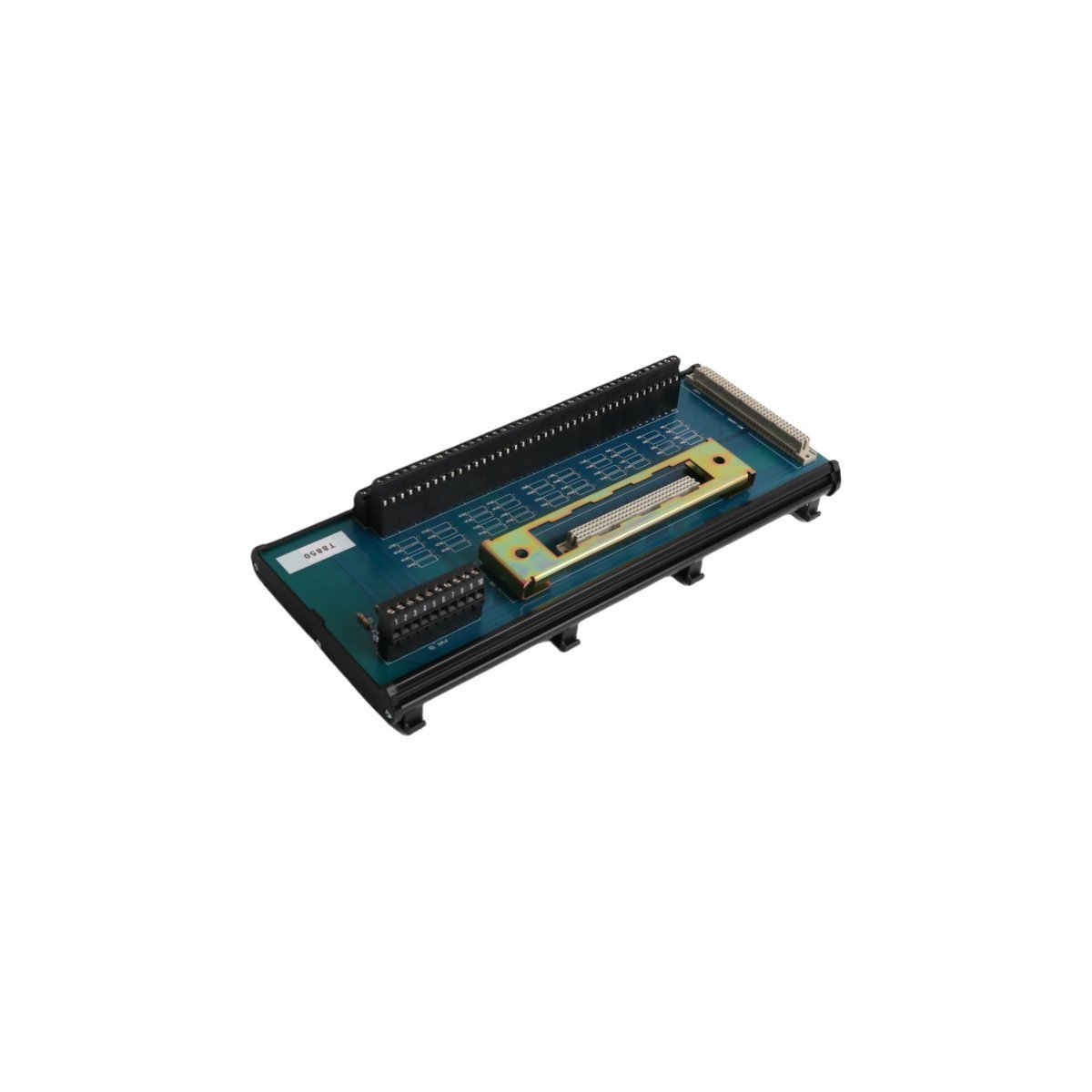

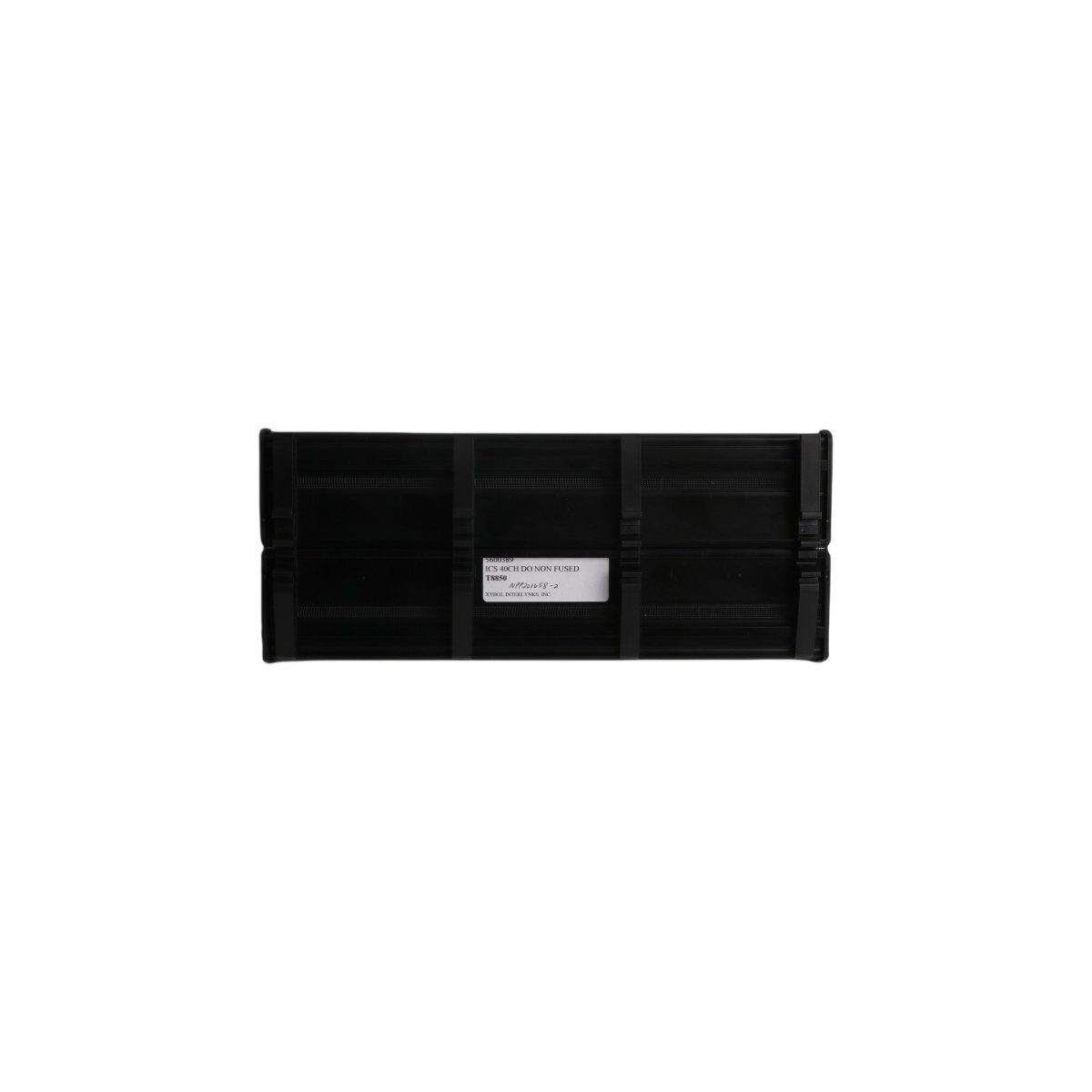

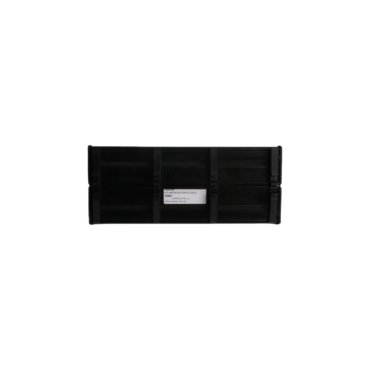

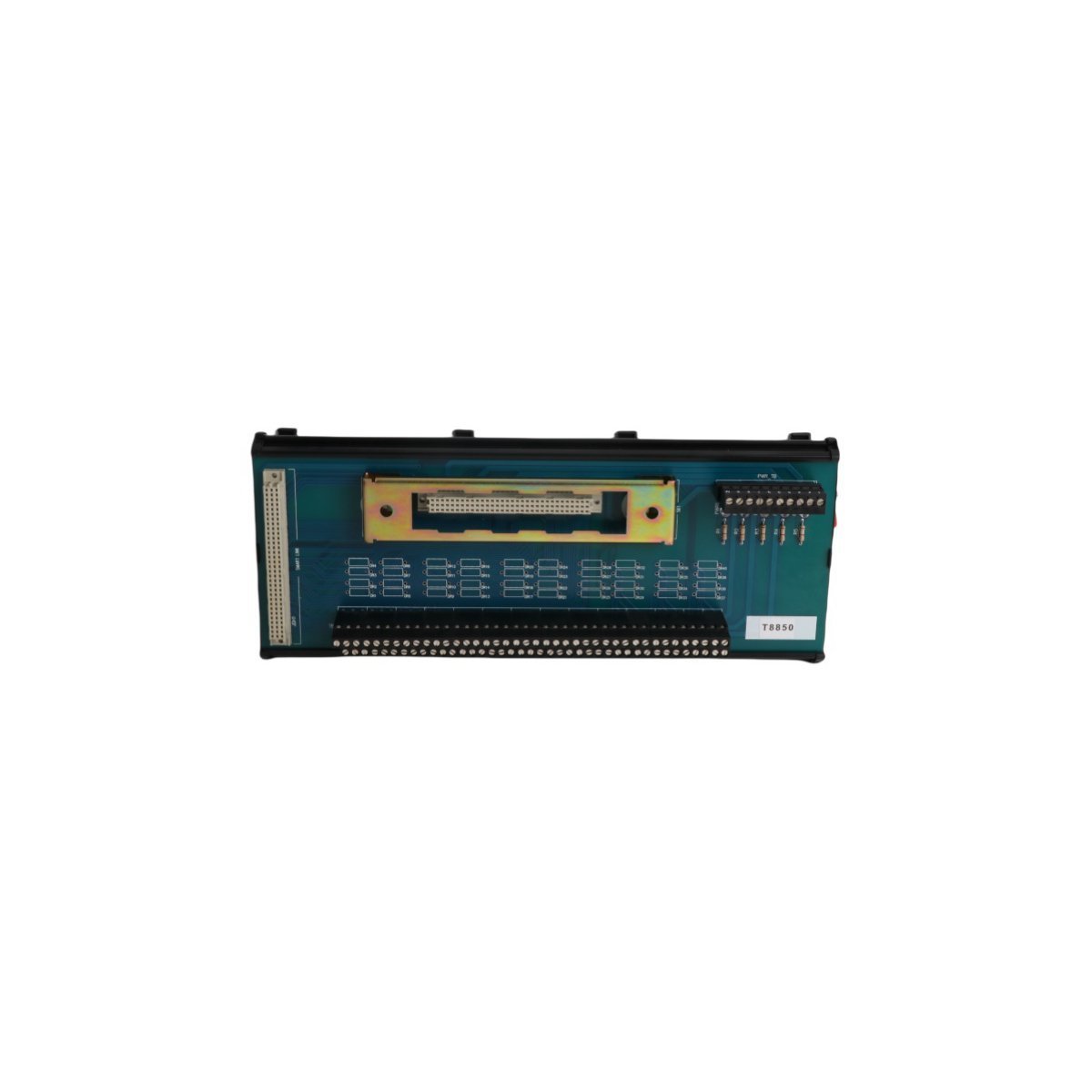

ICS Triplex T8850 Analog Digital Output FTA

The ICS Triplex T8850 serves as a high-density Field Termination Assembly (FTA) designed for the Trusted TMR (Triple Modular Redundant) system. This interface module facilitates the secure connection between field devices and the controller. It manages signal distribution for both analog and digital output channels reliably. The T8850 ensures signal integrity across 40 channels within a safety-critical environment. Consequently, it supports high-availability operations in complex industrial control infrastructures.

Technical Specifications and Overview

Core Functional Capabilities

• Interface Management: The module provides organized termination points for field wiring. This simplifies cable management and reduces installation errors during commissioning.
• Signal Conditioning: The hardware maintains precise 24 VDC levels across all 40 digital channels. It ensures consistent signal transmission despite long cable runs.
• Ruggedized Construction: ICS Triplex engineered this FTA for durability. It withstands the vibration and electrical noise common in heavy industrial settings.
• System Efficiency: The compact footprint allows for high-density mounting in standard cabinets. This design optimizes space for large-scale PLC deployments.
