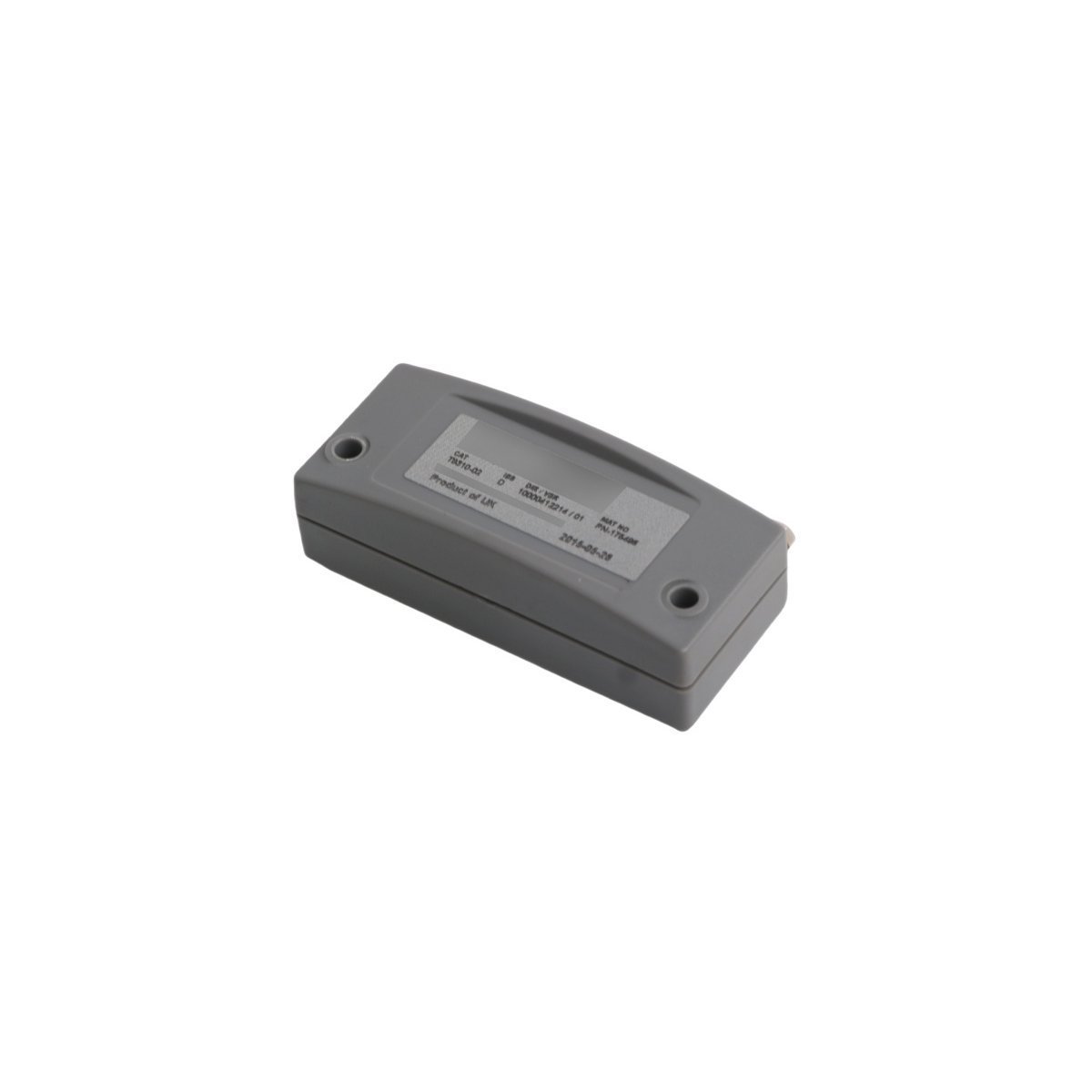

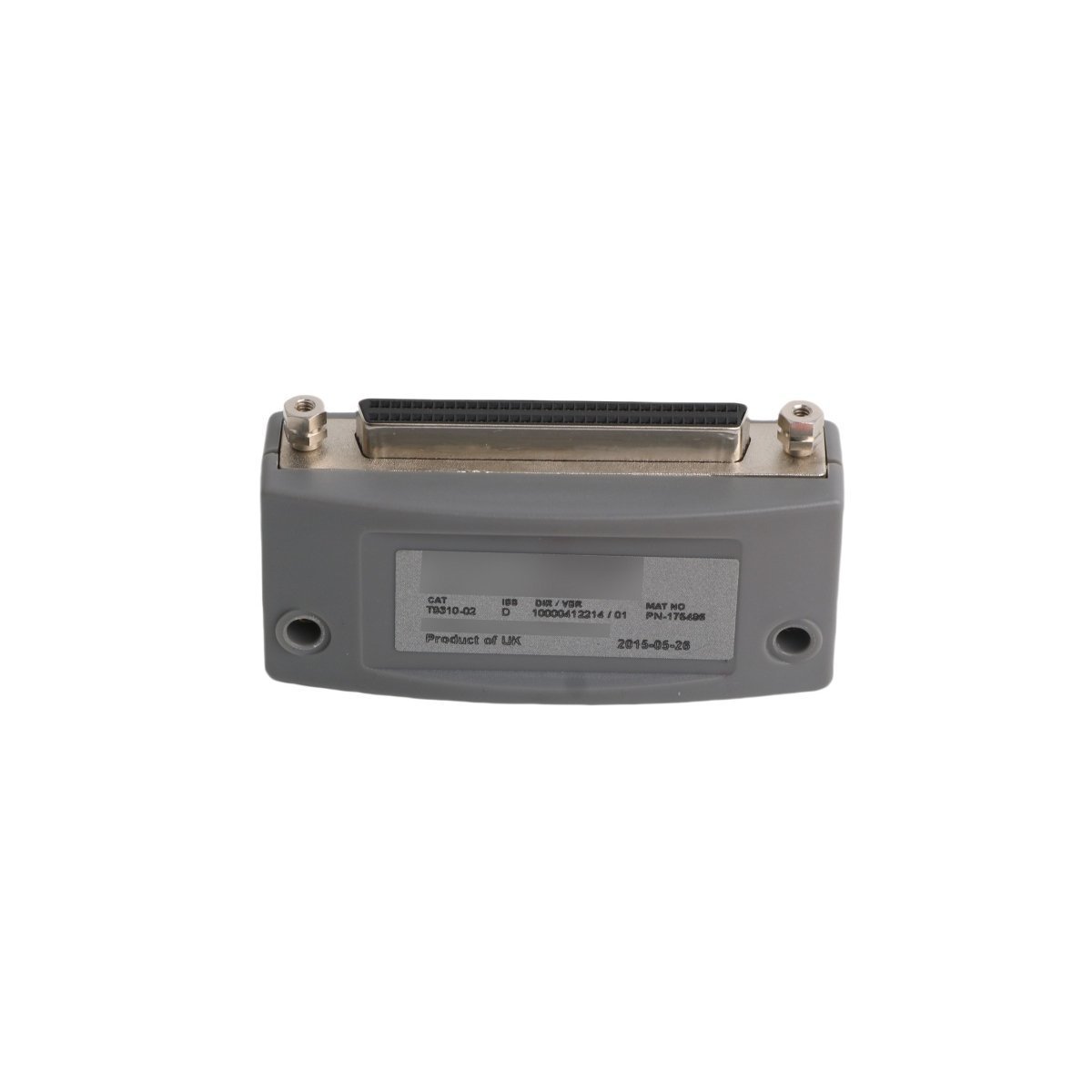

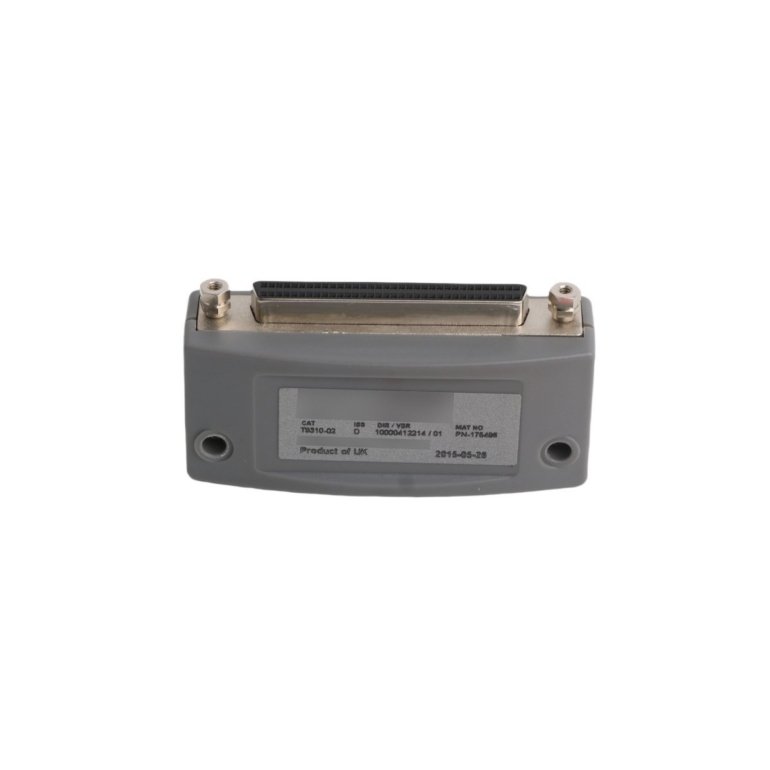

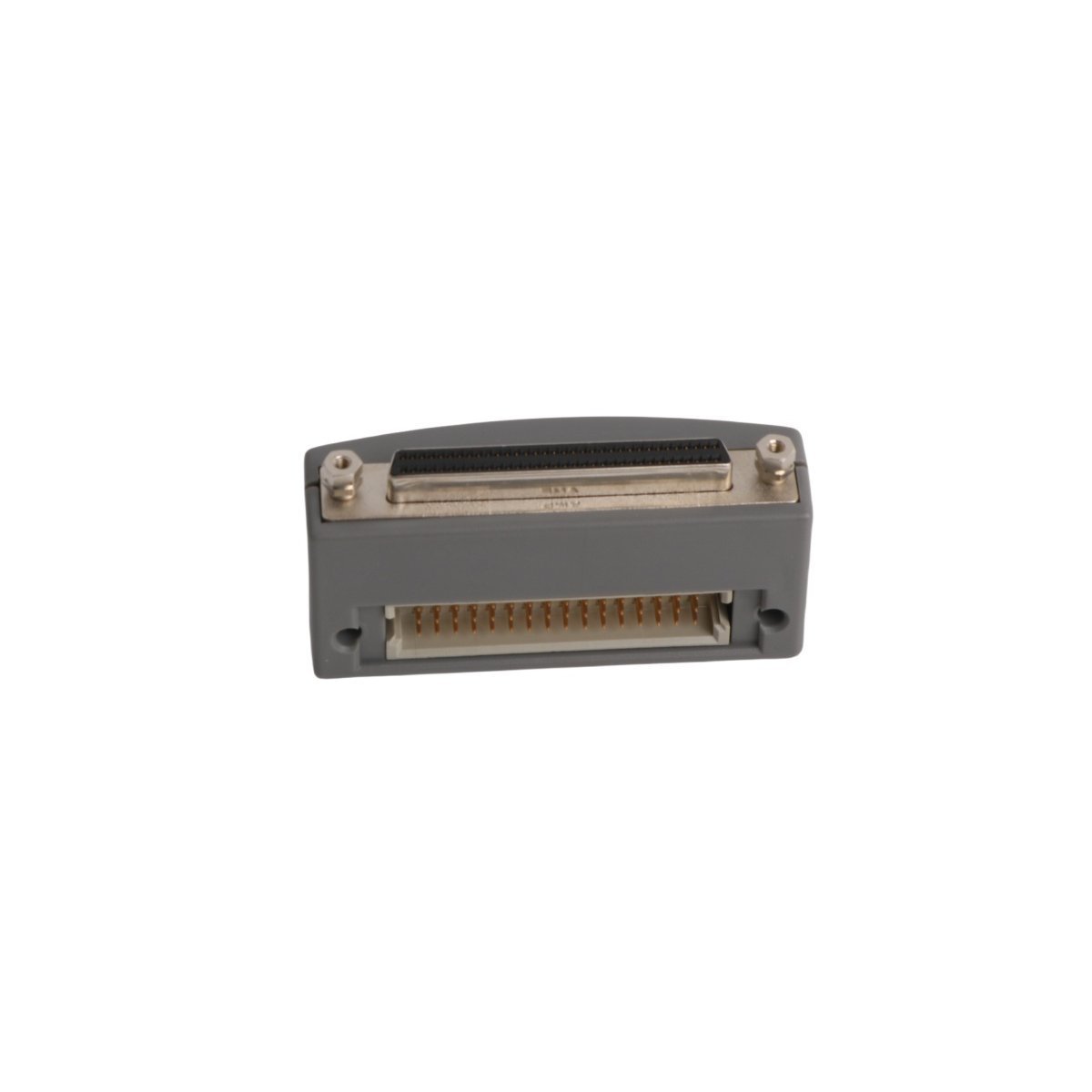

ICS Triplex T9310-02 Extension Cable

The ICS Triplex T9310-02 is a specialized extension cable designed for the Regent Control System. This hardware component facilitates critical inter-module communication by extending the system bus across multiple chassis or racks. It ensures high-speed data synchronization and signal integrity, which are essential for Triple Modular Redundant (TMR) architectures. By providing a secure physical link, the T9310-02 allows for expanded I/O configurations while maintaining the safety standards required for industrial automation.

Technical Specifications and Overview

Core Functional Capabilities

• Enhanced Connectivity: The cable bridges communication between different system segments. This allows engineers to distribute modules across separate enclosures without sacrificing performance.
• TMR Synchronization: It supports the high-speed requirements of the Regent TMR bus. Consequently, processors can vote and synchronize data in real-time across the extended network.
• Environmental Shielding: The cable construction features industrial-grade shielding. This prevents Electromagnetic Interference (EMI) from disrupting the control logic in high-voltage environments.
• Hot-Swappable Support: Its robust connector design permits easy maintenance. Technicians can integrate the cable into existing setups with minimal impact on system uptime.
