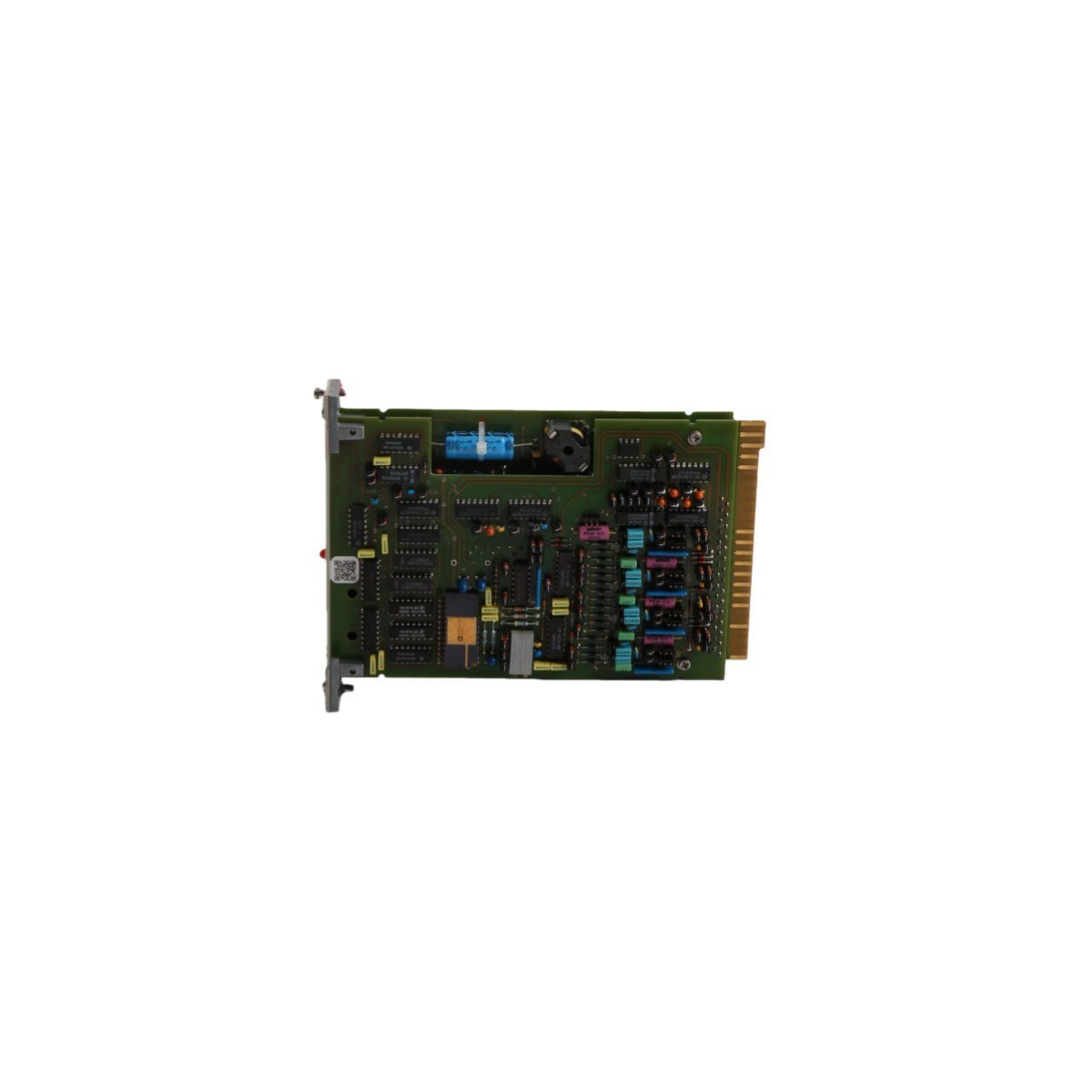

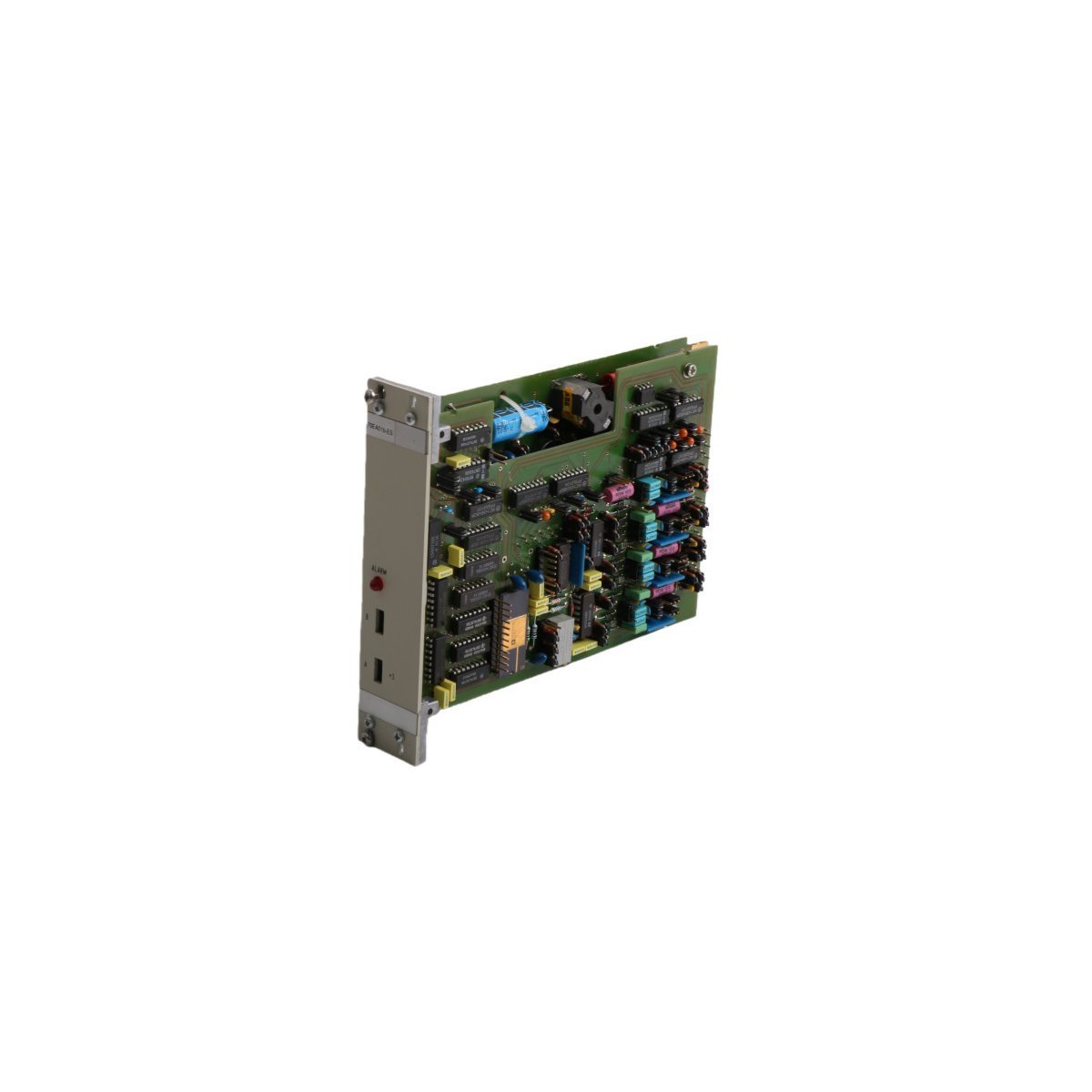

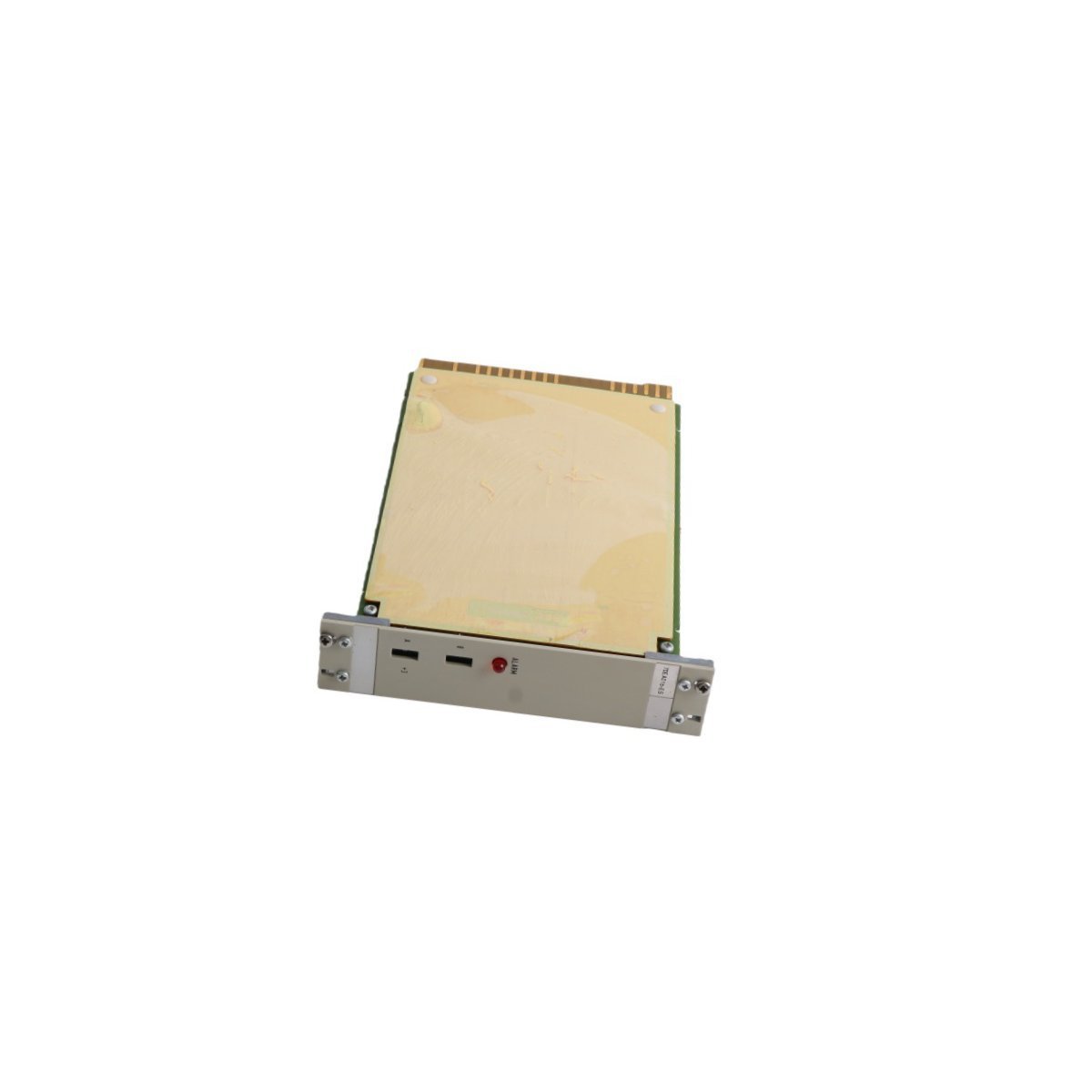

The ABB 70EA06A-E HESG447398R0020 functions as a high-performance data acquisition interface within the Procontrol P13 ecosystem. This module captures diverse field signals including voltage, current, and frequency measurements simultaneously. It delivers exceptional precision with a full-scale accuracy rating of ±0.1%. Furthermore, the hardware provides a fine resolution of 0.01% for sensitive process monitoring. Consequently, this input card ensures superior data integrity for the most demanding Distributed Control System (DCS) applications.
Operational Performance
This analog input module excels in dynamic environments requiring rapid signal processing. It features a fast response time of just 10 milliseconds for real-time control loops. Because of this speed, the module effectively supports high-speed automation and emergency shutdown parameters. The internal circuitry filters electrical noise to maintain signal stability across all active channels. Moreover, the standardized configuration simplifies initial setup and long-term calibration procedures. These performance metrics make the 70EA06A-E a vital component for time-critical industrial operations.
Technical Specifications
- Brand: ABB
- Model Designation: 70EA06A-E
- Order Number: HESG447398R0020
- Product Series: Procontrol P13
- Input Types: Voltage, Current, Frequency
- Accuracy: ±0.1% Full Scale
- Response Time: 10 ms
- Operating Temperature: -40°C to +80°C
- Environmental Protection: IP67 Rated
- Net Weight: 1.22 kg
- Unit Dimensions: 24 x 19 x 5.3 cm
Environmental Resilience
ABB engineered the HESG447398R0020 to survive extreme conditions without performance degradation. The unit operates reliably in temperatures ranging from -40°C to +80°C. Additionally, it tolerates non-condensing relative humidity levels up to 95%. An IP67-rated enclosure protects the sensitive internal electronics from dust and water ingress. The module also withstands harsh storage temperatures as low as -55°C during transport. Therefore, it remains an ideal choice for remote installations or unconditioned industrial equipment rooms.
