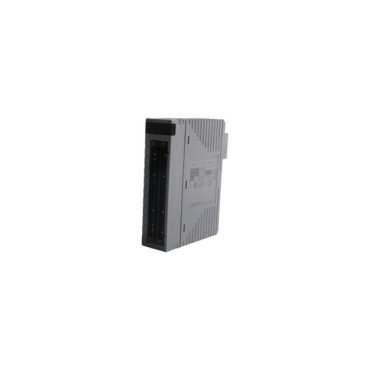

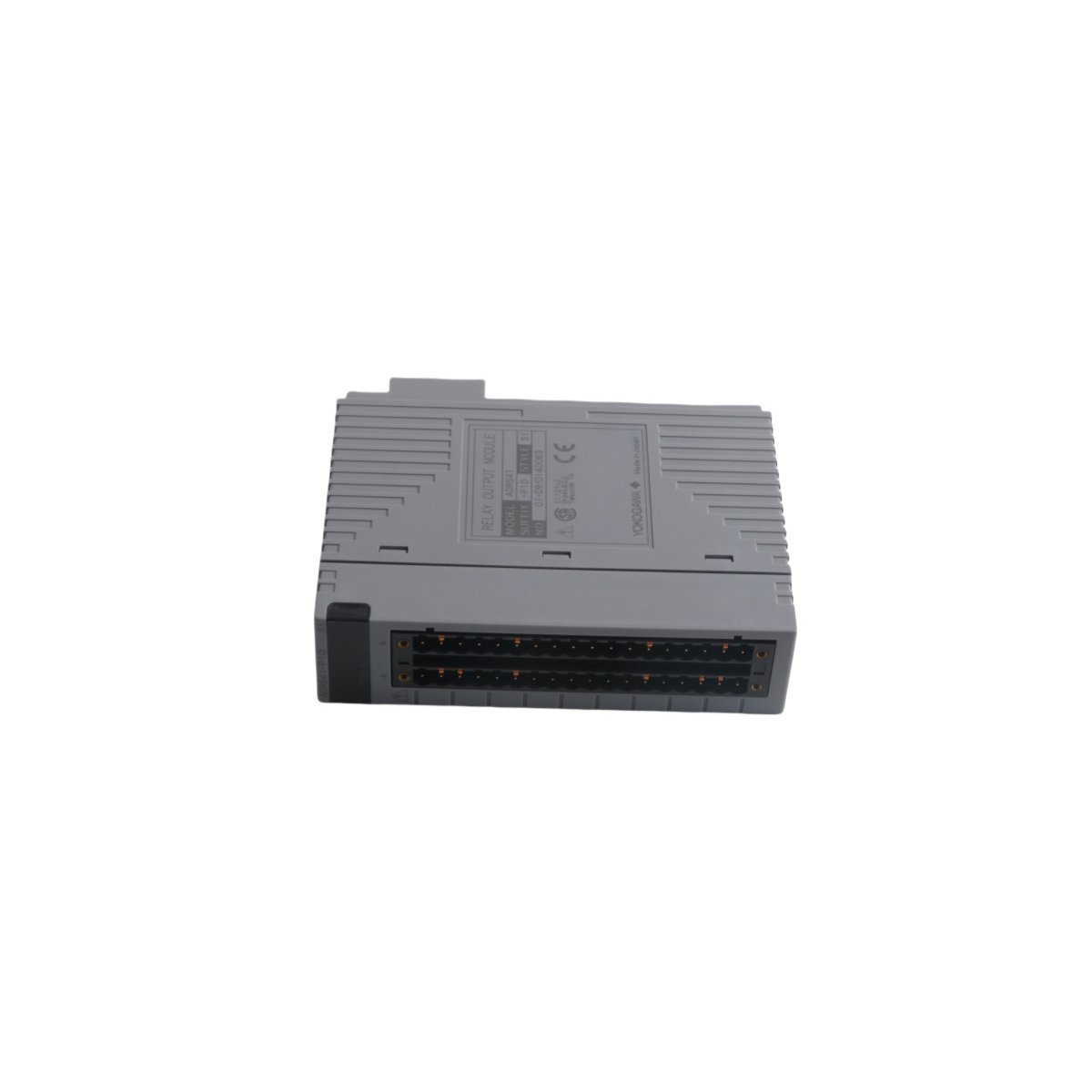

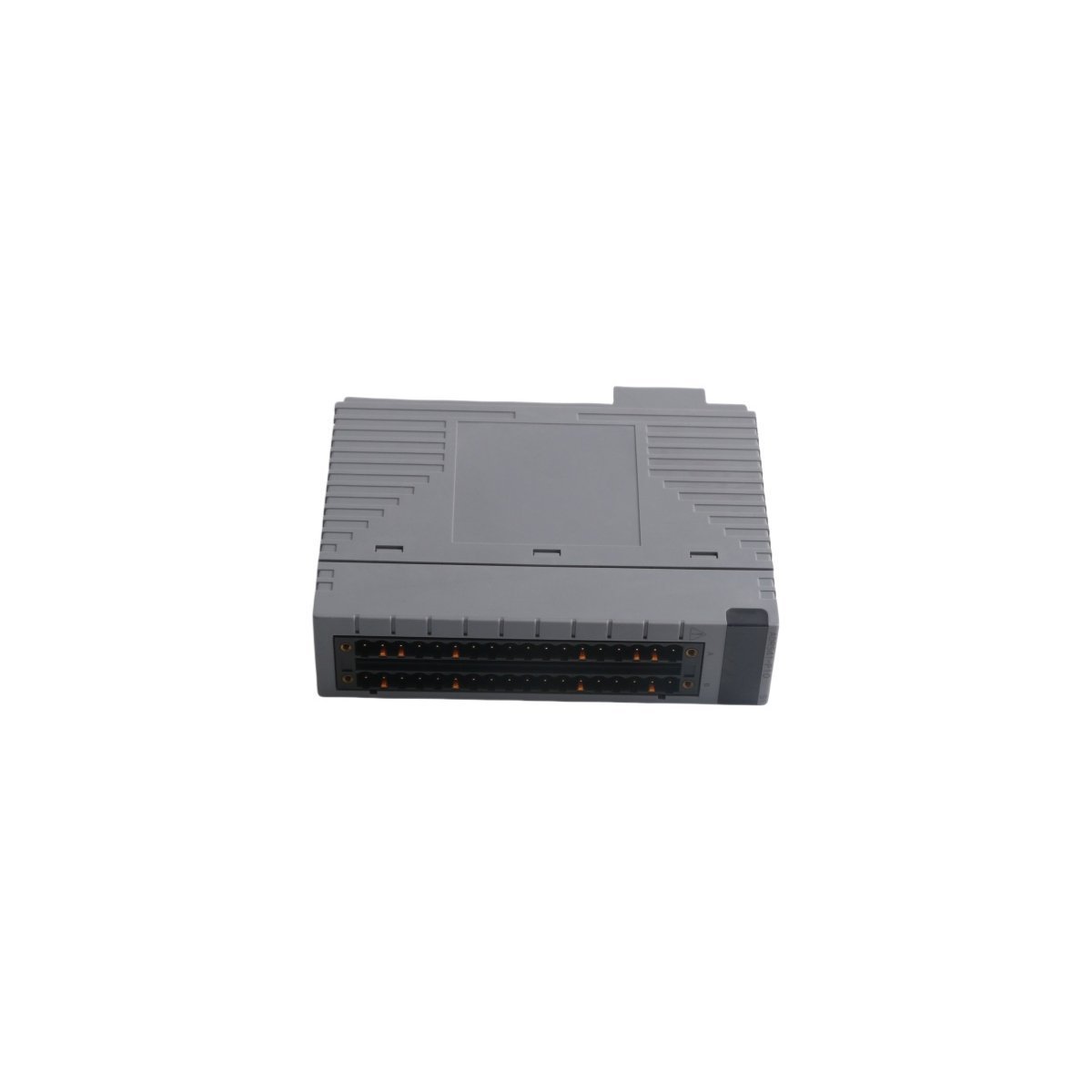

Yokogawa ADR541-P10 S1 Analog Output Module

The Yokogawa ADR541-P10 S1 serves as a high-density signal conversion interface for the CENTUM VP Distributed Control System. This module features 16 independent output channels to manage diverse field actuators and control elements. It utilizes sophisticated signal processing to convert digital commands into precise analog control signals. Consequently, the unit provides the essential link for regulating process variables in automated plant environments. Its streamlined architecture prioritizes reliable signal transmission without unnecessary complexity.

Technical Specifications and Hardware Details

Advanced Control and Accuracy Features

The ADR541-P10 S1 incorporates Pulse Width Modulation (PWM) and time-proportional output modes. These specific functions allow for extremely accurate timing during critical control sequences. Furthermore, the 16-channel density enables engineers to manage multiple devices from a single slot. This efficiency reduces the overall hardware footprint within the control cabinet. The module maintains high thermal stability to ensure consistent output levels during continuous operation.

Industrial Durability and Integration

Yokogawa constructs this module using premium materials to resist harsh industrial conditions. The hardware design offers superior electrical conductivity for noise-free signal delivery. Additionally, the compact modular format allows for rapid integration into existing FIO system racks. This simplified installation process helps reduce labor costs and system downtime. While the module features a minimal interface, it adheres to rigorous Japanese quality and safety standards.

Optimal Application Scenarios

Process engineers typically deploy this module in facilities requiring dense analog signal management. It excels in applications like valve positioning, motor speed control, and heater regulation. Because it integrates natively with the CENTUM VP environment, configuration remains highly intuitive. The module provides a dependable solution for optimizing process accuracy and operational efficiency. Its long-term performance makes it a preferred choice for large-scale energy and chemical plants.
