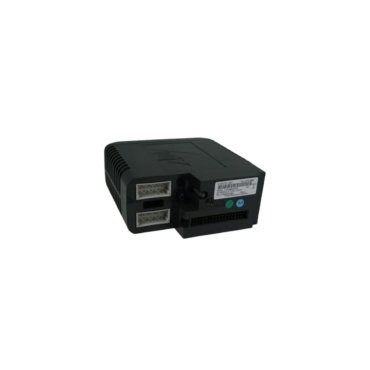

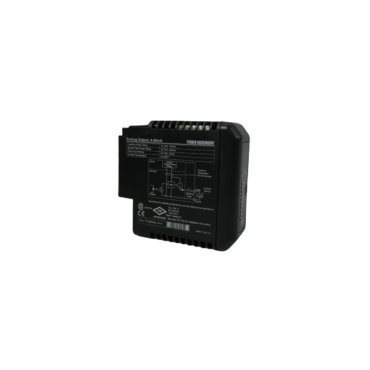

Emerson KJ3002X1-BB1 12P0683X082 Analog Output 4-20mA

The Emerson KJ3002X1-BB1 functions as a high-density 8-channel analog output module for the DeltaV™ DCS. It converts digital controller commands into precise 4-20mA current signals. Consequently, the system maintains exact control over critical field devices like actuators and positioners. This module provides a fast update rate of 100 samples per second. Therefore, it supports the most demanding real-time control loops in modern automation.

Robust Engineering for Environmental Resilience

This DeltaV M-series component features a rugged build for use in extreme industrial conditions. It operates effectively in temperatures ranging from -40°C to +70°C. Furthermore, the 16-bit resolution ensures an accuracy level of ±0.1% for superior process stability. The integrated galvanic isolation shields the internal circuitry from high-voltage spikes and electrical noise. This design philosophy maximizes the lifespan of both the module and connected field equipment.

Seamless Architecture and Integration

The 12P0683X082 module integrates directly into the standard DeltaV I/O carrier system. It supports hot-swappable installation to prevent process interruptions during maintenance. Because it belongs to the M-series family, it shares a consistent configuration interface with other DeltaV cards. This compatibility reduces engineering time during system expansion or hardware upgrades. The compact footprint also allows for efficient use of space within local or remote control cabinets.

Technical Specifications Summary
