Product Description

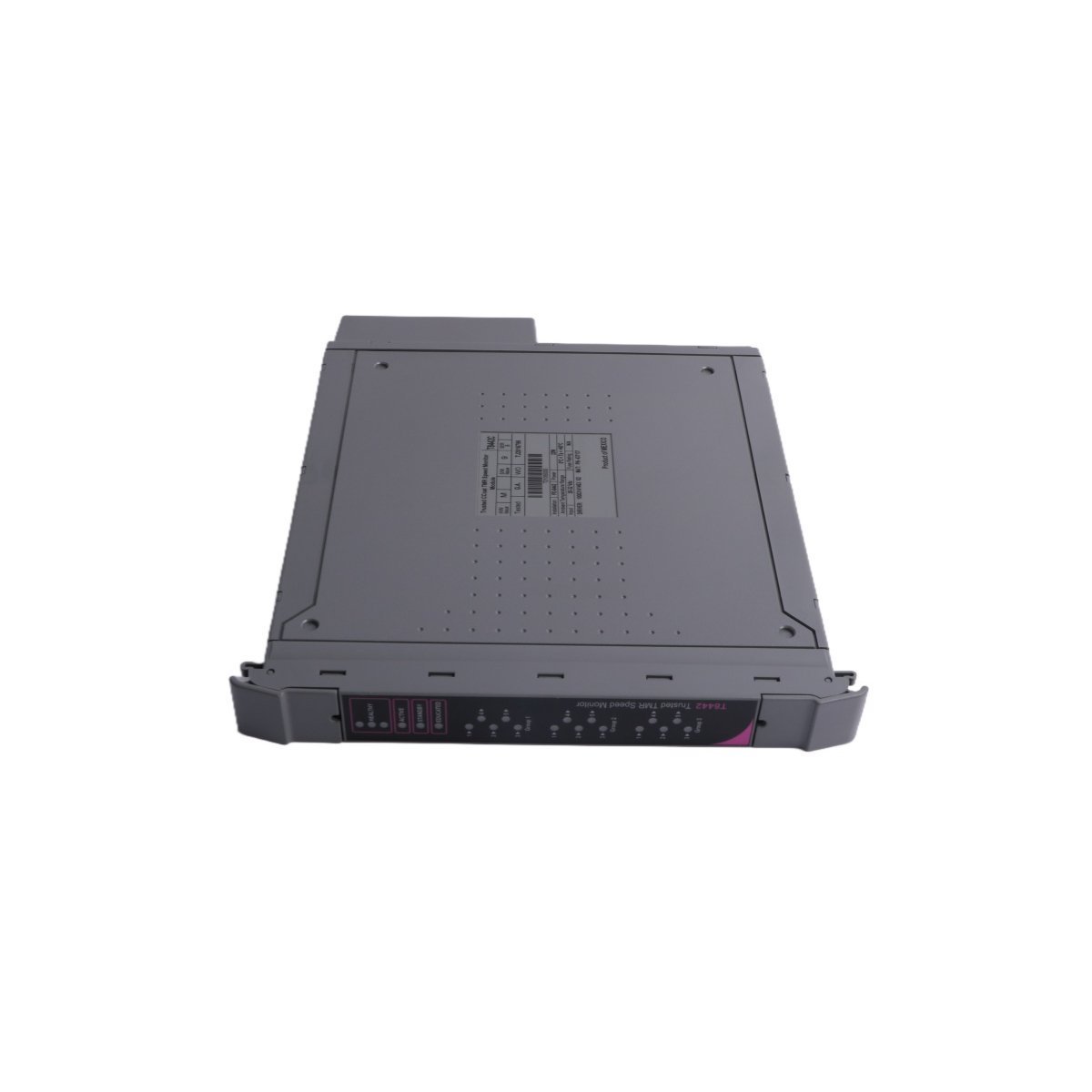

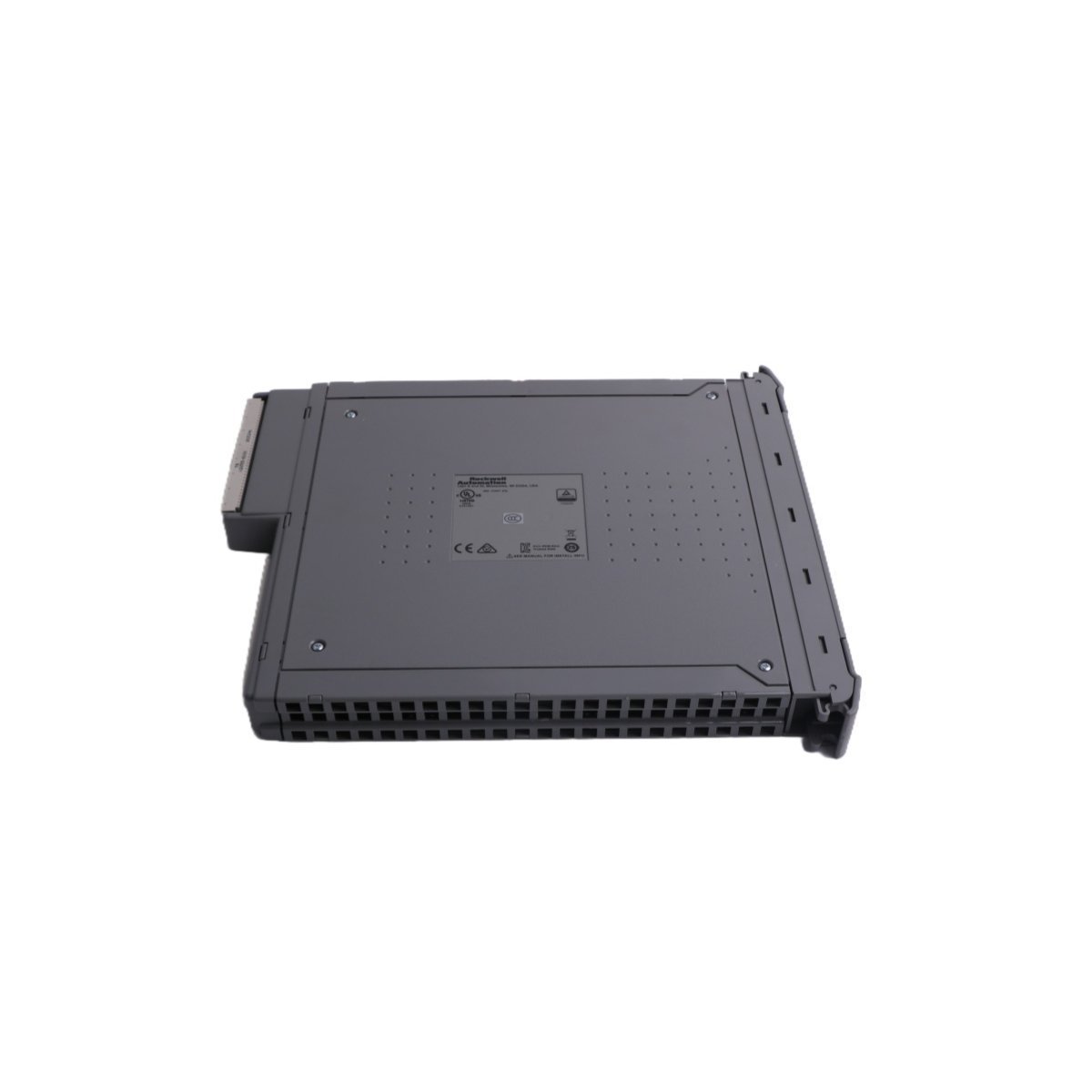

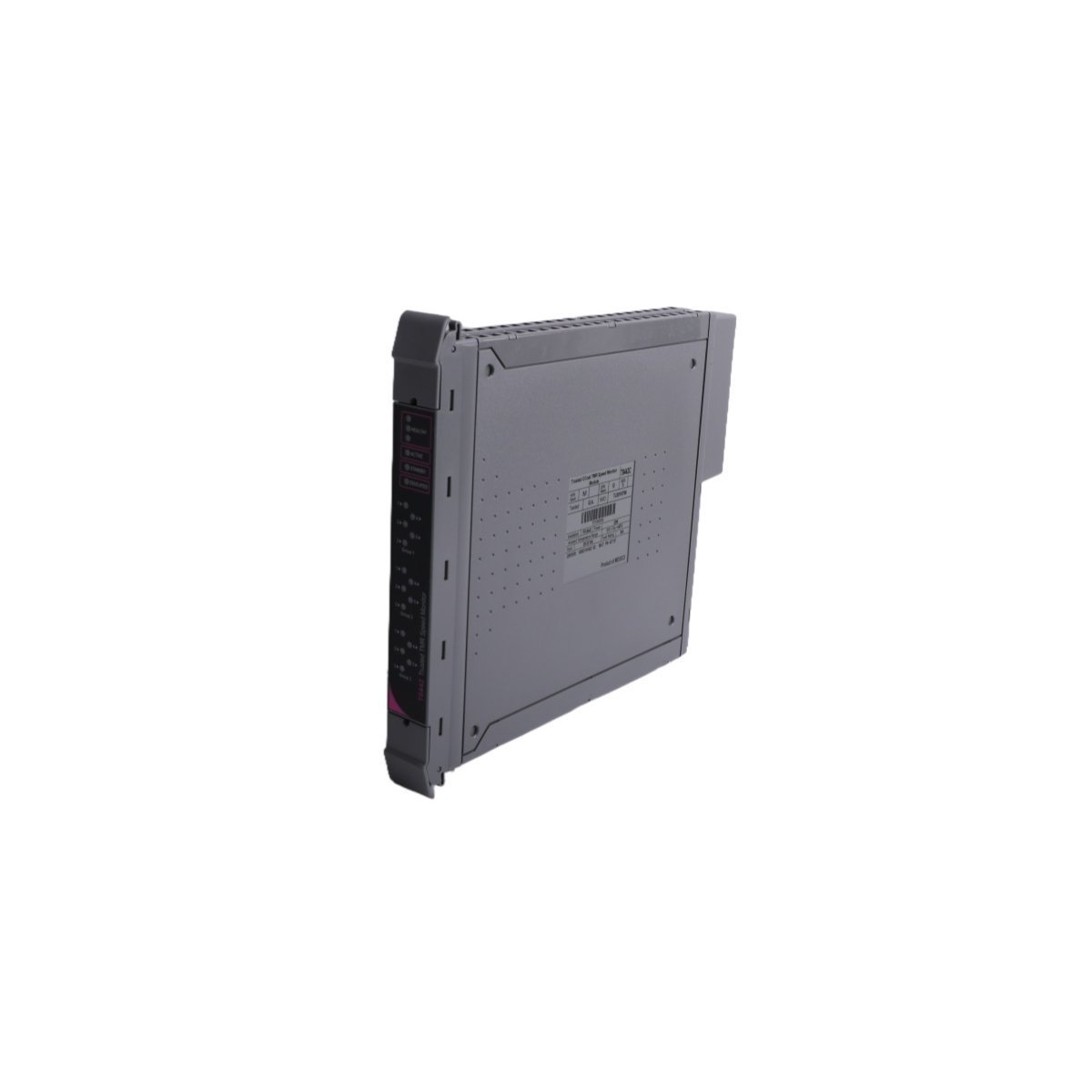

The ICS Triplex T8442C serves as a specialized Speed Monitor within the Trusted Triple Modular Redundant (TMR) architecture. This module provides essential safety oversight for rotating equipment by precisely measuring frequency and pulse inputs from speed sensors. By utilizing a triplicated hardware voting structure, the T8442C ensures that machinery protection remains active even in the event of a localized internal fault.
Technical Specifications
The T8442C incorporates high-density electronics housed in a robust industrial chassis to facilitate rapid signal processing in safety-critical loops.
- Manufacturer: ICS Triplex (Rockwell Automation)
- Model Number: T8442C
- Product Range: Trusted TMR System
- Module Type: Speed Monitoring / Overspeed Protection
- Processing Architecture: Triple Modular Redundancy (TMR)
- Dimensions: 3.0 cm x 30.2 cm x 26.5 cm
- Weight: 1.26 kg
- Housing: Industrial-grade metal alloy for EMI shielding
- Origin: USA
Functional Characteristics
The T8442C identifies and processes high-frequency signals from field-mounted speed transducers. Its hardware-based implementation allows for near-instantaneous detection of overspeed or underspeed conditions, which is vital for preventing catastrophic mechanical failure in turbines, compressors, and large motors. Furthermore, the module monitors signal line integrity, making it highly effective for energize-to-trip safety configurations.
Because the T8442C utilizes a TMR framework, it performs coordinated self-tests across three independent processing channels. This diagnostic suite detects both overt and covert failures without interrupting the active safety demand. Moreover, the module supports discrepancy monitoring to verify that all three channels agree on the measured speed, significantly enhancing the reliability of the safety instrumented system (SIS).
Engineering Advantages
Consequently, the T8442C improves overall plant safety by offering inherent fault tolerance and high availability. It integrates seamlessly into Trusted active-standby or SmartSlot configurations, providing engineers with flexible deployment options for various safety lifecycle requirements. Furthermore, the module supports online repair, which allows operators to replace a faulty unit while the process remains operational, thus eliminating unnecessary downtime.
Additionally, the module resists the harsh electrical and mechanical stresses common in heavy industrial environments. The shielded metal casing protects the high-speed processors from electromagnetic interference, ensuring signal stability for critical I/O applications. Therefore, the T8442C remains the preferred choice for industrial operators requiring a fail-safe speed monitoring solution that adheres to the most stringent international safety standards.
