Product Description

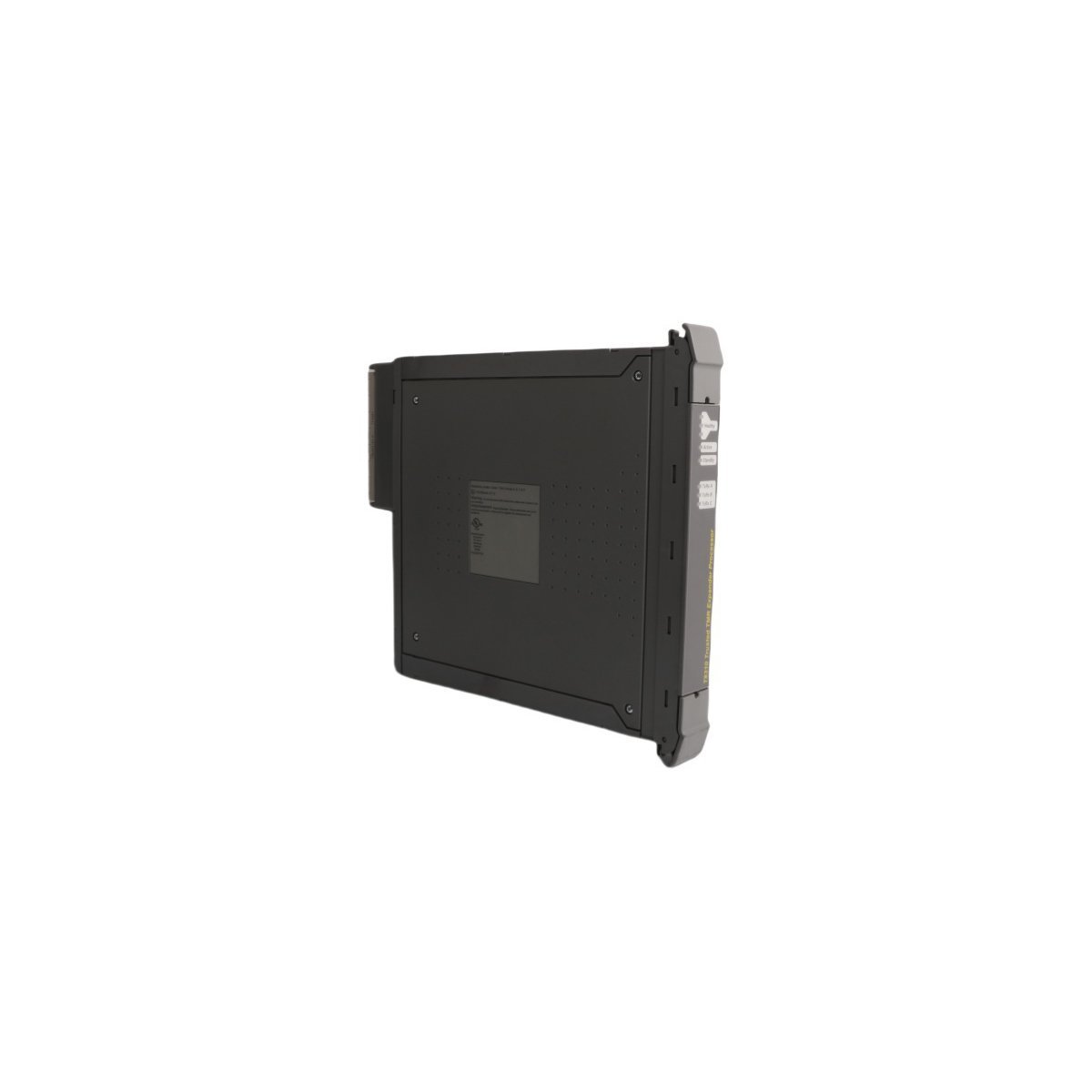

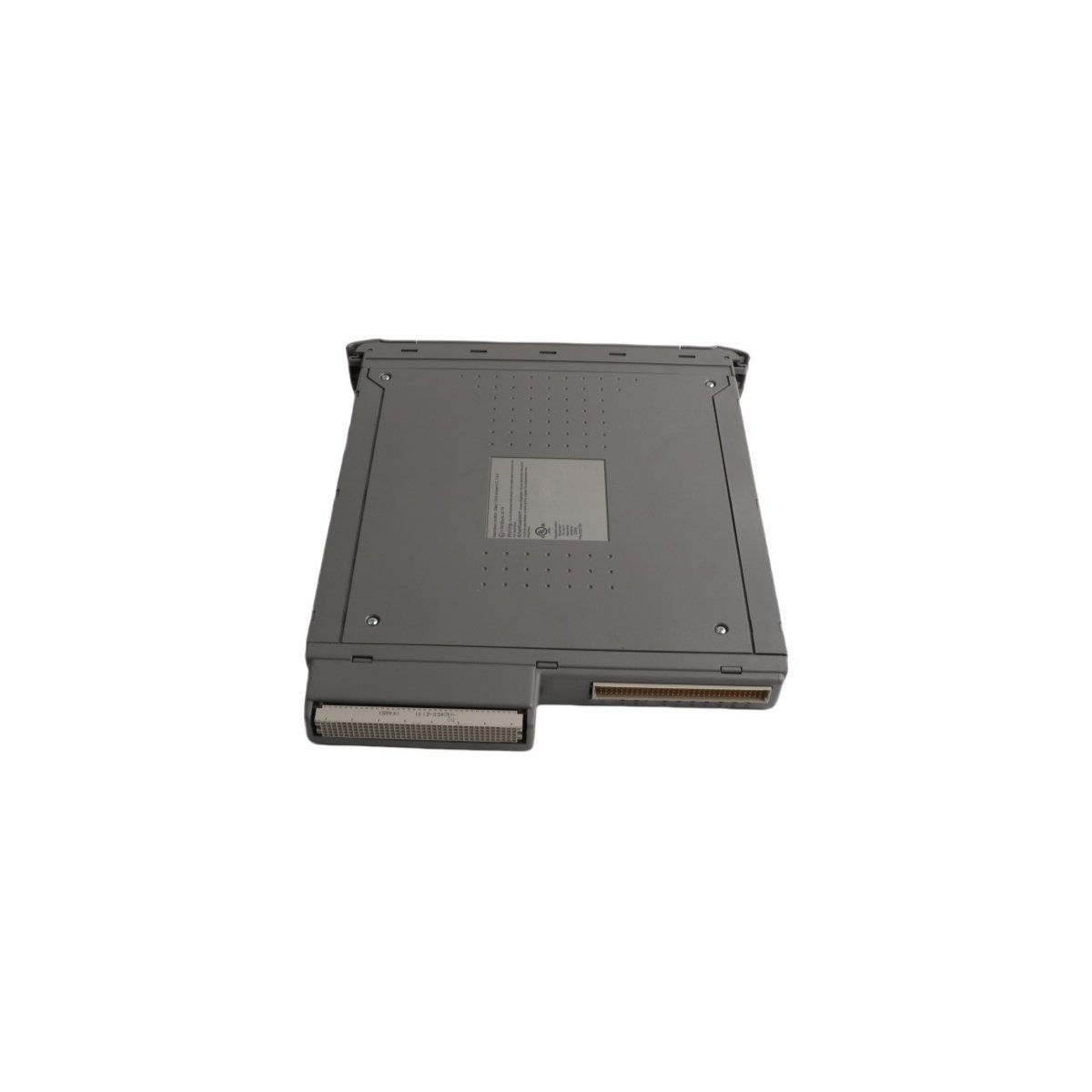

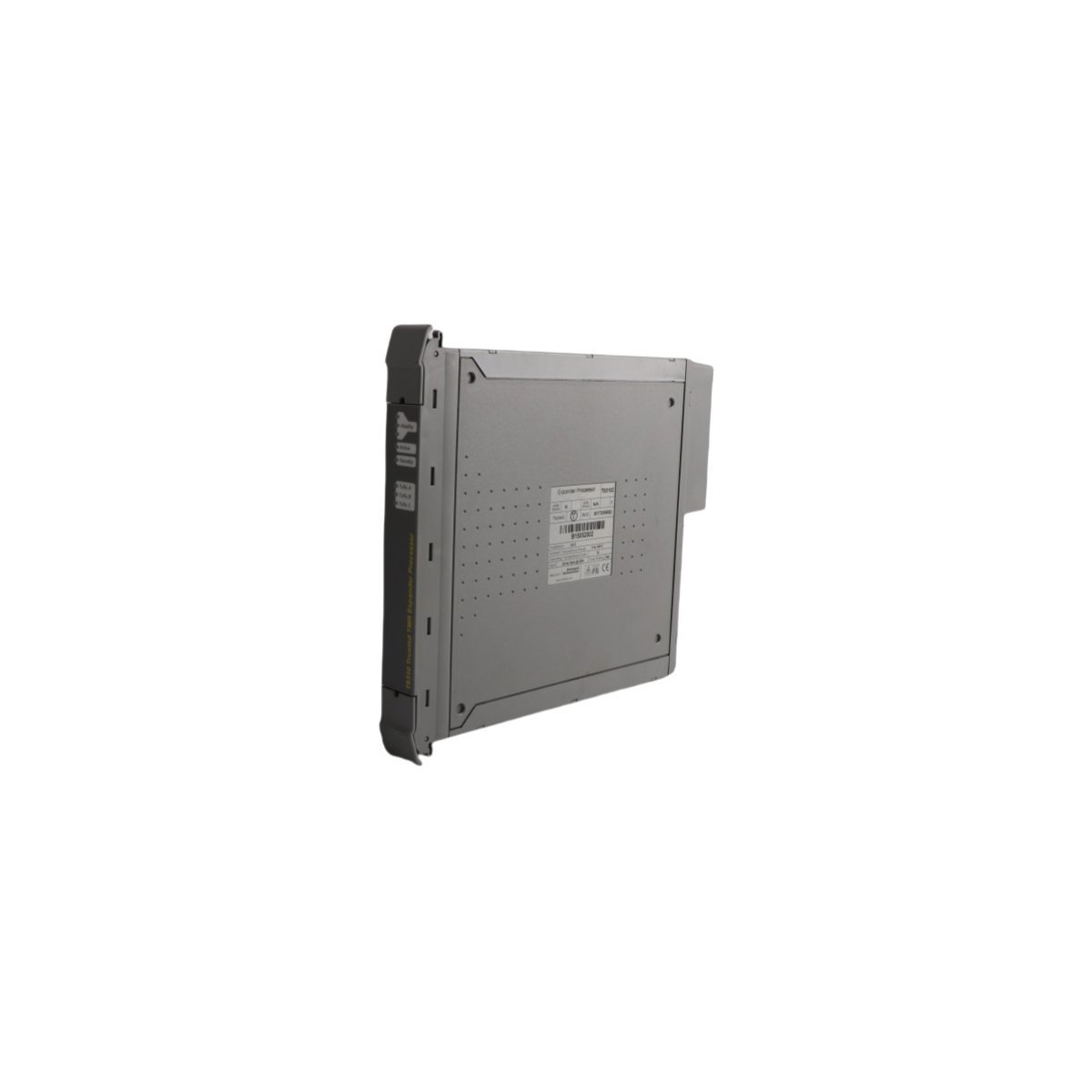

The ICS Triplex T8310C acts as the primary hardware interface for expanding the Trusted Triple Modular Redundant (TMR) system. This module resides in an expansion chassis where it manages the distribution of data between the main processor and remote I/O modules. By utilizing a fault-tolerant architecture, the T8310C maintains the integrity of the safety loop even during a localized hardware failure.
Technical Specifications
The T8310C features a robust mechanical design and high-frequency data processing capabilities to meet the requirements of SIL 3 safety environments.
- Manufacturer: ICS Triplex (Rockwell Automation)
- Model Designation: T8310C
- System Series: Trusted TMR System
- Function: Trusted Expander / Remote I/O Processor
- Communication Interface: Ethernet-based routing and specialized expansion bus
- Housing Material: Industrial-grade metal alloy
- Mounting Type: Trusted Chassis Slot
- Dimensions: 3.0 cm x 30.2 cm x 26.5 cm
- Net Weight: 1.28 kg
Functional Characteristics
The T8310C serves a vital role in large-scale Distributed Control Systems (DCS) by enabling geographical separation between the central processing unit and field instrumentation. It provides the necessary Ethernet routing services to synchronize I/O data across the network with minimal latency. Furthermore, the module includes internal diagnostics that constantly monitor the health of the expansion bus.
Because the T8310C supports the Trusted TMR philosophy, it utilizes three separate processing paths to validate incoming and outgoing data. This voting mechanism ensures that a single point of failure within the expansion module will not lead to a nuisance trip or a loss of protection. Moreover, the module remains hot-swappable, which allows technicians to replace a faulty unit without de-energizing the entire safety system.
Engineering Advantages
Consequently, the T8310C simplifies the wiring complexity of complex automation projects by supporting decentralized I/O architectures. Instead of routing thousands of individual cables back to a central rack, engineers can place expansion racks near the field equipment and connect them via the T8310C interface. Therefore, this module significantly reduces installation costs while simultaneously improving the signal-to-noise ratio of field measurements.
Additionally, the module withstands extreme industrial conditions including vibration and electromagnetic interference. The durable metal alloy casing provides a thermal heat sink and electrical shielding for the internal high-speed processors. Consequently, operators can rely on the T8310C for stable performance in hazardous areas such as oil refineries, chemical processing plants, and power generation facilities.
