Product Description

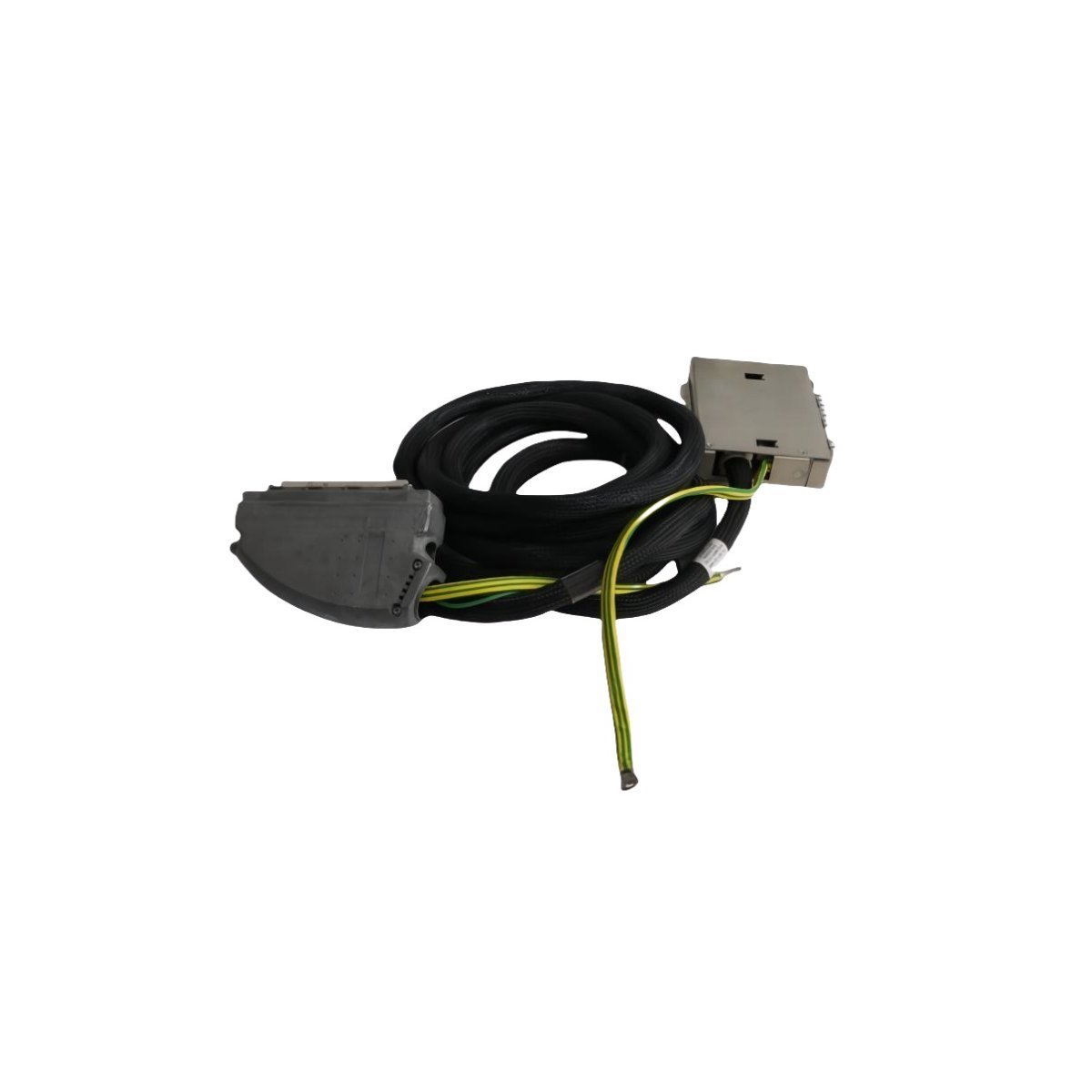

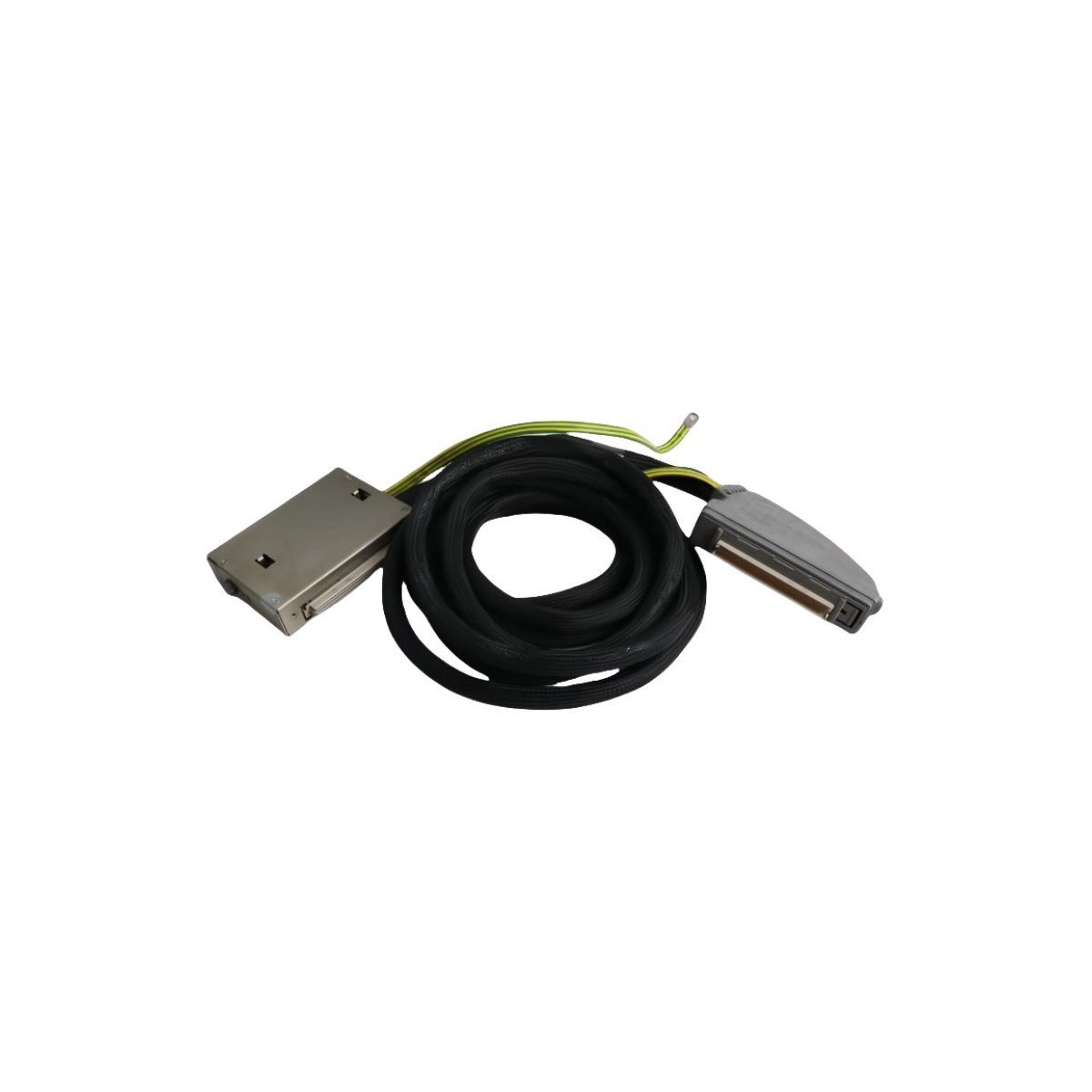

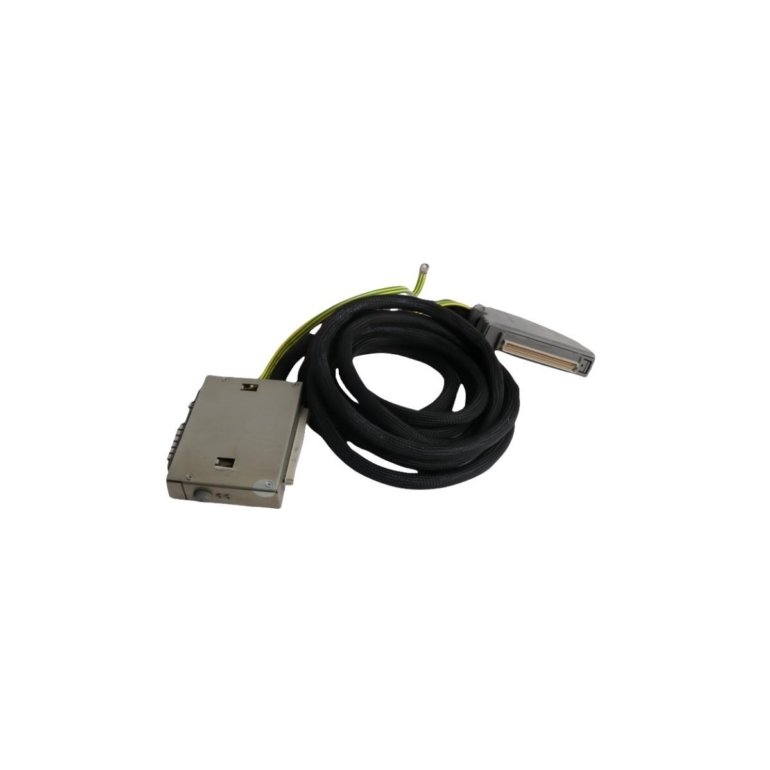

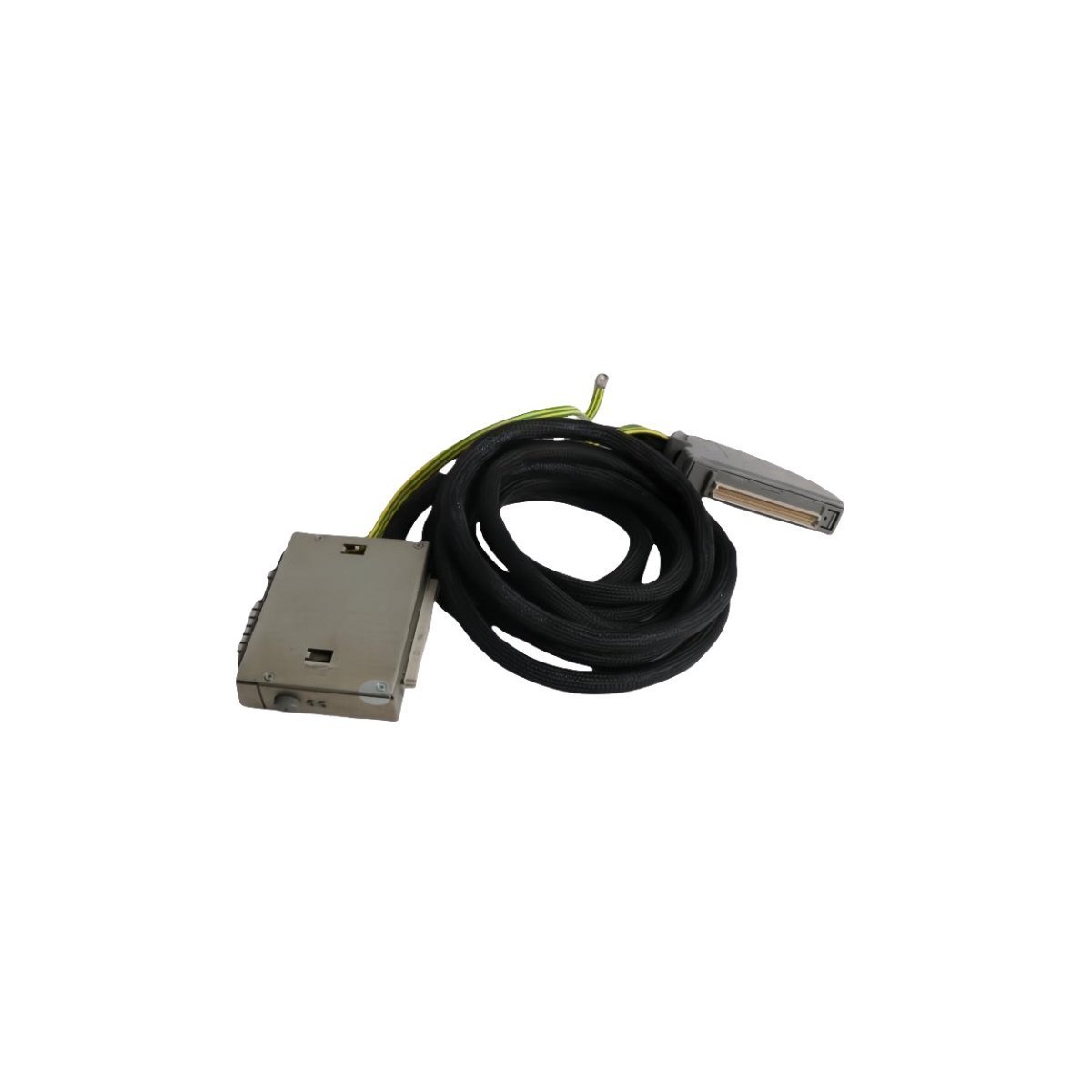

The ICS Triplex TC-505-02-2M0 functions as a specialized I/O SmartSlot cable within the Regent Control System architecture. This high-reliability interconnect provides the vital pathway for data and control signals between I/O modules and the system backplane. Engineered to support the Regent’s fault-tolerant philosophy, the TC-505-02-2M0 facilitates the unique “SmartSlot” functionality, which allows for secondary module positioning and redundant I/O configurations.
Technical Specifications
The TC-505-02-2M0 utilizes industrial-grade shielding and high-density connectors to maintain signal purity in electrically noisy environments.
- Manufacturer: ICS Triplex (Rockwell Automation)
- Model Number: TC-505-02-2M0
- Product Line: ICS Regent Control System
- Component Type: SmartSlot Interface / I/O Connection Cable
- Physical Weight: 1.96 kg
- Standard Length: 2 Meters (as designated by the 2M0 suffix)
- Dimensions: 36 x 27 x 6 cm
- System Category: Programmable Logic Controller (PLC) / Safety Instrumented System (SIS)
- Manufacturing Origin: USA
Functional Characteristics
The TC-505-02-2M0 provides the physical infrastructure required for hot-swapping I/O modules without interrupting the active control process. By utilizing the SmartSlot architecture, the cable ensures that the system can verify the health and configuration of a replacement module before it takes over the control loop. This capability effectively eliminates the risk of system trips during maintenance activities. Furthermore, the cable’s robust shielding prevents electromagnetic interference (EMI) from corrupting critical field data as it travels to the processor.
Because the TC-505-02-2M0 belongs to the Regent family, it supports a wide range of discrete and analog I/O signals. The precision-engineered connectors ensure low-contact resistance, which maintains signal accuracy for sensitive measurements. Moreover, the cable’s durable outer jacket protects the internal conductors from mechanical stress, vibration, and the corrosive atmospheres common in heavy industrial settings.
Engineering Advantages
Consequently, the TC-505-02-2M0 enhances system availability by allowing engineers to implement “Spare” or “Maintenance” slot strategies. This flexibility means that technicians can install a standby module in a SmartSlot and sync it with the primary module through the TC-505-02-2M0 interface. Therefore, the system gains an additional layer of redundancy, ensuring that critical safety functions remain operational even during hardware upgrades.
Additionally, the streamlined connector design simplifies the installation of complex I/O racks. The cable provides a secure, keyed connection that prevents improper seating, thereby reducing the time required for system commissioning. Consequently, operators can rely on the TC-505-02-2M0 for long-term stability in high-demand applications such as emergency shutdown systems (ESD), fire and gas monitoring, and turbine control.
