DS200KLDBG1ABC General Electric Excitation System Operator Interface Module

Brief Product Description

The GE DS200KLDBG1ABC operates as a specialized local user interface board for EX2000 excitation and Mark V control panels. It delivers real-time diagnostic readouts and facilitates direct parameter adjustments through its integrated display and keypad.

Product Overview

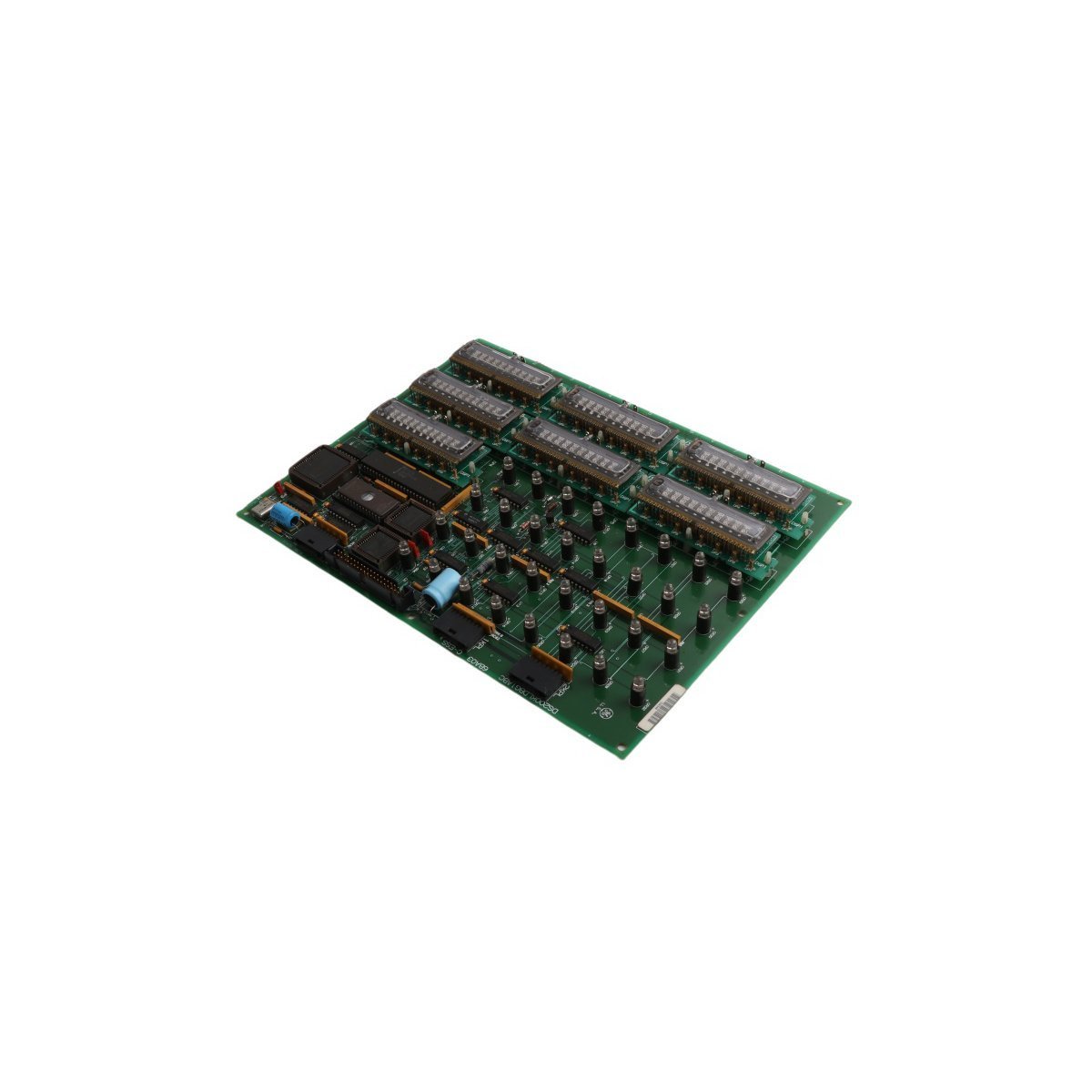

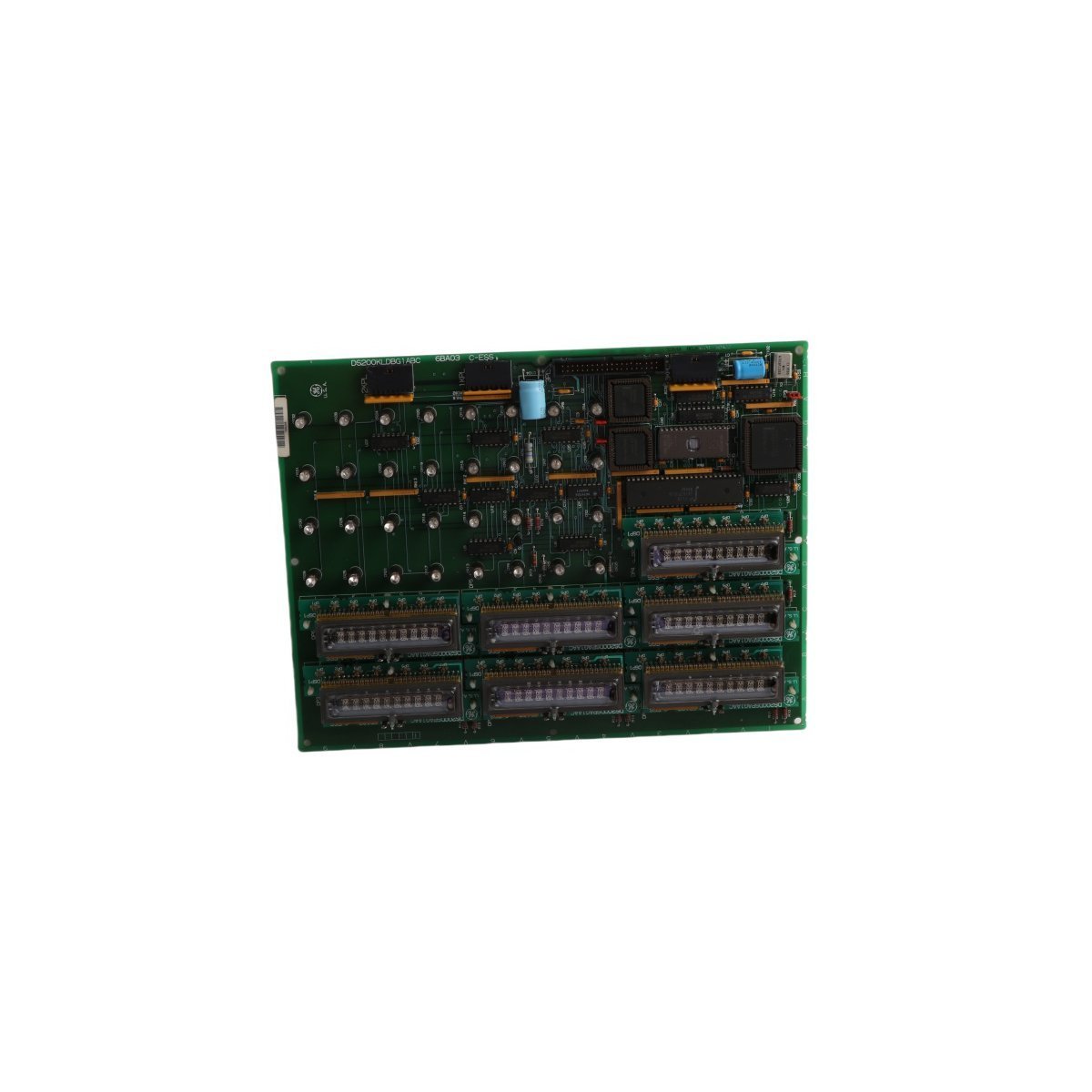

The GE DS200KLDBG1ABC functions as the primary human-machine interface (HMI) for General Electric EX2000 excitation systems and Mark V control architectures. By utilizing this front-panel module, field technicians actively monitor critical operating variables and configure internal parameters. Operators can navigate complex control menus directly from the physical equipment panel. To ensure sharp visual clarity, the board incorporates seven distinct, 16-segment LED display windows. These screens constantly update live telemetry, including turbine speed, operational voltage, and generator current.

Furthermore, this module optimizes control room workflows by pairing clear visual status indicators with a rugged keypad. On the software side, the board interfaces seamlessly with the modular control blocks embedded in the turbine system. Consequently, operators can safely modify crucial variables like under-excitation limits. They execute these changes by adjusting software jumpers housed within the non-volatile EEPROM memory. (Note: The original documentation contains notable data cross-contamination. It erroneously assigns the specifications of an analog I/O card—including 24 input channels, 12 relay channels, and a 125 VDC trip solenoid—to this unit. In reality, the DS200KLDBG1ABC operates strictly as a visual interface and keypad assembly.)

Hardware Architecture and Cabinet Integration

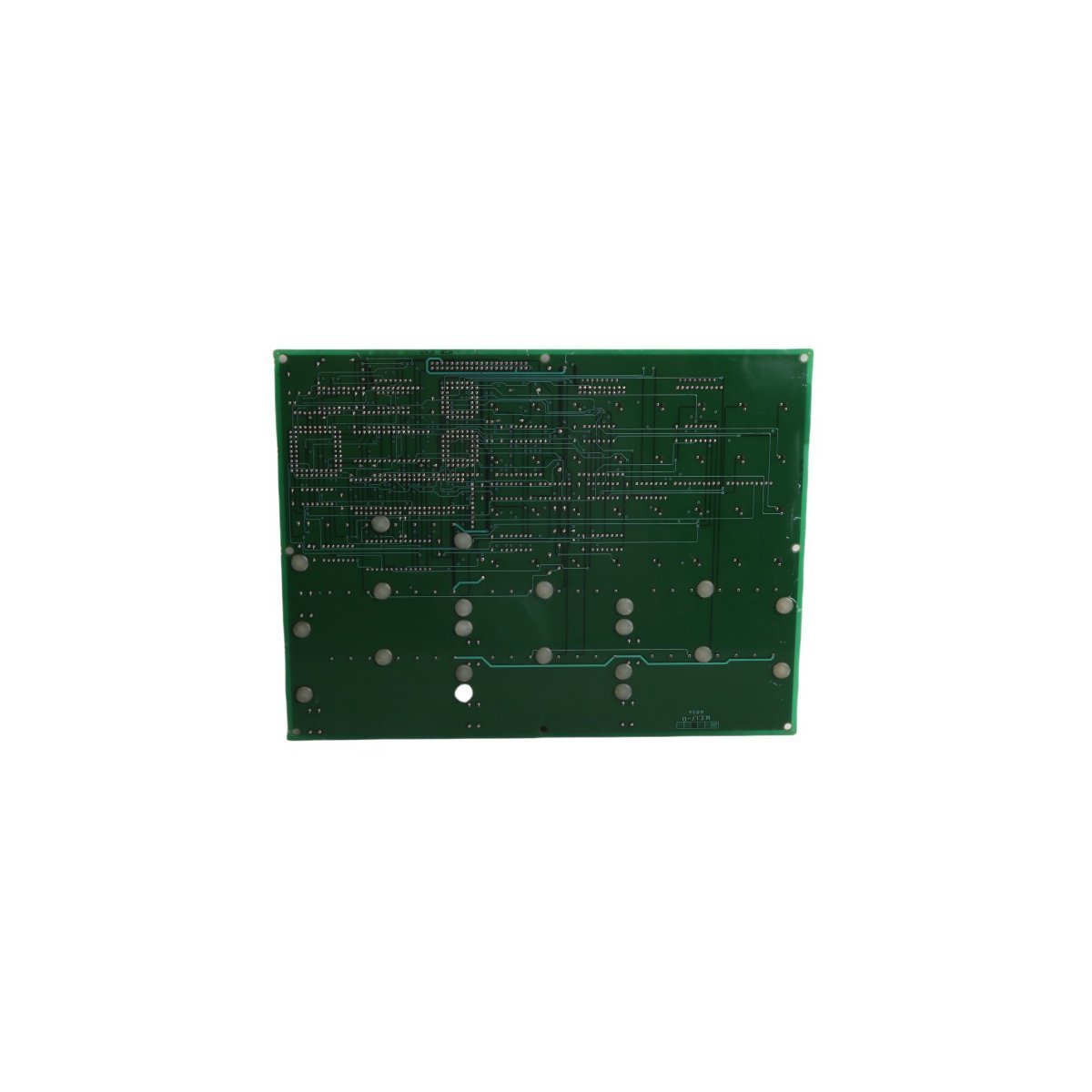

Regarding its physical engineering, the mechanical layout of the board prioritizes rigid cabinet integration and long-term durability. This design easily withstands the continuous mechanical vibrations typical of heavy power generation settings. The physical board dimensions measure 25.5 cm by 10.2 cm. It maintains a slim 3.1 cm profile that easily accommodates shallow console enclosures. Additionally, General Electric integrates pre-drilled, standardized mounting holes along the perimeter. This engineering allows installation crews to mount the board securely using standard screws or standoffs.

Meanwhile, multi-pin headers and specialized ribbon cables manage electrical connectivity. These components link the display board directly to the primary control processors. The front panel layout positions status LEDs alongside the alpha-numeric displays. Therefore, it grants maintenance teams immediate visual verification of active faults and system health. Finally, because the board processes manual parameter adjustments, it utilizes dedicated filtering circuitry. These components suppress electromagnetic interference (EMI) and prevent manual user inputs from disrupting core control logic.

Technical Performance Specifications

• Manufacturer: General Electric (GE)
• Part Number: DS200KLDBG1ABC
• Control System Compatibility: EX2000 Excitation Systems, Mark V Turbine Control
• Component Type: Operator Display and Keypad Interface Assembly
• Visual Display Elements: Seven 16-segment LED diagnostic readouts
• User Input Interface: Local tactile navigation keypad
• Physical Dimensions: 25.5 cm x 10.2 cm x 3.1 cm
• Net Weight: 0.38 kg
• Mounting Configuration: Integrated perimeter holes for standoff or screw mounting
• System Classification: Distributed Control System (DCS) / Excitation Auxiliary Component
• Harmonized Tariff Code (HS Code): 8537101190
• Country of Origin: United States of America
• Lifecycle Status: Legacy / Available as a renewed high-reliability replacement part
