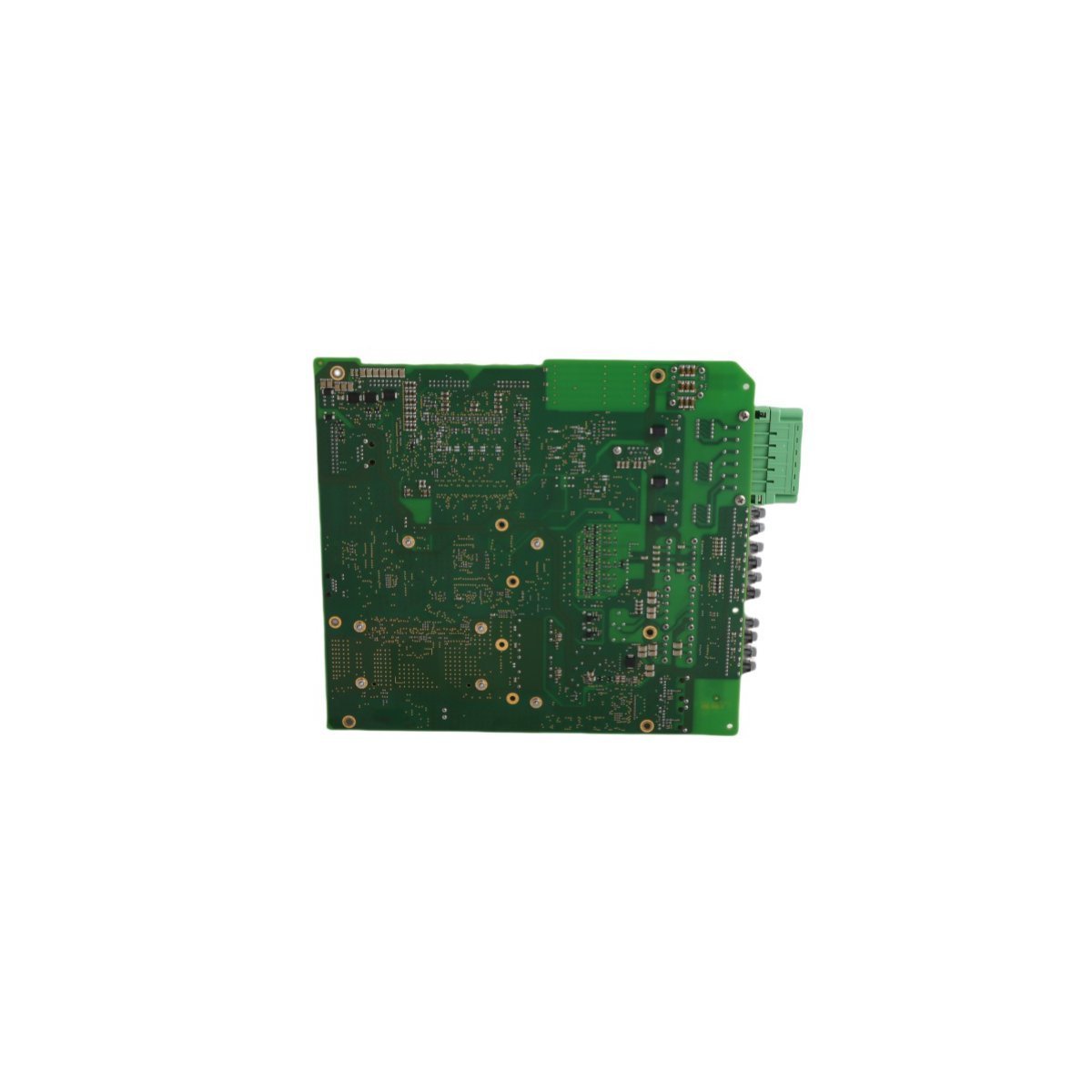

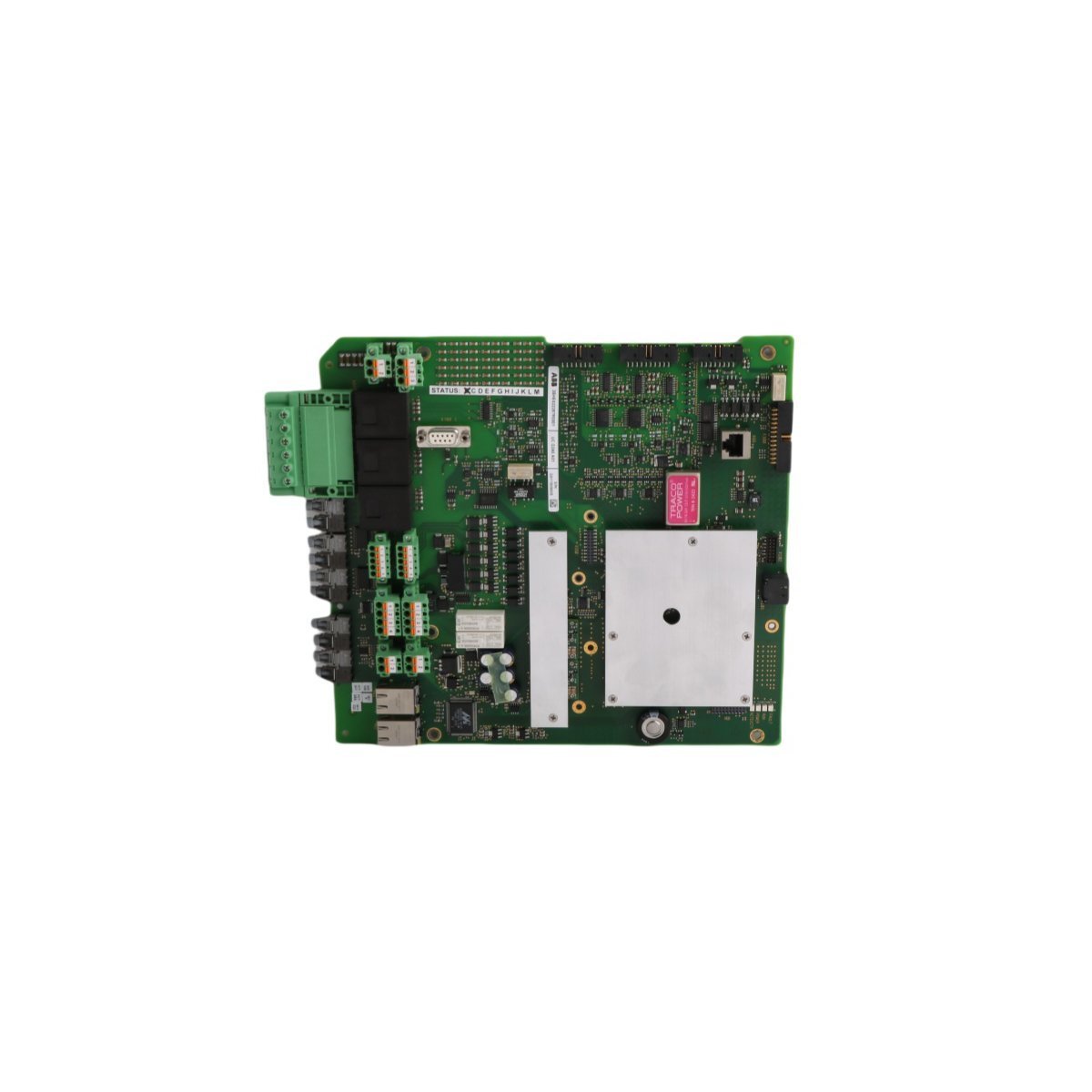

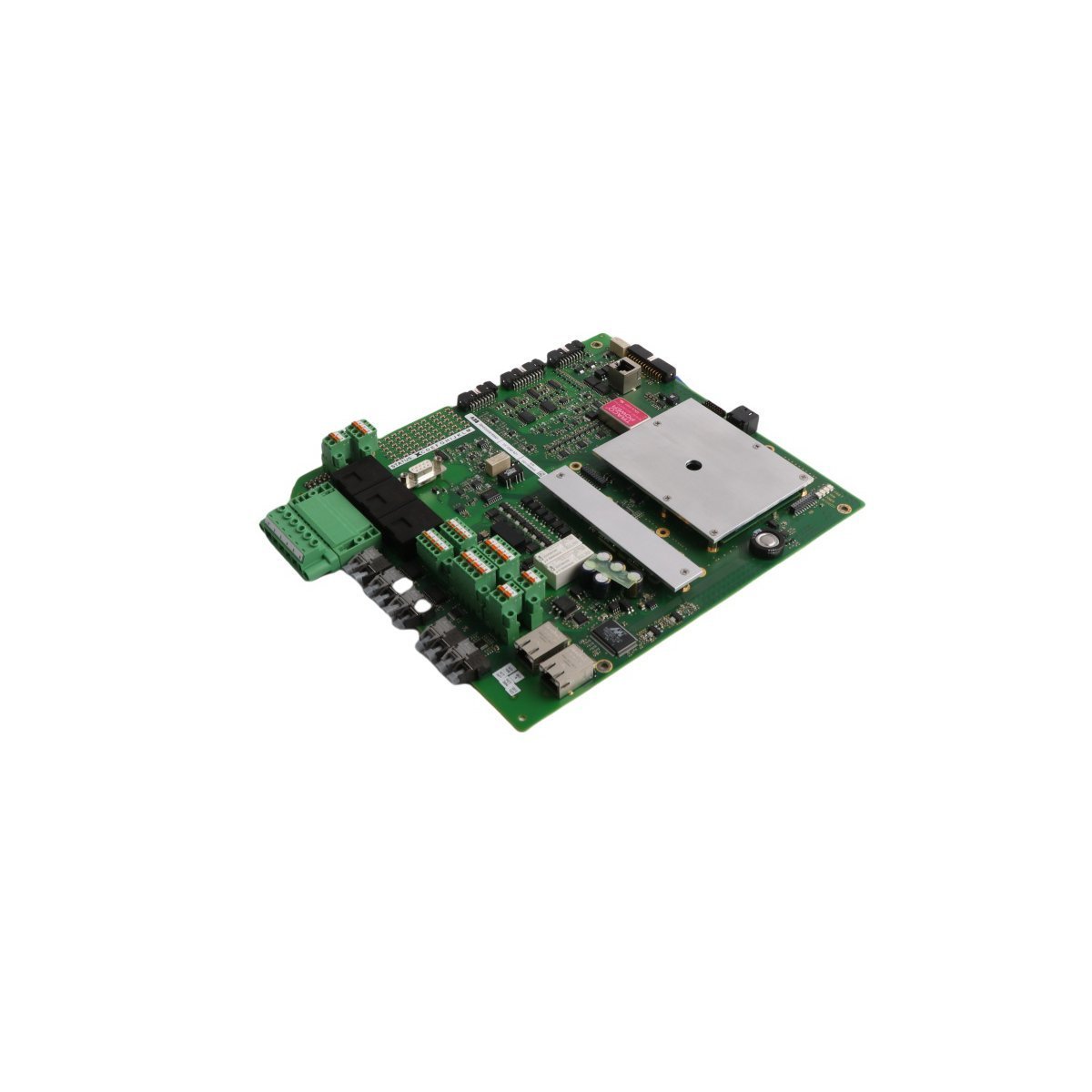

3BHE022287R0001 ABB UCD240A01 UNITROL Converter Module

ABB 3BHE022287R0001 UCD240A01 Converter Module

Configured for high-speed signal conditioning and power conversion in UNITROL Excitation Systems, the ABB 3BHE022287R0001 (UCD240A01 Converter Module) provides direct physical/electrical execution across system sub-networks.

Hardware Specifications

Deterministic Network Routing and Backplane Bus Velocity

The board interfaces directly with the system backplane to route real-time power conversion signals between field devices and central processing units. Internal gate drive logic maintains high backplane bus communication velocity by buffering incoming control frames and minimizing processing latency. Additionally, system software verifies firmware flash compatibility during startup sequences, ensuring complete parameter synchronization before authorizing converter firing pulses over the main power channels.

Frequently Asked Questions

Q: How does the CCM board handle noise suppression on incoming control signals?

A: Differential input stages filter out common-mode voltage spikes, while grounded shield connections divert high-frequency electromagnetic interference directly to cabinet earth ground.

Q: What power procedure must field personnel follow when replacing the 3BHE022287R0001 module?

A: Engineers must completely isolate the 24 VDC rack power before removing or inserting the module, as live insertion disrupts active backplane bus traffic and risks damaging semiconductor components.

Field Installation Guidelines

Mount the board vertically on dedicated chassis guide rails within an IP54-rated industrial cabinet. Maintain a minimum clearance of 50 mm around upper and lower cooling channels to enable natural thermal convection across the assembly. Connect a low-impedance copper strap directly from the module frame to the cabinet ground bar. Furthermore, route low-level signal cables in separate wiring troughs away from high-current AC leads to prevent inductive coupling.
