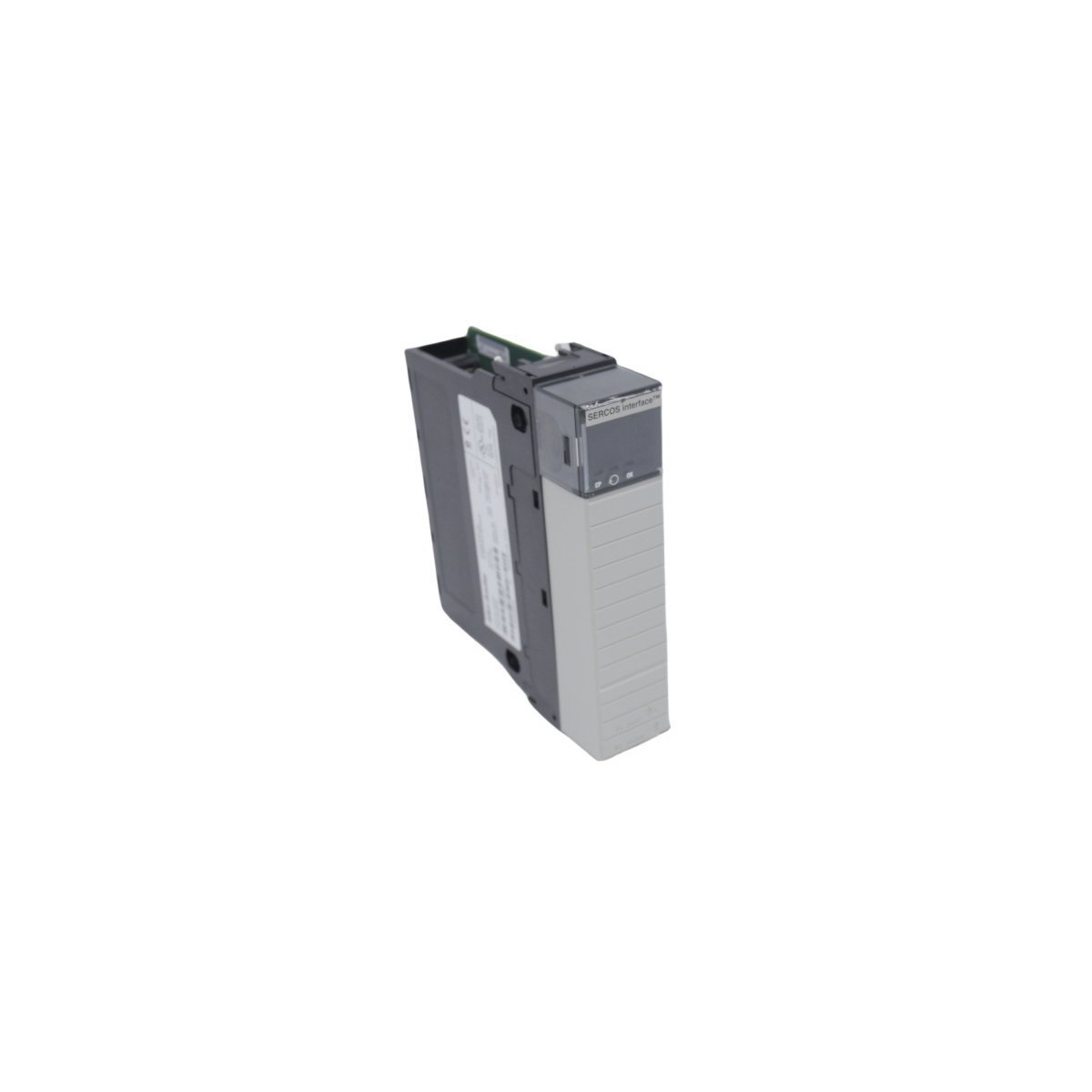

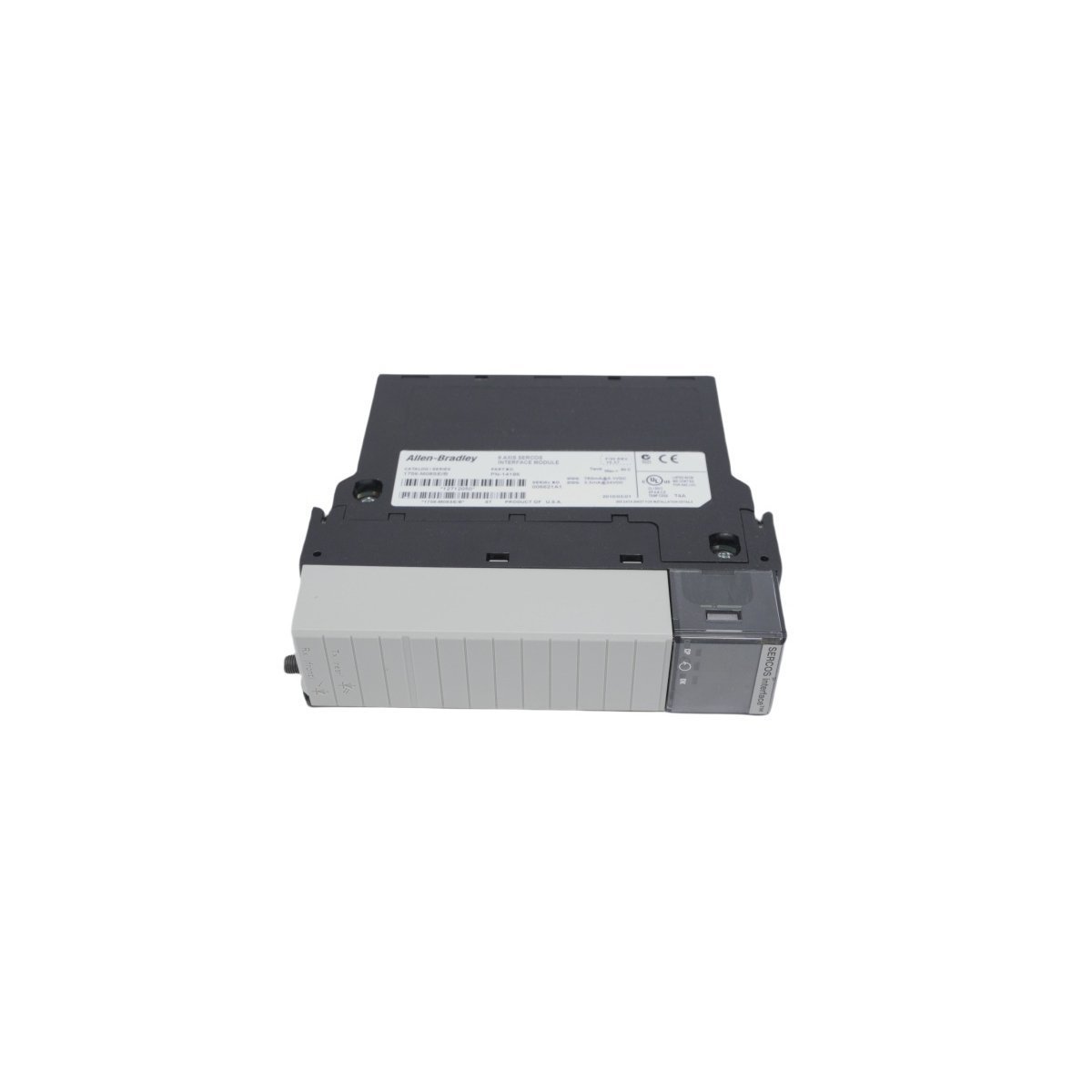

Centralized Motion Control and Connectivity
The 1756-M08SE module acts as a bridge between the ControlLogix platform and high-performance servo hardware. It supports the management of up to eight axes of motion through the Serial Real-time Communications System (SERCOS) protocol. This digital interface eliminates the need for extensive analog wiring and reduces electromagnetic interference. The module integrates seamlessly with the Kinetix drive family, including the 2000, 6000, 7000, and Ultra3000 series. By centralizing drive intelligence, the processor optimizes motion profiles across all eight axes, ensuring precise synchronization for complex machinery.
High-Speed Data Exchange and Performance
Engineers can select between data rates of 4 Mbps or 8 Mbps to balance the number of axes with required update frequencies. At 8 Mbps, the module achieves an impressive 0.5 ms cycle time for four axes and a 1 ms cycle time for the full eight axes. This rapid communication allows for real-time adjustments to torque and velocity, which is critical for high-speed packaging, assembly, and CNC applications. The module utilizes fiber-optic links to maintain signal integrity over long distances and provides superior noise immunity in heavy industrial environments.

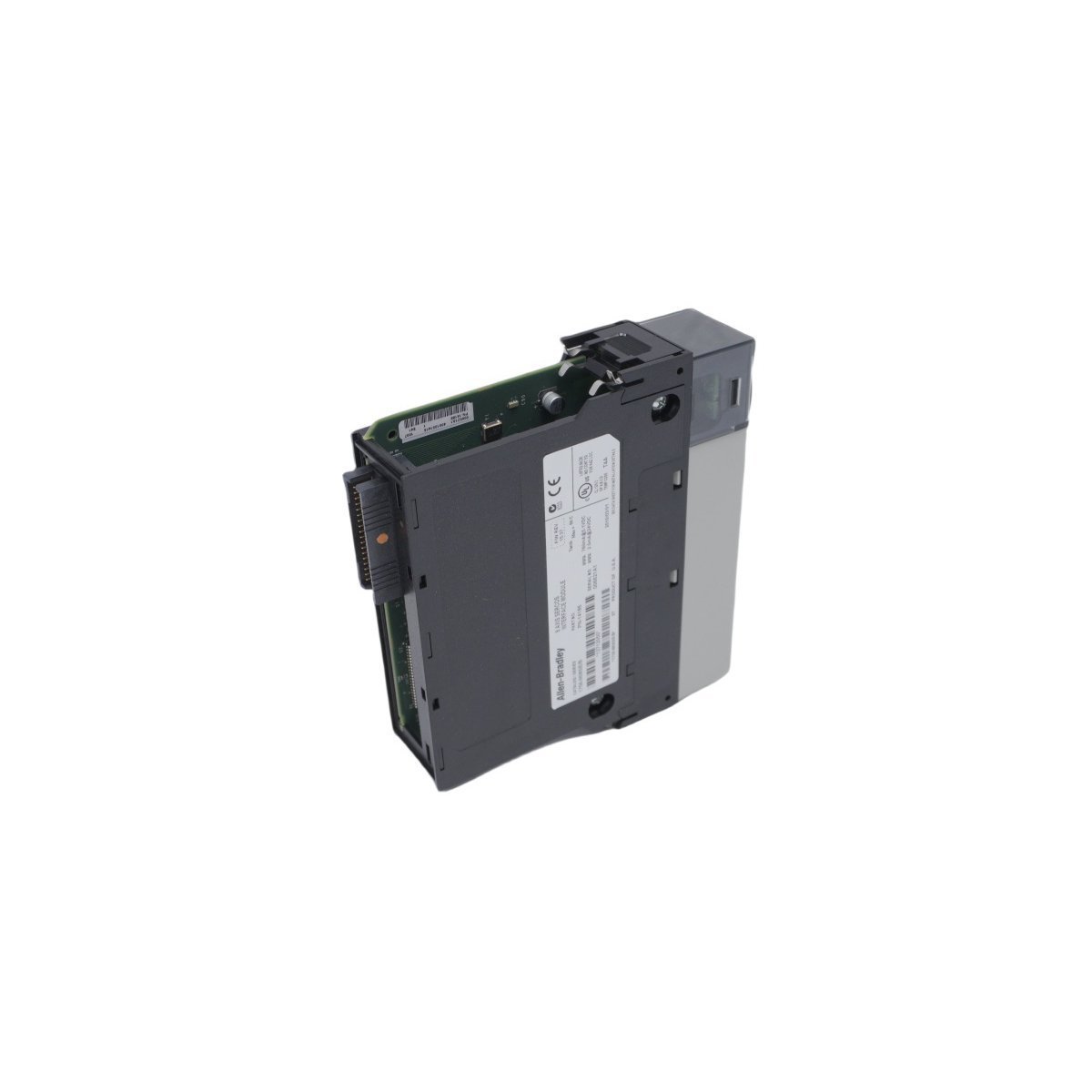

System Integration and Build Quality
This module occupies a single slot in any standard ControlLogix 1756 chassis, such as the A4, A7, or A17 models. Because it leverages fiber-optic technology, it simplifies the drive-to-controller cabling architecture. The hardware handles a continuous operating temperature of up to 60°C and features a robust shock rating of 30 g. These specifications ensure that the SERCOS interface maintains reliable communication even when subjected to the mechanical stresses of a production floor.
Technical Specifications Summary
- Manufacturer: Allen-Bradley / Rockwell Automation
- Model Number: 1756-M08SE
- Axis Support: Up to 8 Axes
- Protocol: SERCOS Interface
- Data Transmission: 4 Mbps or 8 Mbps
- Cycle Times: 0.5 ms to 2.0 ms (Configuration Dependent)
- Backplane Current: 1.2A @ 5.1V DC
- Fiber Optic Support: 2090-SCEP / 2090-SCVP series
- Weight: 0.22 kg
