Allen-Bradley 1756-L55M23 ControlLogix Series PLC Controller Hardware

Allen-Bradley 1756-L55M23 ControlLogix Controller

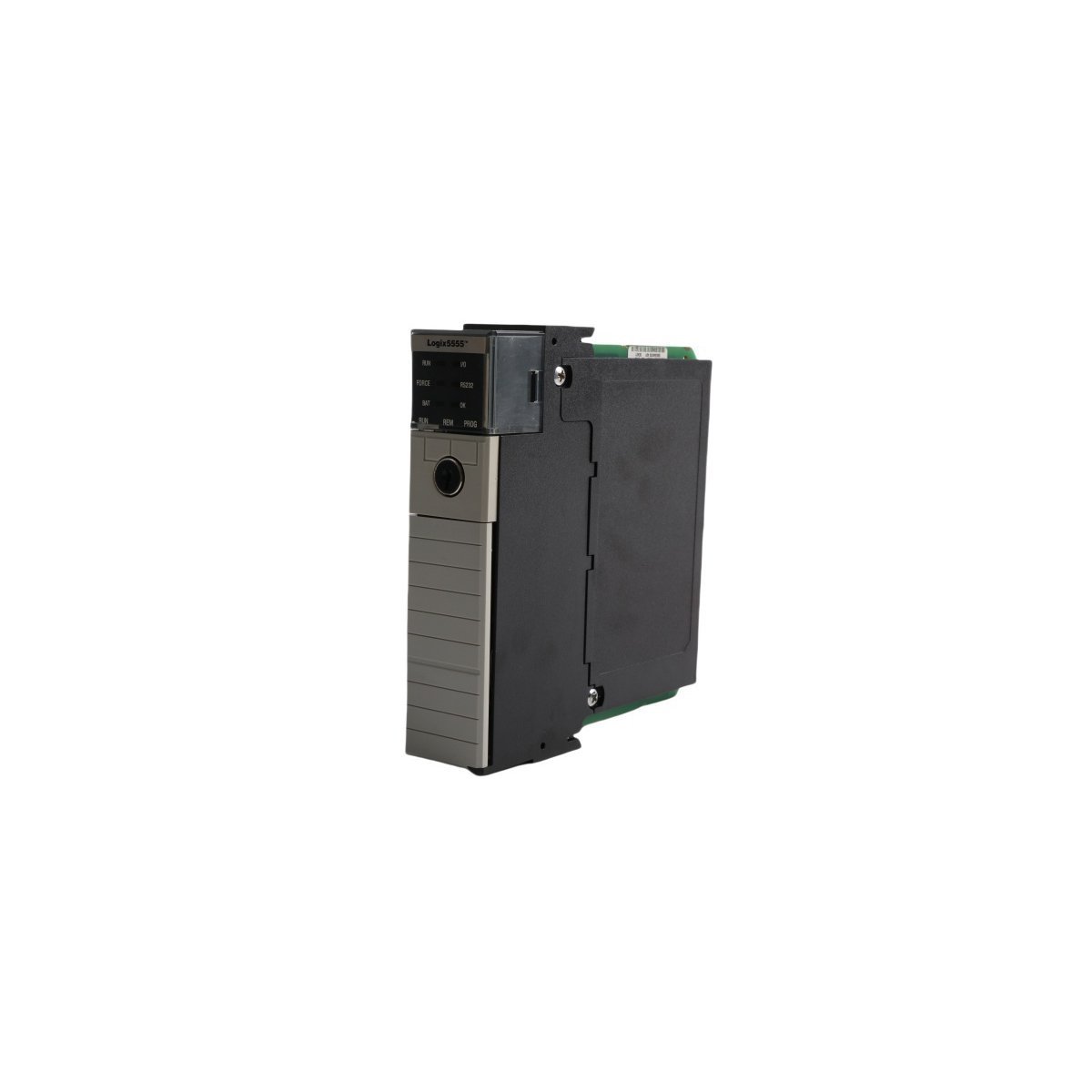

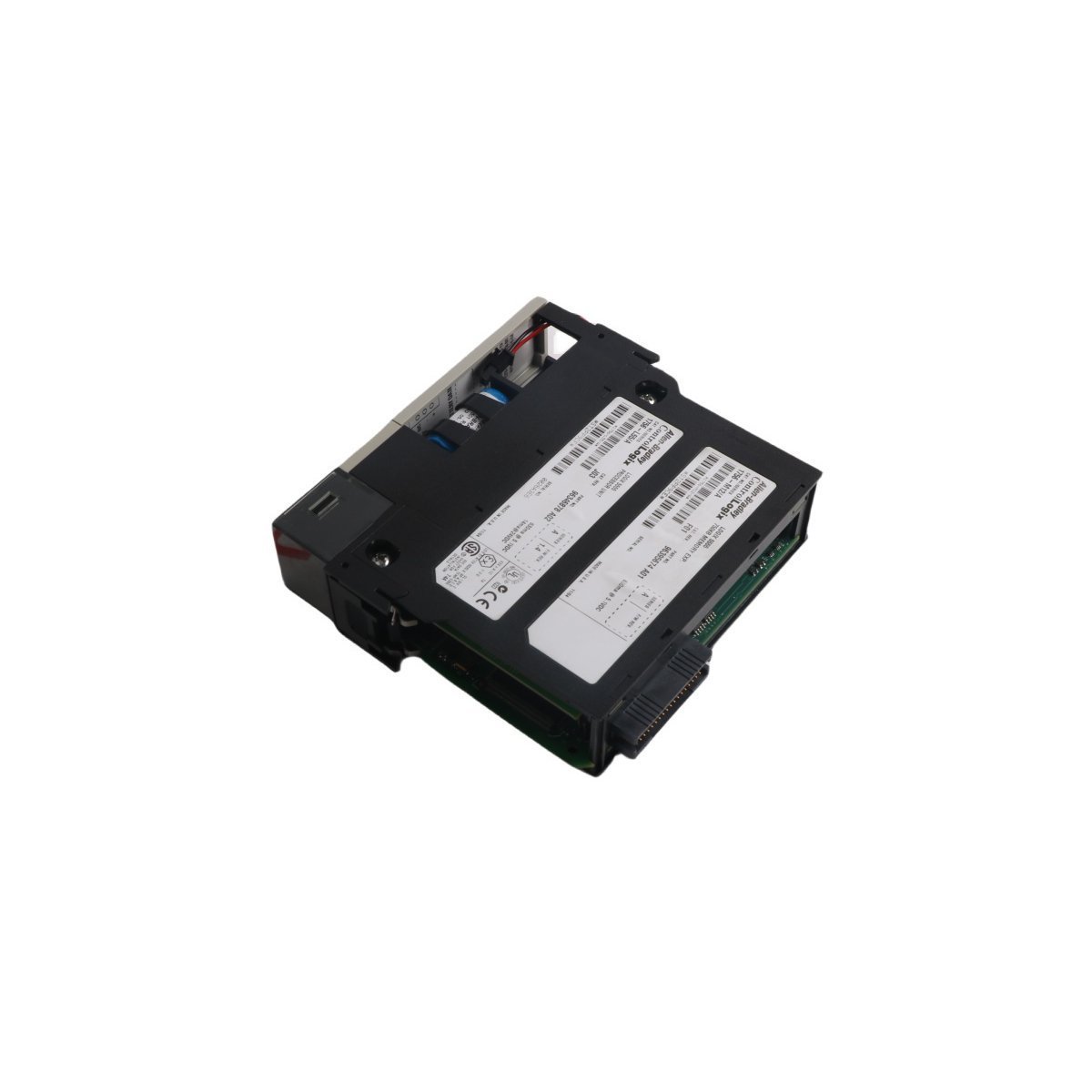

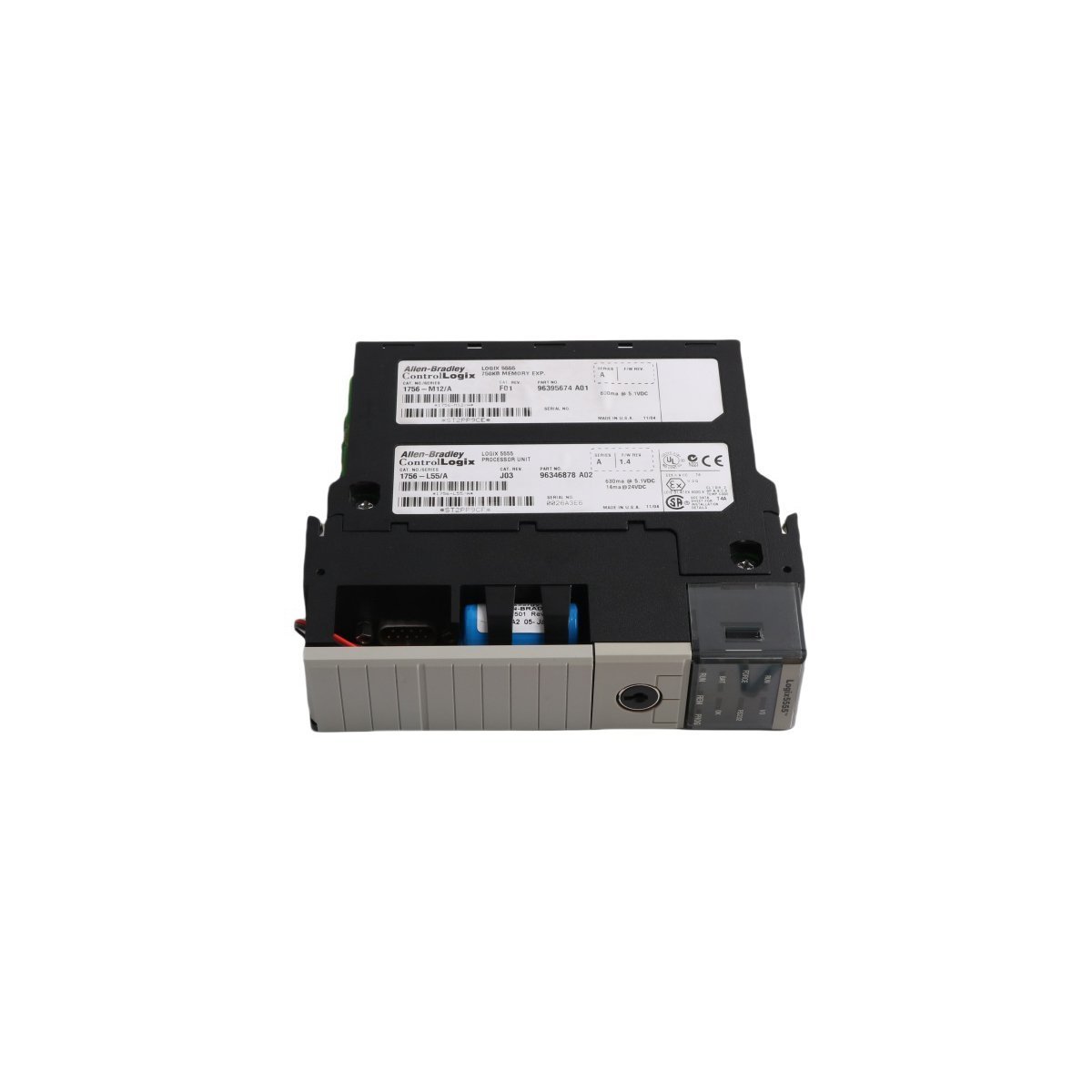

The Allen-Bradley 1756-L55M23, also cataloged as the 1756-L55M23 ControlLogix Controller, operates as a dedicated hardware component for logic execution and system coordination within ControlLogix platforms.

Suffix Breakdown & Model Matrix

The 1756-L55M23 represents a specific configuration within the Logix5555 controller series. This module integrates the central processing unit with local memory boards to manage application code, I/O scanning, and backplane communication. Users must ensure that the firmware version aligns with the chassis and power supply requirements to maintain system stability.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks

The 1756-L55M23 utilizes a dual-CPU architecture to optimize deterministic performance. The primary Logix CPU executes user-defined application logic and routine tasks. Simultaneously, the dedicated backplane CPU offloads I/O management and network traffic handling, which minimizes jitter and ensures consistent scan times. This module supports producer/consumer tag technology, enabling controllers to exchange data across EtherNet/IP and ControlNet networks without requiring dedicated message instructions. The hardware architecture prevents network congestion from impacting scan cycle execution.

Frequently Asked Questions (FAQ)

Q: What determines the battery maintenance schedule for the 1756-L55M23?

A: The controller utilizes either a 1756-BA1 or 1756-BATM battery for non-volatile memory retention during power cycles. Users must replace these batteries periodically based on the operating temperature and power-off duration to prevent memory loss.

Q: Can the 1756-L55M23 be removed from the chassis while powered?

A: This module supports standard chassis mounting, but operators should verify local electrical safety procedures before extraction. Users must ensure that no critical control loops are active, as removal terminates backplane communication and triggers a faulted state in connected I/O modules.

Field Installation Guidelines

1. Backplane Insertion: Align the module with the chassis slot guides. Slide the module forward until the rear connector seats firmly into the backplane.
2. Mounting Security: Tighten the top and bottom retaining screws to ensure proper grounding and mechanical stability against vibration.
3. Shielding: Ensure all communication cables (EtherNet/IP, ControlNet) utilize high-quality shielded twisted-pair wiring. Terminate cable shields at the designated chassis ground point to mitigate electromagnetic interference.
4. Environment: Verify that the installation area provides sufficient airflow. Maintain a clearance of at least 5 cm around the module to prevent thermal throttling.
5. Initialization: Upon power-up, monitor the front-panel status LEDs. A solid green indicator confirms successful backplane communication, while a flashing indicator necessitates a check of the fault handler logs.
