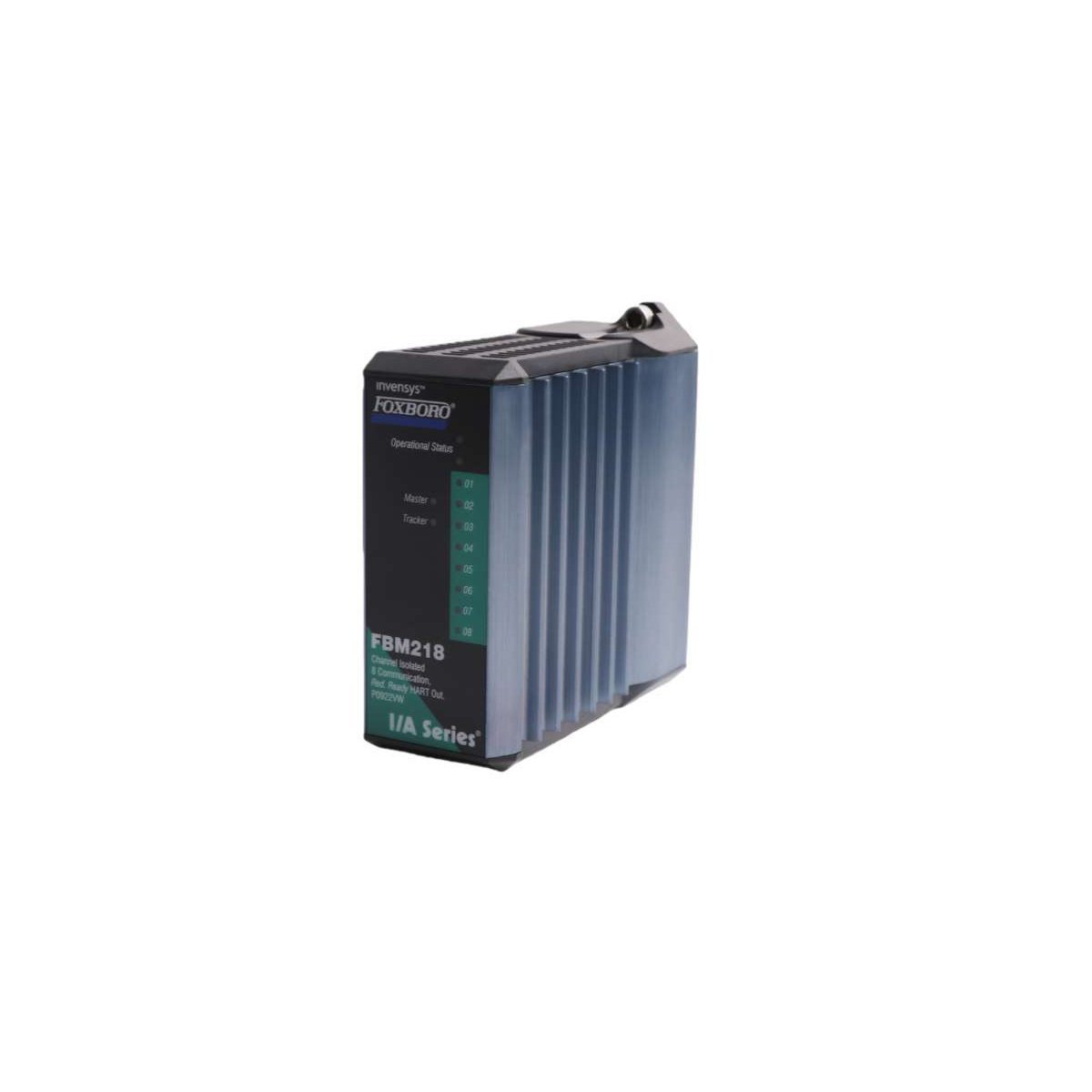

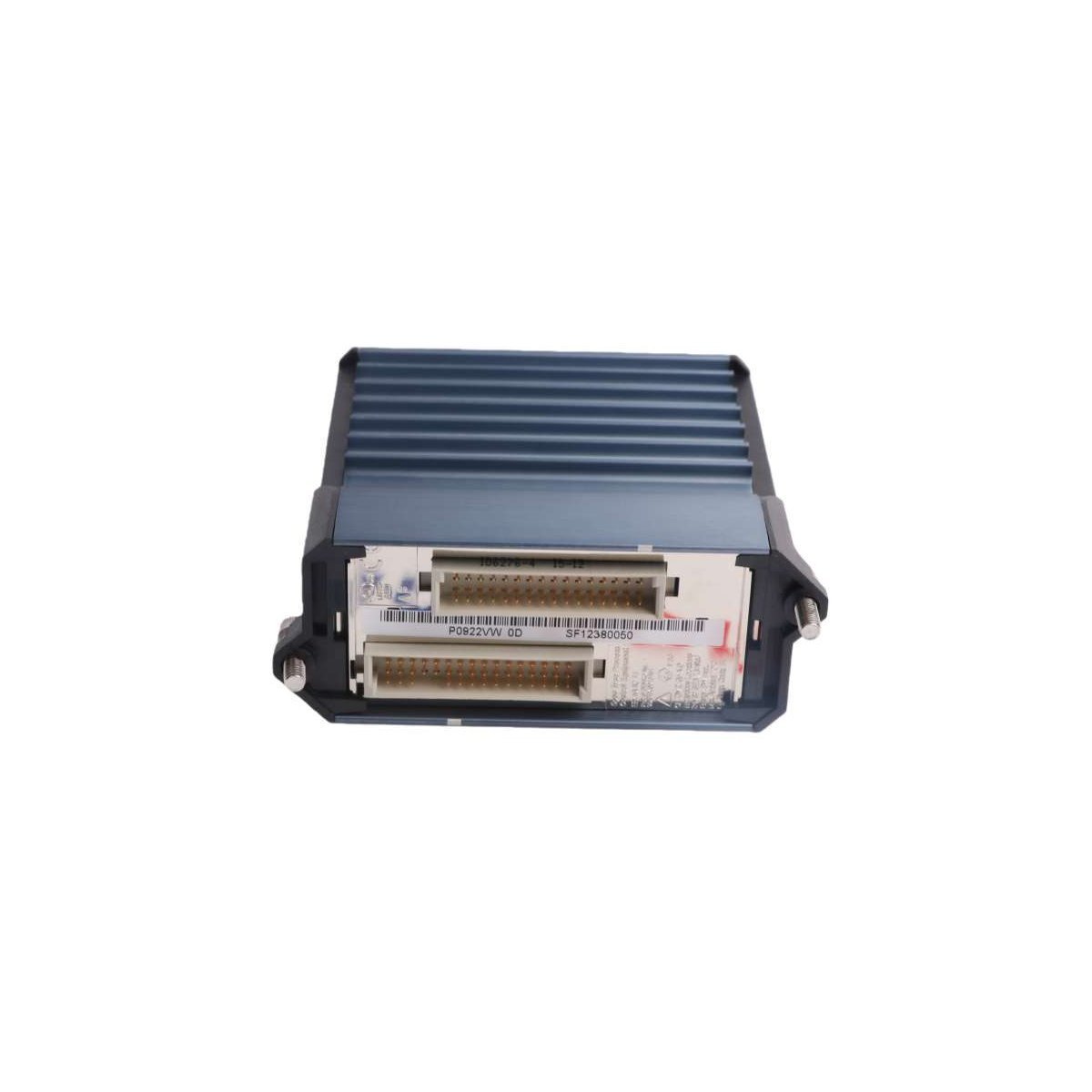

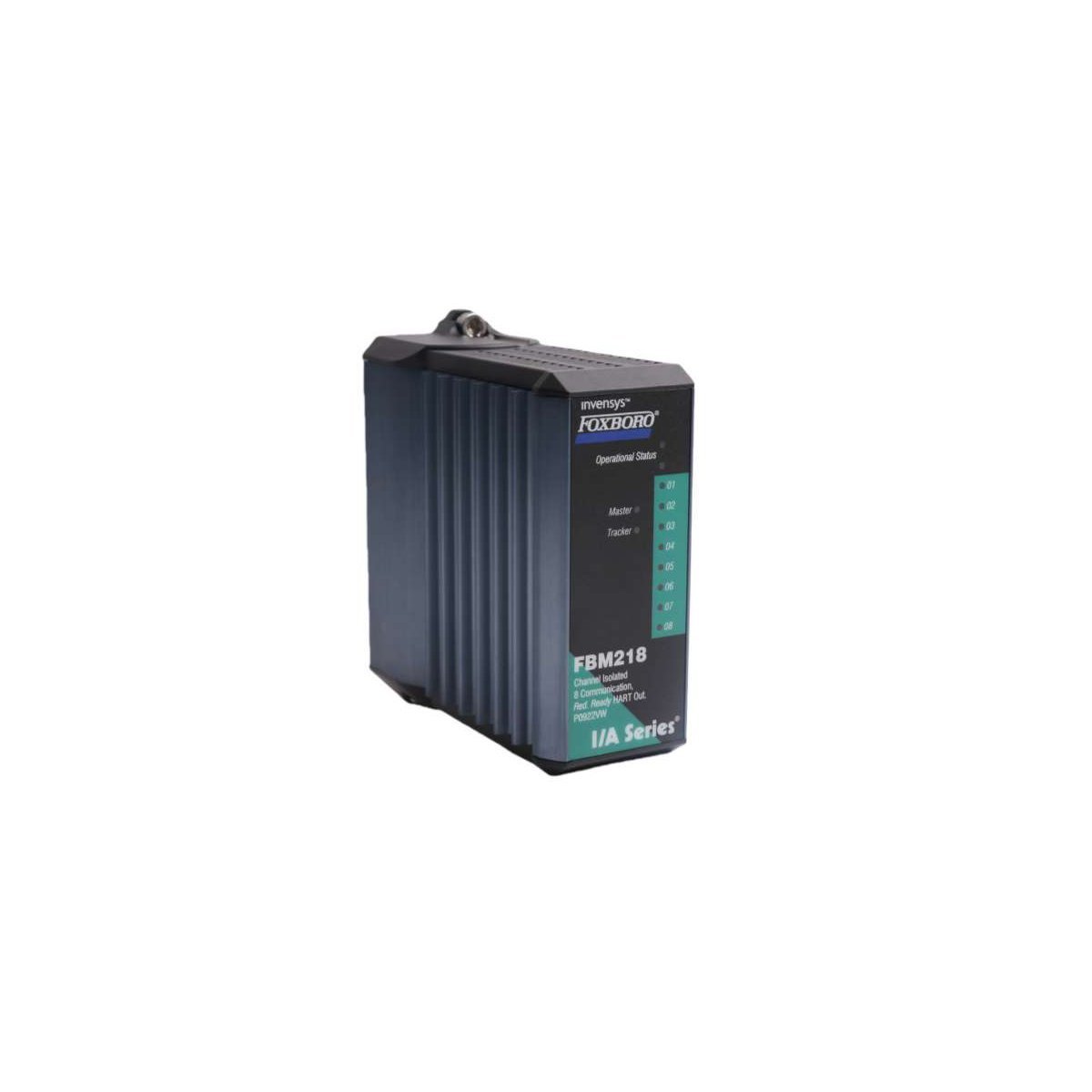

Foxboro FBM218 P0922VW Redundant Output Module

Technical Specifications

Robust Construction for Challenging Environments

The FBM218 utilizes an extruded aluminum housing to provide superior protection for internal electronics. This ruggedized casing meets ISA S71.04 standards, which allows the module to operate reliably in corrosive or harsh industrial climates. Installation is efficient thanks to the modular baseplate mounting system. Redundant modules sit in adjacent slots on the baseplate for streamlined wiring and high-density cabinet layouts. This combination of hardware durability and advanced protocol support makes the FBM218 a primary choice for critical control loops in chemical, oil, and power industries.

Primary Functional Highlights

• HART Integration: Enables remote calibration and diagnostic data retrieval via digital protocols.
• Master/Tracker Switching: Provides seamless failover between redundant module pairs.
• Full Channel Isolation: Protects signal integrity by preventing ground loops and interference.
• Industrial Hardening: Designed to withstand high humidity and corrosive chemical exposure.

Advanced Signal Isolation and System Safety

Each of the eight channels features independent isolation and a dedicated power supply. This design prevents cross-talk and ensures that electrical faults on one loop do not affect other connected devices. The FBM218 communicates over a redundant 2 Mbps fieldbus, utilizing two separate paths (A and B) to maintain a constant link with the control processor. Furthermore, the module includes a secure fail-safe mechanism. If communication with the controller is lost, the module drives outputs to a pre-defined safe state, protecting the industrial process from unpredictable behavior.
