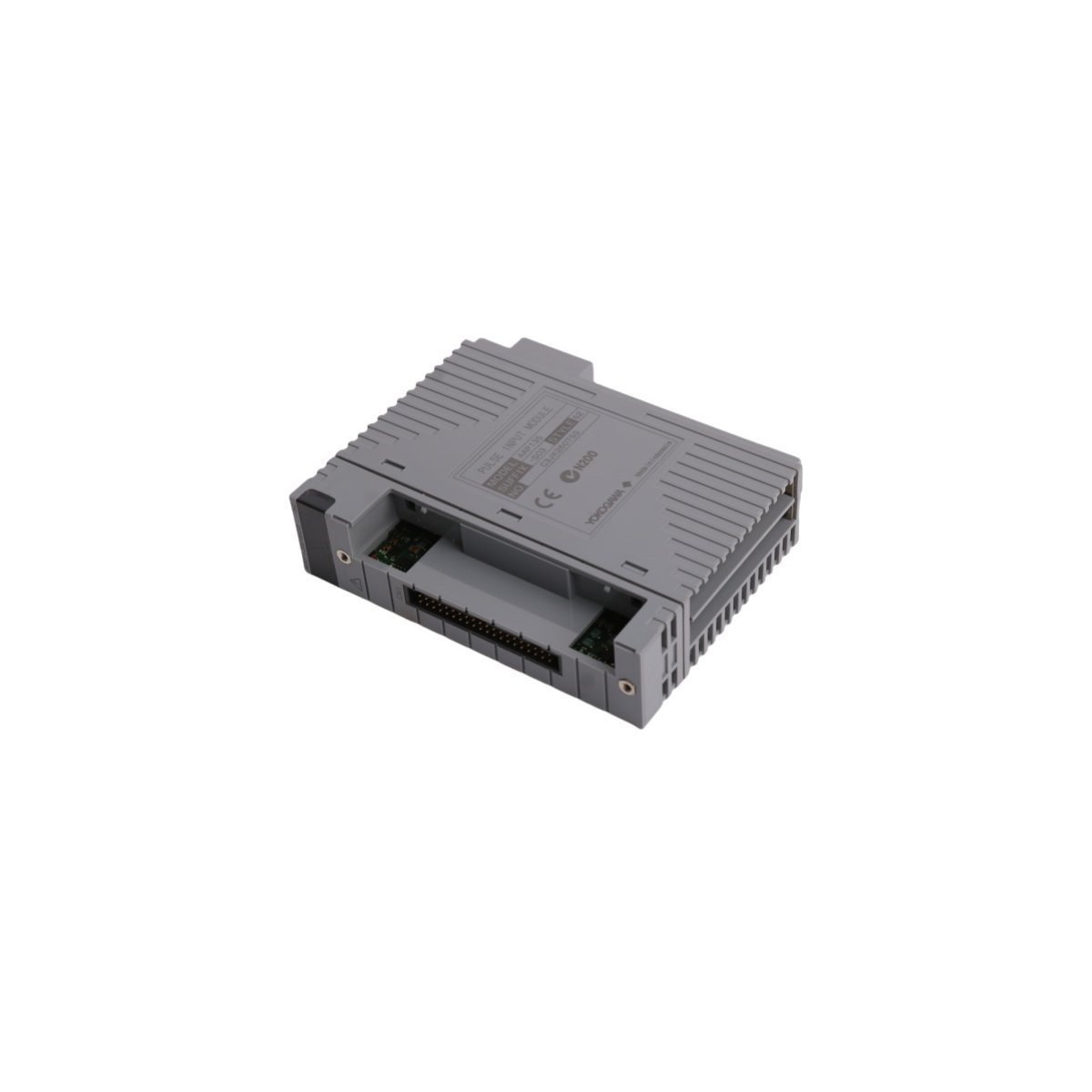

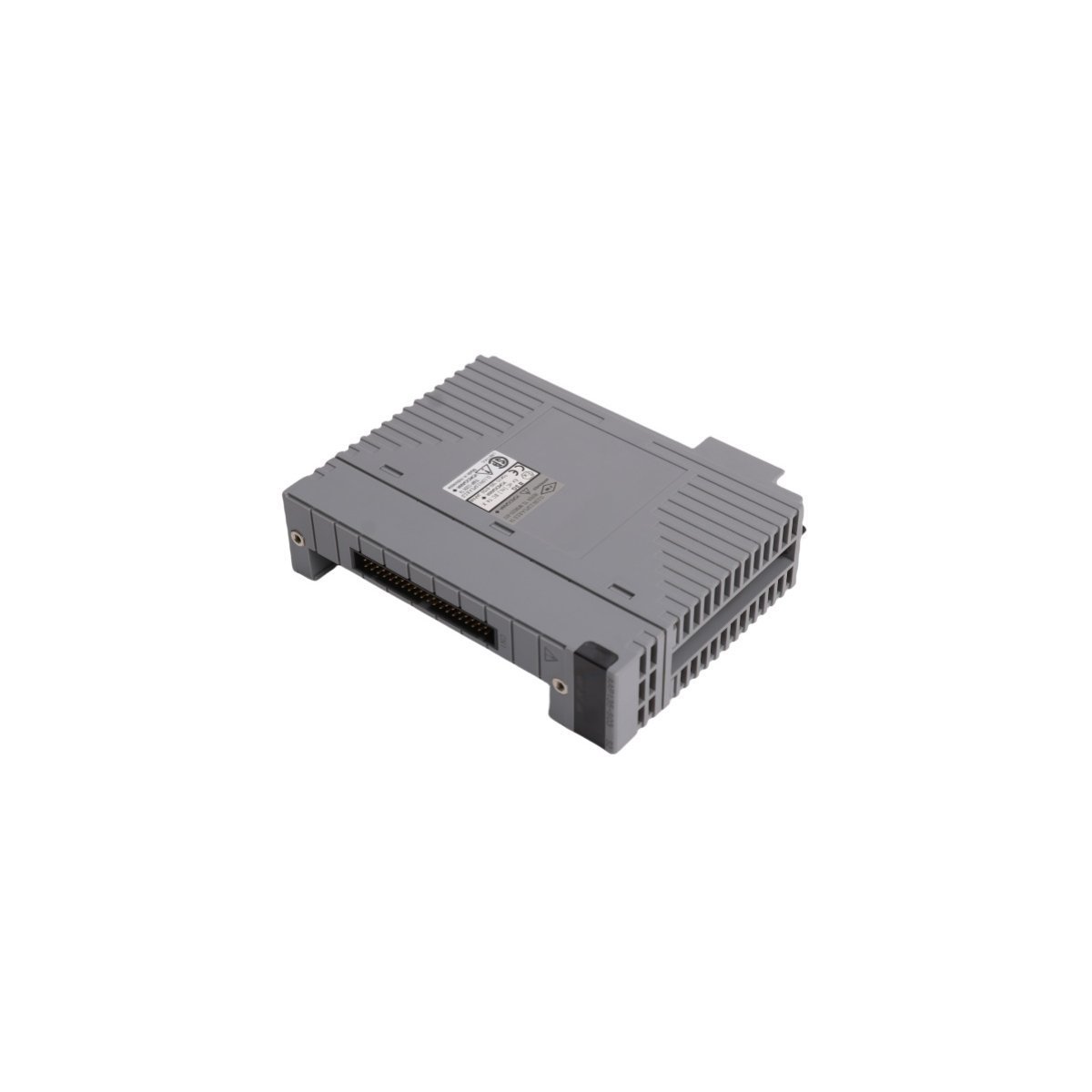

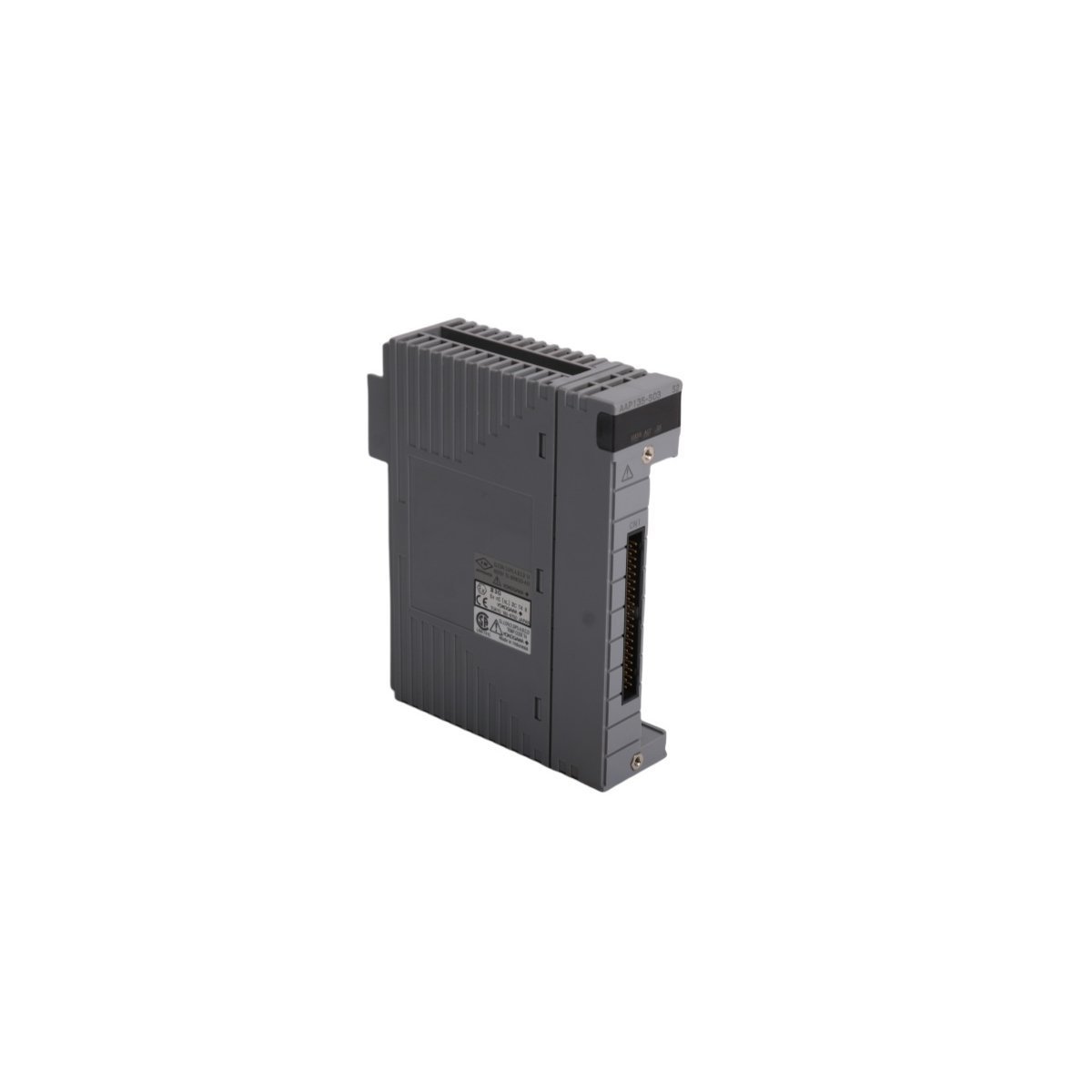

Yokogawa AAP135-S50 S2 Pulse Input Module

The Yokogawa AAP135-S50 S2 serves as a specialized pulse input interface for distributed control systems. This module precisely captures pulse signals from field devices like flowmeters and speed sensors. It converts these frequency-based inputs into digital data for the process controller. Because it belongs to the FIO (Field network I/O) family, it integrates seamlessly with Yokogawa CENTUM VP systems. The hardware ensures high-speed signal processing for time-critical industrial monitoring. Consequently, it supports accurate totalization and instantaneous flow rate calculations in complex automation environments.

Technical Performance and Conversion Efficiency

This module demonstrates superior electrical stability with an optimized internal power architecture. It achieves a high conversion efficiency of approximately 91% during standard operation. This efficiency level minimizes heat buildup within the I/O rack. Furthermore, the unit supports a wide range of pulse frequencies to accommodate various sensor types. The S2 suffix indicates a specific hardware revision for improved signal filtering and durability. It provides steady performance even when the primary power supply experiences slight voltage fluctuations.

Technical Specifications Summary

The following table outlines the physical and operational characteristics of the AAP135-S50 S2:

Installation and Maintenance

Proper installation requires secure seating on the base unit to maintain communication integrity. Technicians should verify that the terminal block connections remain tight during periodic maintenance cycles. The module’s active status ensures continued support and parts availability for existing DCS installations. Always check the specific software revision of the field control station before adding new hardware. Following these steps guarantees the uninterrupted operation of essential production processes.
