51307573-176 Honeywell Controller Module SC-UCNN11 Experion PKS

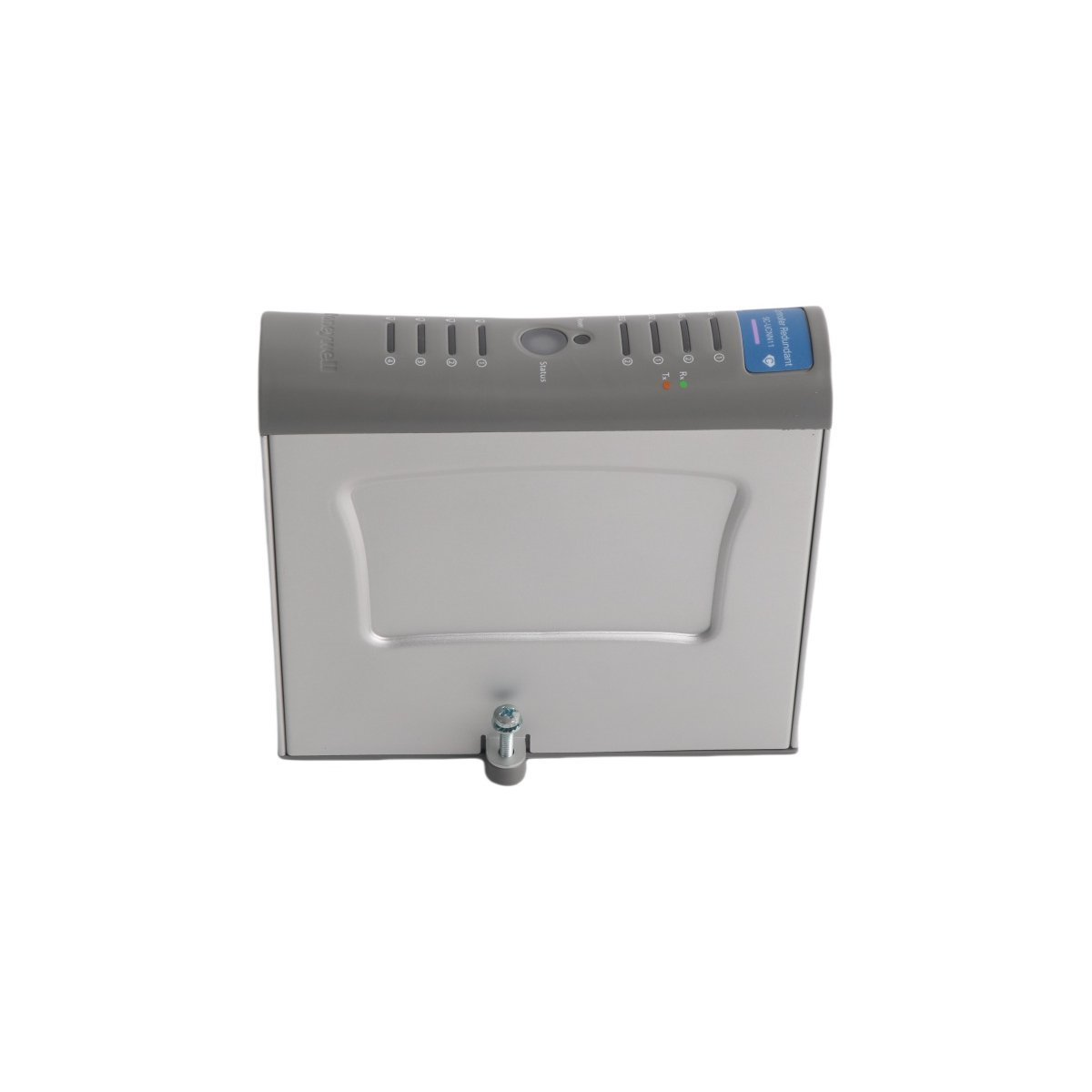

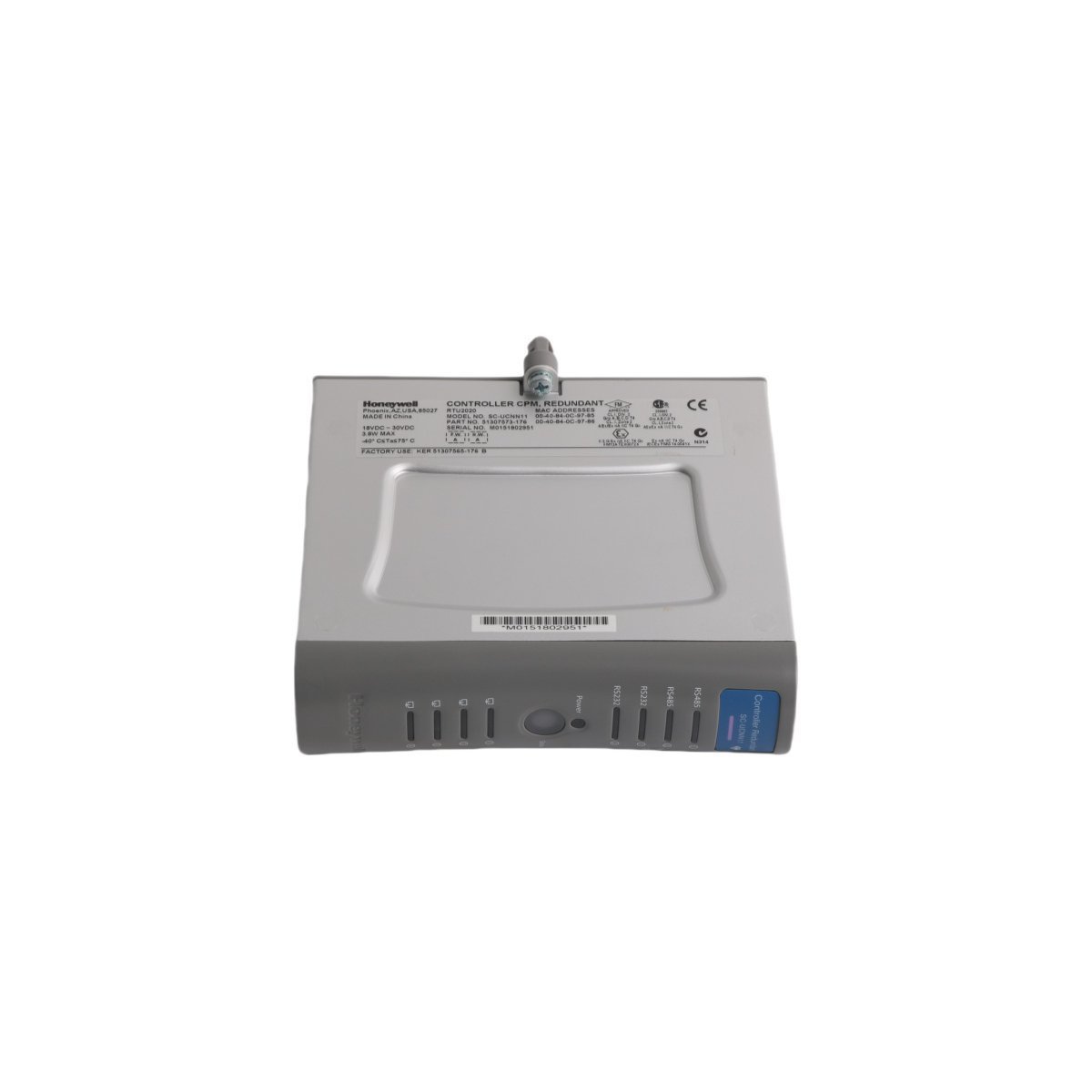

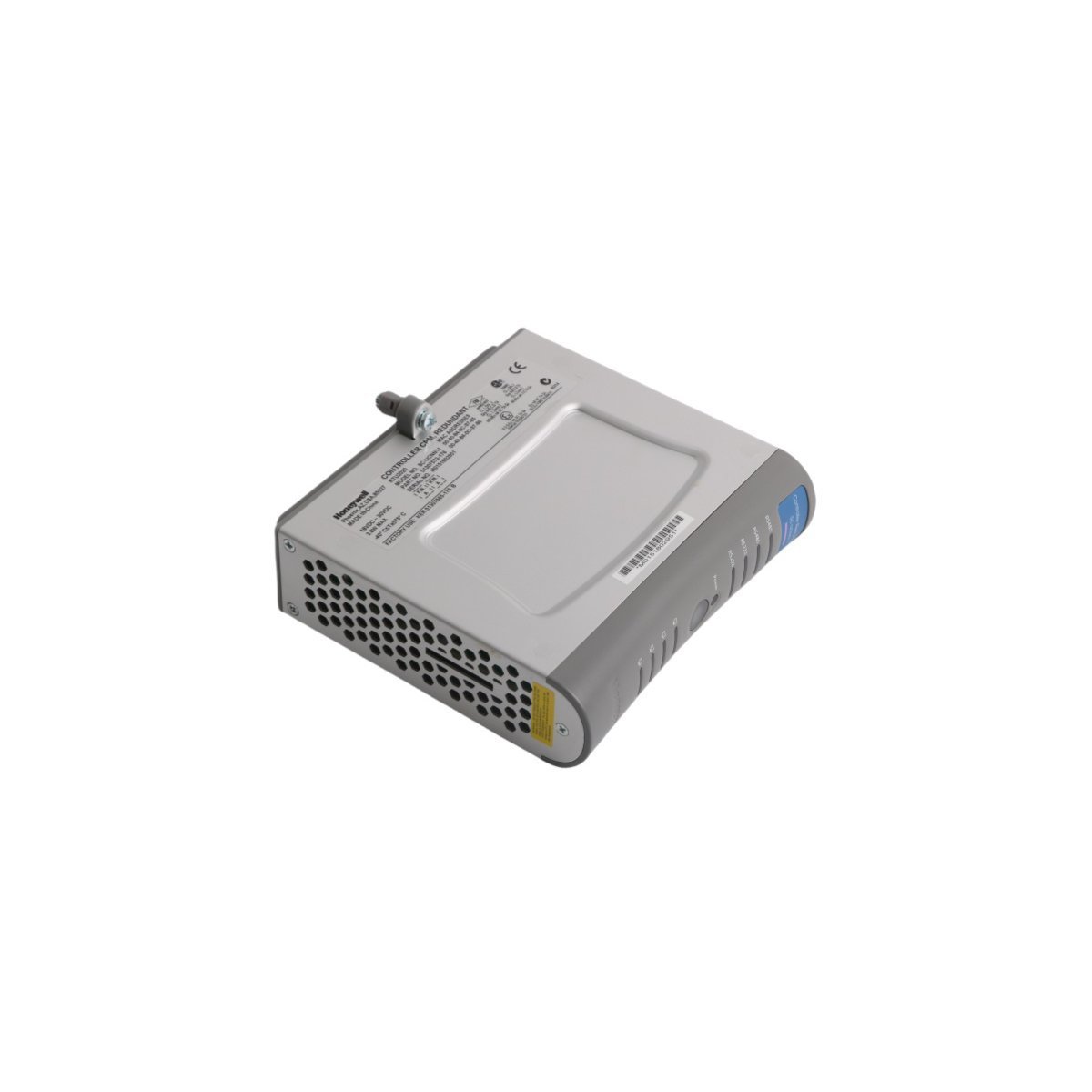

HONEYWELL SC-UCNN11 Controller Module

The HONEYWELL SC-UCNN11 51307573-176, also cataloged as the SC-UCNN11 Controller Module, operates as a dedicated hardware component for deterministic signal processing and logic execution within Experion PKS DCS architectures.

Suffix Breakdown & Model Matrix

• SC-UCNN11: Identifies the specific control module design configured for high-density I/O integration and real-time computation.
• 51307573-176: Represents the unique Honeywell part number variant designating the electrical pinout, clock speed, and onboard firmware compatibility for C300 controller interface environments.

Hardware Specifications

Process Control and DCS Connectivity

The SC-UCNN11 provides 4-20 mA HART loop protocol support, which enables seamless integration with intelligent field instrumentation. The module incorporates robust channel-to-channel isolation to prevent electrical crosstalk and common-mode noise propagation across the DCS backplane. Furthermore, the controller utilizes internal cold junction compensation (CJC) for thermocouple inputs, which maintains high measurement precision during volatile process conditions.

Frequently Asked Questions

Q: Does the controller support redundant pairing configurations?

A: Yes, the SC-UCNN11 architecture facilitates primary and secondary module synchronization, which allows for hitless failover if a primary controller detects a fault.

Q: Are there specific limitations regarding module insertion while the rack remains powered?

A: Technicians may perform hot-swapping under normal operational conditions; however, they must ensure proper seating within the backplane slots to prevent intermittent electrical contact.

Q: Does the module firmware require specific licensing for high-speed I/O scaling?

A: Honeywell manages I/O density through firmware-based control tokens, which technicians must configure within the Experion PKS engineering environment to unlock full processing velocity.

Field Installation Guidelines

• Backplane Seating: Technicians must align the module with the guide rails on the mounting frame. They should push the unit firmly until the connectors seat completely to establish a reliable backplane bus connection.
• Grounding: Installers ought to secure the module’s metal chassis to the grounded enclosure rail. A low-impedance earth connection remains mandatory to preserve electromagnetic compatibility (EMC) during high-frequency data transmission.
• Wiring Termination: Operators should use shielded twisted-pair cabling for all I/O connections to reduce EMI. They must ensure that the shield drains terminate at the designated IOTA ground bus to prevent ground loops.
• Clearance: Designers should maintain a 5 cm ventilation gap above and below the module. This spacing permits sufficient convection cooling and optimizes the operational longevity of the internal logic components.
