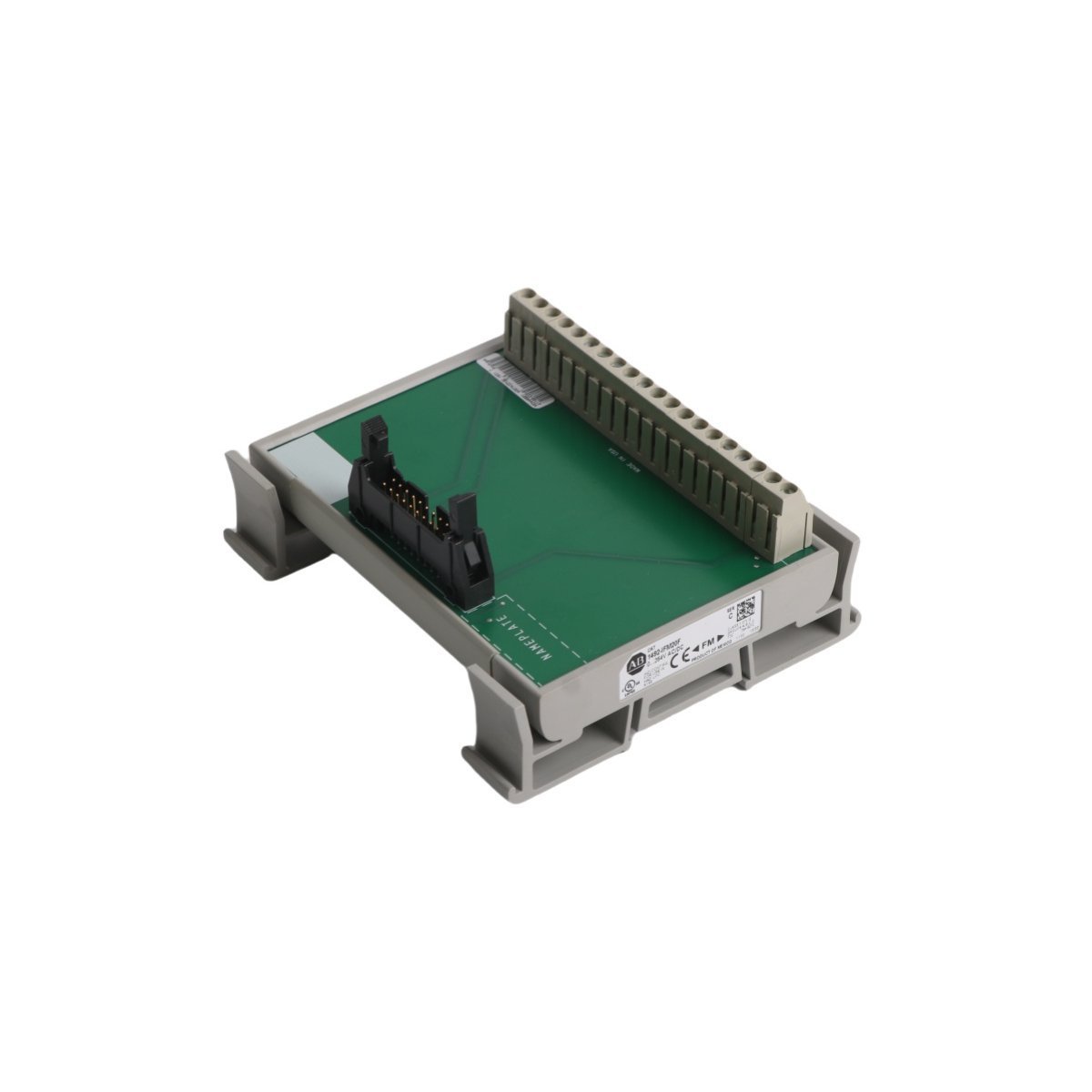

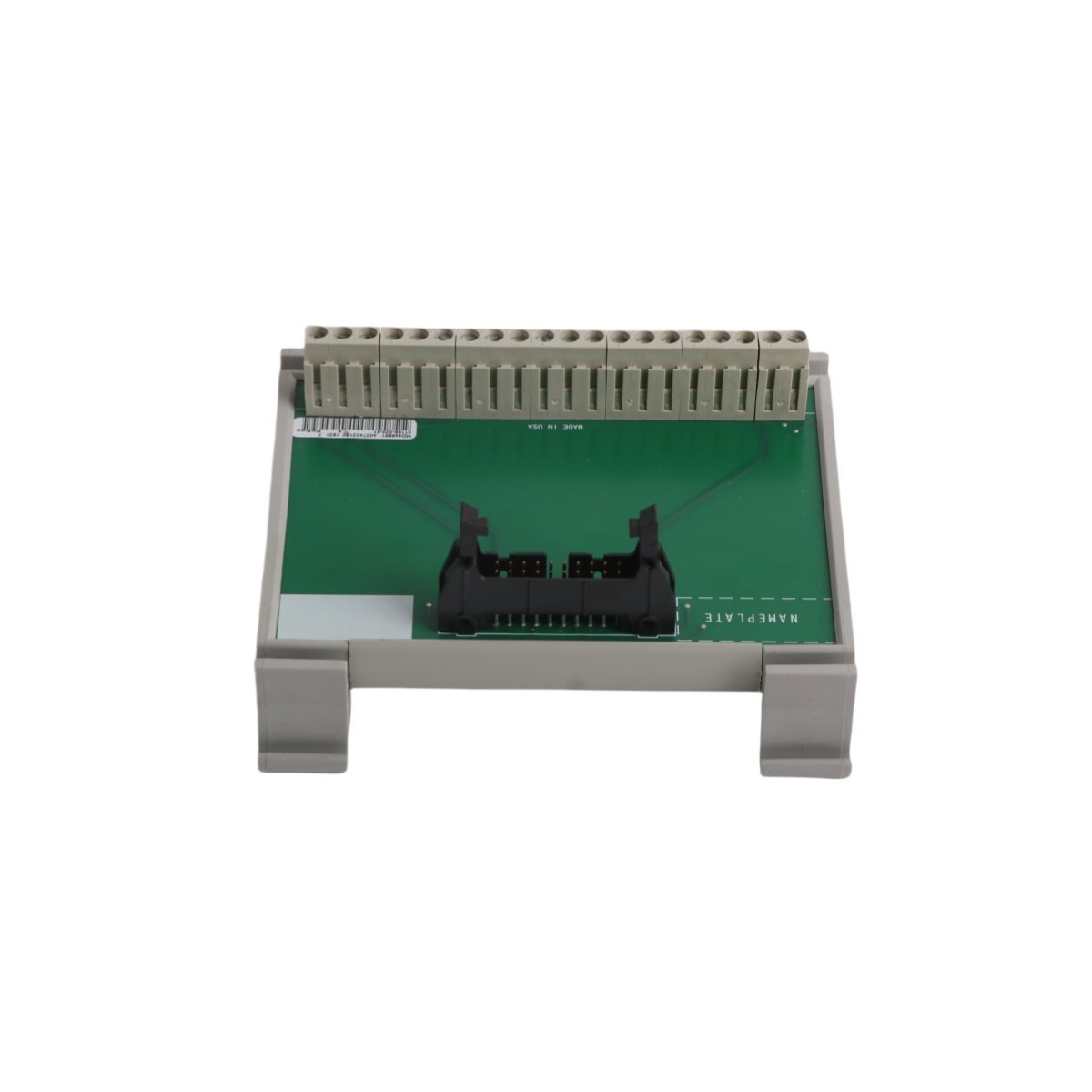

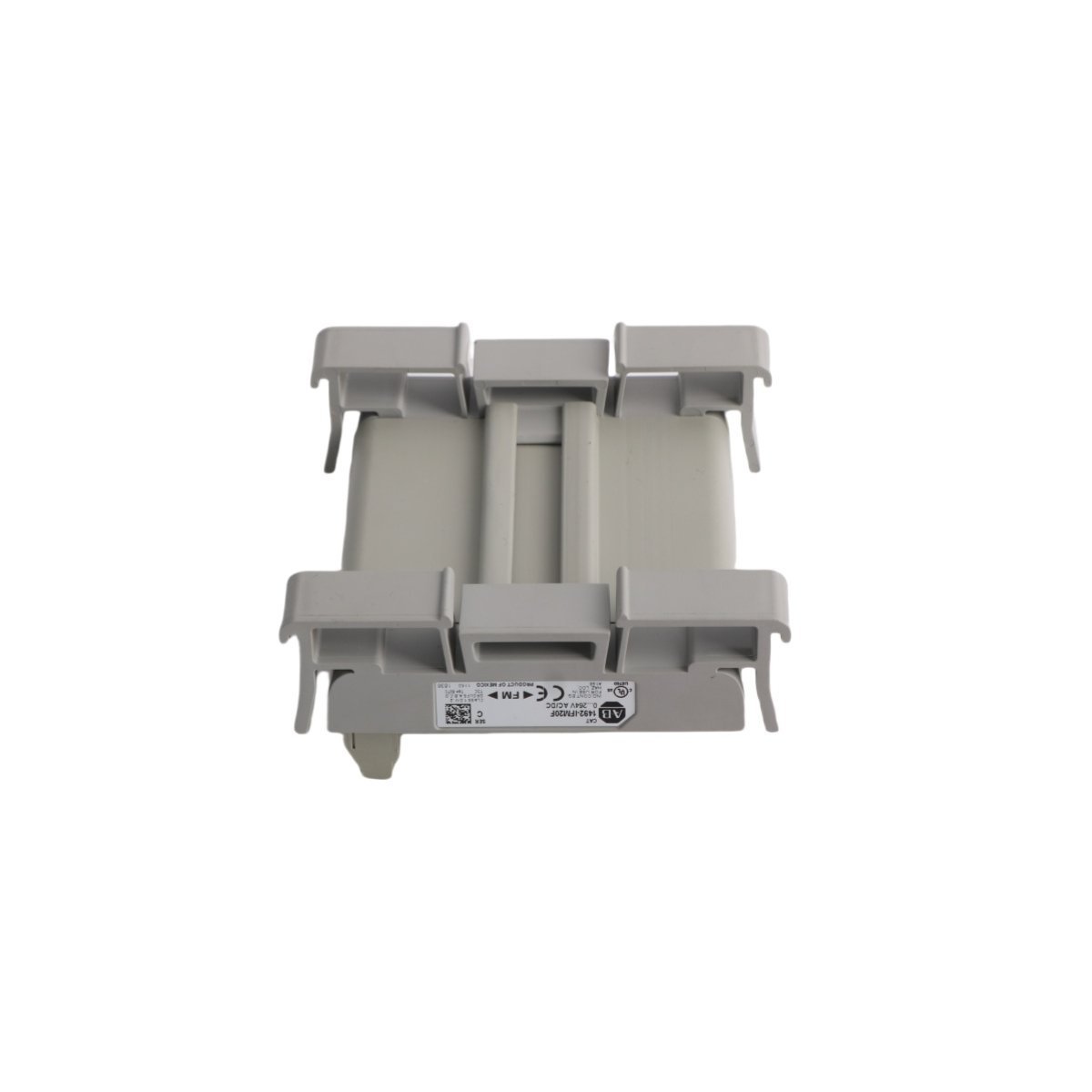

Allen-Bradley 1492-IFM20F-F120A-2 120V AC Blown Fuse Indicator Interface Module

Brief Product Description

The Allen-Bradley 1492-IFM20F-F120A-2 functions as a high-density digital interface module that simplifies the connection between field devices and I/O cards. This unit integrates 20 fused points and visual status indicators to protect sensitive PLC circuitry from overcurrent faults and field-side transients.

Product Overview

The 1492-IFM20F-F120A-2 serves as a robust bridge for signal conditioning and circuit protection within the Rockwell Automation 1492 wiring system. By centralizing field wiring into a 20-point interface, this module reduces the complexity of control cabinet layouts. Each point includes a 5x20mm fuse clip, enabling discrete protection for every individual input or output line. Furthermore, the hardware features integrated 120V AC/DC blown fuse indicators that glow when a circuit interrupt occurs, significantly decreasing troubleshooting time during maintenance. Consequently, this module provides an essential safety layer for industrial environments where uptime and equipment longevity remain top priorities.

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Model Number: 1492-IFM20F-F120A-2
• Module Type: Digital Fusible Interface Module
• Number of Points: 20 Points
• Indicator Voltage: 120V AC/DC
• Nominal Input Voltage: 12-24V DC (±10%)
• Fuse Type: 5x20mm (Fuses sold separately)
• Power Bus Configuration: Two groups of 10 (Isolated)
• Isolation Voltage: 250V AC (Logic to Field)
• Backplane Current: 100mA @ 5V DC
• Mounting: DIN Rail or Panel Mount
• Weight: 0.2 kg
• Dimensions: 7.6 x 7.6 x 12.7 cm

Operational Features

The 1492-IFM20F-F120A-2 incorporates a feed-through design that supports group-isolated power distribution. Specifically, the module divides the 20 terminals into two distinct groups of 10, allowing engineers to reference different voltage sources or common returns within the same assembly. This flexibility proves invaluable in systems requiring multiple power zones for varied sensor types. Additionally, the finger-safe terminal architecture prevents accidental contact with energized circuits, aligning the module with modern industrial safety standards. Because the unit maintains a high degree of isolation (250V AC) between field wiring and logic circuits, it effectively shields sensitive PLC hardware from destructive ground loops and electrical noise.

Engineering Advantages

One primary benefit of the 1492-IFM20F-F120A-2 is the drastic reduction in manual wiring time through pre-cabled interface connections. Instead of wiring 20 individual terminals to a PLC card, technicians can use a single 1492-series cable to link the module to the controller. Moreover, the inclusion of extra terminals simplifies expansion by providing ready-to-use termination points for incoming field signals. The module’s compact footprint also optimizes rail space, which is critical in high-density control panels. Ultimately, specifying the 1492-IFM20F-F120A-2 ensures a highly diagnostic and protected interface that adheres to the strict reliability requirements of sectors such as automotive manufacturing, water treatment, and food processing.
