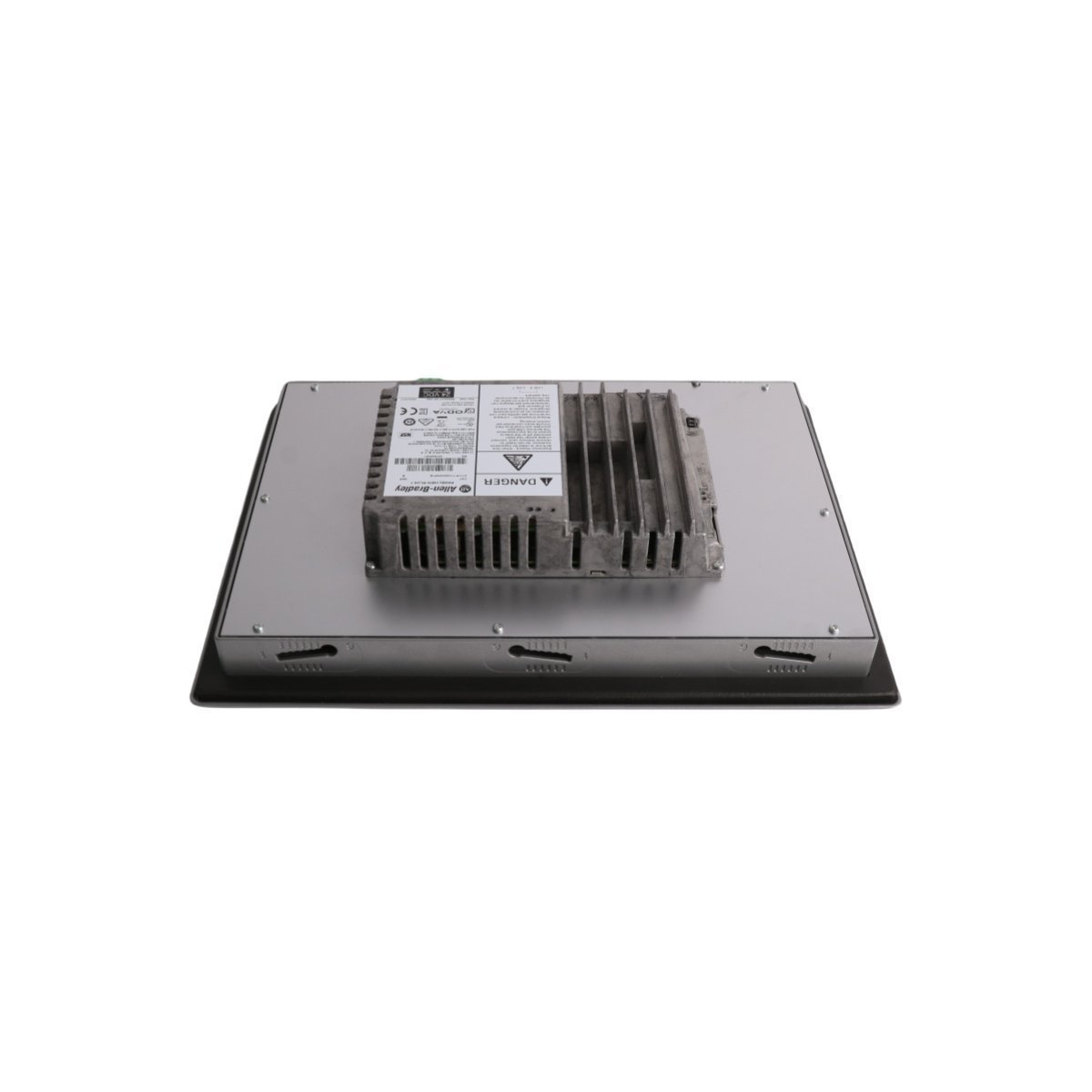

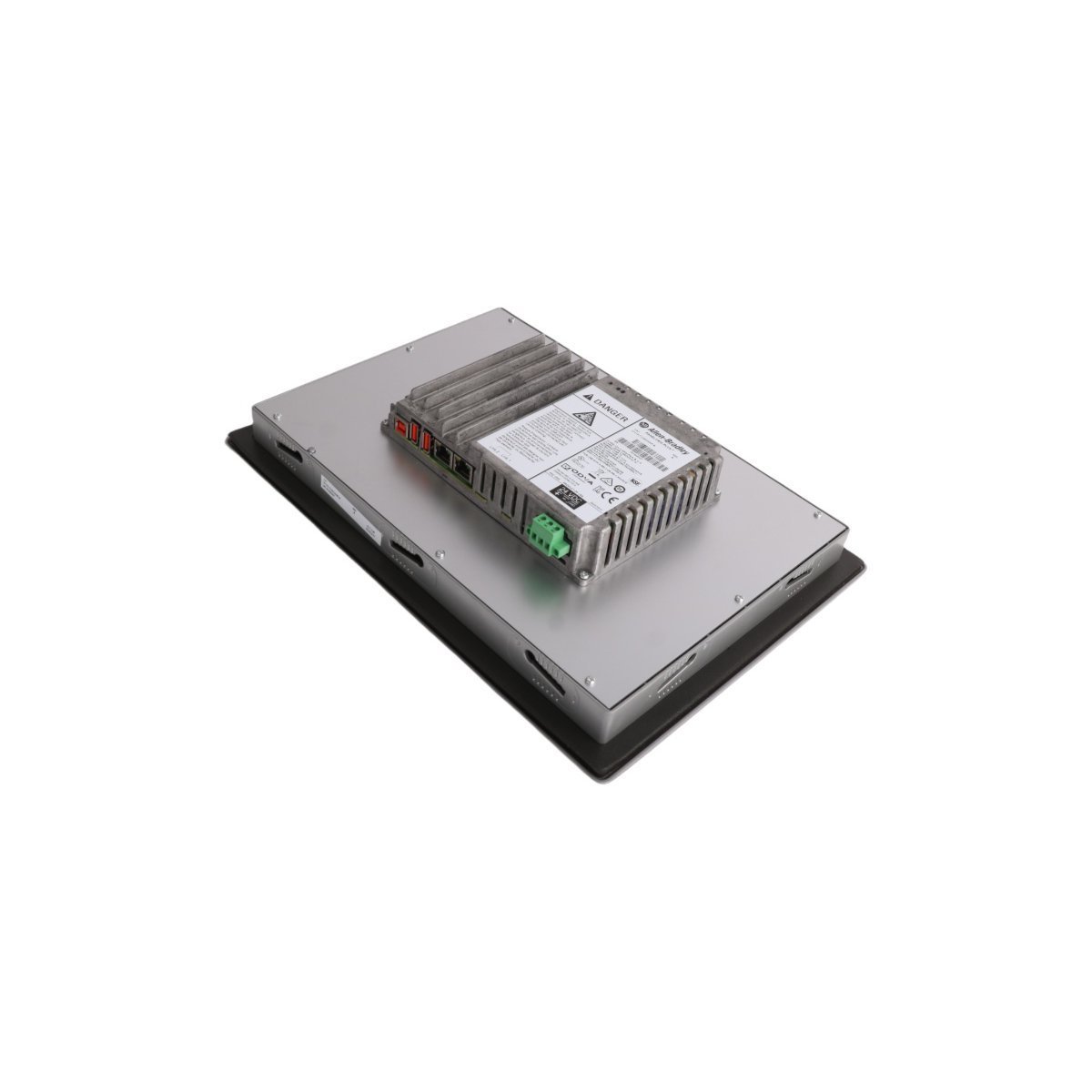

2711P-T19C22D9P Rockwell Automation 19-inch High-Resolution Touch Screen

Product Description

The Allen Bradley 2711P-T19C22D9P serves as a high-performance operator interface that facilitates advanced monitoring and control for large-scale industrial processes. This 19-inch widescreen terminal utilizes a projected capacitive touch screen to provide operators with an intuitive, multi-touch experience within the FactoryTalk View ME environment.

Product Overview

The 2711P-T19C22D9P belongs to the PanelView Plus 7 Performance series, specifically engineered to handle the demands of complex, data-intensive automation architectures. This terminal functions as a centralized visualization hub, allowing operators to interact with real-time process data through a vibrant 1366 x 768 (or 2200×900 depending on specific regional revision) widescreen display. By leveraging the Windows 10 IoT Core operating system, the hardware supports sophisticated HMI applications while maintaining the ruggedness required for 24/7 industrial deployment.

Technical Specifications

Advanced Connectivity and Integration

This terminal maximizes system availability through its dual Ethernet port architecture, which natively supports Device Level Ring (DLR) topologies. This networking capability allows the 2711P-T19C22D9P to maintain communication with ControlLogix and CompactLogix controllers even in the event of a single cable failure. Furthermore, the terminal simplifies engineering workflows by utilizing Premier Integration, which allows users to reuse tags and alarms directly from the Logix controller environment, significantly reducing commissioning time.

Engineering Advantages

The 2711P-T19C22D9P provides a significant advantage for mission-critical applications where downtime is not an option. Transitioning to this Performance model allows for the simultaneous monitoring of up to 500 screens and the management of up to 50 separate controller connections. Because the front panel carries an IP66 and NEMA 4X rating, the hardware resists moisture, dust, and corrosive cleaning agents. This makes it an ideal solution for specialized industries such as food and beverage processing, pharmaceuticals, and oil and gas refining.

Operational Performance

Operators gain better visibility into complex systems through the terminal’s high-resolution widescreen format, which offers more horizontal space for trend charts and diagnostic faceplates. The projected capacitive touch technology eliminates the need for a stylus and provides a more durable surface compared to traditional resistive screens. To ensure long-term reliability in varying climates, the internal hardware manages heat dissipation efficiently, supporting a wide operating temperature range without the need for external cooling fans.

FAQs

• Does the 2711P-T19C22D9P support mobile remote monitoring?

  Yes, this terminal includes a built-in VNC server. This feature allows authorized personnel to view the HMI screen remotely from a tablet or smartphone via a secure network connection.

• Can I expand the storage capacity for data logging?

  The terminal features an accessible SD card slot. You can utilize industrial-grade SD cards to store large historical data logs, recipe files, and system backups for rapid recovery.

• What software do I need to program this terminal?

  Engineers typically use FactoryTalk View Studio for Machine Edition (ME) to design and deploy applications to the 2711P-T19C22D9P hardware.

• Is this model suitable for washdown environments?

  The front of the 2711P-T19C22D9P meets IP66 standards. When properly panel-mounted with the provided gasket, it withstands high-pressure water jets and protects the internal electronics.
