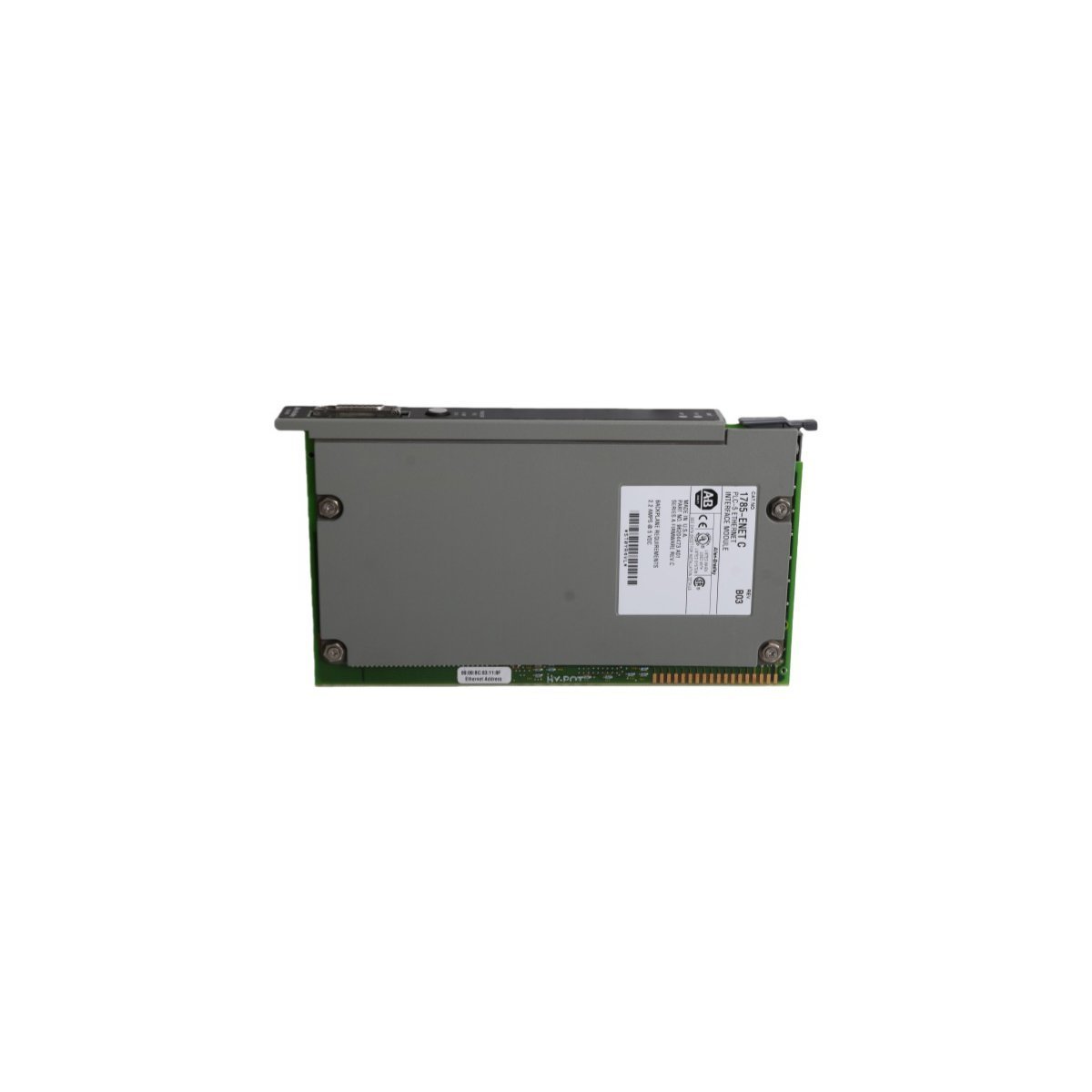

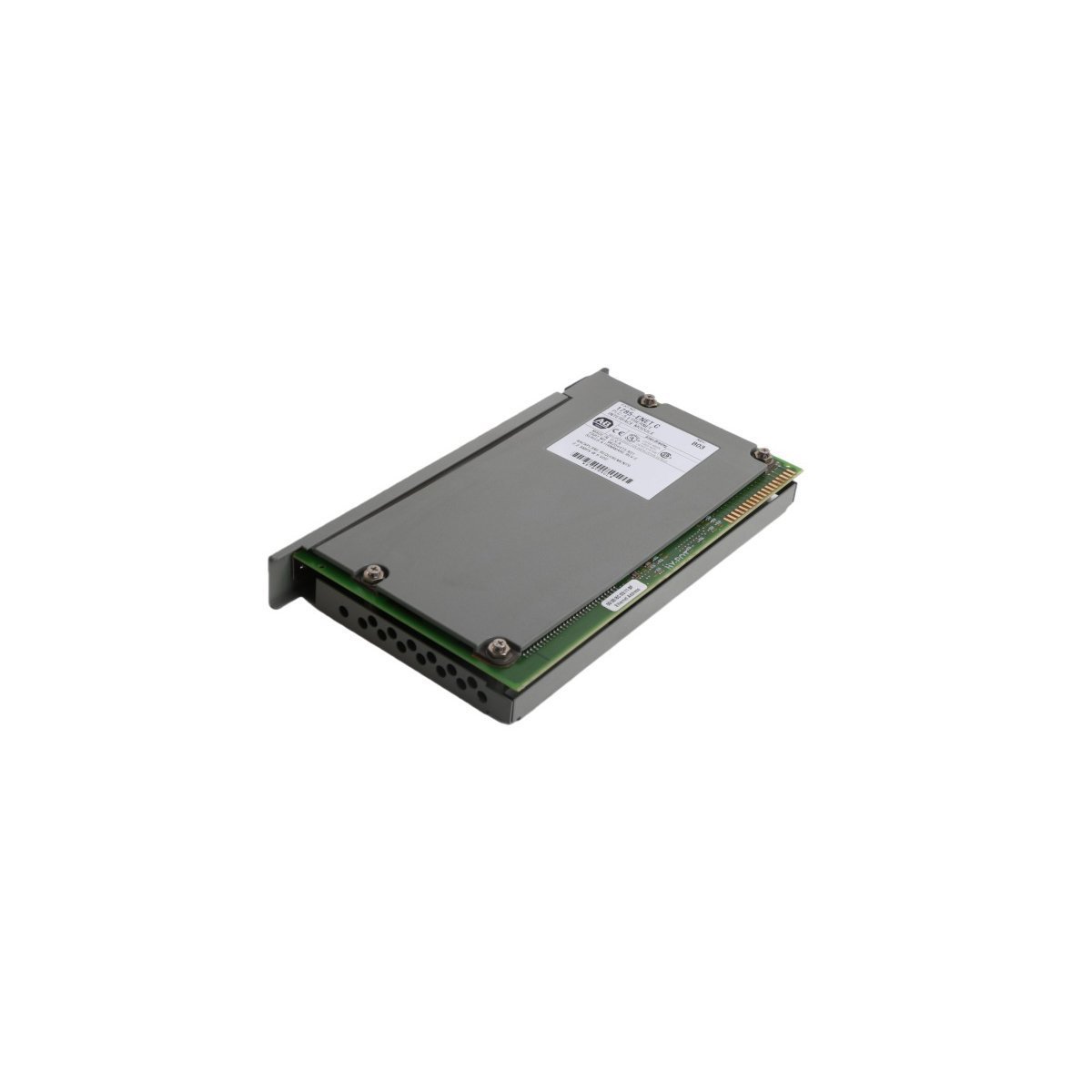

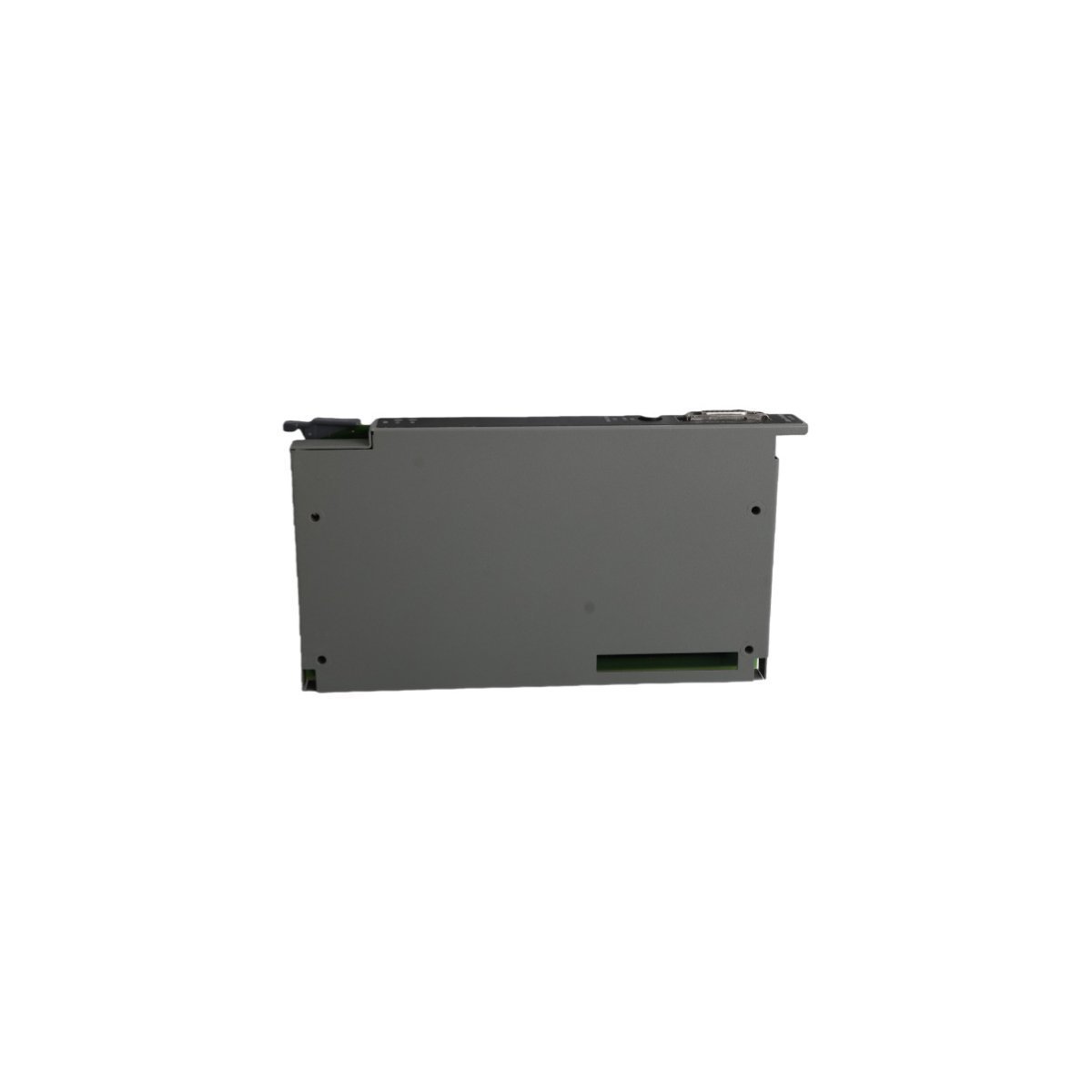

1785-ENET/C Rockwell Automation PLC-5 Sidecar Ethernet Interface

Product Description

The Allen-Bradley 1785-ENET/C is a specialized sidecar expansion module that enables legacy PLC-5 processors to communicate over high-speed Ethernet/IP industrial networks. By modernizing existing control infrastructure, this interface allows for real-time data acquisition and SCADA integration without requiring a total system overhaul.

Product Overview

The Allen-Bradley 1785-ENET/C functions as a sophisticated communication bridge that introduces Ethernet/IP capabilities to the veteran PLC-5 controller platform. By physically attaching as a sidecar module to the host processor, this interface bypasses the limitations of traditional serial or Data Highway Plus (DH+) protocols. Consequently, industrial facilities can integrate their established control assets into modern, plant-wide Ethernet architectures, thereby enabling advanced supervisory control and data acquisition (SCADA) while extending the operational lifespan of the hardware.

Technical Specifications

Functional Characteristics

This module converts the PLC-5 into a fully functional node on an Ethernet/IP network by utilizing a dedicated Channel 3A pathway within the processor. The hardware supports essential networking services, including BOOTP and DHCP for automated IP address management, which simplifies large-scale deployments. Furthermore, the 1785-ENET/C maintains deterministic performance while handling complex peer-to-peer messaging and data exchanges with modern HMI systems. To ensure maximum uptime, the module continuously monitors connection health and populates a diagnostic integer file in the controller, allowing maintenance teams to track real-time network status and packet reliability.

Engineering Advantages

The 1785-ENET/C provides a critical migration path for brownfield automation environments by replacing antiquated networking layers with high-speed Ethernet connectivity. Because the module attaches directly to the processor, it eliminates the need for external protocol converters, which often introduce latency and additional points of failure. Additionally, the Series C revision features enhanced firmware stability, ensuring robust compatibility with both ControlNet-enabled PLC-5 processors and contemporary managed network switches. This integration protects existing automation investments while enabling the data transparency required for modern industrial analytics.

Installation and Configuration

System integrators should verify the firmware revision of the host PLC-5 processor prior to installation to ensure full hardware handshake compatibility. While engineers can perform offline configuration through standard programming software, the final IP commissioning typically occurs online while the module is physically secured to the processor. Proper system setup requires the designation of a specific diagnostic file within the controller to monitor and log communication status. Moreover, ensuring a secure ground connection through the chassis backplane remains vital to meet industrial EMC standards and prevent data corruption in high-EMI environments.

FAQs

• Is the 1785-ENET/C compatible with all PLC-5 processors?

  The module primarily supports PLC-5 processors designed for sidecar expansion, including most ControlNet 1.5 variants. Always verify your specific processor series and firmware revision against official compatibility matrices before deployment.

• Does this module support 100 Mbps or 1 Gbps speeds?

  The 1785-ENET/C is a legacy-optimized module that operates at a standard 10 Mbps. While this speed is lower than modern IT equipment, it provides ample bandwidth for the packet sizes and transmission frequencies typical of PLC-5 logic programs.

• How do I assign an IP address to a new module?

  You can manually assign the IP address through your programming software while connected to the processor, or utilize a BOOTP/DHCP server utility to automatically push an address to the module during its initial power-up sequence.

• Can I replace an older Series A or B module with a Series C?

  Yes, the Series C is functionally backward compatible with previous 1785-ENET revisions. Upgrading to Series C often provides improved firmware reliability and better performance when interfacing with modern network switches.
