Product Summary

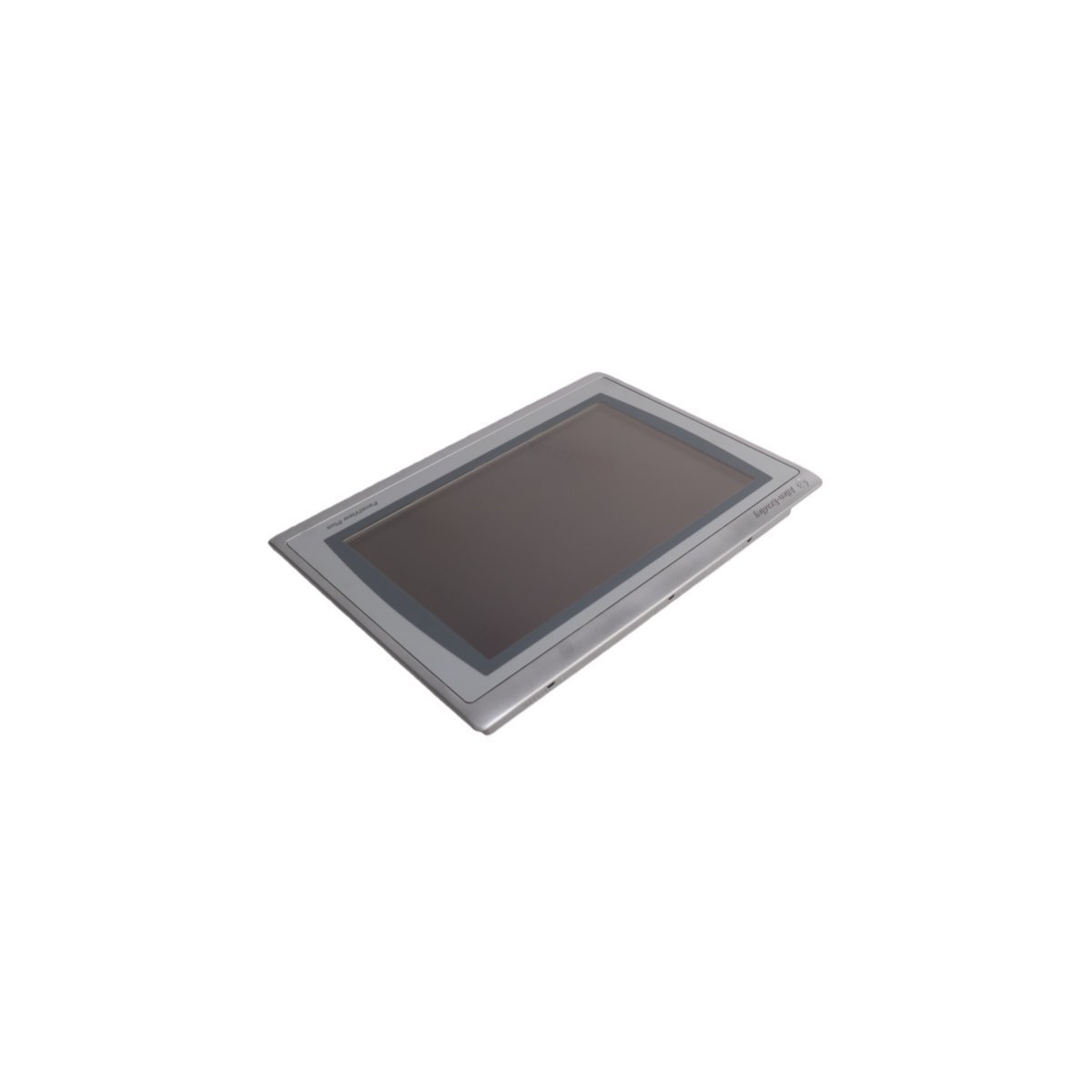

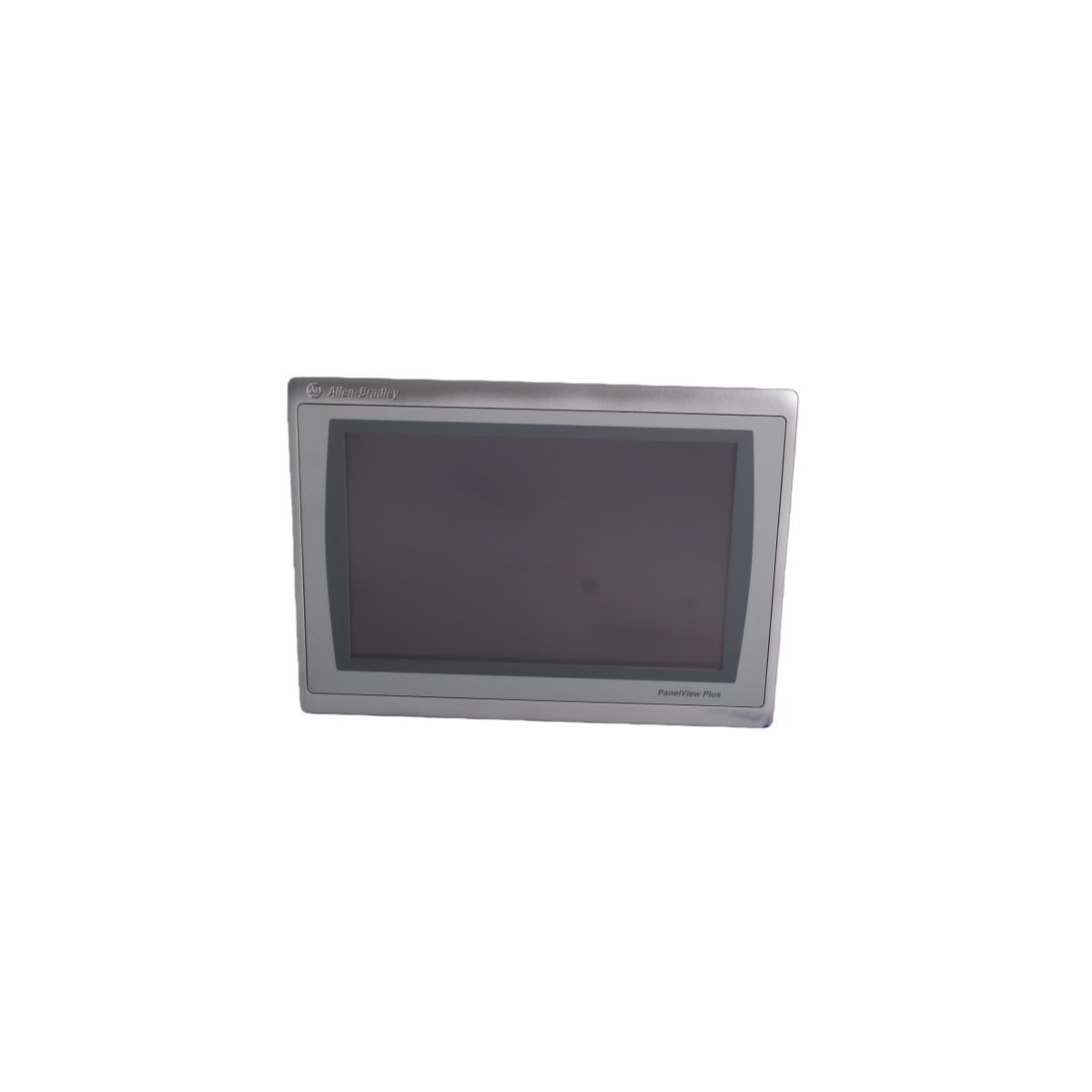

The Allen-Bradley 2711P-T12W22D9P-B is a high-performance 12.1-inch industrial operator terminal designed for demanding visualization tasks. It enables real-time process monitoring and control through a responsive touchscreen interface within complex automation environments.
Technical Overview
The Allen-Bradley 2711P-T12W22D9P-B belongs to the PanelView Plus 7 Performance series. This terminal provides industrial-grade HMI capabilities with a vivid 1280 x 800 WXGA widescreen display. Operators utilize intuitive touch gestures for efficient system navigation. The unit integrates seamlessly with ControlLogix and CompactLogix 5370 controllers, leveraging DLR Ethernet technology for robust connectivity.
Technical Specifications
- Display Size: 12.1 inches
- Resolution: 1280 x 800 WXGA
- Processor/OS: Windows 10 IoT Core
- Memory: 1 GB RAM / 512 MB User Storage
- Communication: Dual Ethernet ports (DLR support), USB 2.0, SD Card Slot
- Input Voltage: 24 VDC
- Power Consumption: 50 Watts maximum
- Dimensions: 34 x 38.5 x 18 cm
- Weight: 3.4 kg
Industrial Applications

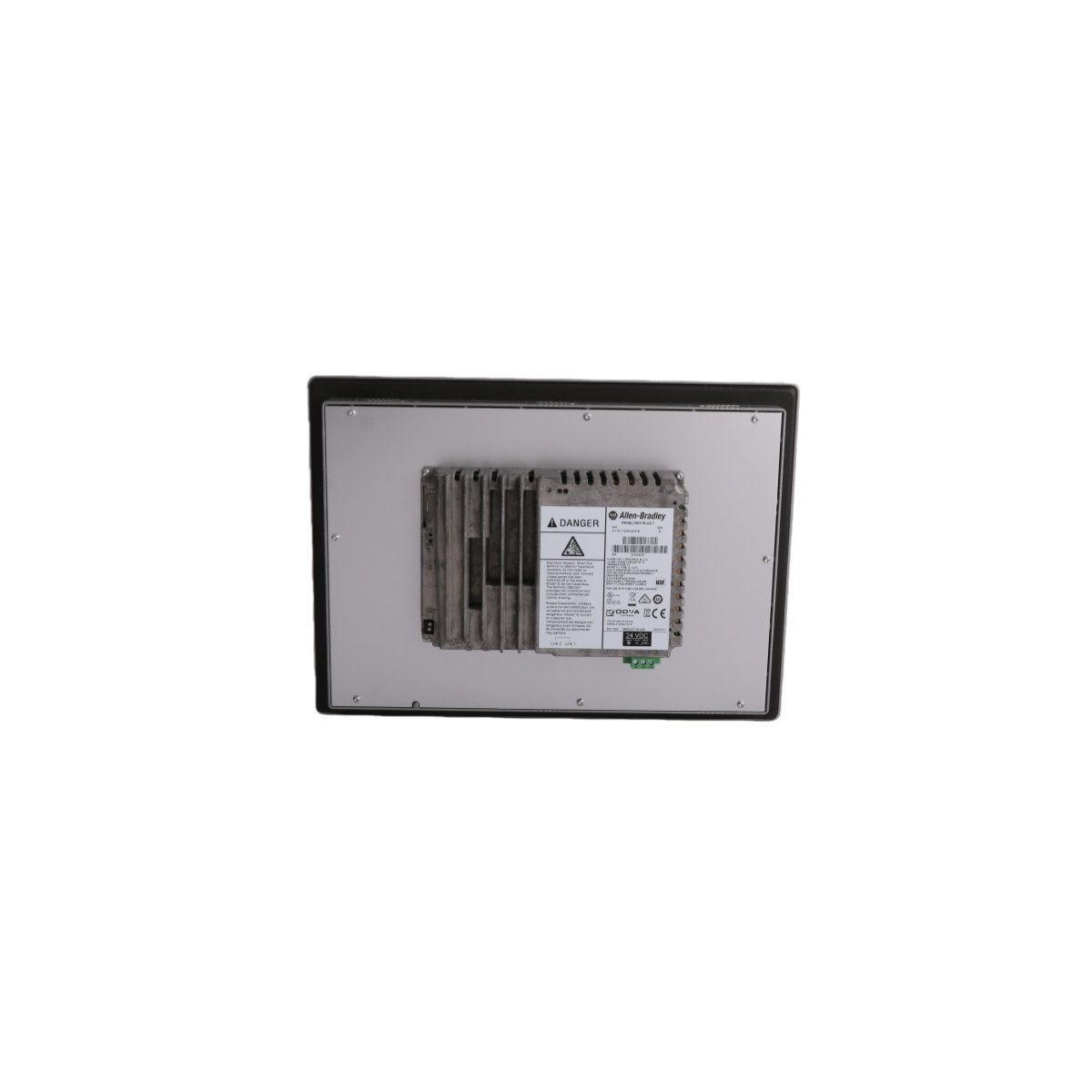

Engineers deploy this terminal as the primary control point in manufacturing facilities. The device supports advanced monitoring functions, including alarm management and data logging. Its durable architecture ensures consistent performance in harsh environments where reliability remains critical. Dual Ethernet ports offer flexible topology options, including support for star and linear network configurations. Diagnostic LEDs on the rear housing allow maintenance personnel to quickly identify operational faults and system status.
