PP836 3BSE042237R1 ABB System 800xA Control Panel Module

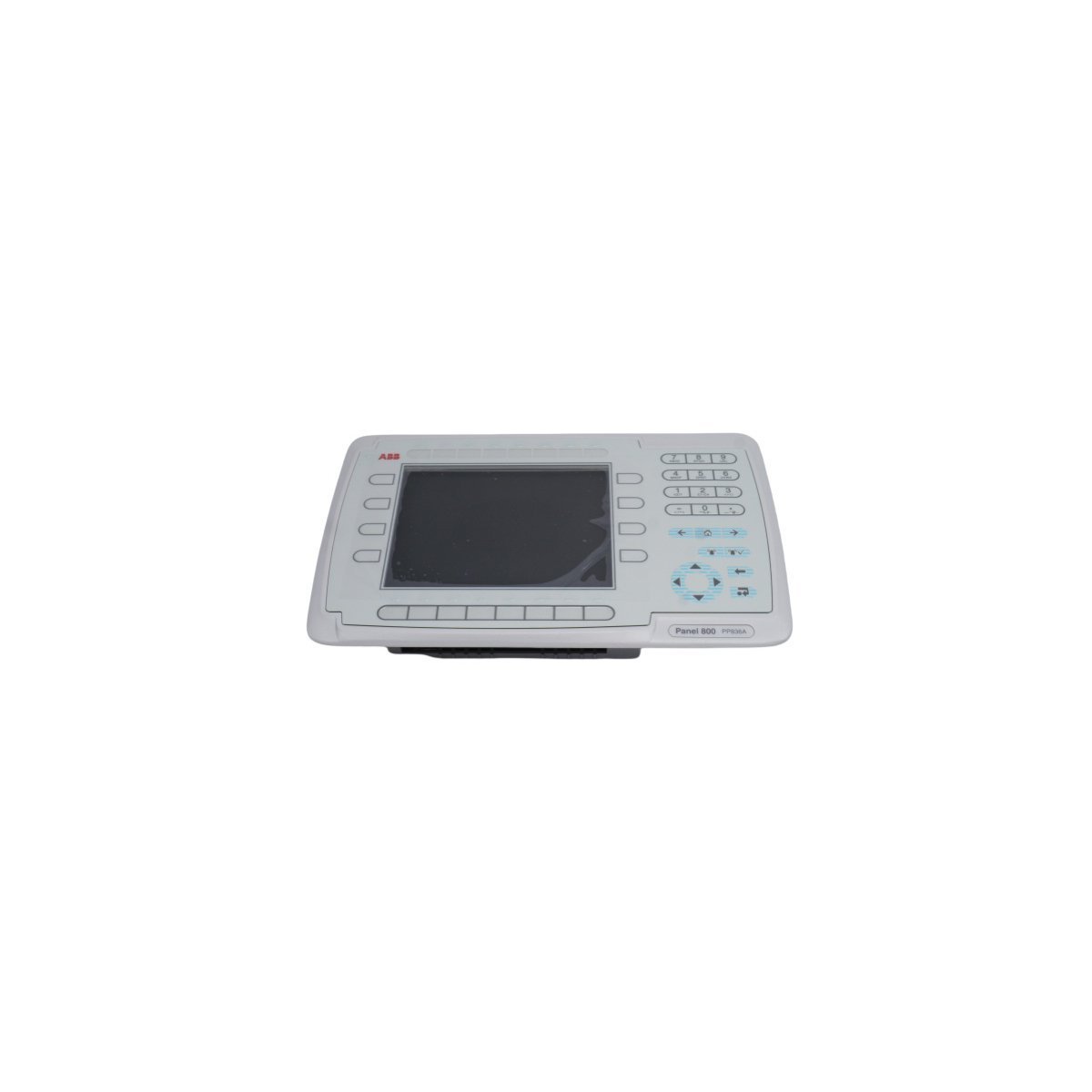

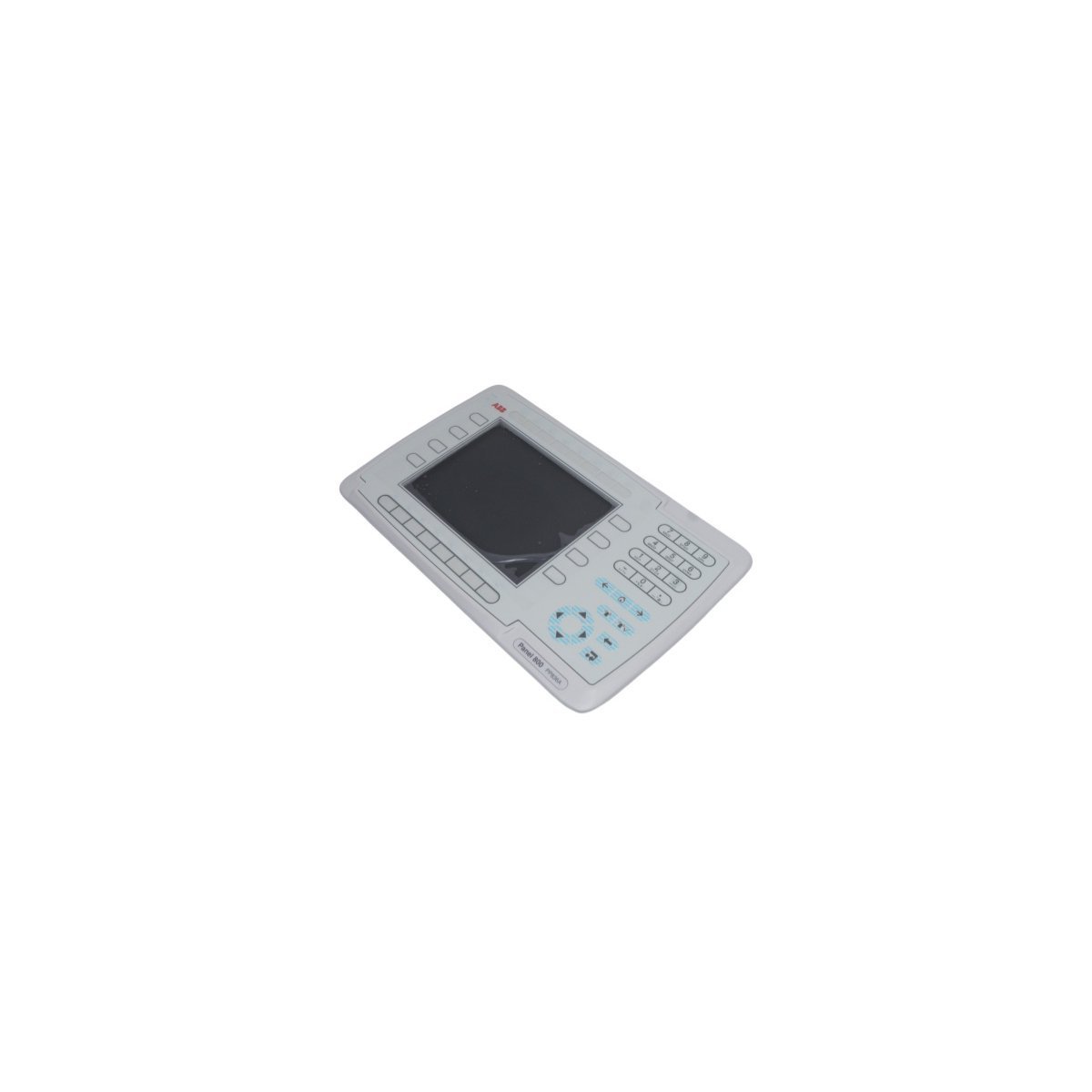

ABB PP836 Control Panel

The ABB PP836 3BSE042237R1, also cataloged as the PP836 Control Panel, operates as a dedicated hardware component for human-machine interface (HMI) visualization and operator-driven process control within System 800xA platforms.

Hardware Specifications

Industrial Control and Network Connectivity

The ABB PP836 functions as a primary node for localized process interaction within the distributed control architecture. It facilitates integration through standard backplane bus communication protocols, ensuring deterministic data exchange between the operator terminal and the controller. System engineers configure the module to support high-speed I/O density scaling, allowing for real-time visualization of field process variables. Furthermore, the unit supports firmware flash compatibility, which enables administrators to apply security updates or functional enhancements directly through the established control network without requiring hardware replacement.

Frequently Asked Questions

Q: Does the PP836 support hot-swapping during system operation?

A: No. Technicians must isolate power from the mounting chassis before extracting or installing the control panel to protect the backplane interface from electrical transients.

Q: How does the module handle communication interruptions with the controller?

A: The panel monitors the heartbeat of the backplane bus communication; if the connection drops, the local firmware triggers a diagnostic alarm to inform the operator of the data link loss.

Field Installation Guidelines

1. Power down the control cabinet to ensure a safe electrical environment.
2. Mount the panel into the designated cabinet cutout, ensuring the gasket forms a seal to maintain the specified enclosure rating.

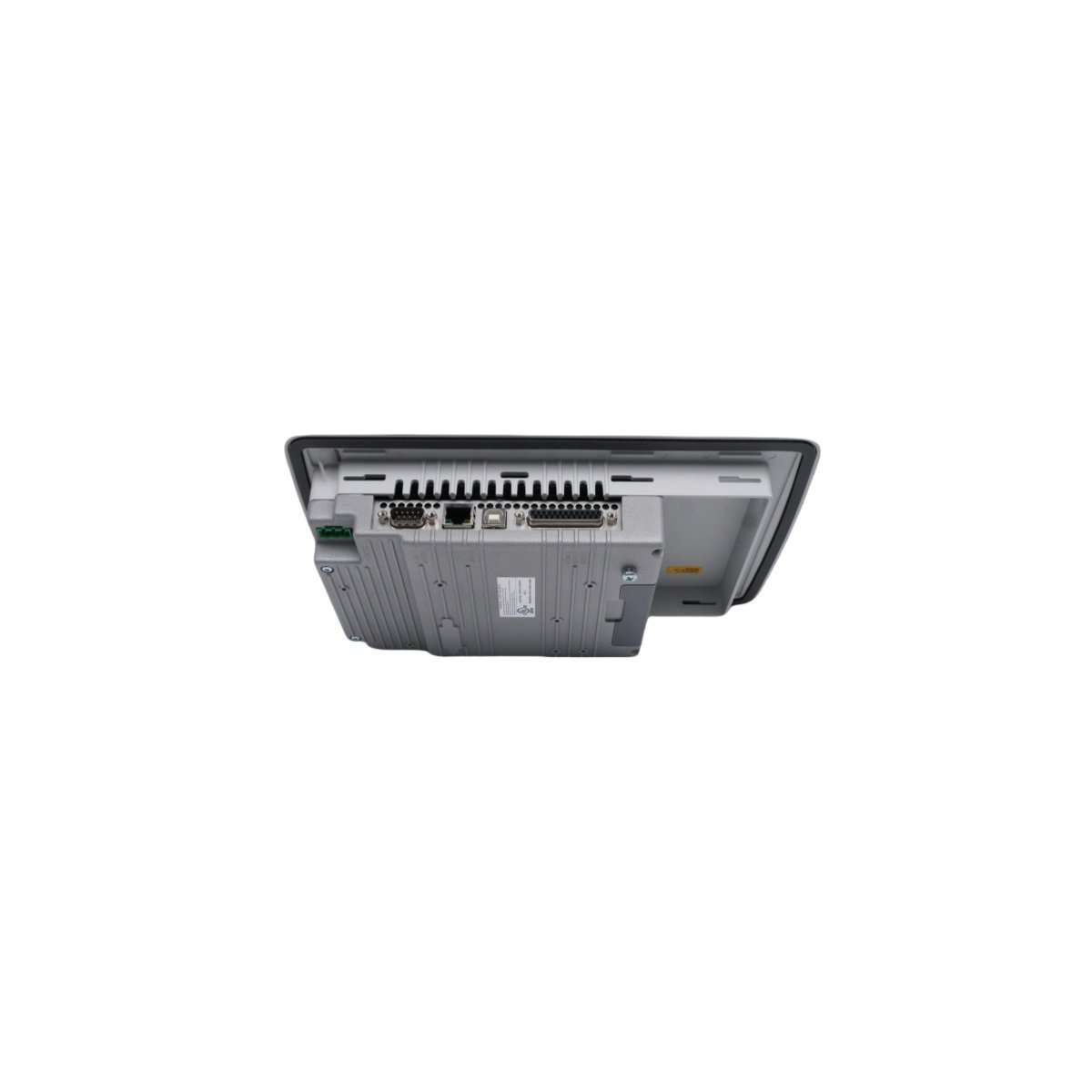

3. Connect the Ethernet communication cable to the panel’s rear interface port, ensuring the locking clip engages securely.
4. Apply power and verify the boot sequence through the visual status indicators on the front display.
5. Configure the IP address and node settings via the local maintenance menu to establish network visibility within the System 800xA environment.
