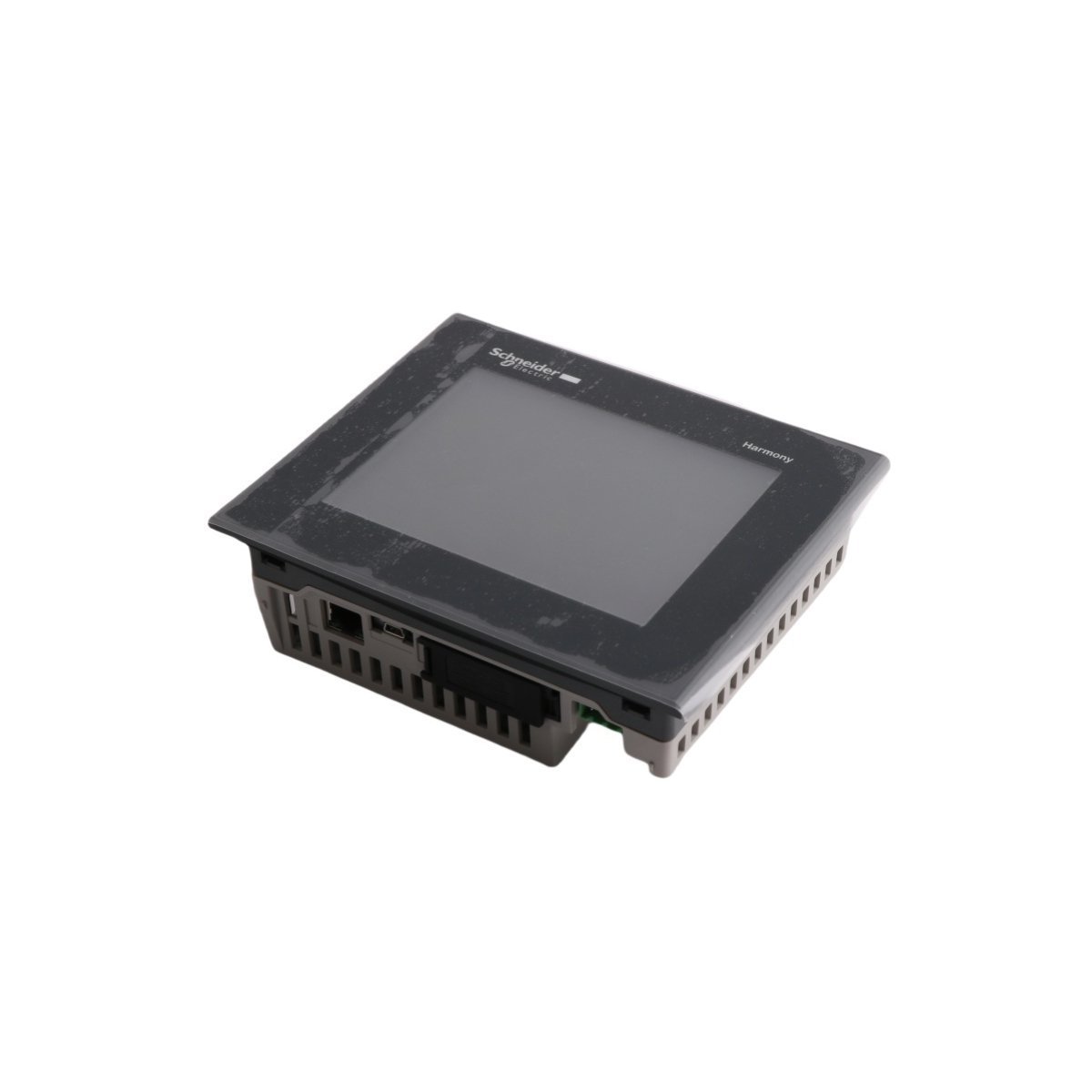

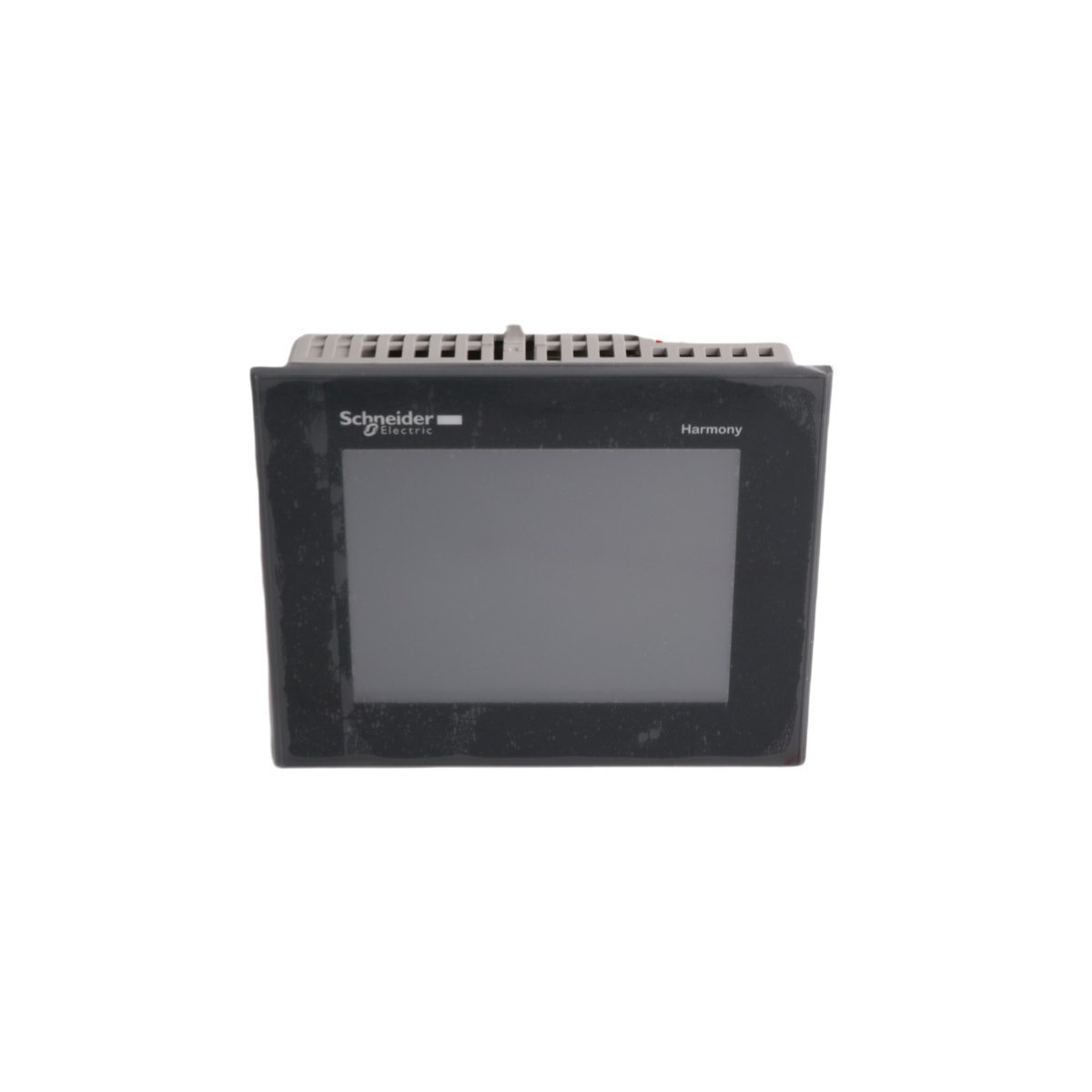

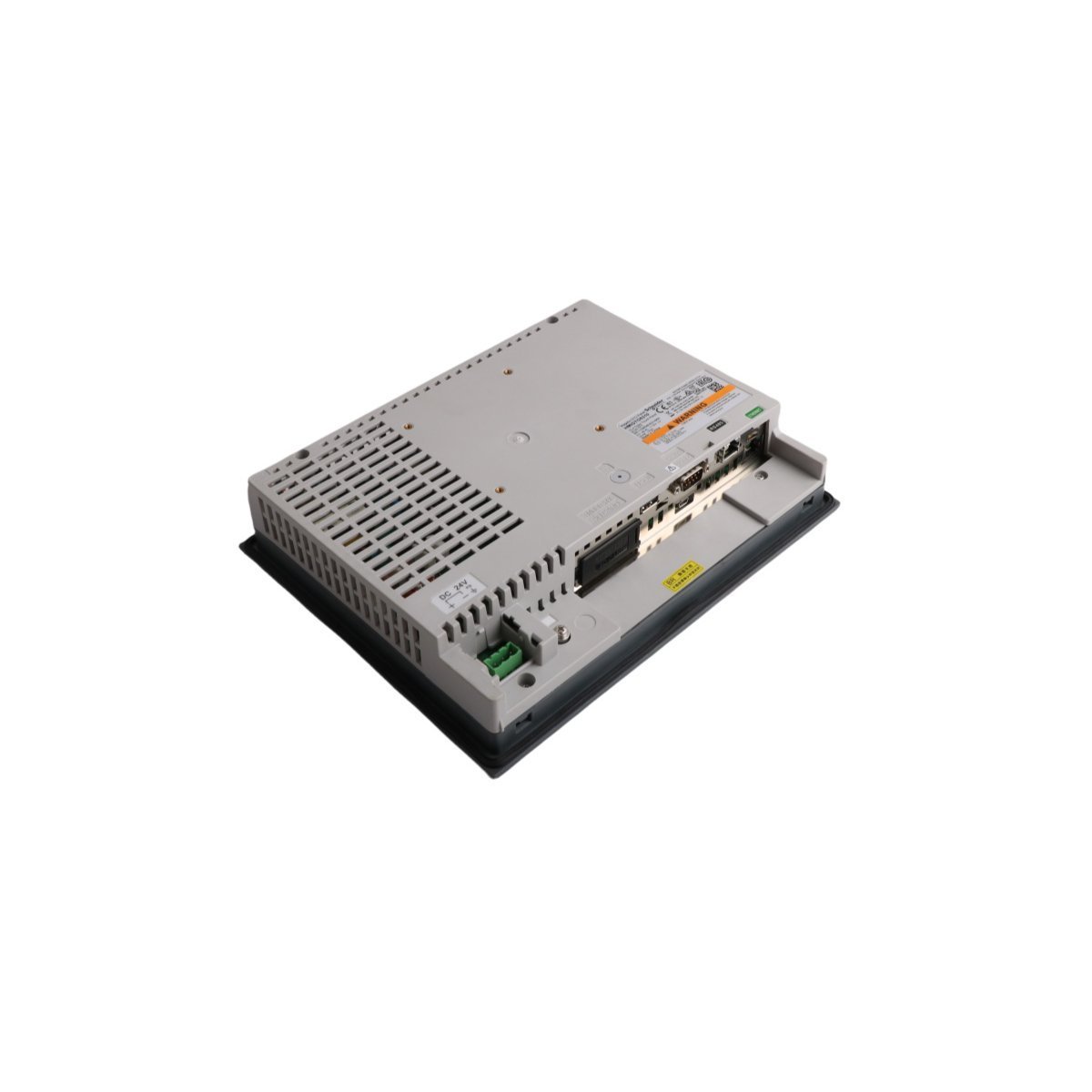

Schneider HMIGTO6310 Touch Screen

The Schneider Electric HMIGTO6310 represents a high-performance Human Machine Interface (HMI) within the Harmony GTO range. This 12.1-inch color display provides a crisp 800 x 600 SVGA resolution for industrial monitoring. It utilizes a TFT 65K color screen to deliver clear graphics and readable text. Operators interact with the system via a precise touch-sensitive zone featuring 1024 x 1024 touch points. Consequently, this panel enhances the efficiency of complex machine control and data visualization tasks.

Connectivity and Industrial Integration

This advanced touchscreen supports a variety of communication protocols for seamless system networking. It includes built-in ports for Ethernet TCP/IP, Modbus Plus, and serial connections. Furthermore, the unit features USB 2.0 ports and an SD card slot for easy data expansion. System integrators typically use Vijeo Designer software to configure the interface. Because the hardware meets global industrial standards, it integrates effortlessly with diverse PLC architectures.

Environmental Resilience and Durability

Schneider Electric designed the HMIGTO6310 to withstand rigorous industrial environments. It functions reliably in temperatures ranging from 0°C to 55°C. The front panel offers a high level of protection against dust and water ingress. Additionally, the unit resists significant vibration and mechanical shock during operation. This durability makes the panel suitable for manufacturing, energy management, and chemical processing plants. It offers long-term reliability for critical infrastructure and 24/7 automation systems.

Application Scenarios

Engineers frequently deploy this 12.1-inch HMI in medium to large-scale automation projects. It excels in packaging machinery control and food processing lines. The panel provides the necessary screen real estate for detailed alarm management and trend logging. Therefore, it serves as an ideal central hub for plant-floor operators.

Core Technical Specifications

• Display Size: 12.1-inch TFT color screen
• Operating Voltage: 24V DC (19.2V to 28.8V range)
• Memory Capacity: 96MB Flash EPROM and 512KB internal RAM
• Data Backup: Lithium battery supports SRAM data for 100 days
• Resolution: 800 x 600 pixels SVGA
• Weight: 2.5 kg
• Dimensions: 31.5cm x 24.1cm x 5.6cm
• Cooling: Natural convection without internal fans
