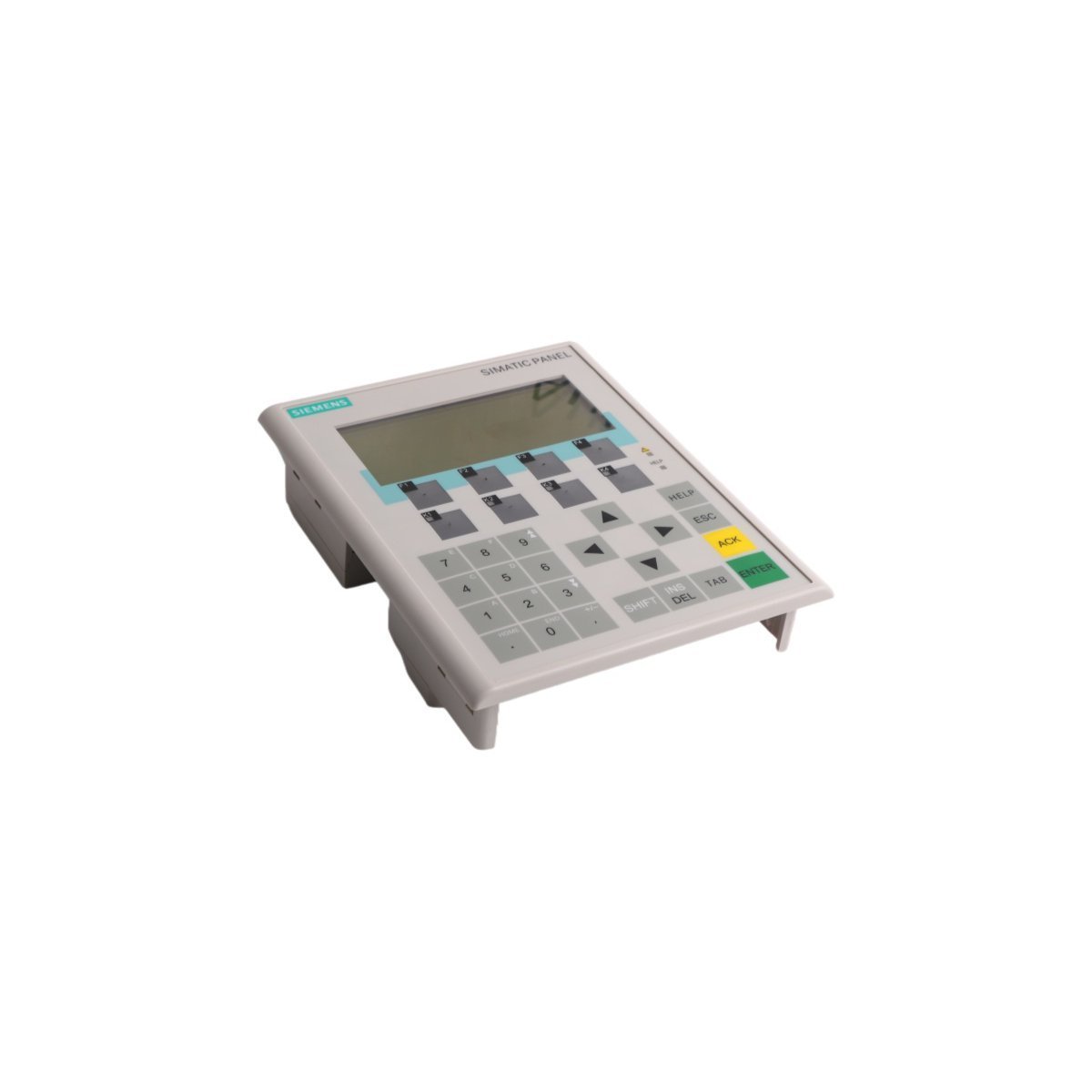

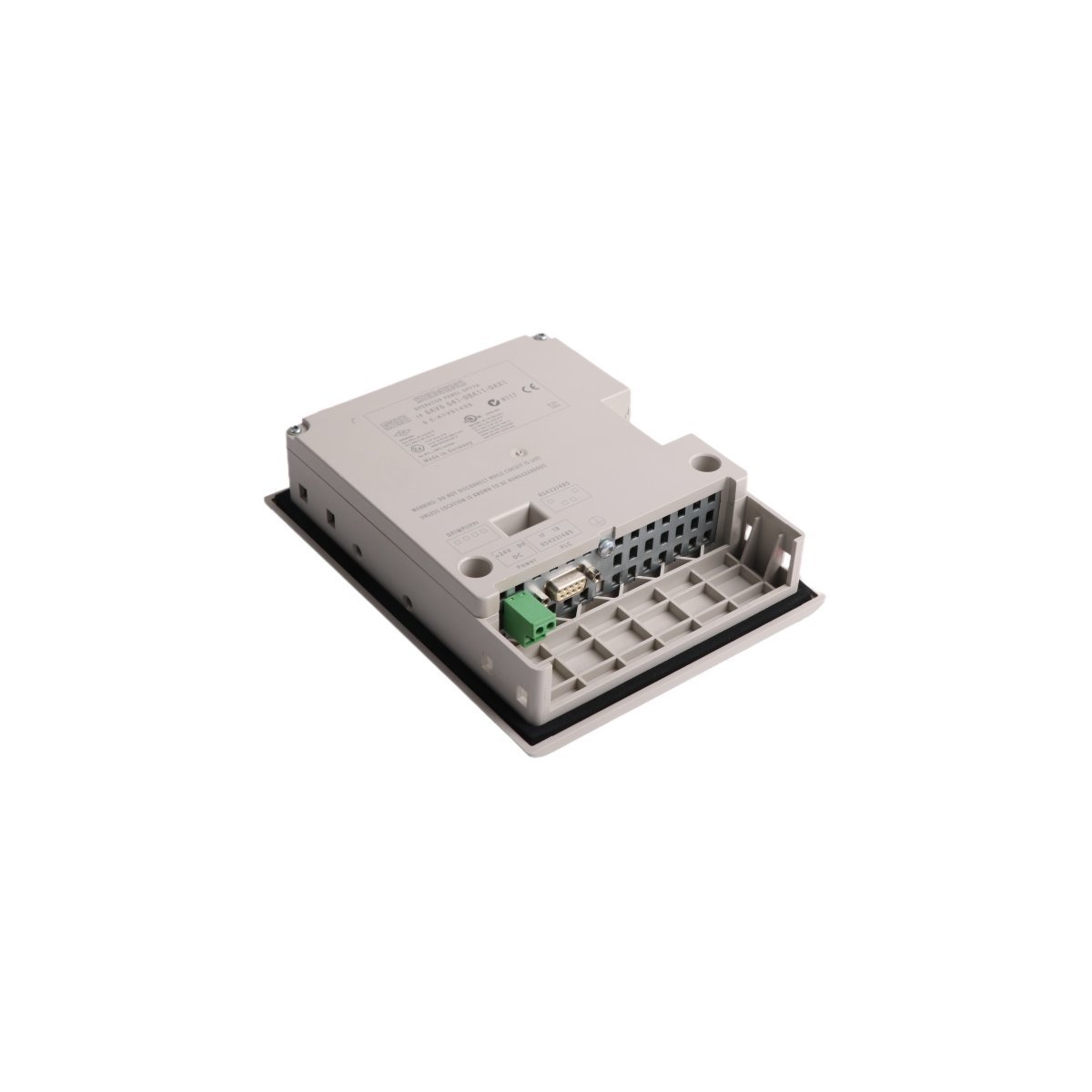

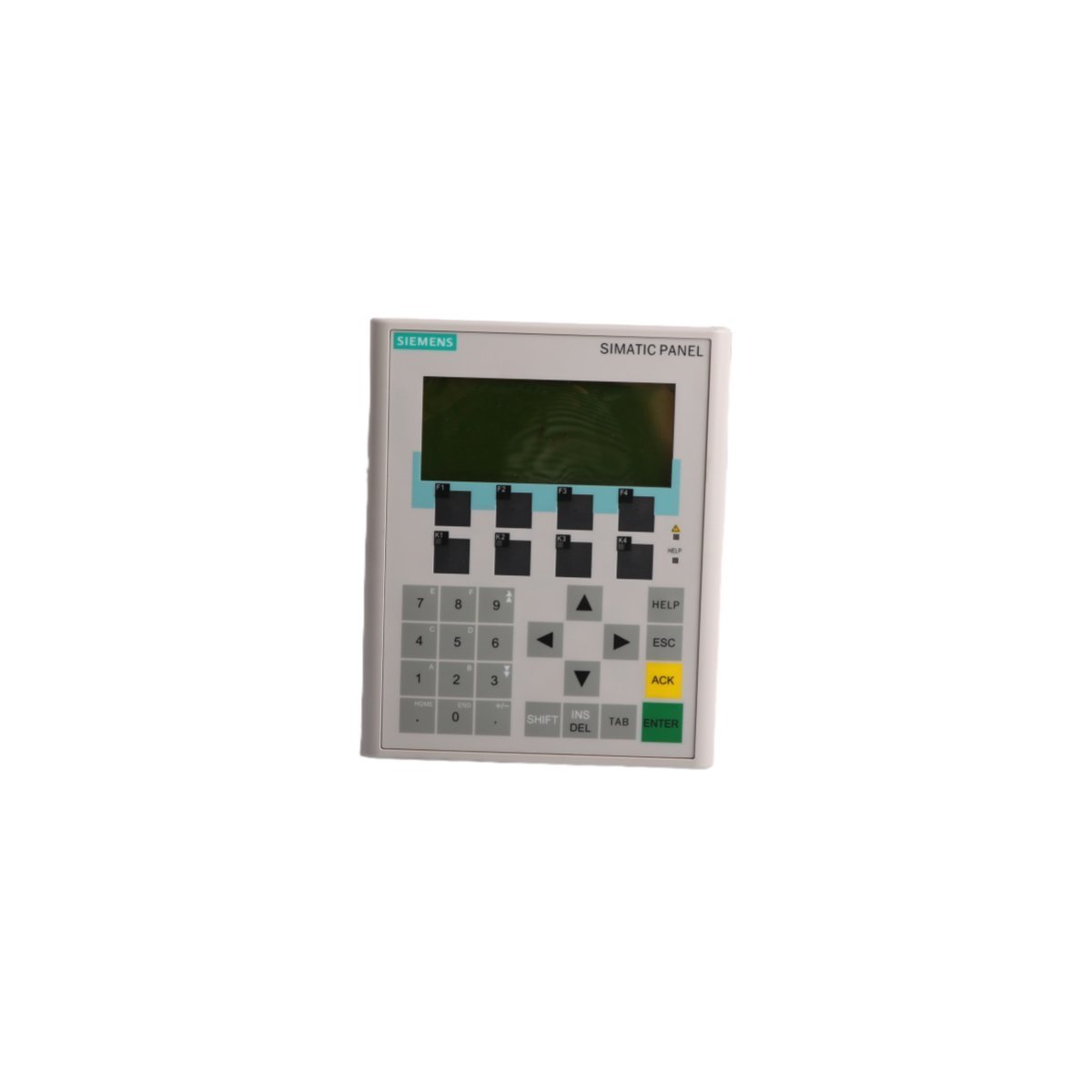

Siemens 6AV6641-0BA11-0AX1 Operator Panel

The Siemens 6AV6641-0BA11-0AX1 serves as an efficient human-machine interface for basic machine-level automation. This SIMATIC OP 77A unit features a 4.5-inch monochrome STN display for clear data visualization. It utilizes a durable membrane keyboard with tactile feedback for precise operator input. Furthermore, the integrated backlight offers an impressive service life of 100,000 hours. This longevity ensures consistent performance in demanding industrial settings. The graphics-capable screen displays process values and alarm messages effectively.

Networking and Engineering Capabilities

• Integrated Communications: The panel includes a built-in MPI and PROFIBUS DP interface for seamless PLC connection.
• High-Speed Transfer: It supports communication rates up to 1.5 MB per second for rapid data exchange.
• Software Requirements: Configuration requires WinCC flexible 2004 Compact or higher versions of the TIA Portal.
• Industrial Durability: The front panel meets IP65 protection standards against dust and water ingress.
• Efficient Memory: It provides sufficient onboard storage for managing recipes, alarms, and simple graphical objects.
• Power Supply: The device operates reliably on a standard 24V DC input voltage.

Technical Specifications

Versatile Automation Integration

The compact footprint of the OP 77A allows for installation in space-restricted control cabinets. This operator panel excels in small-scale automation projects within the SIMATIC S7 ecosystem. Moreover, the monochrome display provides excellent readability under various industrial lighting conditions. Maintenance teams benefit from the straightforward diagnostic features and low power consumption. Because it uses proven hardware components, the unit minimizes the risk of unscheduled downtime. It represents a cost-effective choice for manufacturers prioritizing reliability and functional simplicity.
