1785-L80C Allen-Bradley PLC-5 Programmable Controller Module

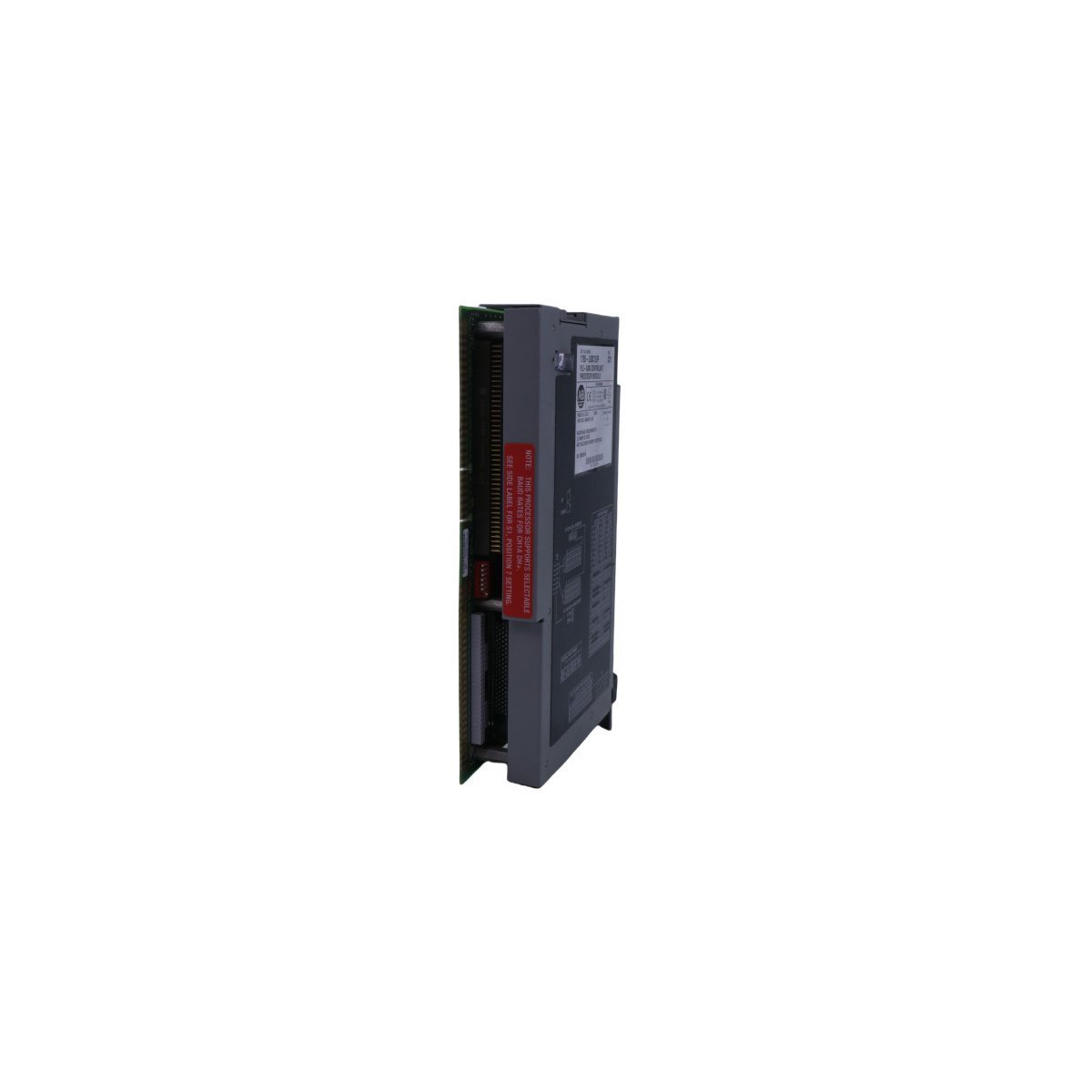

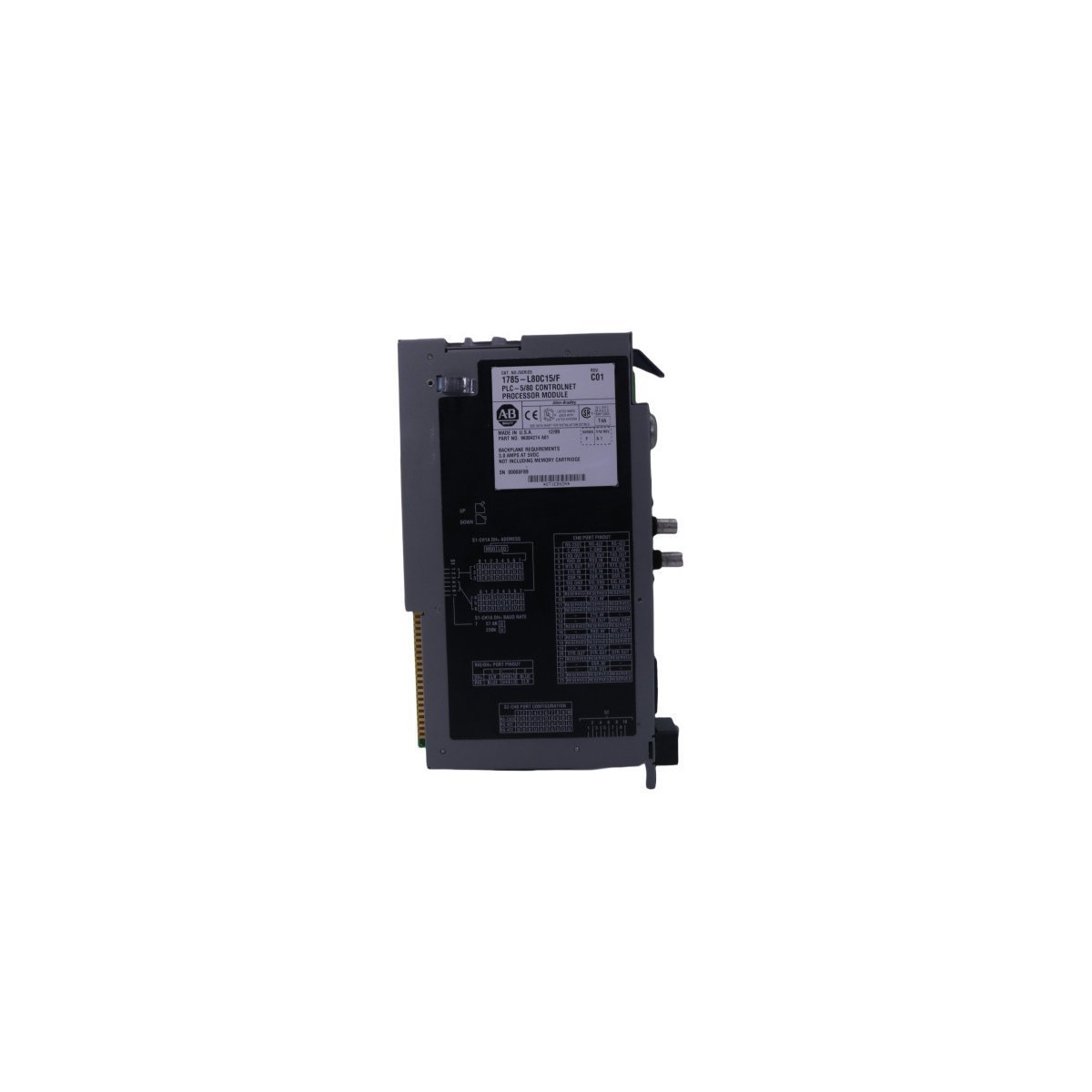

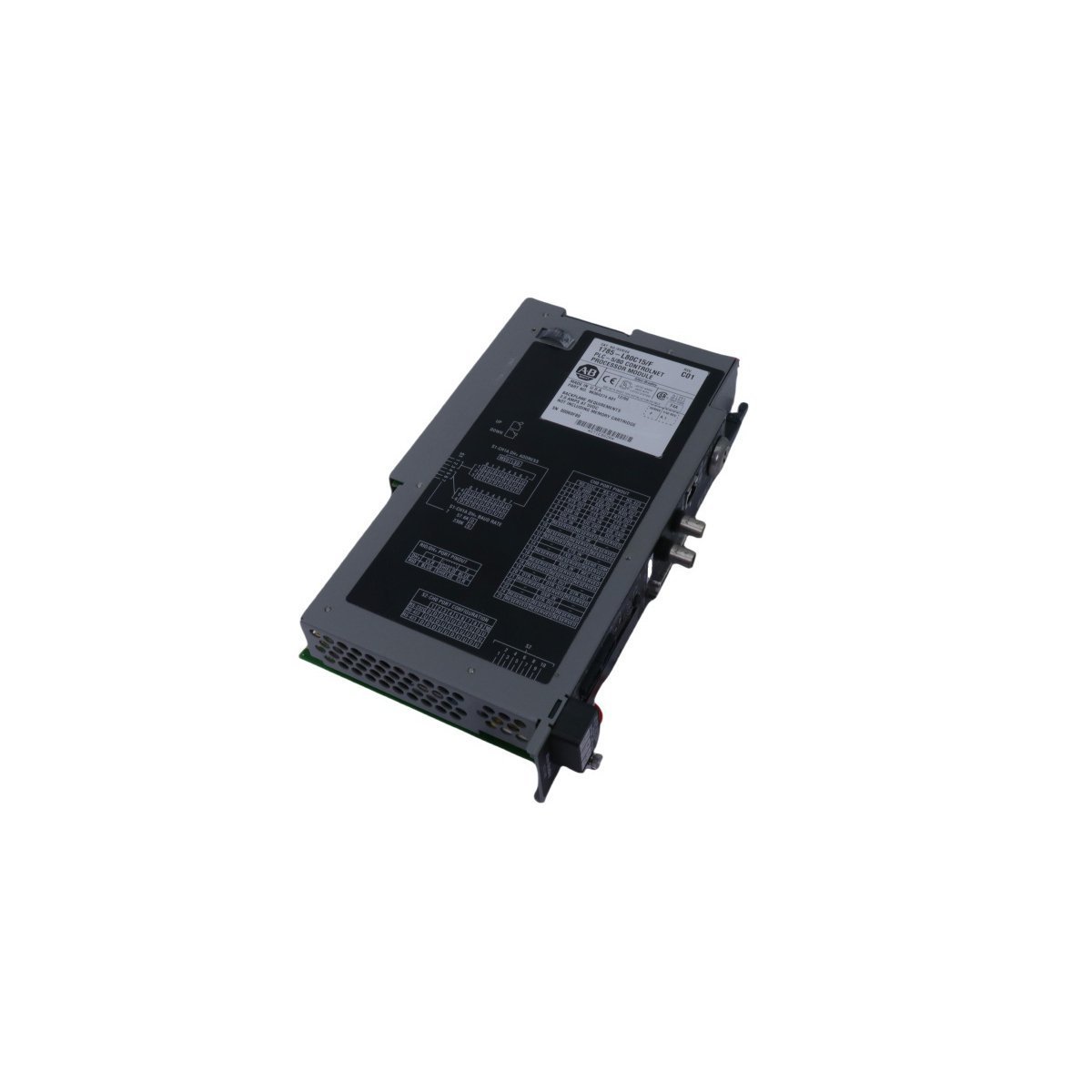

Allen-Bradley 1785-L80C PLC-5 Programmable Controller

The Allen-Bradley 1785-L80C, also cataloged as the 1785-L80C Programmable Controller, operates as a dedicated hardware component for high-speed logic processing and network integration within PLC-5 industrial control systems. This processor manages up to 3072 I/O points and executes complex automation tasks through a 100K word memory capacity, while it facilitates deterministic data exchange via the integrated ControlNet communication port.

Hardware Specifications

Industrial Control and Network Architecture

The 1785-L80C maintains system integrity through its backplane bus communication velocity, which ensures rapid scan times for critical process control loops. As part of the PLC-5 series, the controller handles I/O density scaling by supporting multiple remote I/O link configurations. Firmware flash compatibility allows technicians to update the internal logic handling capabilities, and the processor utilizes deterministic networks to synchronize data across distributed control architectures. This module supports seamless integration with legacy communication services while maintaining the operational demands of high-speed automation environments.

Frequently Asked Questions (FAQ)

Q: Does the 1785-L80C module support hot-swapping under power?

A: No, the PLC-5 architecture requires that the chassis power be de-energized before removing or installing the 1785-L80C processor to prevent electrical damage to the backplane.

Q: How does the processor handle memory retention during power cycles?

A: The controller utilizes a combination of internal battery backup and non-volatile memory storage to preserve user logic and data tables during extended power outages.

Field Installation Guidelines

• De-energize the PLC-5 chassis power supply before physically mounting the 1785-L80C into the designated slot.
• Verify that the physical keying positions on the chassis backplane match the module connector to avoid mechanical interference.
• Connect the ControlNet cable to the dedicated port using appropriate RG-6 quad-shield coaxial cable to maintain signal integrity over long distances.
• Ensure the chassis is properly grounded to a common industrial earth point to mitigate noise-induced communication latencies.
• Secure the module using the top and bottom retaining screws to ensure proper seating and electrical contact with the backplane pins.
