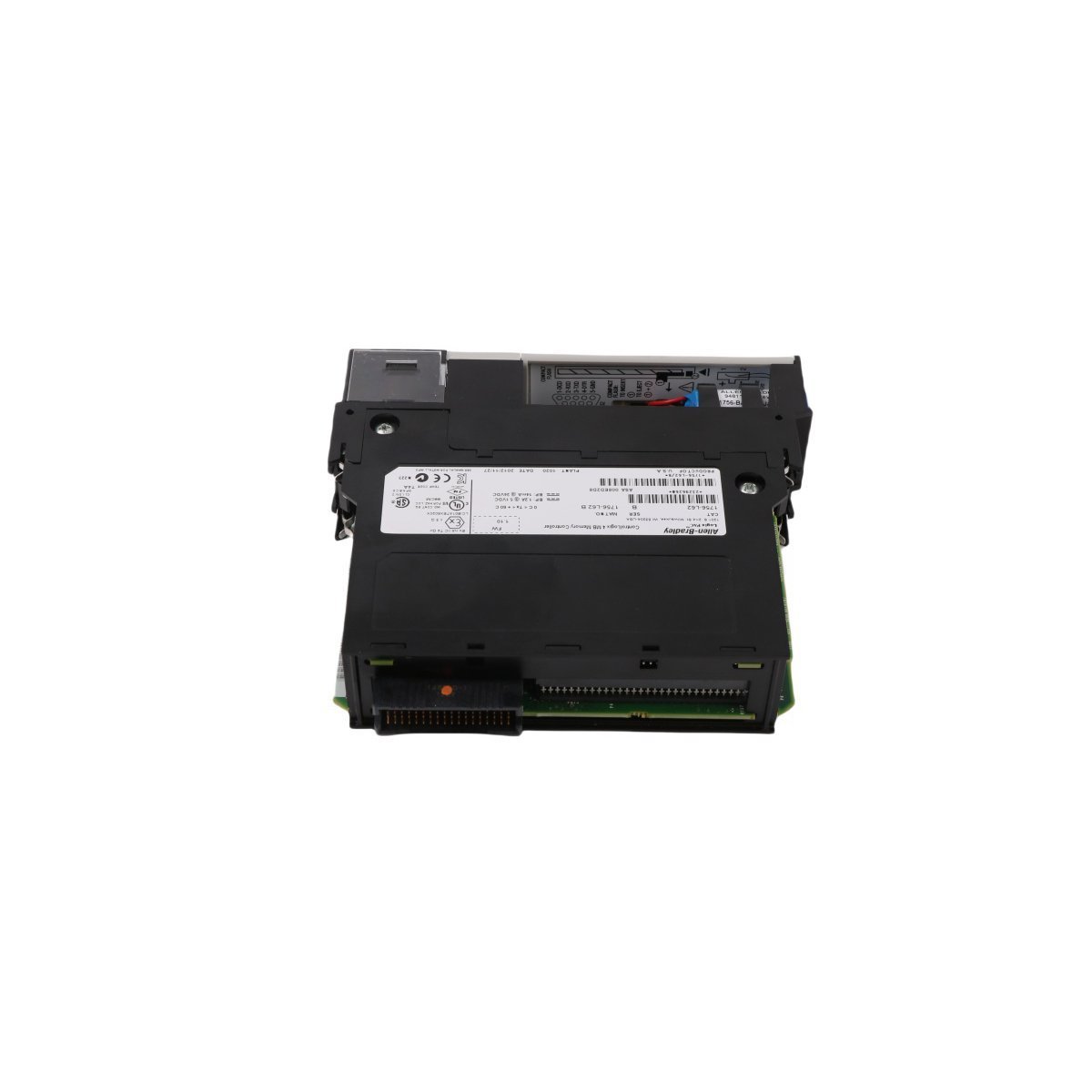

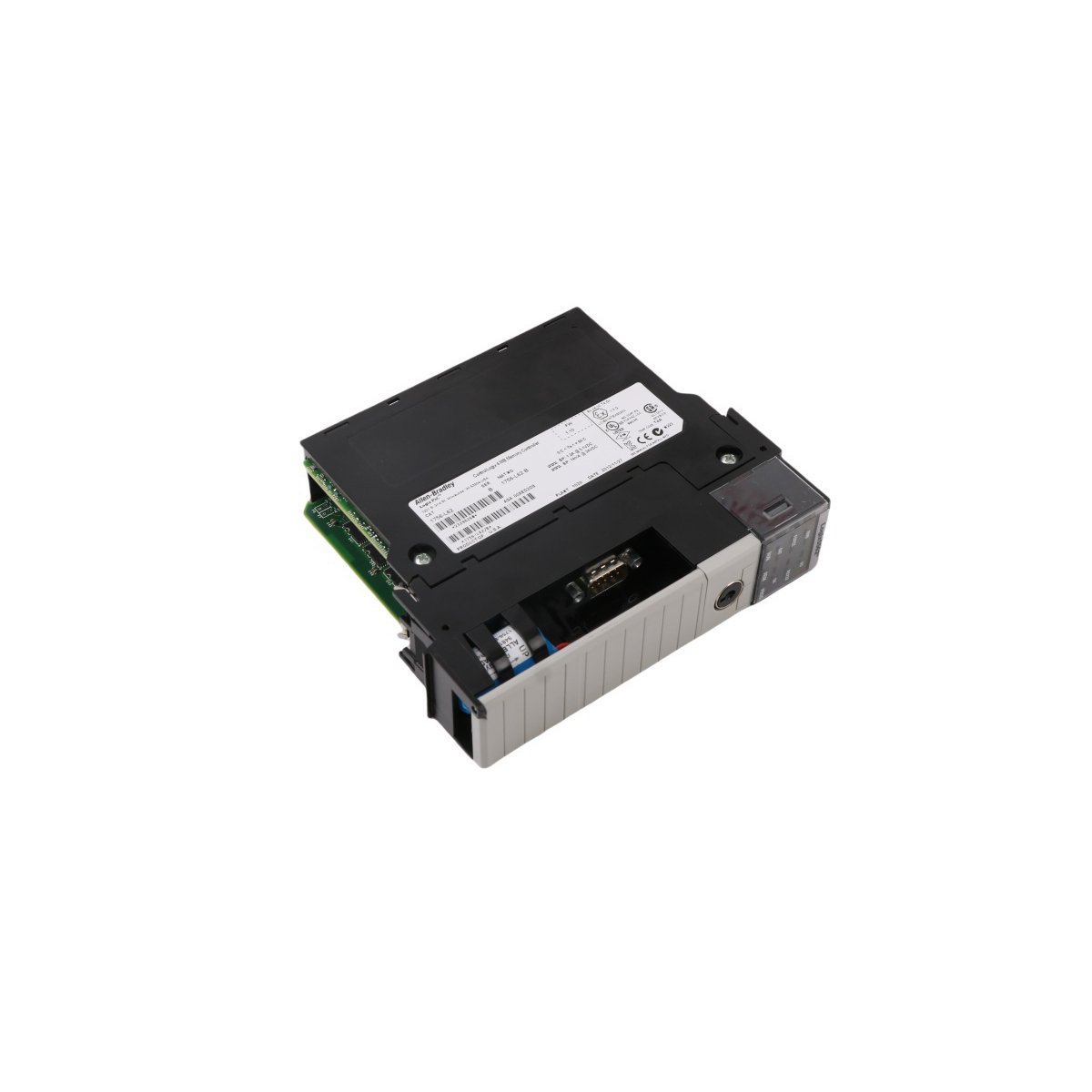

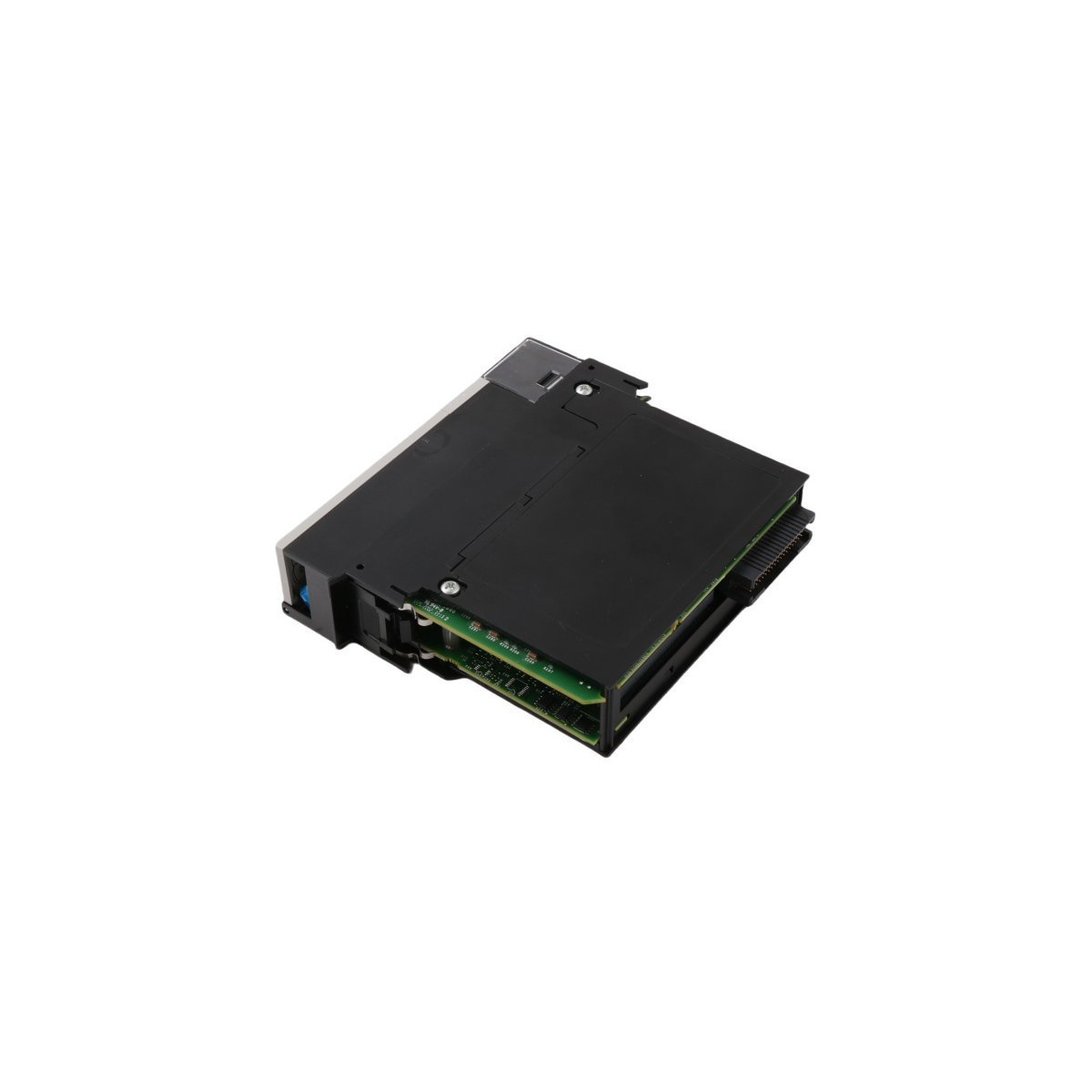

1756-L62S Allen-Bradley GuardLogix 5562 Safety Controller

Allen-Bradley 1756-L62S ControlLogix Logix5562 Processor

The Allen-Bradley 1756-L62S, also cataloged as the 1756-L62S ControlLogix Logix5562 Processor, operates as a dedicated hardware component for integrated standard and safety logic execution within GuardLogix automation platforms. This controller manages both standard and safety-related tasks through a dual-memory architecture, providing deterministic signal processing and I/O control across the chassis-based network.

Hardware Specifications

Industrial Control and Network Architecture

The 1756-L62S manages backplane bus communication velocity to ensure rapid data exchange between local I/O modules and the primary processor. Engineers configure the module to perform I/O density scaling, supporting distributed architectures up to 128,000 total points. The firmware flash compatibility allows for field-level updates to maintain network alignment with EtherNet/IP and other deterministic fieldbus protocols. This processor utilizes a key-switch mechanism to enforce operational modes, which protects the integrity of safety-related control sequences during routine maintenance and runtime monitoring.

Frequently Asked Questions (FAQ)

Q: Does the 1756-L62S support hot-swapping within the ControlLogix chassis?

A: Yes, the module supports Removal and Insertion Under Power (RIUP), provided the chassis backplane power remains within nominal limits during the transition.

Q: How does the controller handle dual-memory execution during safety transitions?

A: The processor utilizes segregated memory areas for standard and safety tasks, ensuring that standard control logic cannot interfere with the high-integrity safety functions executed in the safety memory partition.

Field Installation Guidelines

• De-energize the chassis power supply prior to installing the 1756-L62S into the selected slot to prevent electrical transients.
• Align the module housing with the chassis guides to ensure the backplane connector seats evenly without mechanical strain.
• Verify the integrity of the chassis ground connection to the main industrial earth point to mitigate electromagnetic noise on the communication bus.
• Tighten the top and bottom retaining screws on the module faceplate once insertion is complete to secure the unit against vibration.
• Monitor the status indicators on the module front panel post-power-up to verify successful initialization and safety-check completion.
