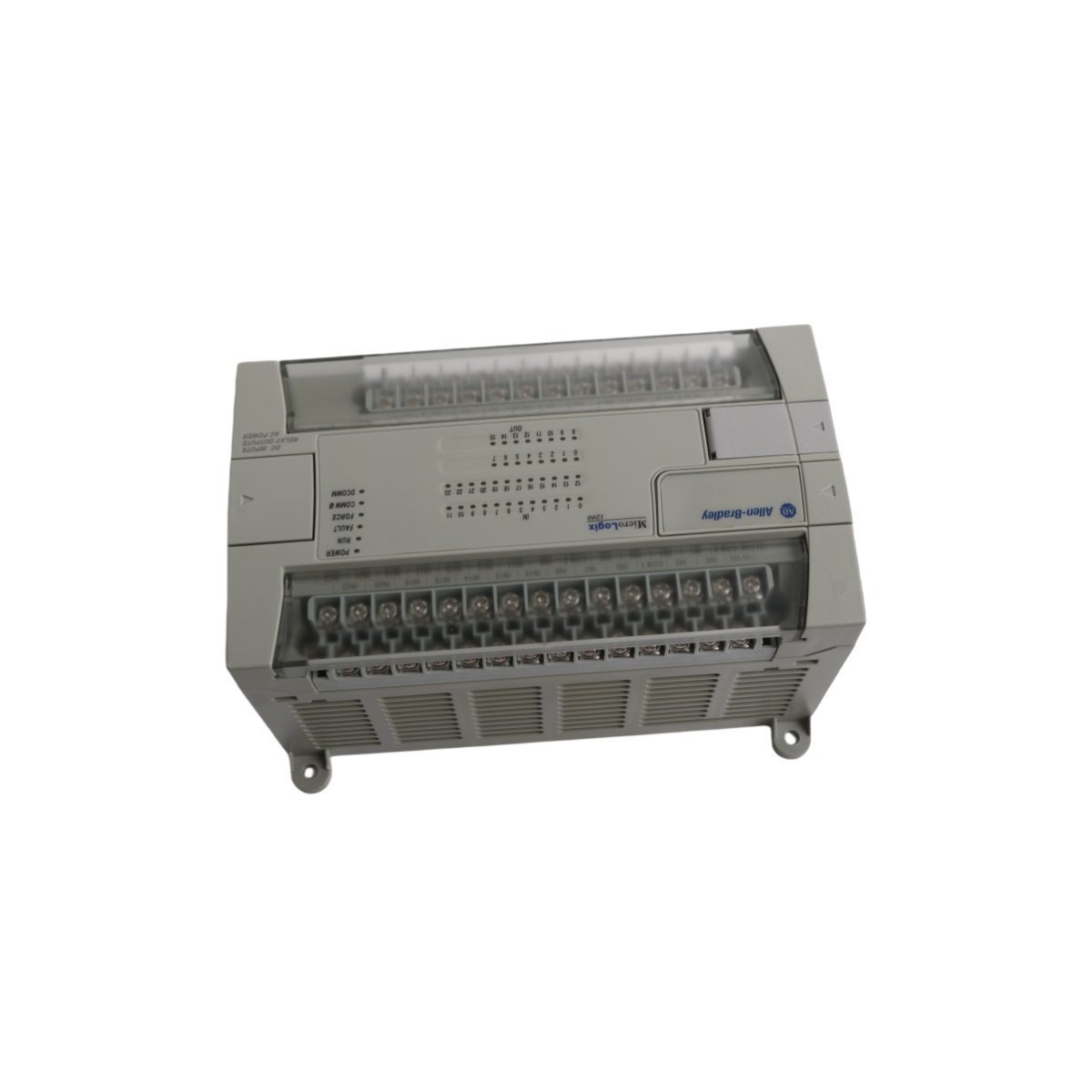

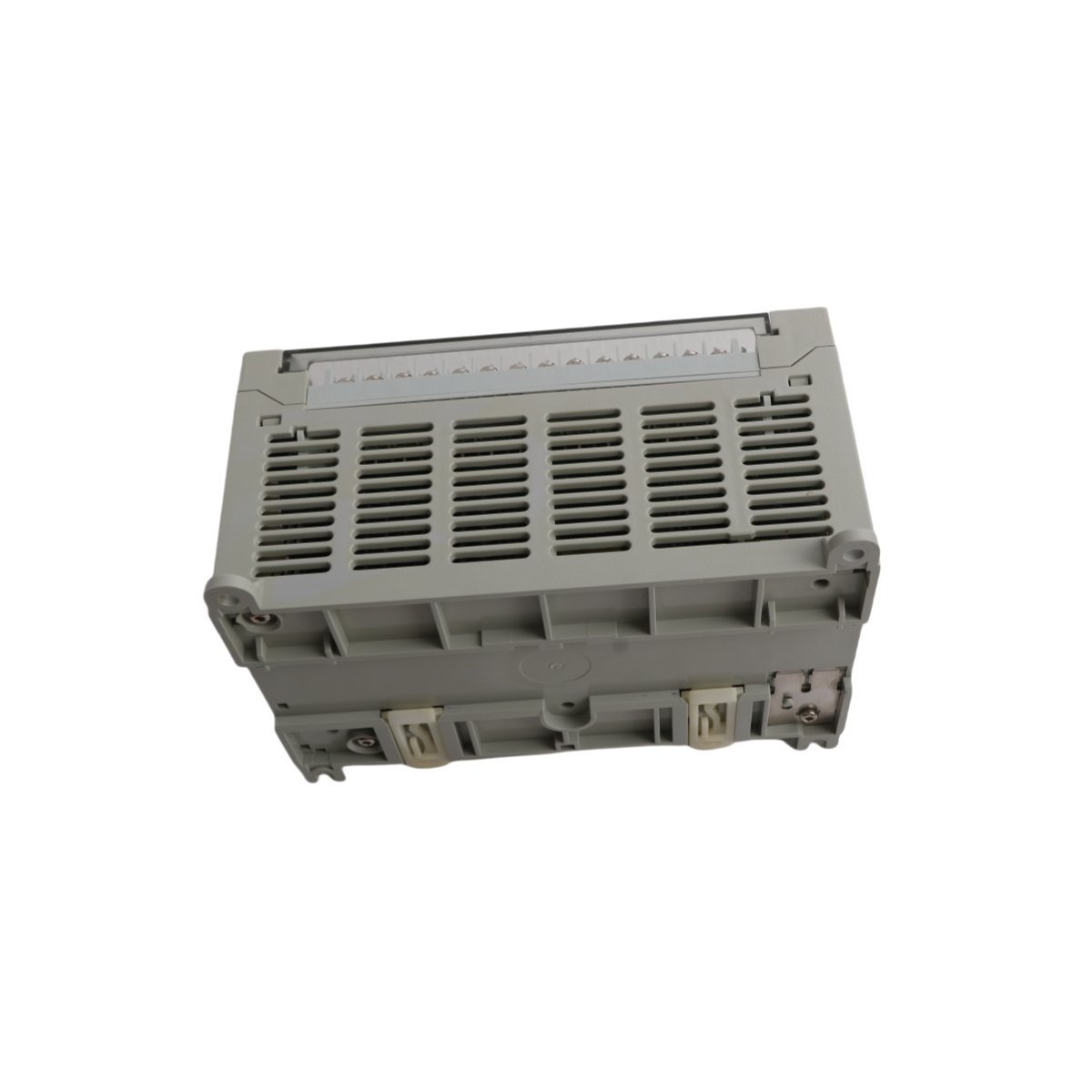

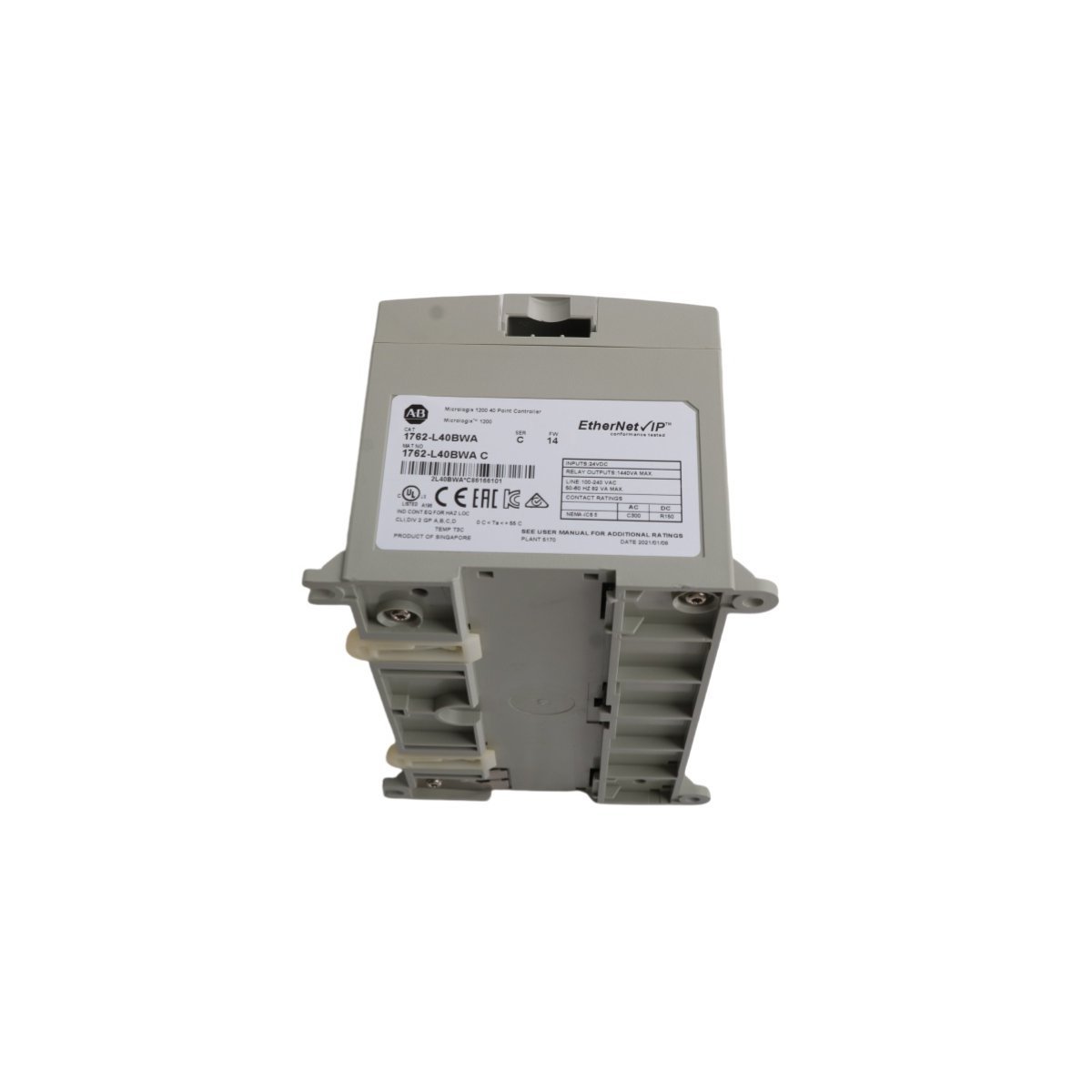

Allen-Bradley 1762-L40BWA 40-Point Programmable Logic Controller 120/240V AC

Product Overview

The 1762-L40BWA functions as a centralized intelligence hub for small to medium-scale automation projects. This MicroLogix 1200 system integrates 24 DC inputs and 16 relay outputs into a single chassis, eliminating the need for excessive expansion modules in many applications. Because it utilizes a 120/240V AC power supply, the controller fits seamlessly into standard industrial power grids without requiring external DC power plants for the CPU logic. Furthermore, the hardware supports high-speed counter functionality and adjustable input filters, which allow engineers to tailor the controller’s response to specific mechanical requirements. Consequently, the 1762-L40BWA provides a cost-effective yet sophisticated solution for conveyor control, packaging machinery, and pharmaceutical processing.

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Model Number: 1762-L40BWA
• Series: MicroLogix 1200
• Input Power: 100/240V AC (47-63 Hz)
• Total I/O Count: 40 Points
• Discrete Inputs: 24 Points (24V DC Sinking/Sourcing)
• Relay Outputs: 16 Points (Normally Open)
• Fast Inputs: 4 Channels (High-speed pulse capture)
• Communication Port: RS-232 (8-pin Mini DIN)
• Memory Size: 6 KB (Configurable program and data)
• Mounting: DIN Rail or Panel Mount
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Shipping Weight: 0.9 kg

Communication and Integration

The 1762-L40BWA features a versatile RS-232 communication port that supports a wide range of industrial protocols, including DF1 Full-Duplex, DH-485, and Modbus RTU Slave. This connectivity allows for direct peer-to-peer networking with HMI terminals or other PLCs. Additionally, users can extend the controller’s reach by utilizing external communication bridges, such as RS-232 to Ethernet (1761-NET-ENI) or RS-485 (1761-NET-AIC) converters. These options enable the 1762-L40BWA to participate in larger factory-wide EtherNet/IP networks, providing real-time data access for supervisory SCADA systems.

Engineering Advantages

The primary engineering benefit of the 1762-L40BWA lies in its high-reliability relay outputs, which are rated for over 20 million mechanical cycles. These outputs handle a broad voltage range (up to 240V AC or 125V DC), giving designers the flexibility to drive various solenoids, motor starters, and pilot lights directly. Moreover, the inclusion of four high-speed inputs enables the controller to interface with encoders and flow meters without the latency issues associated with standard digital inputs. To ensure long-term stability, the hardware incorporates advanced thermal management and noise immunity features. As a result, specifying the genuine 1762-L40BWA guarantees a durable control solution that reduces maintenance overhead and prevents costly production downtime in rigorous manufacturing environments.
