1756-L73 Allen-Bradley ControlLogix 8 MB Programmable Automation Controller

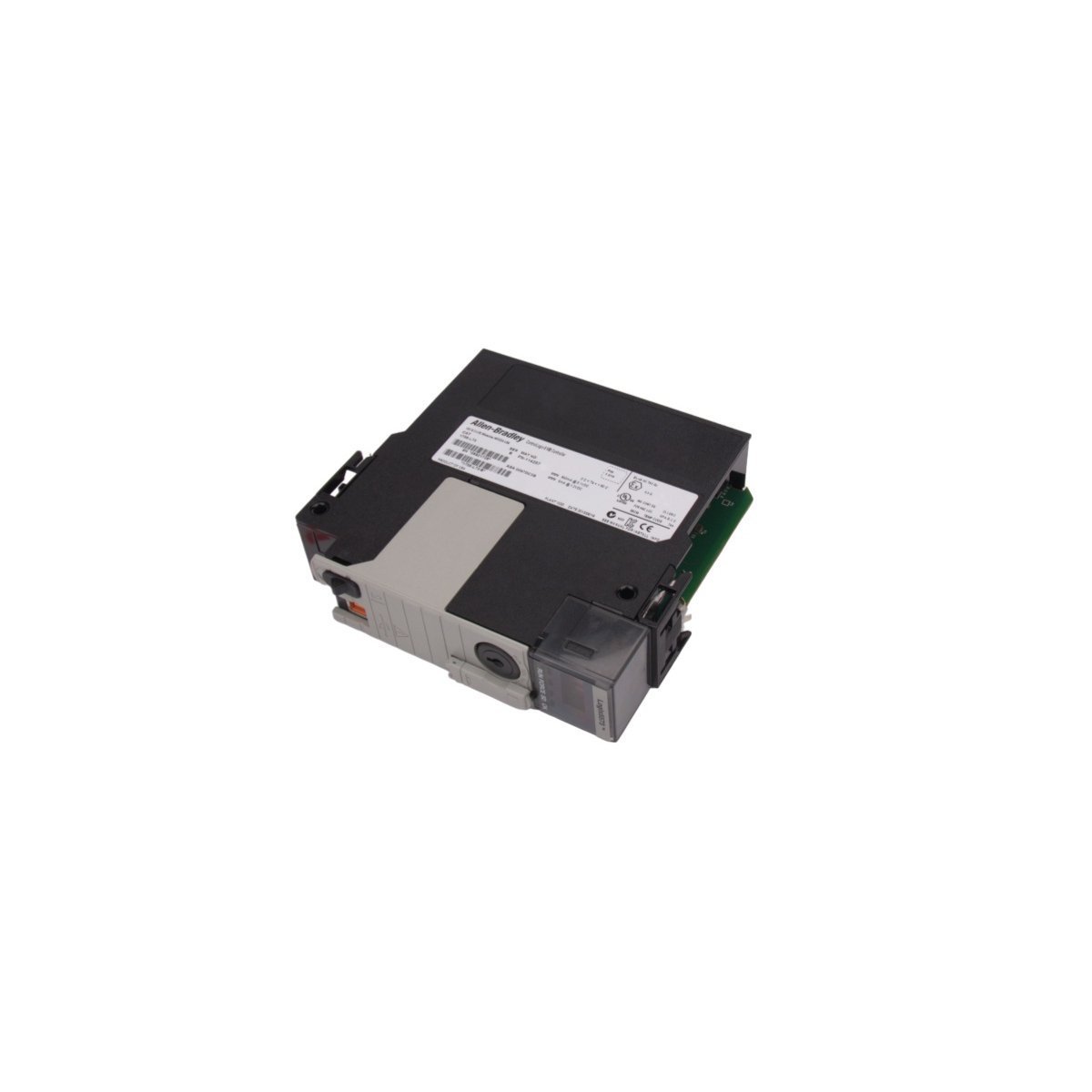

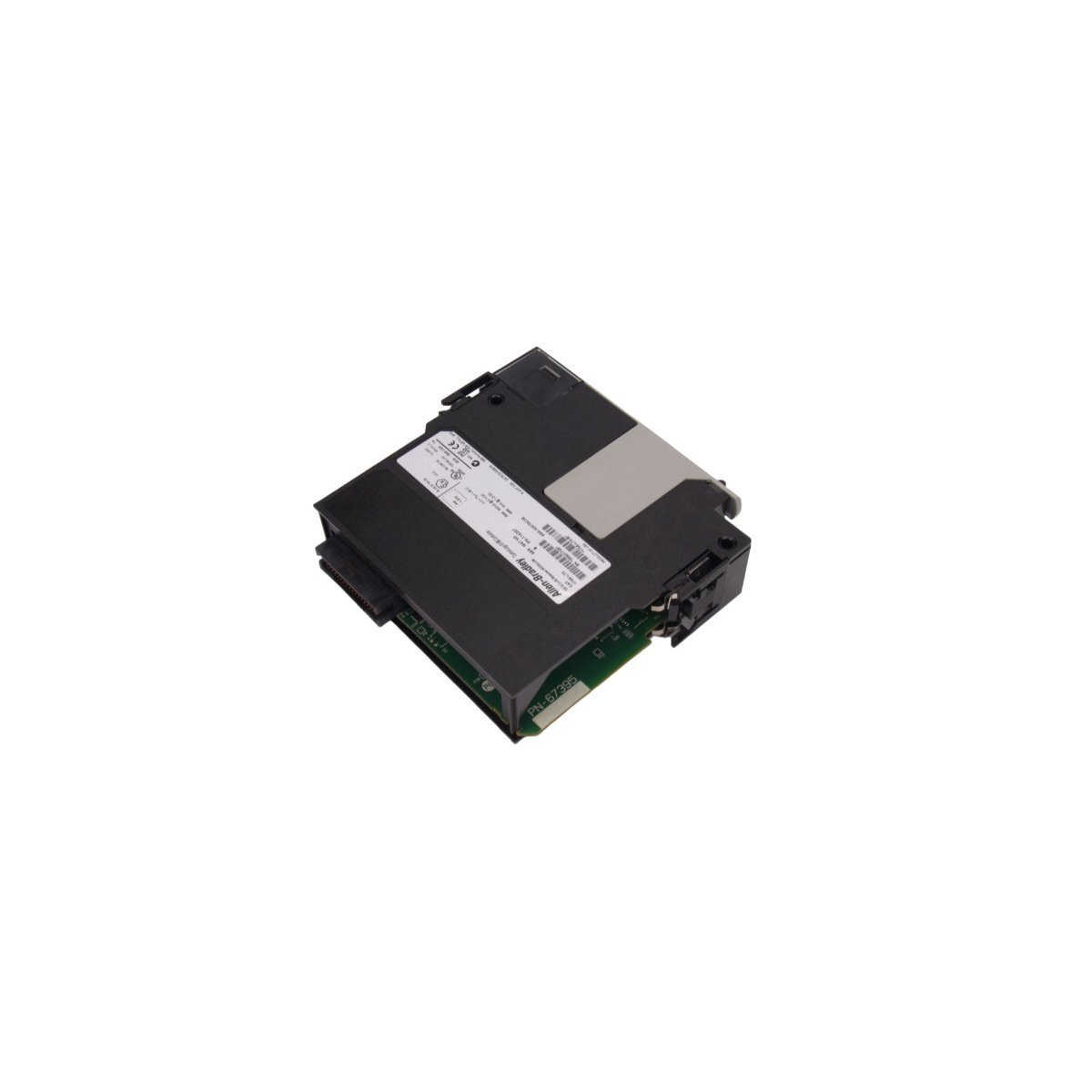

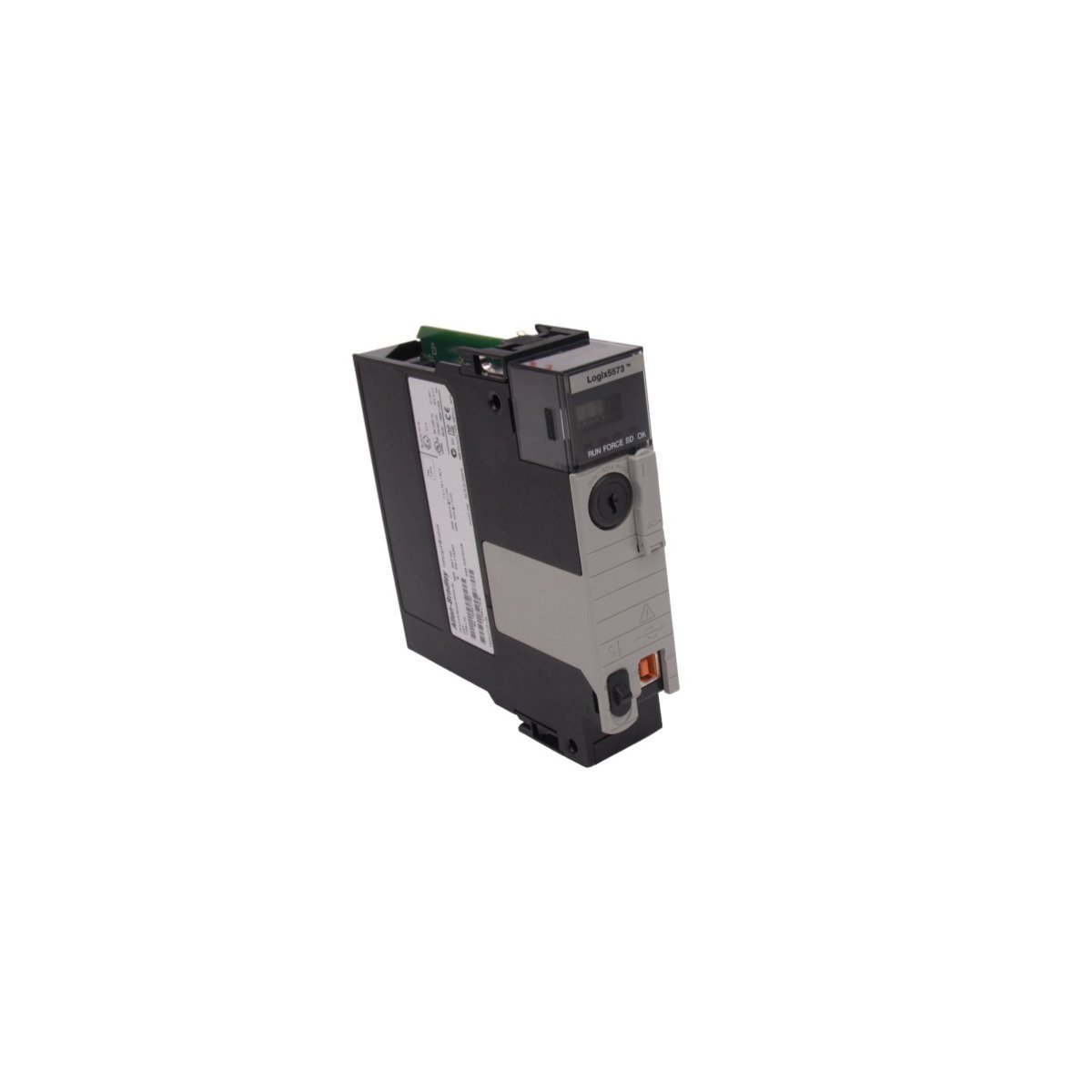

Allen-Bradley 1756-L73 ControlLogix Controller

The Allen-Bradley 1756-L73, also cataloged as the 1756-L73 ControlLogix Controller, operates as a dedicated hardware component for high-speed logic execution and industrial process management within ControlLogix automation platforms. This Programmable Automation Controller (PAC) integrates user memory for complex instruction set processing, while the module manages discrete and analog data streams across chassis-based architectures.

Hardware Specifications

Controller Logic and Communication Architecture

The 1756-L73 utilizes a high-speed backplane bus to facilitate deterministic network traffic. It executes motion control and sequential logic tasks by leveraging a multi-tasking operating system that supports up to 32 concurrent tasks. Engineers configure the module to manage I/O density scaling through modular local chassis expansion or distributed network topologies. The hardware includes firmware flash compatibility, which allows for field-level updates to optimize instruction execution velocities and accommodate evolving network protocols. Users interface with the controller via EtherNet/IP, ControlNet, or DeviceNet to maintain deterministic data exchange across the production floor.

Frequently Asked Questions (FAQ)

Q: Does the 1756-L73 module support hot-swapping in an active chassis?

A: Yes, the module supports Removal and Insertion Under Power (RIUP) within a standard ControlLogix chassis without requiring a system-wide shutdown.

Q: How does the controller manage energy storage without a battery?

A: The module integrates an internal Energy Storage Module (ESM) that maintains volatile memory during power cycles, eliminating the maintenance requirements associated with traditional lithium batteries.

Q: Can this controller function as a secondary node in a redundant pair?

A: Yes, when paired with an identical controller and a redundancy module, it supports high-availability operations with automatic failover capabilities.

Field Installation Guidelines

• Ensure the ControlLogix chassis power supply is de-energized before inserting the 1756-L73 into the designated slot.
• Verify that the keying mechanism on the chassis slot aligns with the controller housing to prevent improper module insertion.
• Route all communication cabling (EtherNet/IP or ControlNet) away from high-voltage AC lines to mitigate electromagnetic interference (EMI).
• Tighten the top and bottom mounting screws to secure the module to the chassis, ensuring proper electrical grounding through the backplane.
• Confirm the status of the “OK” LED indicator following power-up to verify successful firmware initialization and self-diagnostic completion.
