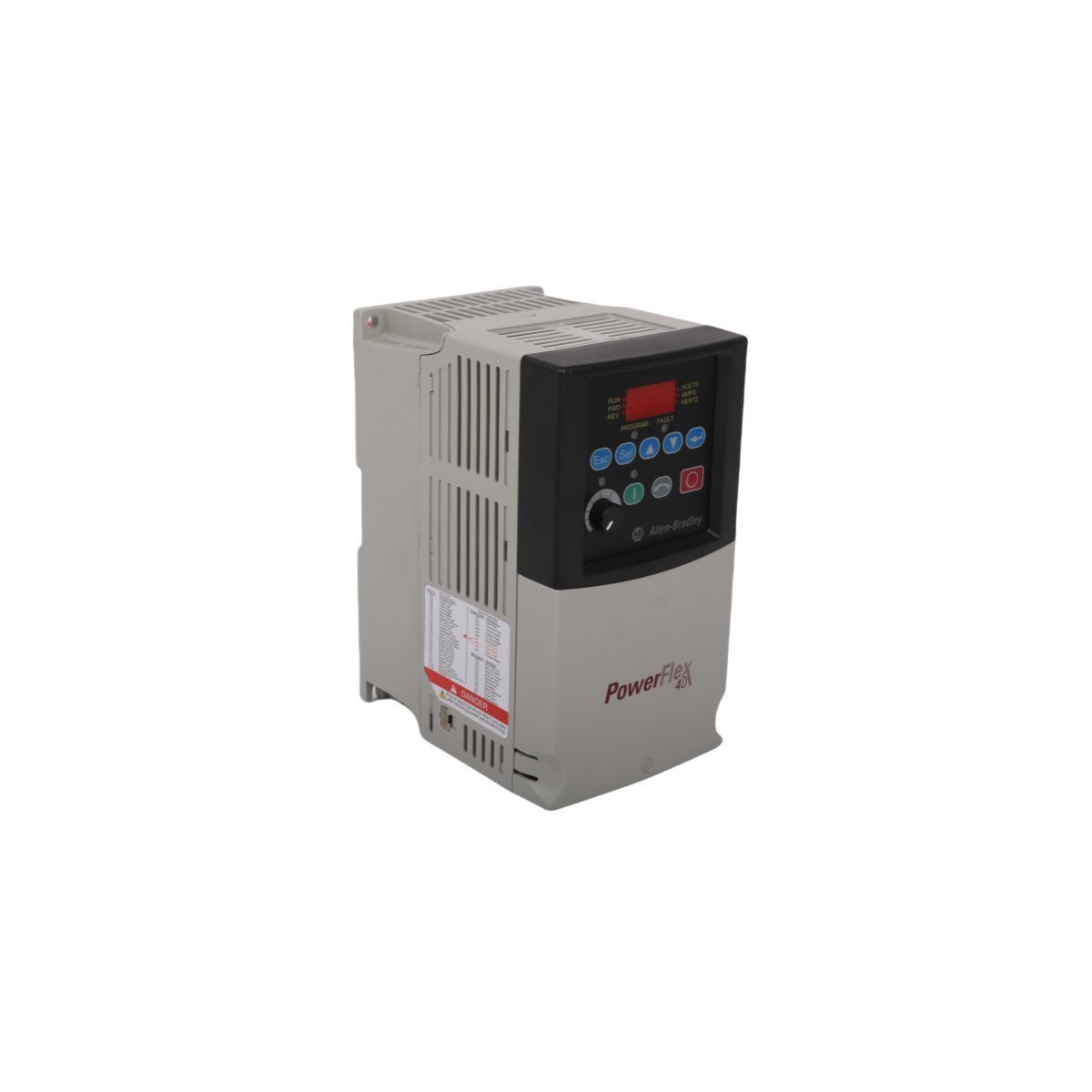

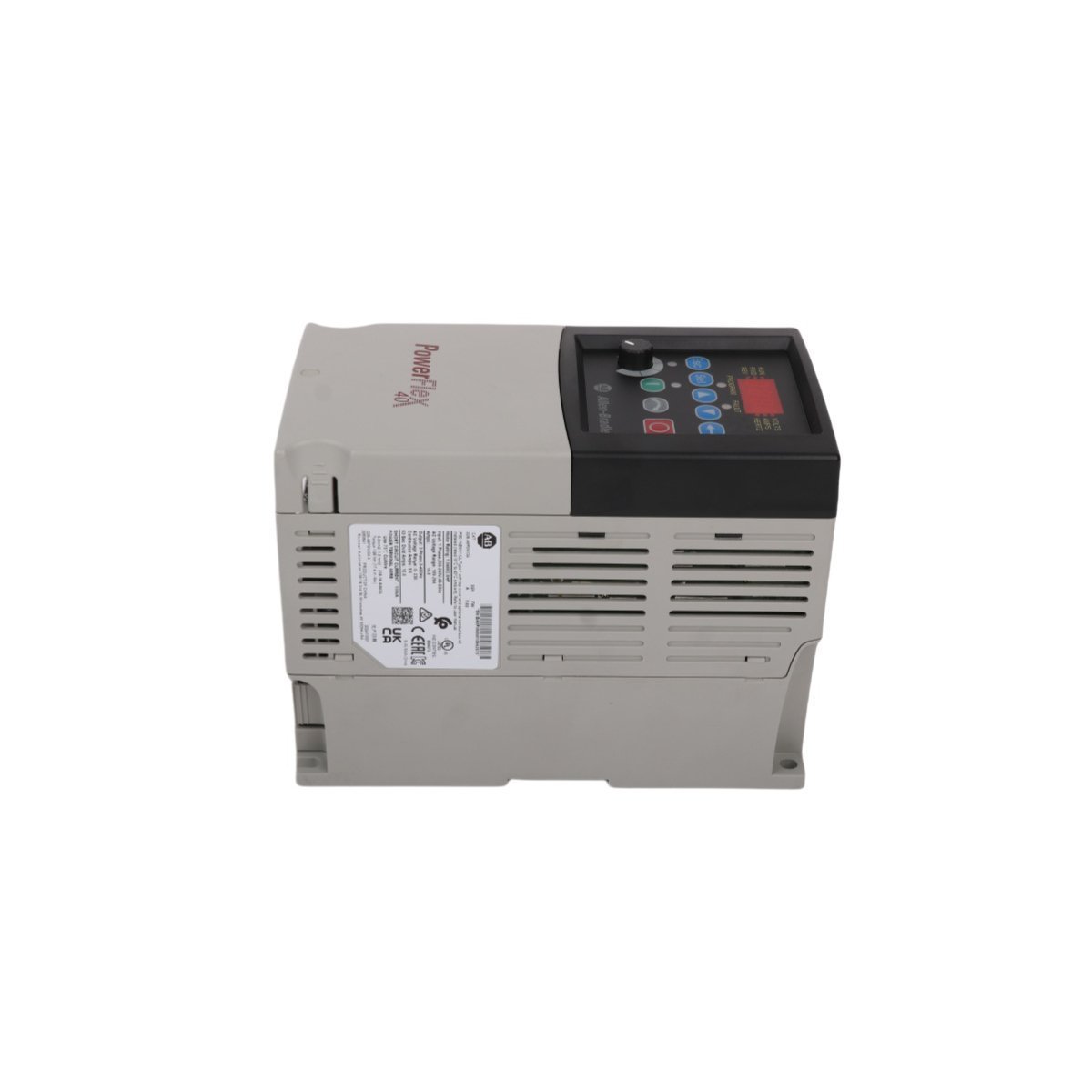

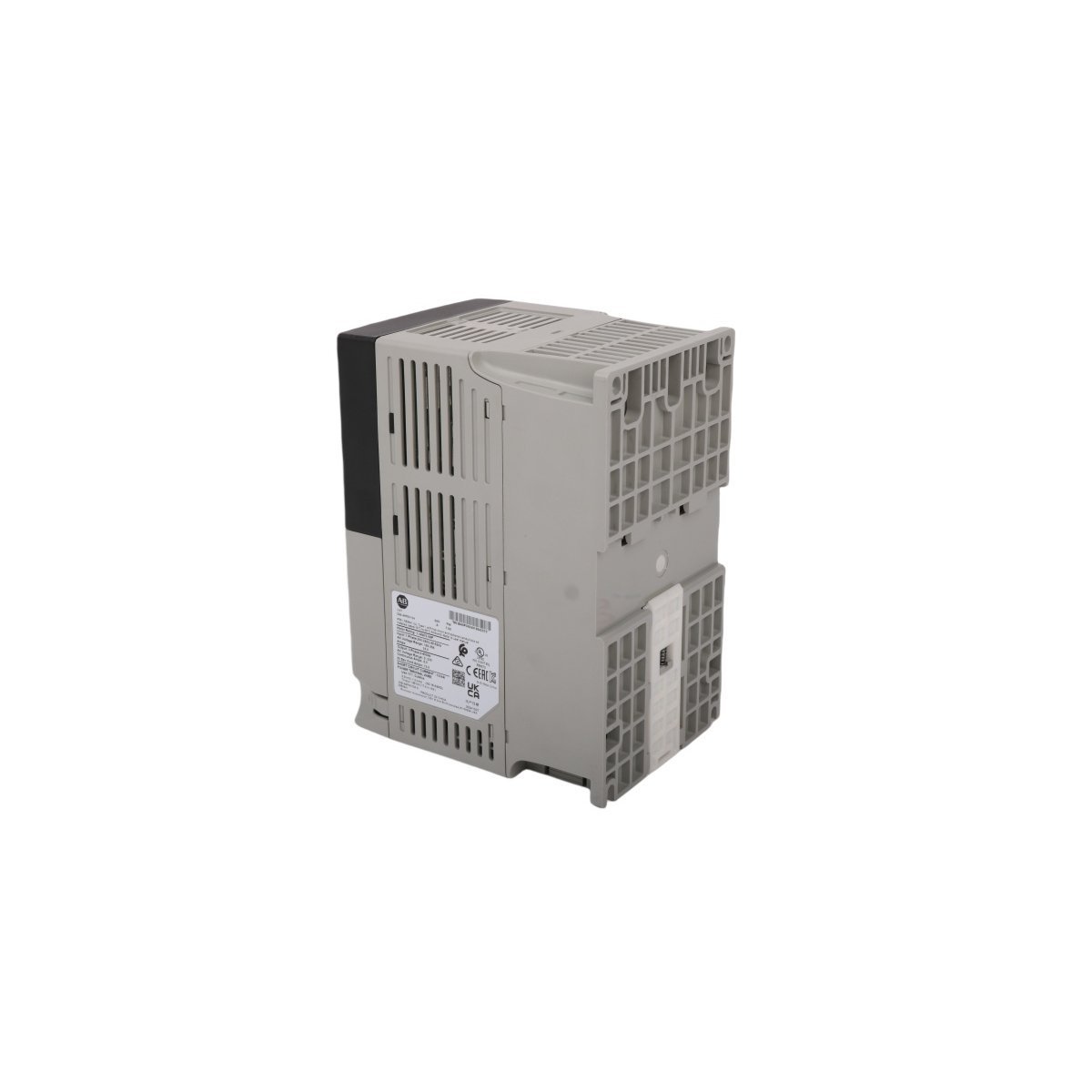

Allen-Bradley 22B-A8P0N104 PowerFlex 40 Adjustable Frequency AC Drive

Allen-Bradley 22B-A8P0N104 PowerFlex 40 Adjustable Frequency AC Drive

The Allen-Bradley 22B-A8P0N104, also cataloged as the 22B-A8P0N104 Adjustable Frequency AC Drive, operates as a dedicated hardware component for variable-speed motor regulation within PowerFlex 40 architecture platforms. The module executes conversion loops by accepting a single-phase AC input range of 200-240 VAC at 50/60 Hz and generating a variable three-phase output voltage profile up to 240 VAC. Utilizing internal solid-state power switches, this hardware delivers continuous current configurations up to 8 A to control three-phase induction motor loads rated up to 1.5 kW (2 HP).

Hardware Specifications

V/Hz and Field-Oriented Vector Control

The Allen-Bradley 22B-A8P0N104 embeds sensorless vector control algorithm parameters to manage rotor dynamics and optimize torque production across varying speeds. The hardware dynamically alters the frequency output while tracking internal voltage drops, allowing the drive to maintain strict torque regulation at low speeds without requiring external encoder feedback loop wiring. Operators adjust the Pulse Width Modulation (PWM) switching frequencies to reduce acoustic resonance, while the underlying sensorless vector control processor continuously calculates electrical parameters to match instantaneous shaft load changes.

Frequently Asked Questions

Q: How does the drive protect its internal solid-state power switches from high startup inrush current transients?

A: The hardware incorporates a dedicated relay pre-charge mechanism that limits the charging rate of the DC bus capacitor bank during initial power application, preventing peak current damage to the input rectifier circuitry.

Q: What installation benefit does the zero-stacking design provide inside a confined electrical panel?

A: The zero-stacking enclosure allows technicians to mount multiple PowerFlex 40 drives side-by-side on a single DIN rail with no side clearance gap required, maximizing I/O density scaling inside control panels up to ambient environments of 40 deg C.

Q: What procedure isolates the internal Metal Oxide Varistor (MOV) from ground when operating on ungrounded distribution networks?

A: The drive features a removable physical MOV jumper link that allows the installation technician to safely disconnect the surge suppression circuit from ground, preventing accidental ground fault trips in ungrounded or high-impedance distribution architectures.

Field Installation Guidelines

• DIN-Rail and Enclosure Grounding: Secure the IP20 chassis to a standard 35 mm DIN rail or flange mount directly onto the enclosure backplate. Establish a low-impedance connection between the drive’s dedicated PE (Protective Earth) terminal and the master enclosure ground bus.
• Shield Grounding Regulations: Enclose all three-phase motor output lines in grounded metallic conduit or terminate high-frequency motor cable shields at the drive frame ground clamp to prevent electromagnetic emissions from disrupting nearby low-voltage automation instrumentation loops.
• Thermal Management Clearances: Maintain at least 12 cm of vertical ventilation clearance above and below the drive housing to ensure adequate convection airflow across the thermal heat sink fin profiles during continuous 8 A rated operation.
