330104-01-06-05-01-05 Bently Nevada 3300 XL Proximity Sensors

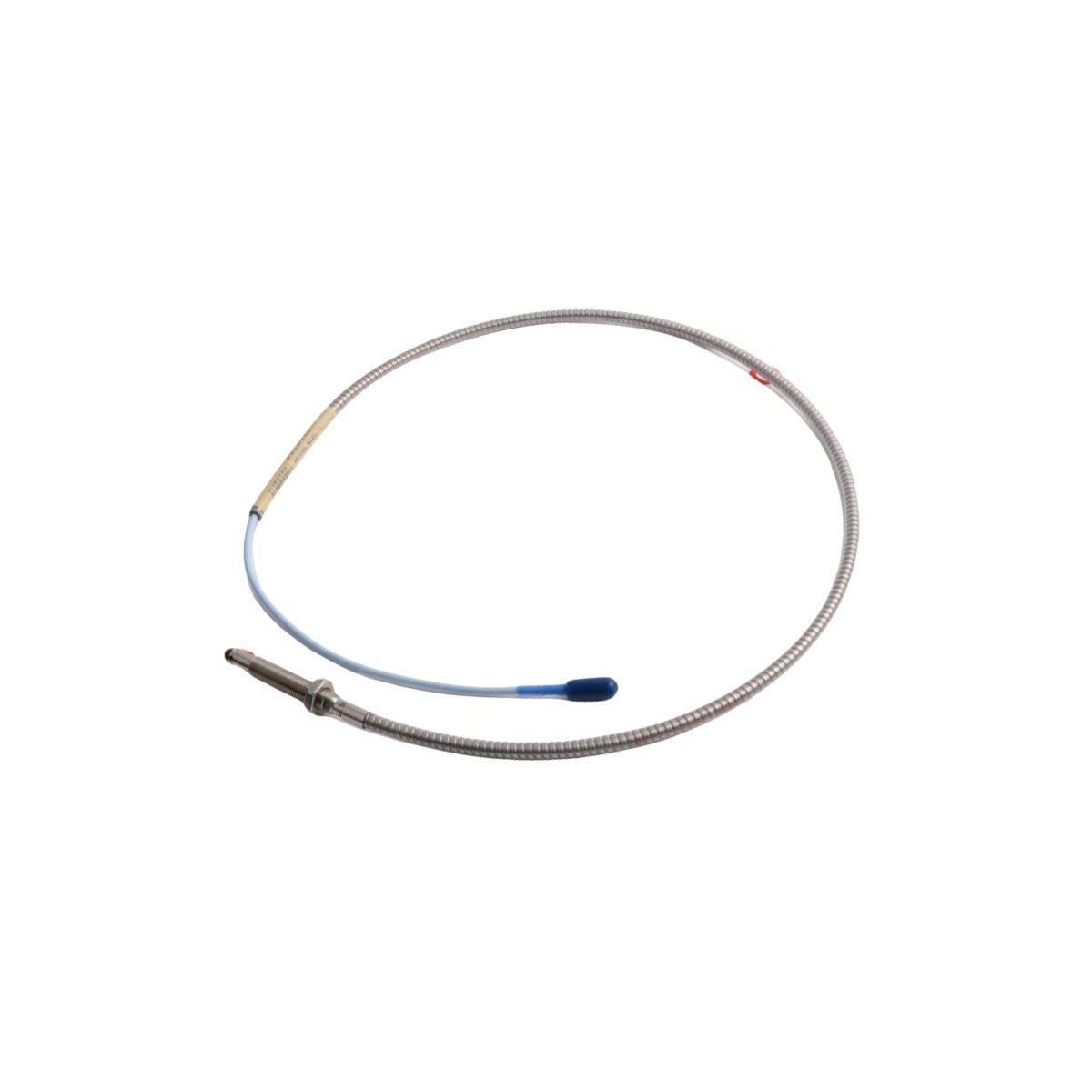

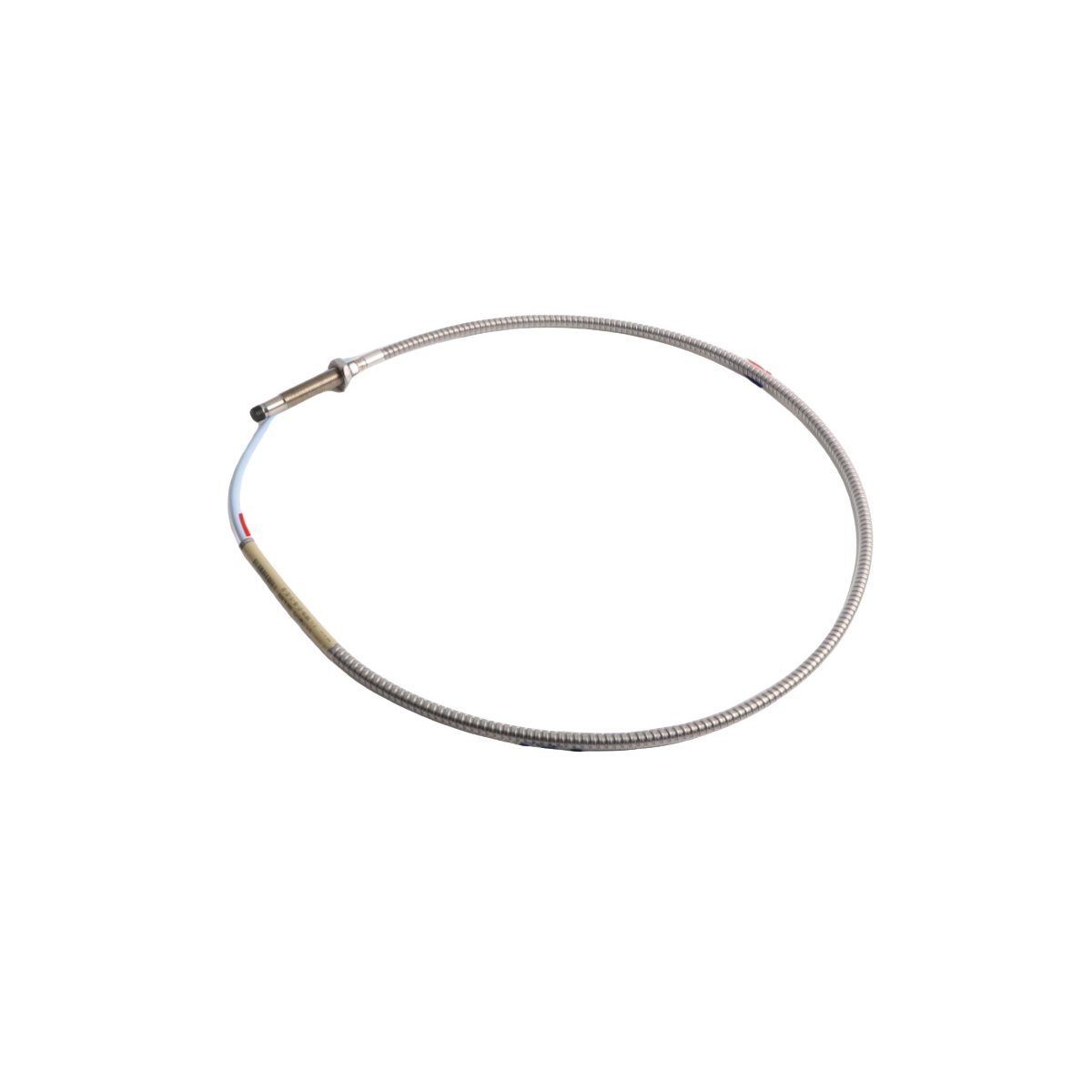

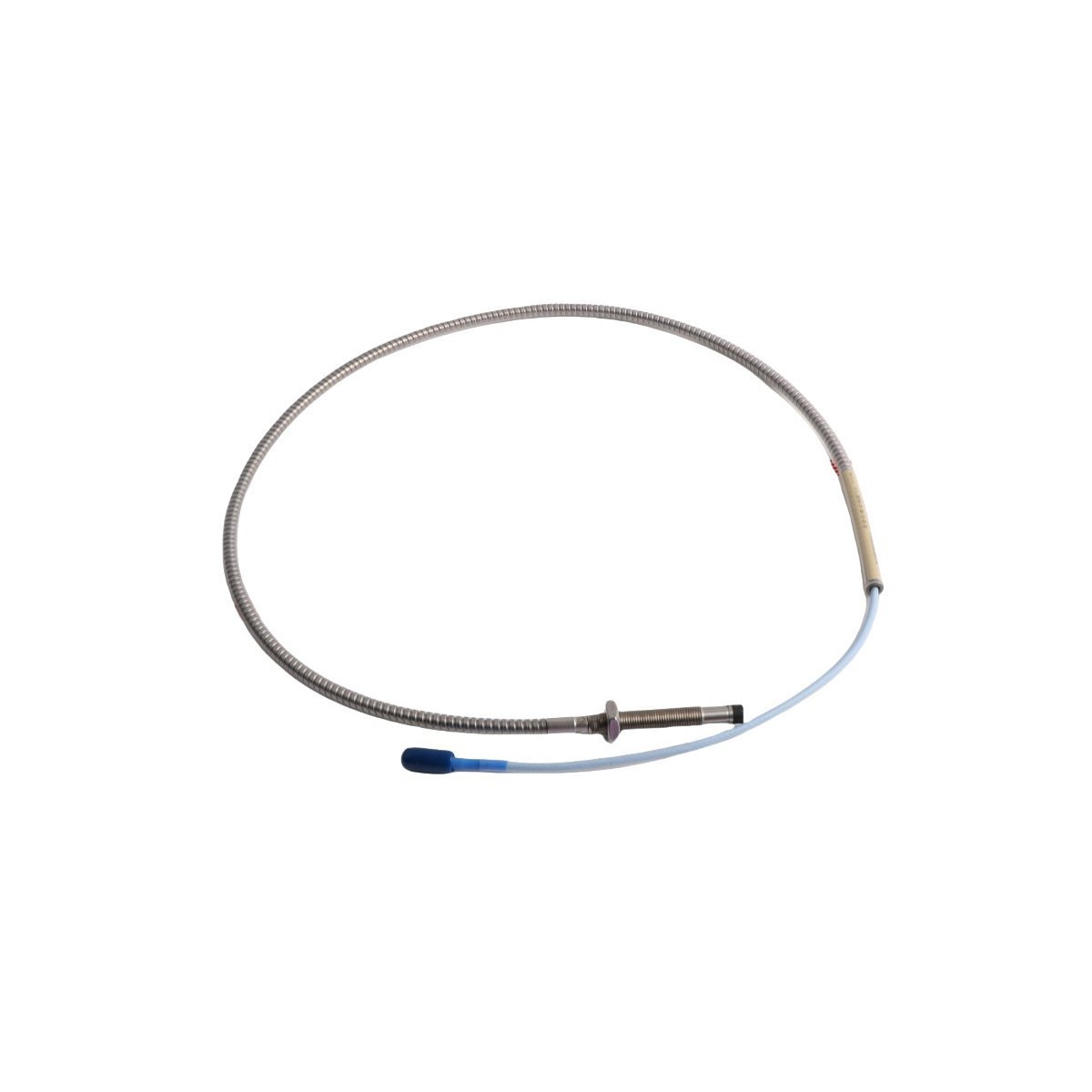

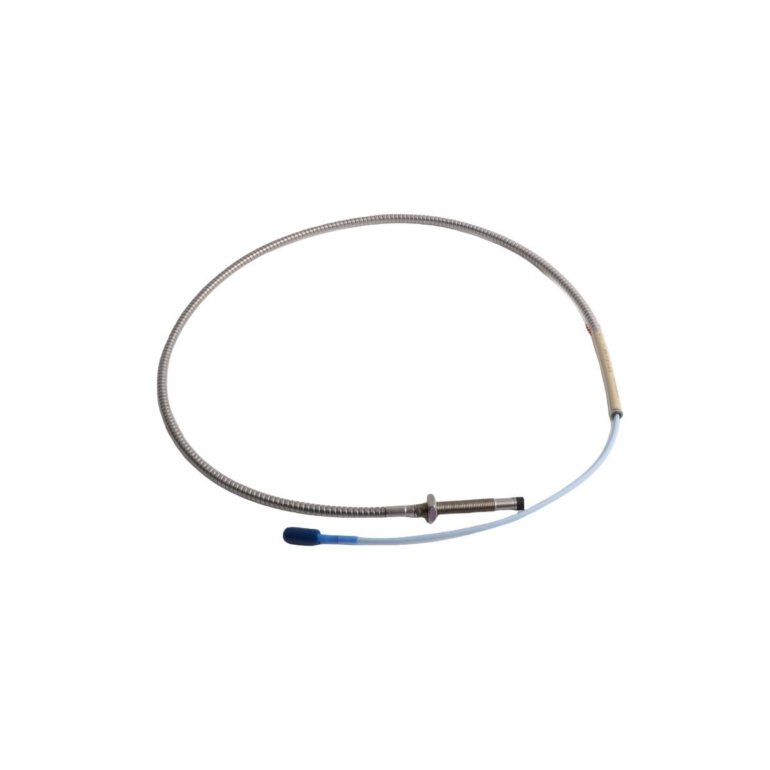

Bently Nevada 330104-01-06-05-01-05 3300 XL 8 mm Proximity Probes

The Bently Nevada 330104-01-06-05-01-05, also cataloged as the 330104 Proximity Sensors, operates as a dedicated hardware component for proximity measurement within TSI platforms. The device generates an electromagnetic field to track physical changes in distance between the probe tip and target surfaces. By capturing these minute micro-inch variations, the system converts spatial movement into continuous electrical signals for real-time machinery asset evaluation.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The system establishes proximity verification through an optimized eddy-current probe scaling technique. As the rotating shaft alters the physical gap, the probe tip receives an high-frequency excitation signal from the Proximitor to determine dynamic displacement. Technicians perform gap voltage validation to maintain calibration benchmarks, targeting an operational midpoint of -10 VDC inside the linear detection zone. Consequently, this signal path maps precise rotor dynamics information while cross-talk suppression mechanics concurrently mitigate secondary electrical interference from neighboring transducer lines.

Frequently Asked Questions

Q: Does this specific proximity probe require manual calibration upon installation with other 3300 XL components?

A: No, the manufacturing process standardizes the electrical properties across all 3300 XL 8 mm parts, ensuring complete cross-component interchangeability and eliminating bench tuning.

Q: How does the integrated armor option alter the physical properties of the probe cable layout?

A: The armored jacket adds a flexible metallic layer over the standard coaxial lead, which deflects external impacts and friction without impacting the characteristic electrical impedance of the inner sensor line.

Q: What governs the backward compatibility of this probe with older legacy hardware lines?

A: The probe matches the physical and electrical configurations of non-XL 3300 5 mm and 8 mm components, provided that field engineers strictly adhere to the designated minimum cable bend constraints.

Field Installation Guidelines

• Observe the minimum permissible cable bend radius of 25.4 mm (1.0 inch) during routing to prevent internal conductor fracture or structural geometry distortion.
• Thread the M10 x 1 case using manual force into the mounting sleeve before utilizing torque wrenches, reducing the possibility of cross-thread destruction.
• Ensure absolute physical isolation between the sensor cables and high-power AC lines to block external electromagnetic noise induction into the measurement loop.
• Verify the integrity of the ClickLoc lock mechanism during final pairing, as any loose connector coupling shifts the underlying loop impedance and degrades overall accuracy.
