1756-M16SE Allen-Bradley ControlLogix SERCOS Interface Motion Module

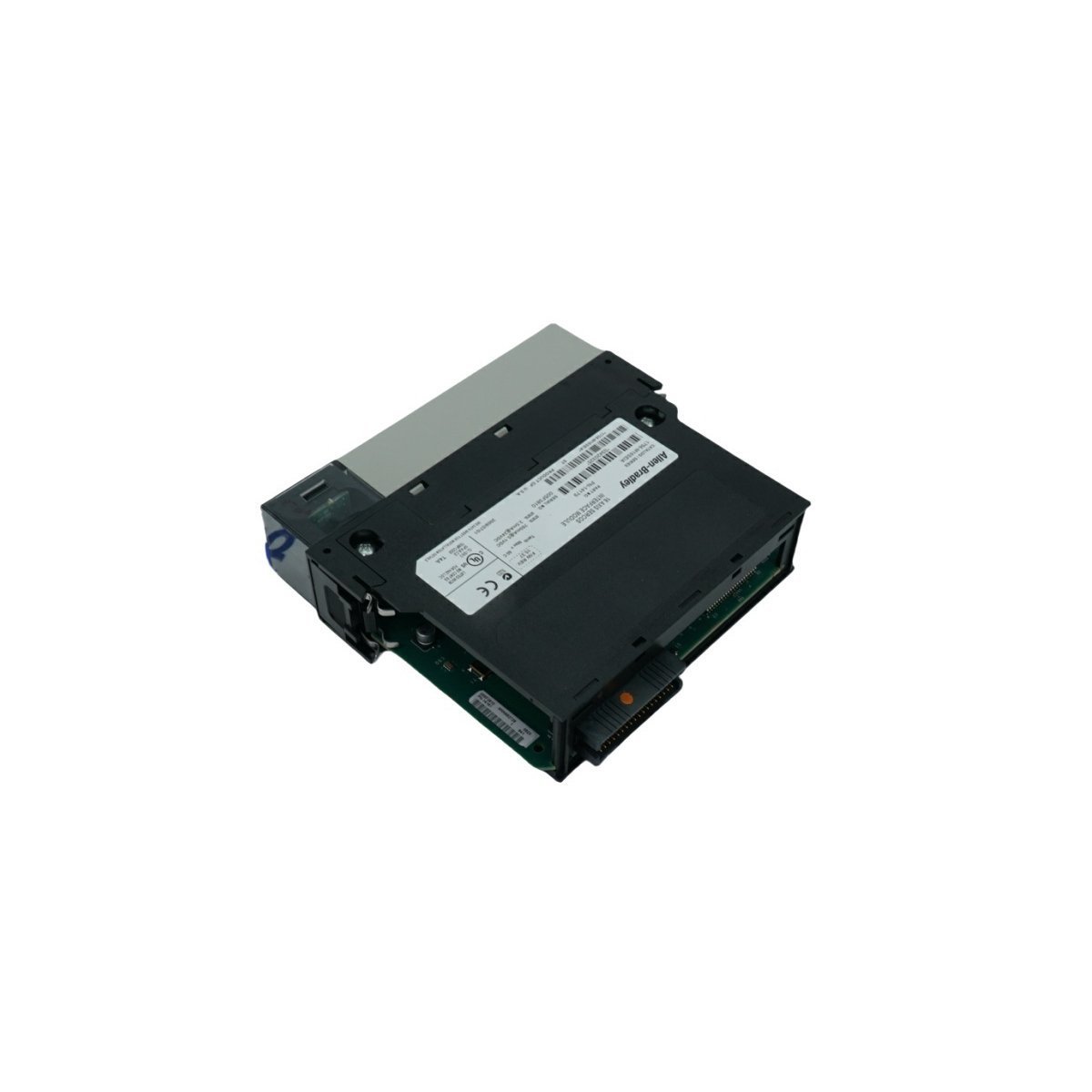

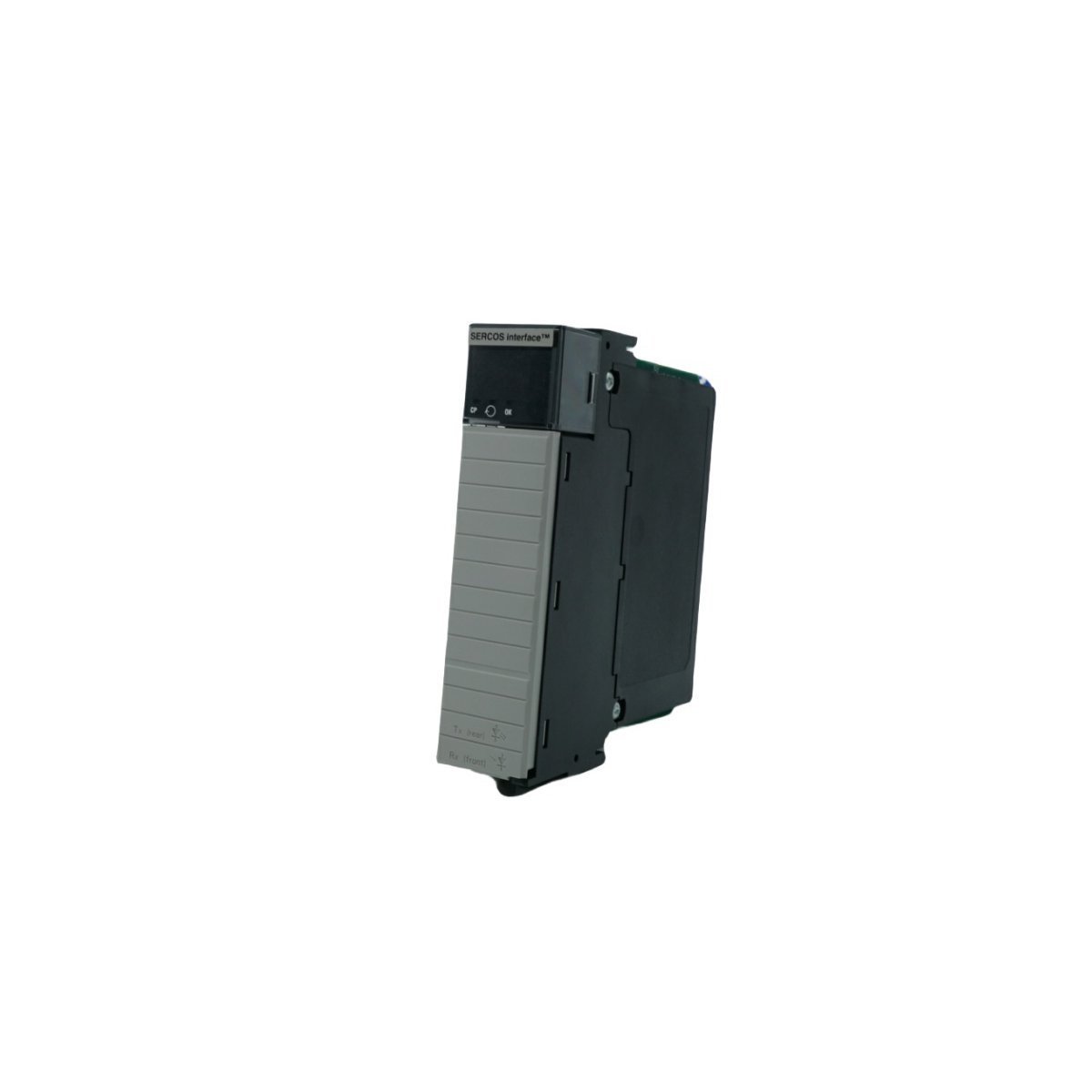

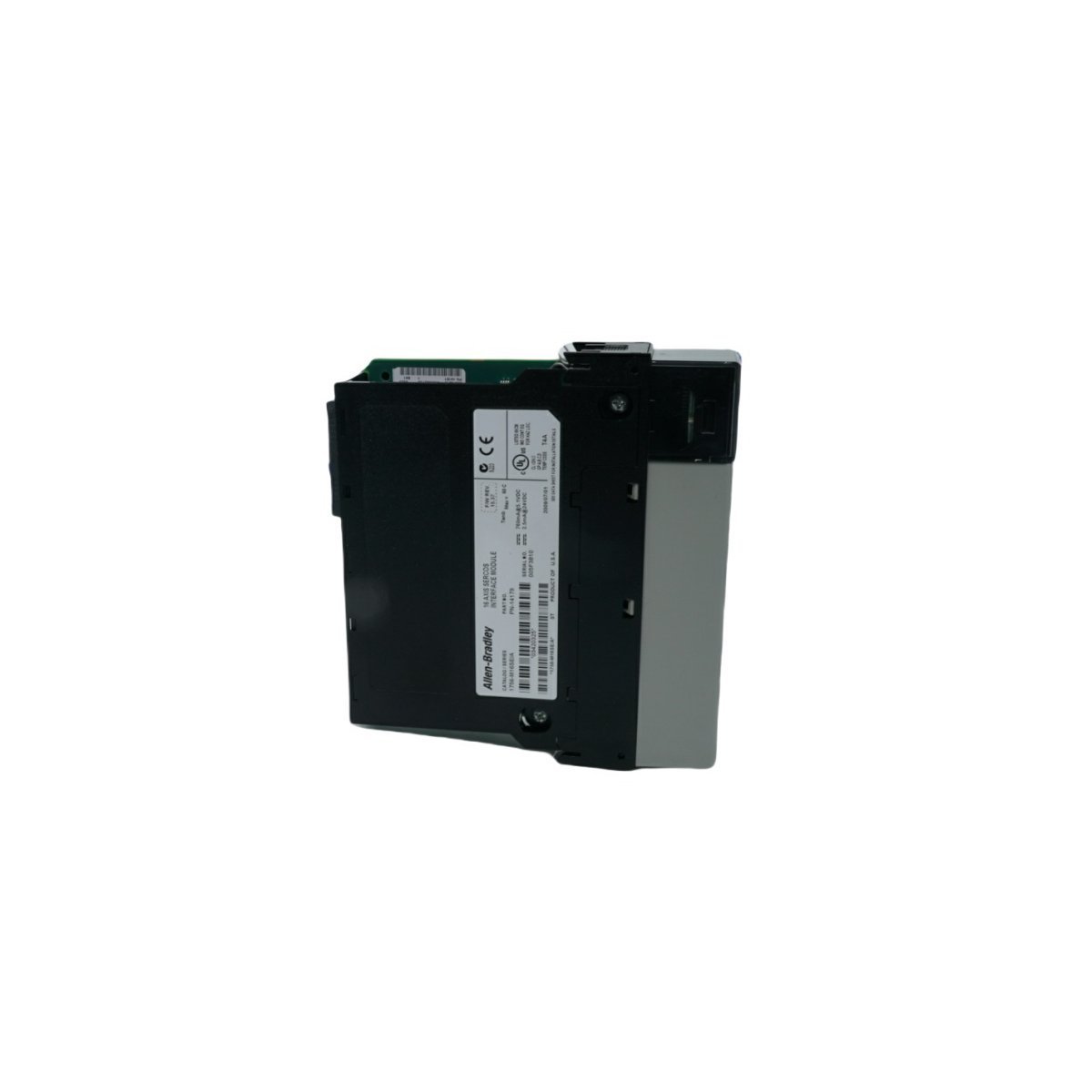

Allen-Bradley 1756-M16SE SERCOS Interface Module

Configured for high-speed motion control execution in ControlLogix platforms, the Allen-Bradley 1756-M16SE (1756-M16SE SERCOS interface Module) provides direct physical/electrical connectivity to Kinetix servo drive networks via digital fiber-optic links.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks

The 1756-M16SE utilizes a SERCOS interface to establish deterministic, real-time synchronization between the ControlLogix controller and connected Kinetix servo drives. By deploying digital fiber-optic communication, the module eliminates electromagnetic interference (EMI) typical of traditional analog command wiring. At a data rate of 4 Mbps, the system achieves a 1 ms update cycle for up to four drives, while an 8 Mbps configuration enables a 0.5 ms cycle time for the same axis density. This deterministic performance ensures precise coordination of velocity, torque, and position control across distributed motion architectures. The module offloads motion profile calculations from the main processor, which optimizes system scan times during high-axis-count operations.

Frequently Asked Questions (FAQ)

Q: How does the module handle communication faults within the fiber-optic ring?

A: The SERCOS interface employs a ring topology. If a fiber-optic cable connection fails or a node loses power, the module detects the open loop and logs the specific fault code. Operators must check the continuity of the fiber strands and ensure that the SERCOS ring configuration matches the physical wiring sequence defined in the Studio 5000 project.

Q: Is the 1756-M16SE compatible with redundant controller configurations?

A: Yes, this module supports redundant system topologies. During a controller failover event, the SERCOS interface maintains synchronization with the Kinetix drives, provided the secondary controller assumes the control task within the defined system timeout parameters.

Field Installation Guidelines

1. Fiber-Optic Handling: When preparing fiber-optic cables, ensure the ends are clean and free of debris. Use caution not to exceed the minimum bend radius of the cable to prevent signal attenuation.
2. Module Insertion: With power removed from the chassis, slide the 1756-M16SE into the designated ControlLogix slot. Secure the module using the top and bottom retaining screws to ensure proper backplane contact.
3. Drive Interfacing: Connect the fiber-optic cables in a ring configuration from the module to the Kinetix 2000, 6000, 7000, or Ultra3000 drives. Verify that the transmit (Tx) port of one node connects to the receive (Rx) port of the subsequent node.
4. Initialization: After powering the chassis, configure the SERCOS parameters and node addresses using the programming software. Monitor the module’s diagnostic LEDs; a steady state indicates successful ring closure and communication handshake.
5. Grounding: Ensure the ControlLogix chassis is properly bonded to a common ground point to maintain signal reference stability and protect sensitive fiber-optic transceiver circuits from ground loops.
