Allen-Bradley 1761-L16BWB MicroLogix 1000 Controller – Compact PLC

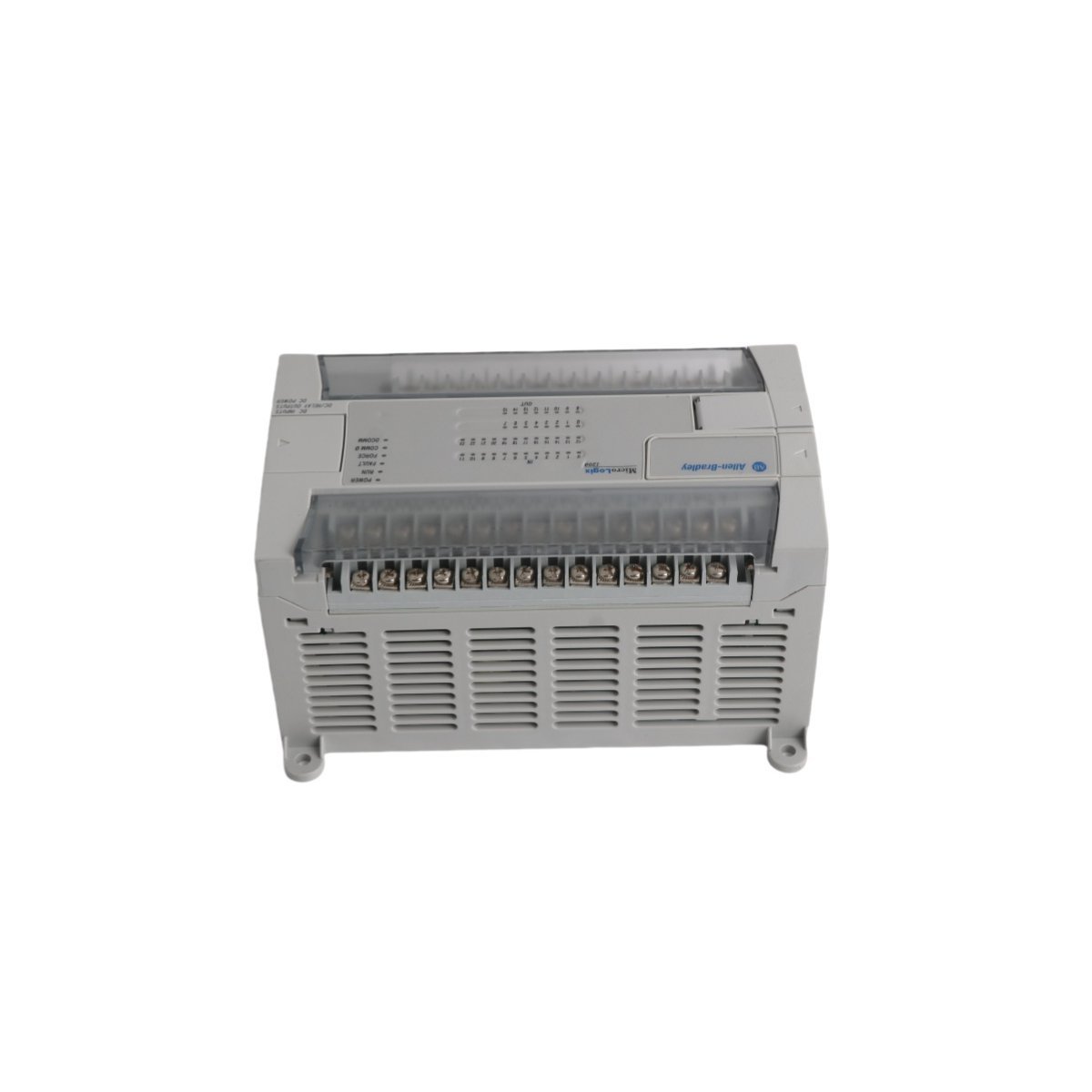

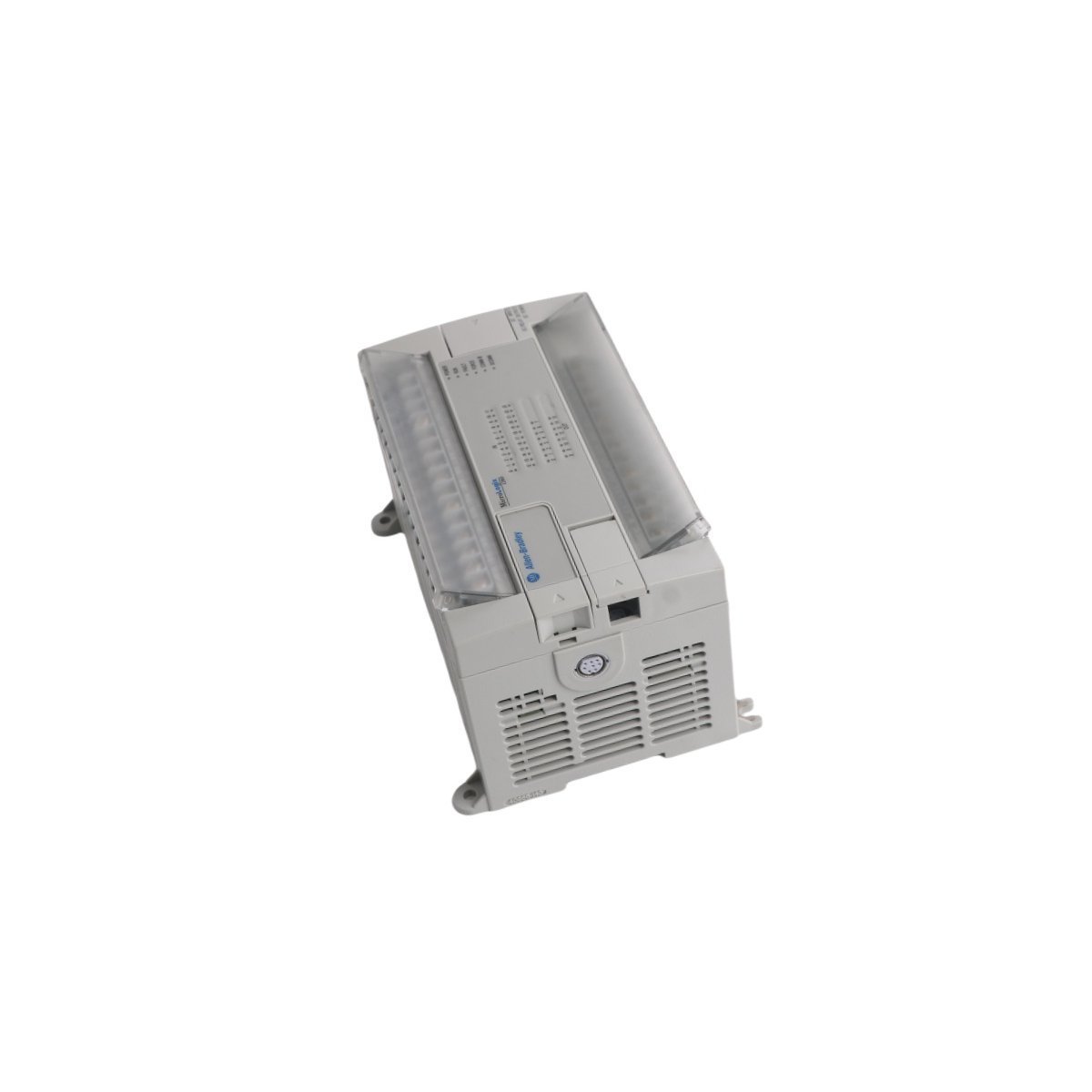

Allen-Bradley 1761-L16BWB MicroLogix 1000 Controller

The Allen-Bradley 1761-L16BWB is a compact, entry-level Programmable Logic Controller (PLC) from the MicroLogix 1000 series, specifically engineered for small-scale automation, machine control, and process monitoring. It provides a balance of digital I/O for logic control and limited analog capability for process signal handling.

Hardware Specifications

Functional Overview

• Digital I/O & Relay Outputs: Designed to replace legacy hardwired relay logic, the 1761-L16BWB manages industrial switching applications. The relay outputs provide high-current switching capability (up to 2.0 Amps per point), making it suitable for driving small contactors or solenoid valves directly.
• Analog Integration: The controller supports both 0–10V DC and 4–20 mA signals. With 16-bit signed integer data resolution and a 2.5 ms response time, it is capable of handling basic analog loops without requiring additional expansion modules.
• Communication Flexibility: The integrated RS-232 port allows for connectivity with Human-Machine Interfaces (HMIs) and SCADA platforms. It supports standard protocols like DF1 and DH-485, facilitating easy integration into existing control architectures using cables such as the 1761-CBL-PM02.
• Programming: Compatible with MicroLogix 1000 software packages and the dedicated Hand-Held Programmer (HHP), allowing for both complex logic development at a workstation and field-level troubleshooting or parameter adjustments.

Frequently Asked Questions (FAQ)

Q: Can the 1761-L16BWB be expanded with more I/O?

A: No, the MicroLogix 1000 series (including the 1761-L16BWB) is a “fixed” I/O controller. It does not support the addition of expansion I/O modules. If your application requirements grow, you would typically migrate to a MicroLogix 1100 or 1400 series.

Q: How is the program stored in the event of a power failure?

A: The controller utilizes 1 KB of non-volatile EEPROM memory. This ensures that your control logic and critical data are retained even during a complete power loss, allowing for near-instantaneous startup upon power restoration.

Field Installation Guidelines

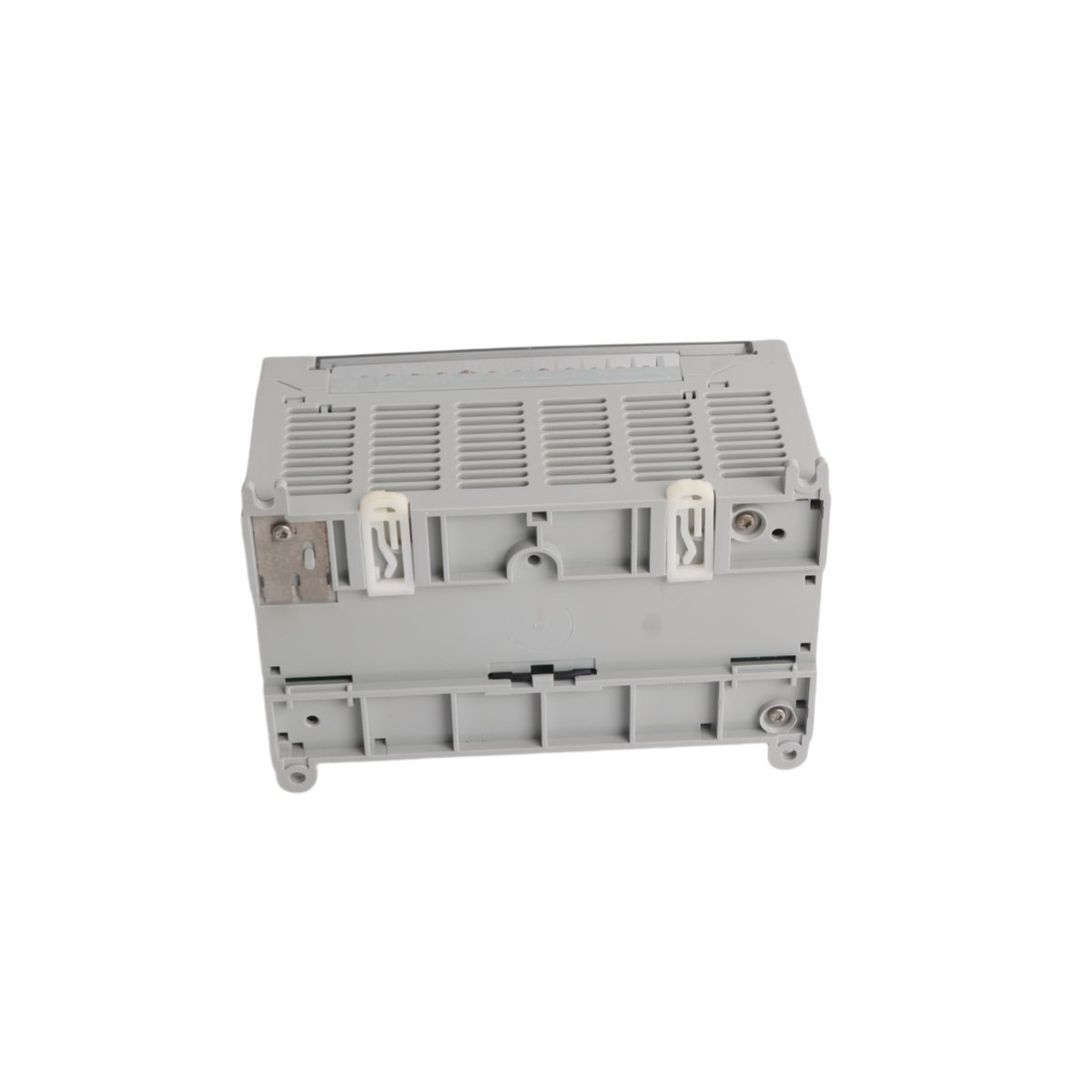

1. Mounting: The unit is designed for compact DIN-rail or panel mounting. Ensure adequate airflow around the controller to prevent internal temperature rise, especially in enclosed cabinets.
2. Wiring: Use the appropriate wire gauges for the relay terminals to handle the 2.0A maximum load per point. Always include external suppression (such as diodes or MOVs) when driving inductive loads (coils/motors) to extend relay contact life.
3. Grounding: Ensure the chassis is bonded to a clean earth ground to prevent electrical noise from interfering with the analog input/output signals.
4. Communication Cable: When using the RS-232 port for HMI or PC communication, ensure the cable is properly shielded and grounded to prevent data corruption in high-EMI industrial environments.
