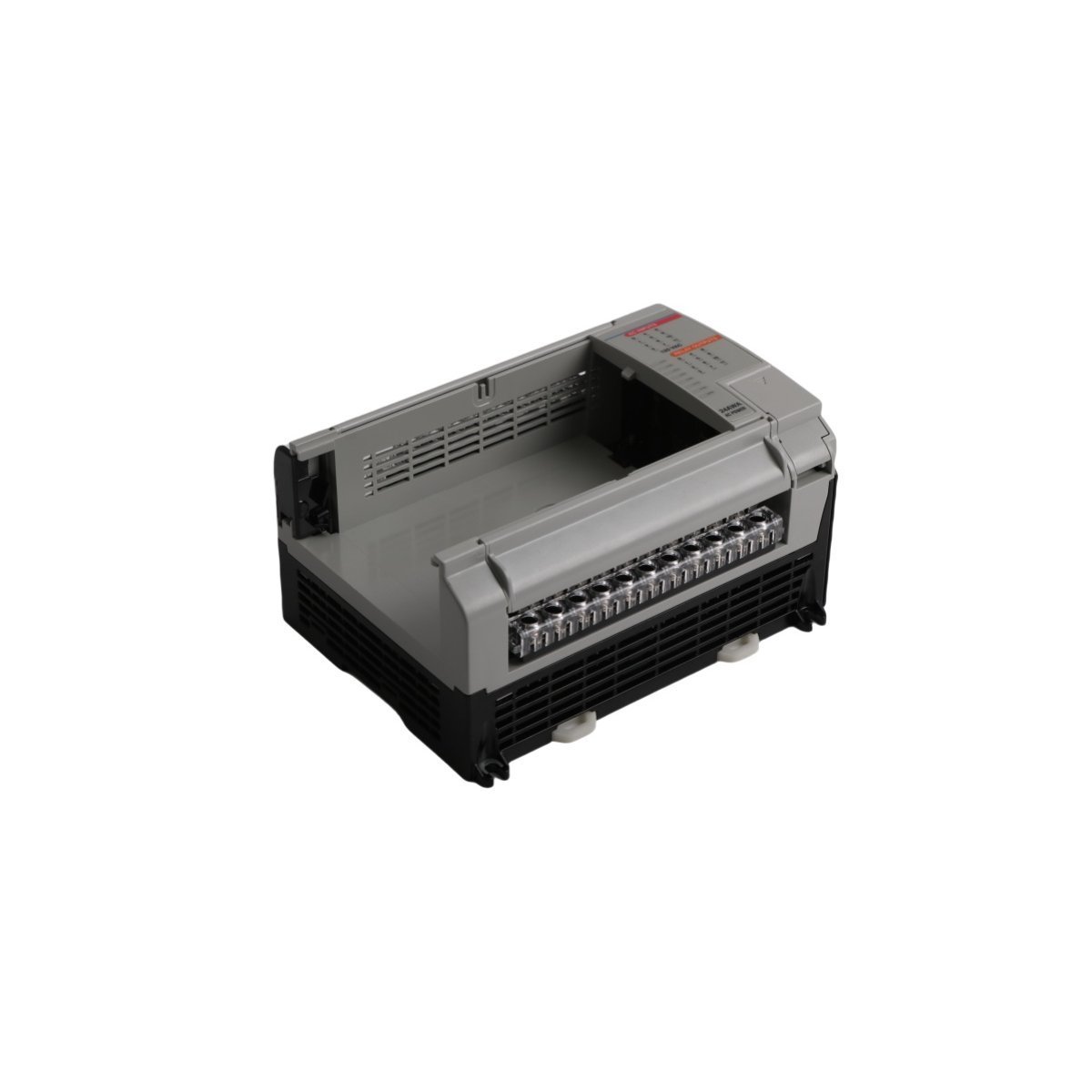

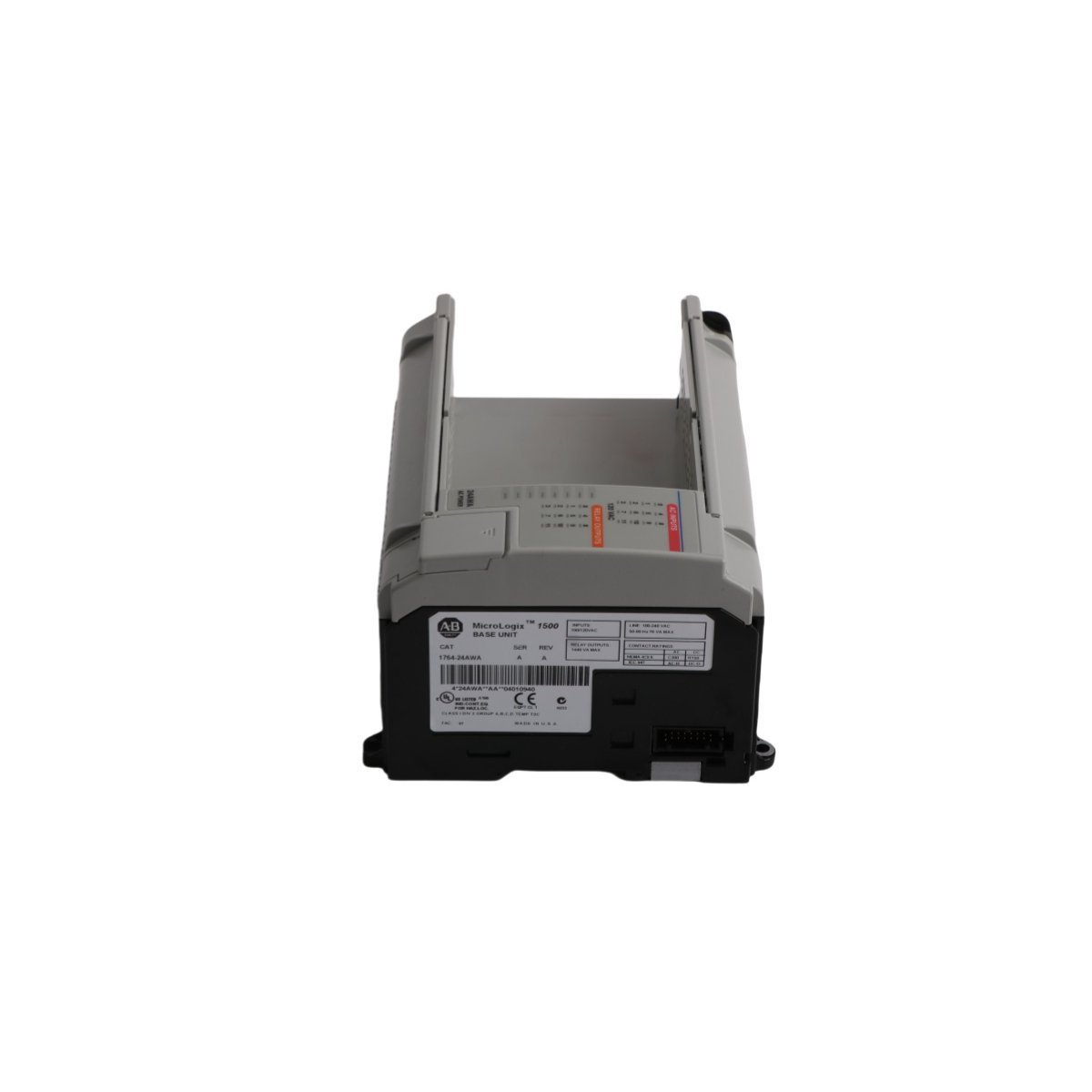

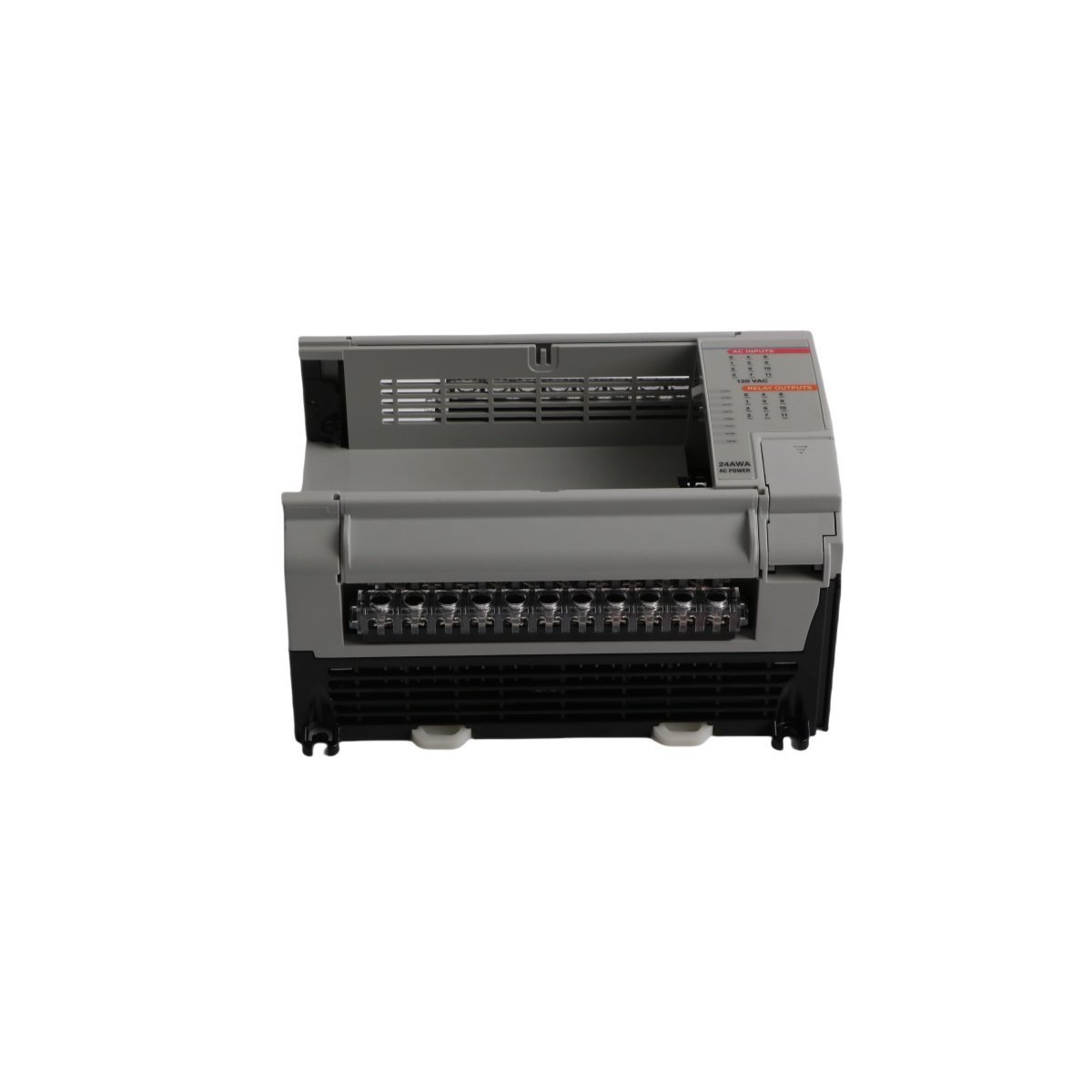

Allen-Bradley 1764-24AWA MicroLogix 1500 Controller Base Unit

Allen-Bradley 1764-24AWA MicroLogix 1500 Base Unit

Configured for small-to-medium industrial control in automation platforms, the Allen-Bradley 1764-24AWA (1764-24AWA MicroLogix 1500 Base Unit) provides direct physical and electrical execution for local I/O handling and signal processing. The unit interfaces with 1764-LSP or 1764-LRP processors to form a complete control system, managing digital input and output transitions through integrated embedded circuitry.

Hardware Specifications

Industrial Control and Network Architecture

The 1764-24AWA maintains deterministic network timing by facilitating data exchange between the processor and expansion modules. Engineers scale the system’s I/O density by connecting up to 16 expansion modules in remote banks or 8 modules locally, ensuring the controller adapts to specific process requirements. Firmware flash compatibility supports ongoing integration with programming software, while the RS-232 Channel 0 port enables communication with HMI/SCADA interfaces via the DF1 protocol. This design ensures that the system accurately translates logic commands into field-level electrical actions.

Frequently Asked Questions (FAQ)

Q: Does the unit support hot-swapping for the connected expansion modules?

A: No, technicians must remove power from the base unit and the expansion rack before adding or replacing any 1769 modules to prevent electrical damage to the backplane communication pins.

Q: Are the input filters adjustable to compensate for signal noise?

A: No, the 1764-24AWA inputs utilize a fixed 20 ms response time; operators must account for this latency in applications involving high-speed counting or rapid signal triggering.

Field Installation Guidelines

• Mount the base unit on a standard 35 mm DIN rail to maintain structural stability within the control enclosure.
• Verify that the 85-265 VAC supply voltage falls within operating limits to prevent internal power supply degradation.
• Ensure that the relay output load does not exceed 8 A per common to avoid contact welding or premature relay failure.
• Connect the 1747-BA battery to the appropriate port if non-volatile memory backup is required for retention of user programs and data tables.
• Tighten all terminal block screws to the manufacturer-specified torque to ensure low-resistance electrical connections for I/O wiring.
