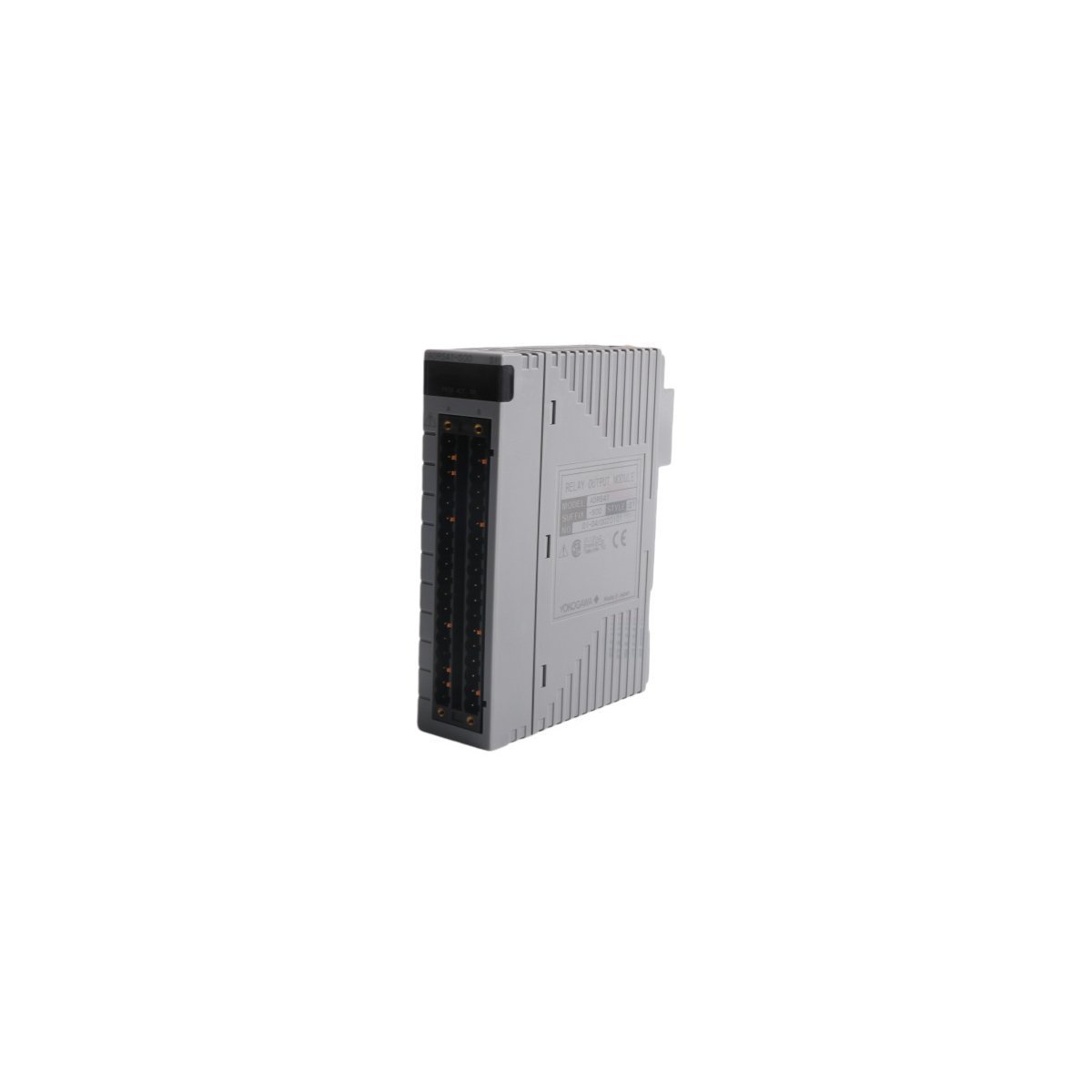

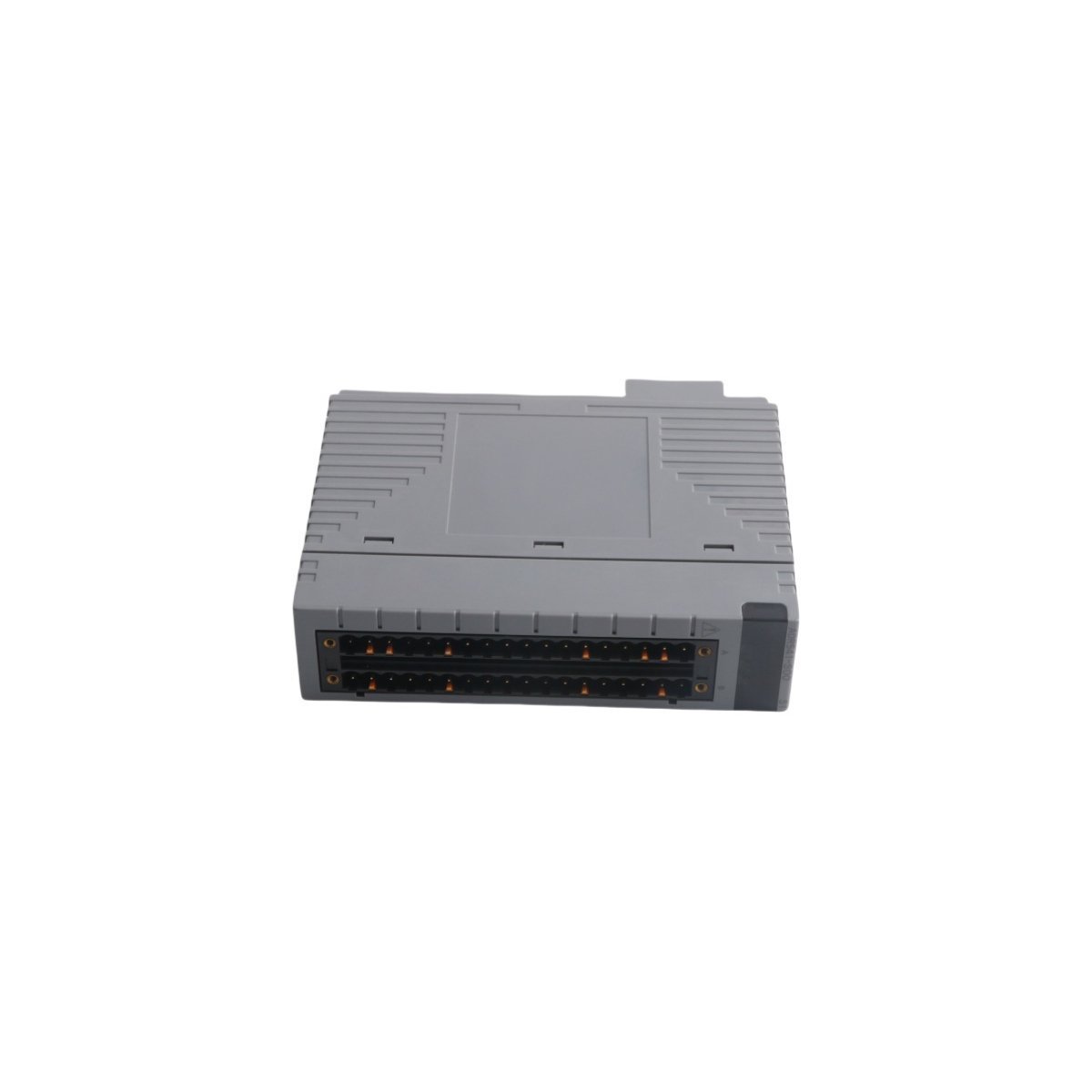

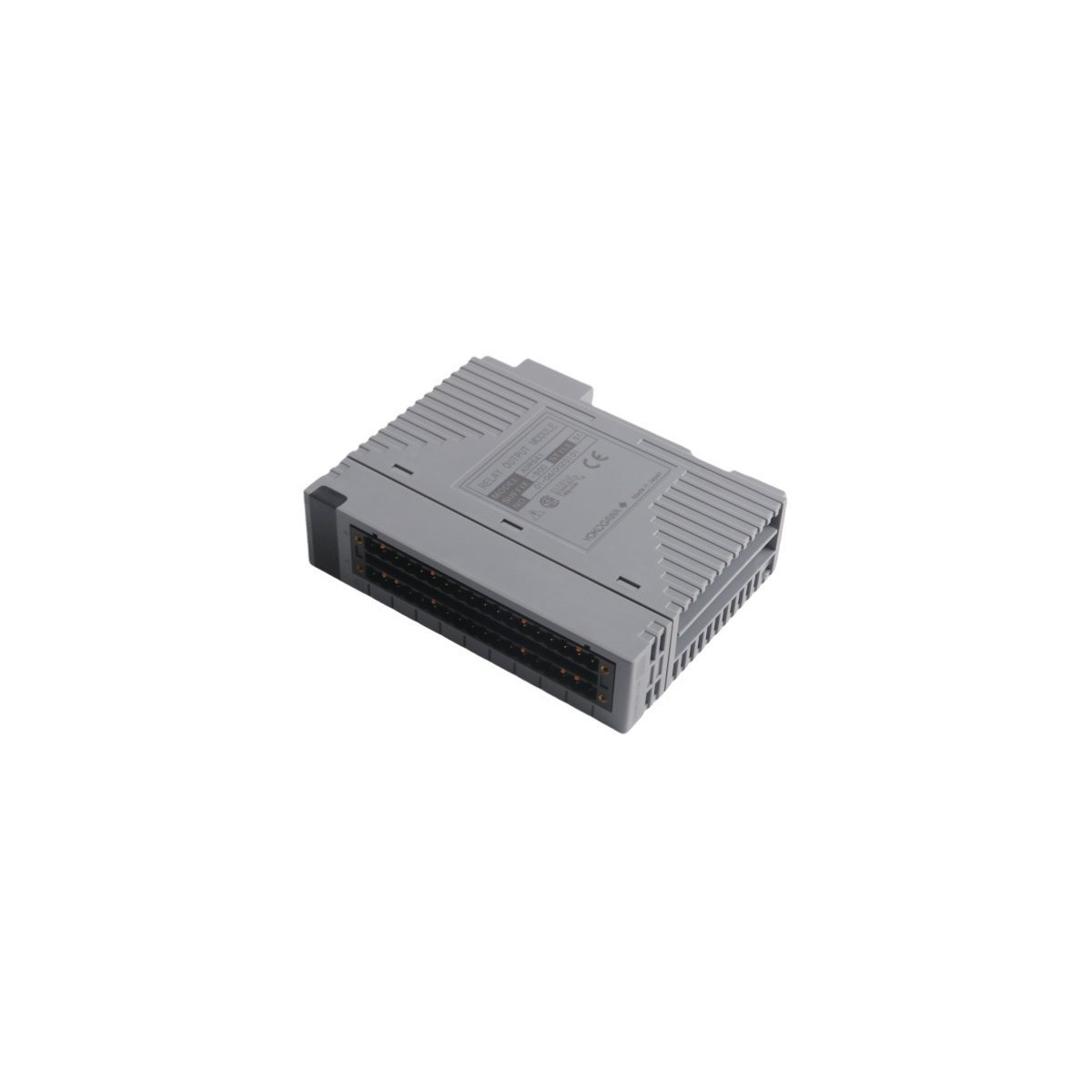

Yokogawa ADR541-S00 S1 Digital Output Module

The ADR541-S00 S1 acts as a robust mechanical interface for the Yokogawa CENTUM VP Distributed Control System. This module provides 16 individual relay contact outputs to manage high-load field equipment. It primarily controls devices like motors, large solenoid valves, and external alarm indicators. By using physical relay contacts, it offers superior electrical isolation for sensitive control logic. This unit excels in power generation, water treatment, and petrochemical refining applications.

Precise Switching and Mechanical Reliability

This relay output module ensures safe operation by physically separating field power from the system bus. Each channel supports a variety of voltage types including both AC and DC loads. Consequently, the module provides high flexibility for diverse plant infrastructure needs. The ADR541-S00 S1 handles switching currents effectively without generating excessive heat. Its mechanical design guarantees consistent contact performance over millions of operational cycles.

Integration and Seamless Connectivity

The ADR541-S00 S1 fits into standard FIO nests for rapid hardware deployment. It utilizes Yokogawa’s dedicated communication services for real-time status updates. Furthermore, the module supports standard industrial Ethernet routers for network-wide data access. This compatibility allows for easy integration into existing automation cabinets. Maintenance personnel can easily monitor the output status through integrated LED indicators on the front panel.

Technical Performance Data
