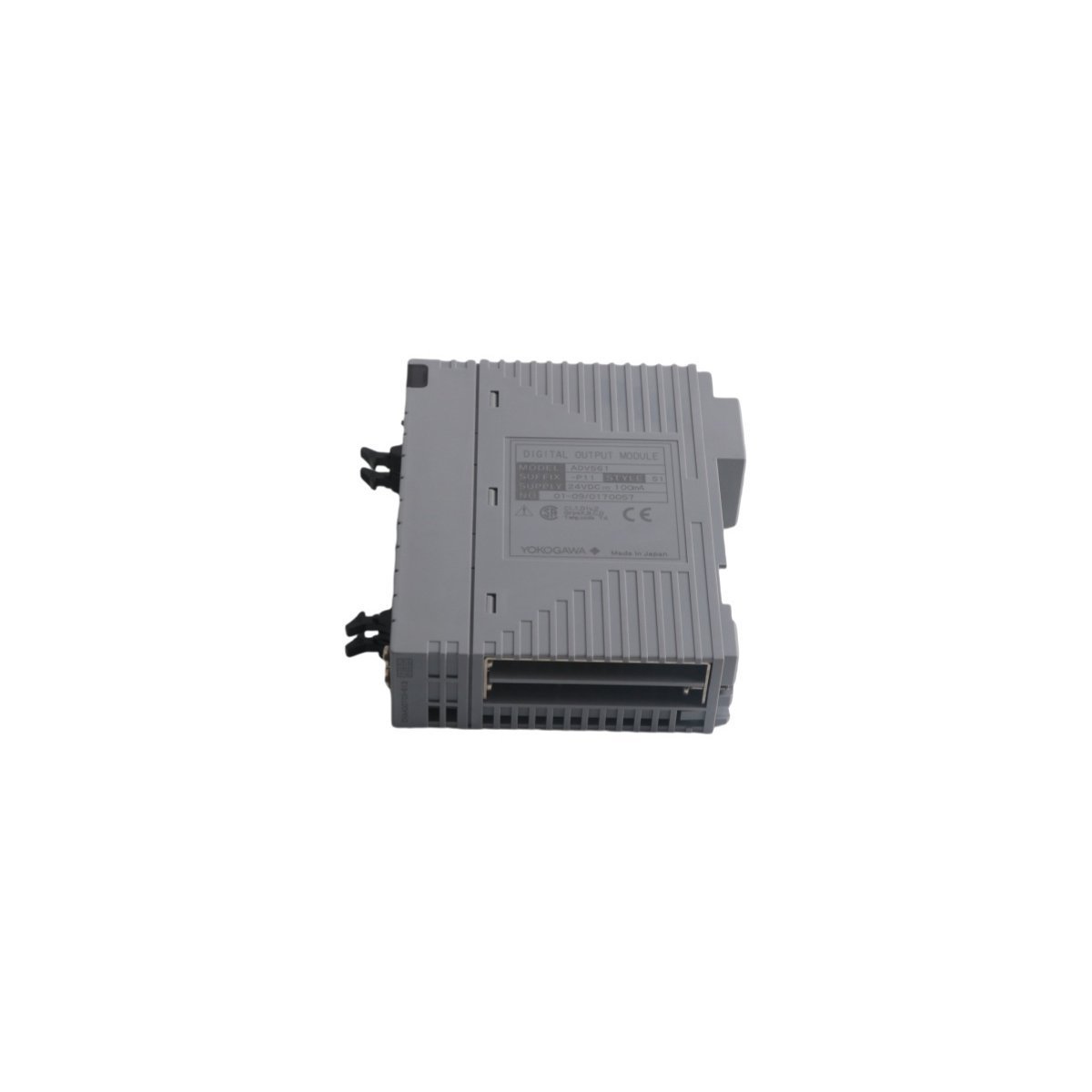

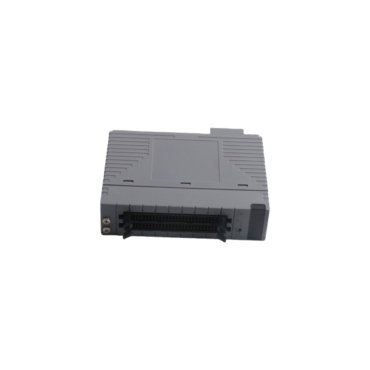

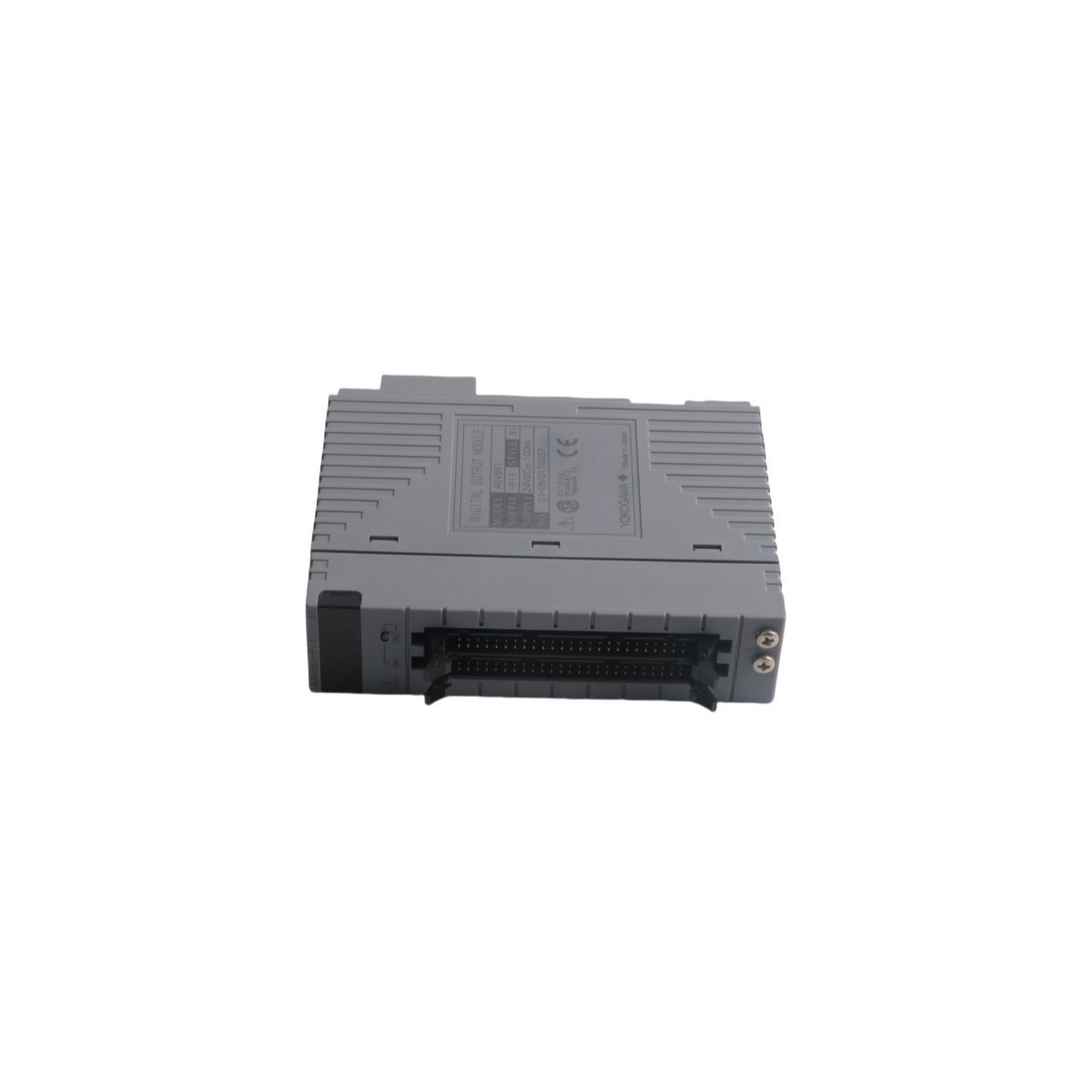

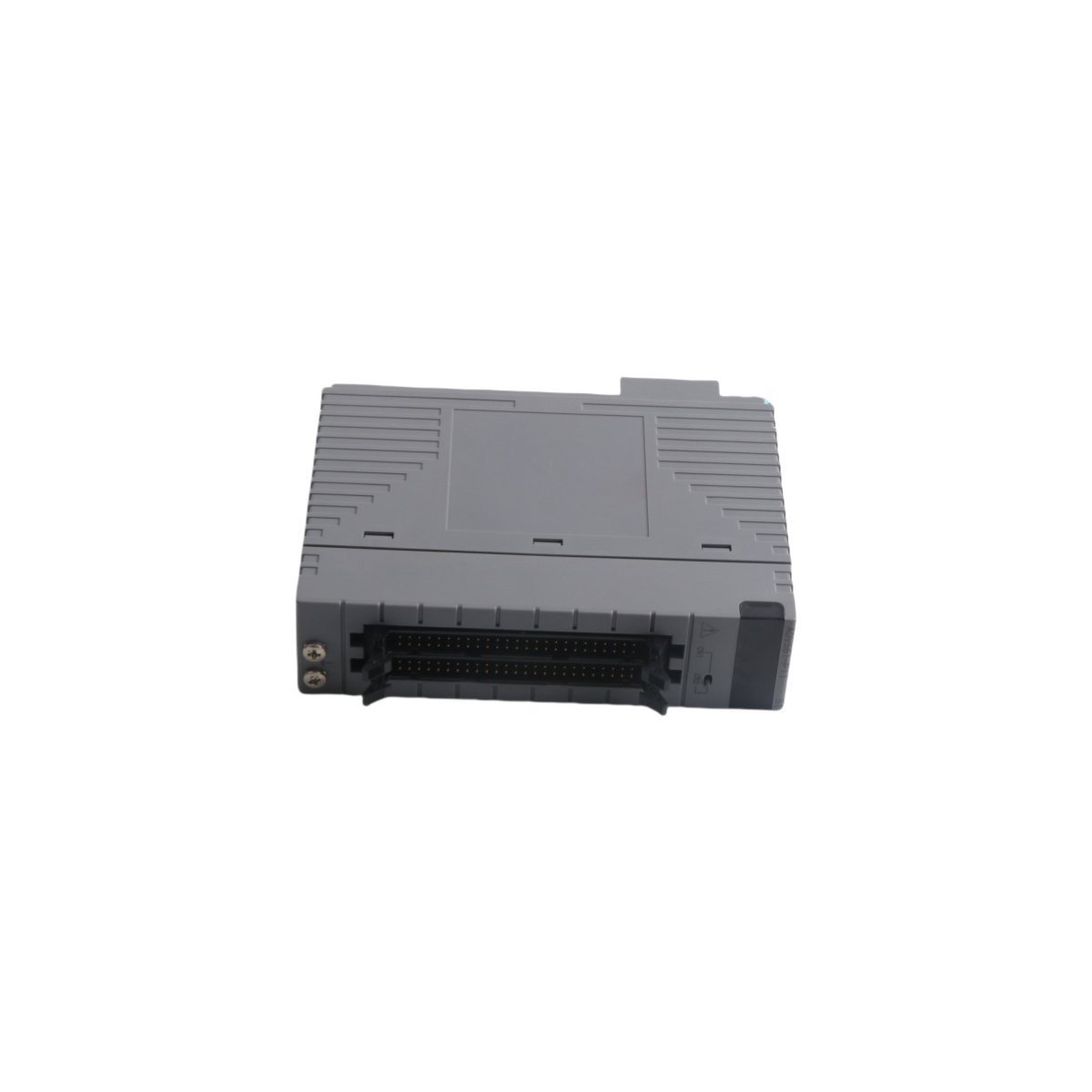

The ADV561-P11 S1 serves as a high-density discrete signal interface within the Yokogawa CENTUM VP architecture. This 64-channel module converts internal logic commands into physical electrical signals to drive field-side actuators. It functions as a core component for process automation in refineries and chemical plants. By managing 64 isolated outputs simultaneously, it optimizes cabinet space and reduces system complexity. The rugged design ensures stable operation during continuous industrial cycles.
Technical Performance and Connectivity
This module utilizes a common ground configuration for its 64 discrete output channels. It operates on a standard 24 VDC power supply to ensure compatibility with most industrial relays. The unit features built-in photocoupler isolation to protect internal logic from field-side electrical interference. Furthermore, the P11 suffix specifies a transistor sink output type for efficient load switching. The high-speed response time allows for precise control of solenoid valves and motor starters.
Module Specifications
| Feature | Technical Detail |
| Channel Count | 64 channels |
| Output Type | Transistor Sink (Common Ground) |
| Rated Voltage | 24 VDC |
| Maximum Load Current | 100 mA per channel |
| External Connection | Pressure clamp or MIL cable |
| Response Time | 1 ms or less |
| Operating Temperature | -10 to 55 degrees Celsius |
| Weight | 0.3 kg |
Industrial Application and Reliability
Engineers deploy the ADV561-P11 S1 in environments requiring high availability and precise discrete control. It excels in automated manufacturing and large-scale power generation systems. The module remains functional under high humidity and temperature fluctuations common in industrial sites. Additionally, the hot-swap capability allows technicians to replace hardware without stopping the entire process. This flexibility minimizes unplanned downtime and improves overall plant productivity.
