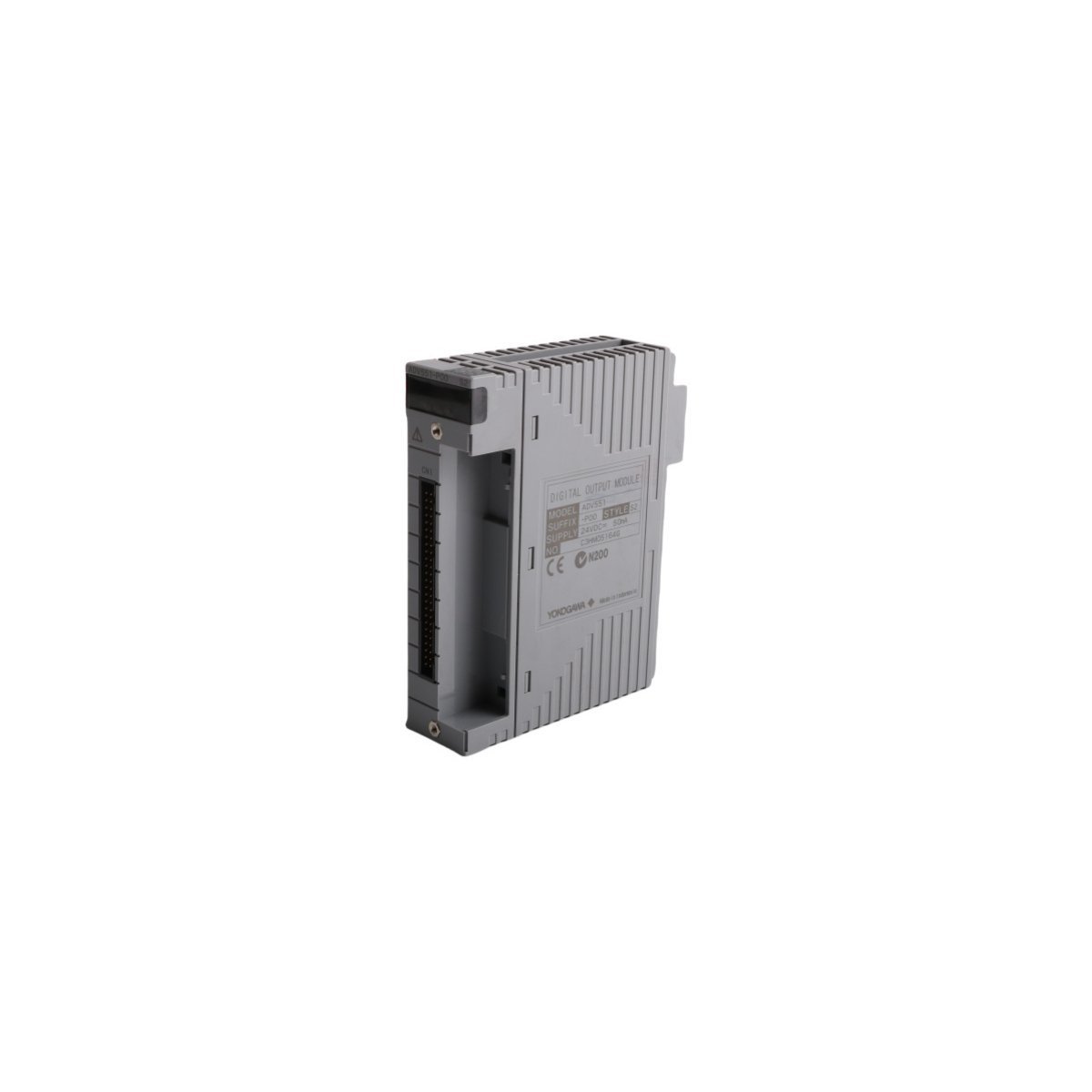

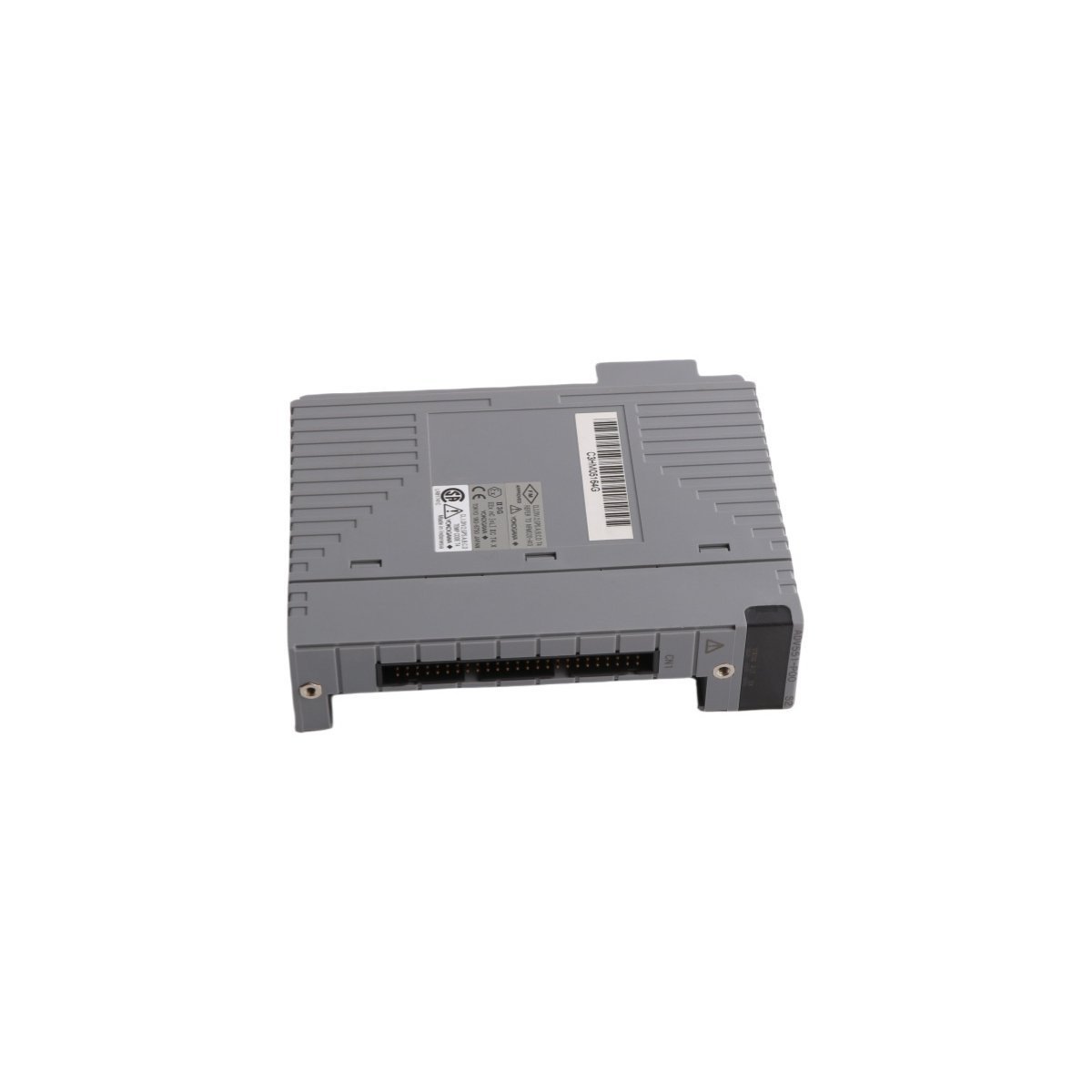

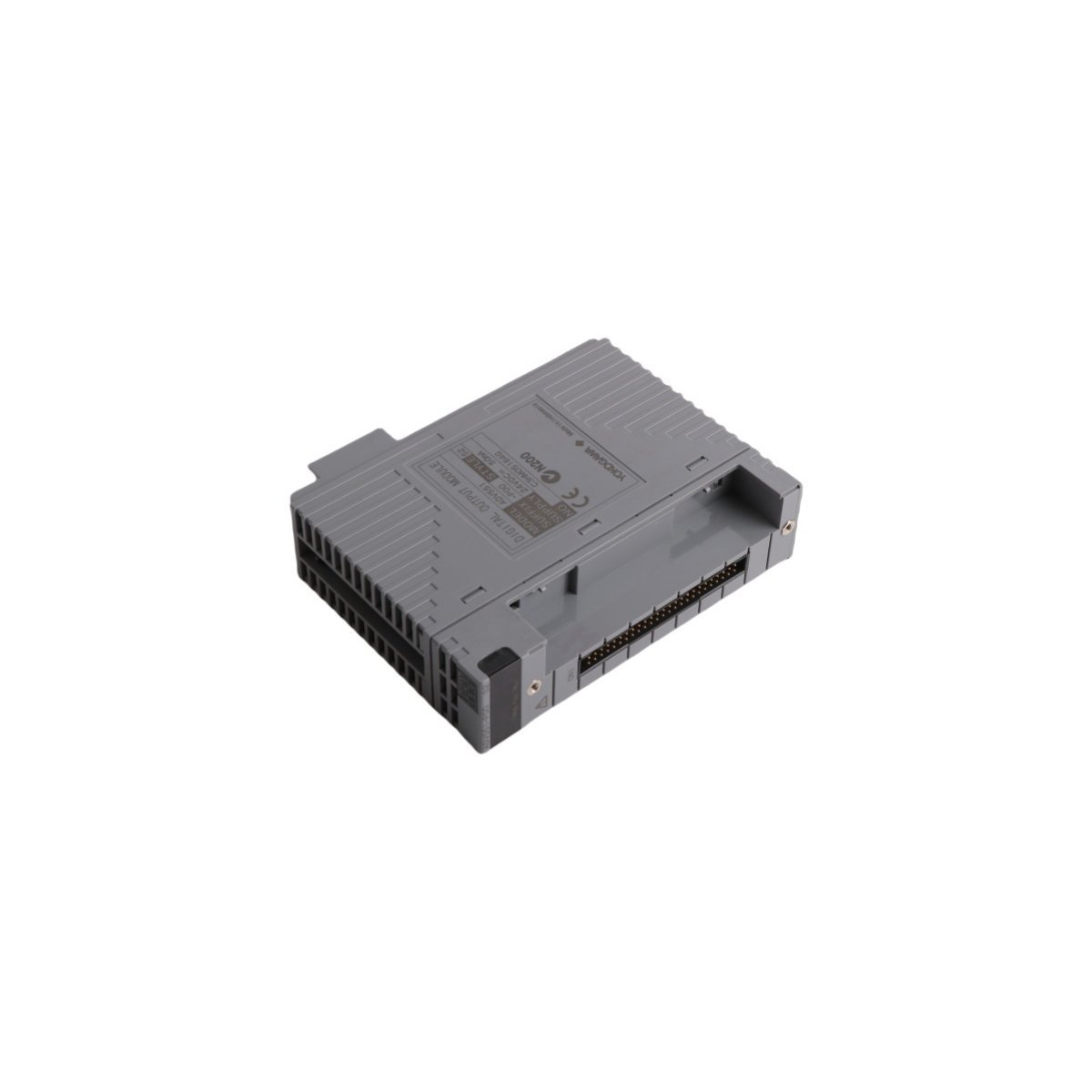

Yokogawa ADV551-P00 S2 Digital Output Module

The ADV551-P00 S2 functions as a high-density discrete signal actuator for the Yokogawa CENTUM VP control system. This digital output module provides 64 channels to drive external field devices such as solenoid valves and relays. It translates internal DCS logic into physical electrical commands for plant-wide automation. Because it utilizes the Field Interface I/O (FIO) architecture, it ensures rapid response times for critical control loops. Its design specifically targets large-scale industrial processes requiring reliable binary control.

Technical Performance and Diagnostic Capabilities

This module employs advanced electrical isolation to safeguard the system bus from field-side disturbances. It effectively handles discrete signals while maintaining high current efficiency for every channel. Furthermore, the ADV551-P00 S2 features built-in diagnostics to monitor output health in real-time. This capability allows operators to identify circuit faults or hardware failures immediately. Consequently, the system reduces the risk of process interruptions through proactive error detection.

System Integration and Redundancy

The ADV551-P00 S2 integrates seamlessly into standard Yokogawa I/O nodes for easy hardware expansion. It supports dual-redundant configurations to maximize process availability and system uptime. If one module detects a fault, the standby unit maintains continuous control of the field actuators. This architecture prevents unplanned shutdowns in mission-critical applications. Additionally, the module’s compact form factor optimizes cabinet density for space-constrained control rooms.

Core Technical Specifications
