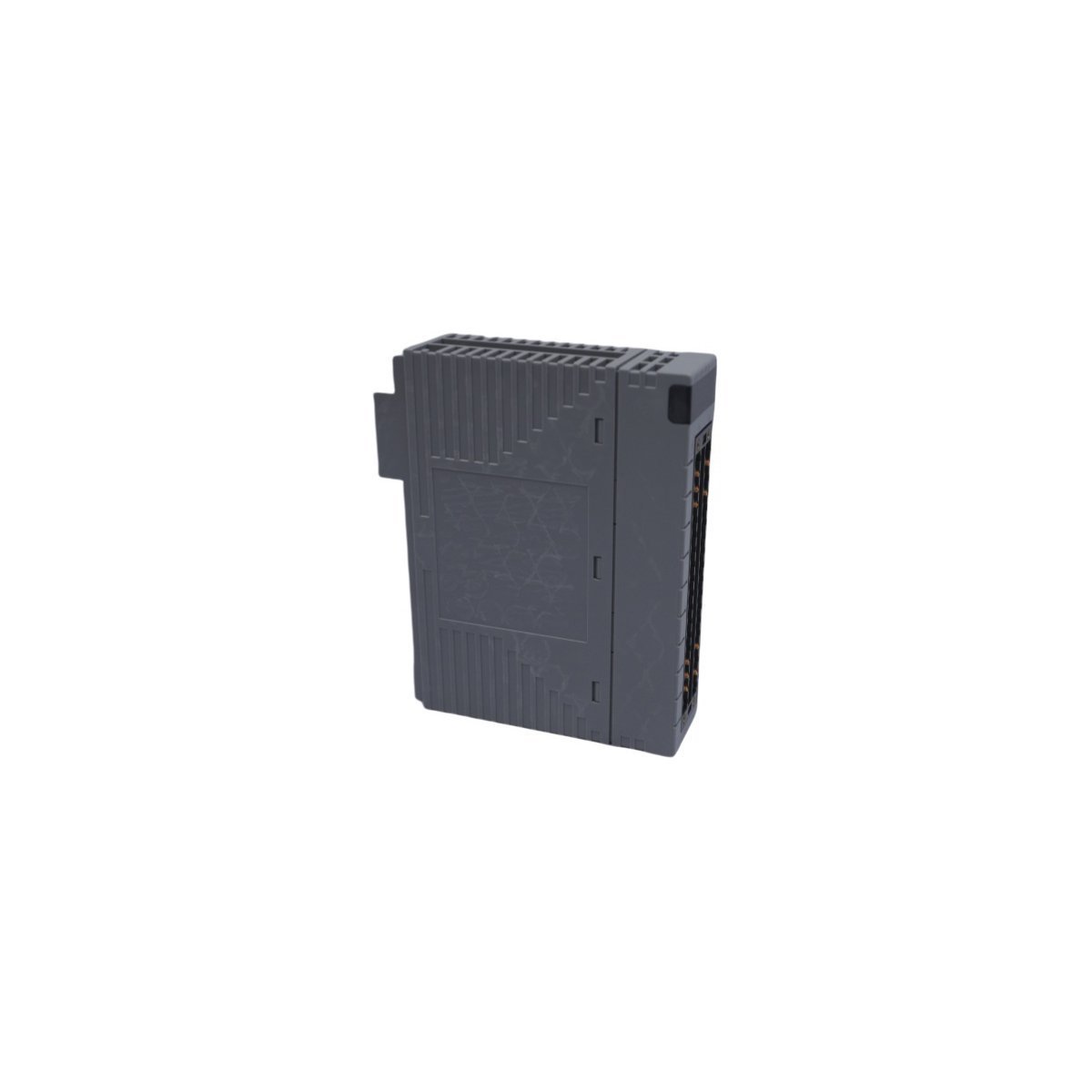

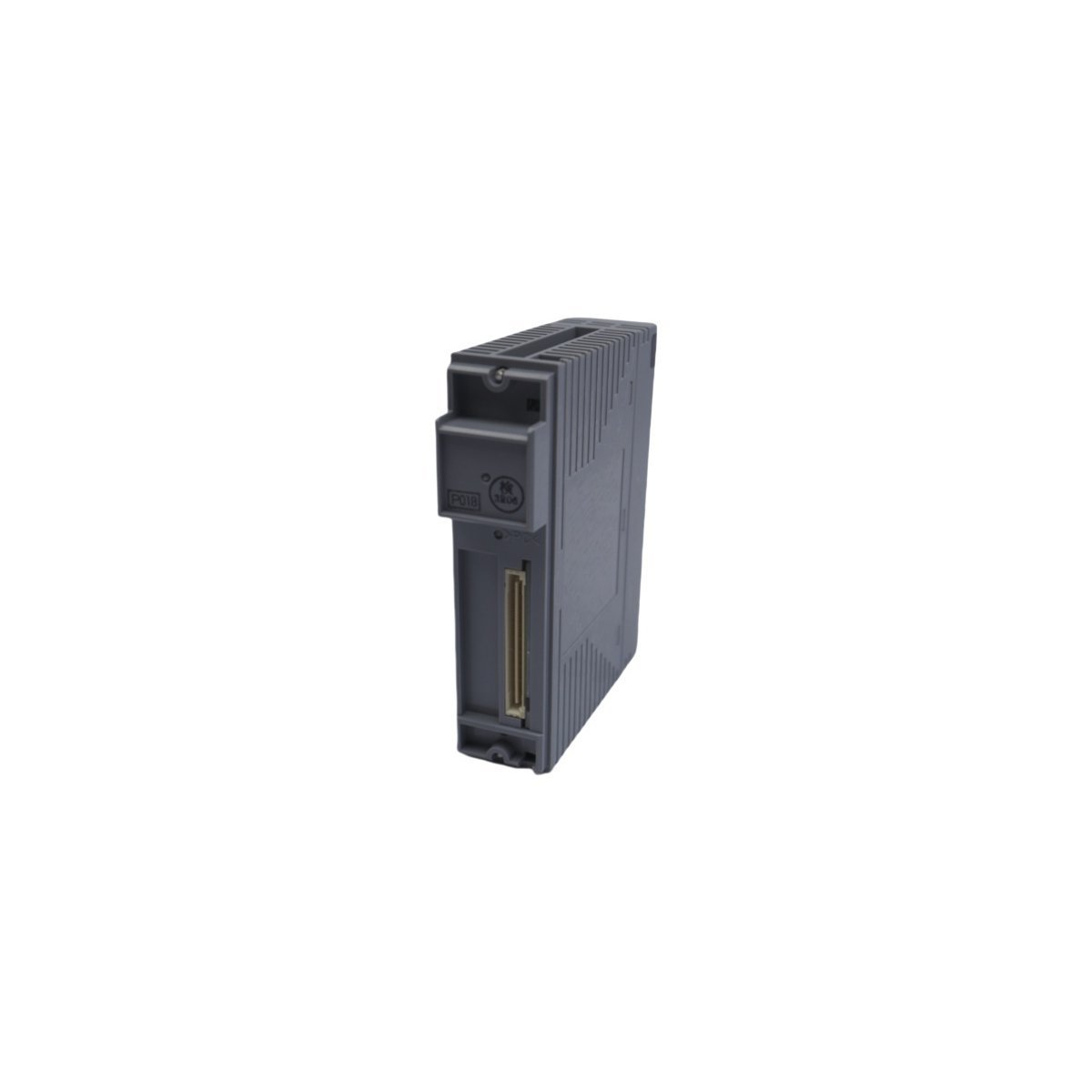

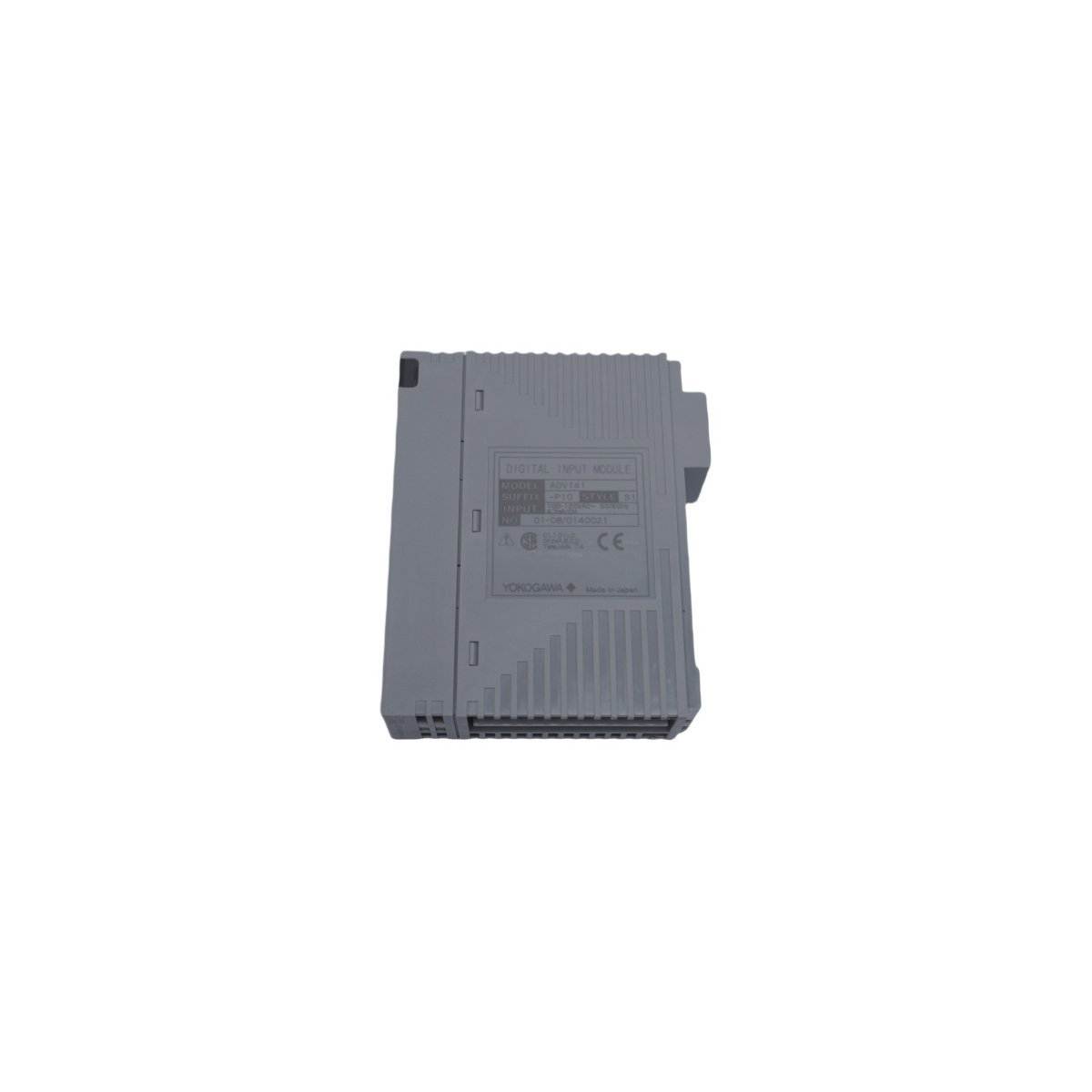

The ADV141-P10 S1 acts as a primary interface for discrete signal processing within the Yokogawa CENTUM VP ecosystem. This module monitors 16 independent input channels to track the status of field switches and sensors. It converts these external physical states into digital data for the controller’s logic unit. Engineers typically deploy this hardware in petrochemical, power, and pharmaceutical automation projects. Because it utilizes the FIO bus architecture, it guarantees high-speed communication with the central processor.
High-Speed Signal Acquisition and Isolation
This digital input module features advanced microprocessor technology for rapid data sampling and filtering. It employs photocoupler isolation to separate high-voltage field wiring from sensitive internal electronics. This barrier prevents electrical noise and surges from affecting system stability. Furthermore, the ADV141-P10 S1 maintains exceptional accuracy under heavy industrial loads. Each channel provides clean signal detection to ensure precise process monitoring.
Core Technical Specifications
| Feature | Specification Details |
| Channel Count | 16-channel isolated inputs |
| Input Rating | 24 VDC |
| Isolation Voltage | 1500 V AC |
| Weight | 0.28 kg |
| Dimensions | 3.2 x 10.7 x 13 cm |
| System Compatibility | CENTUM VP / FIO Series |
| Origin | Japan |
| Data Processing | High-speed microprocessor-based |
Protocol Support and Network Integration
The ADV141-P10 S1 supports seamless integration with various industrial communication standards. It works effectively within networks utilizing Modbus, Profinet, and other major fieldbus protocols. This versatility allows the module to share data across complex multivendor environments. Moreover, it complies with IEC 61131-3 standards for consistent programming and configuration. These features simplify the design of interconnected automation architectures.
