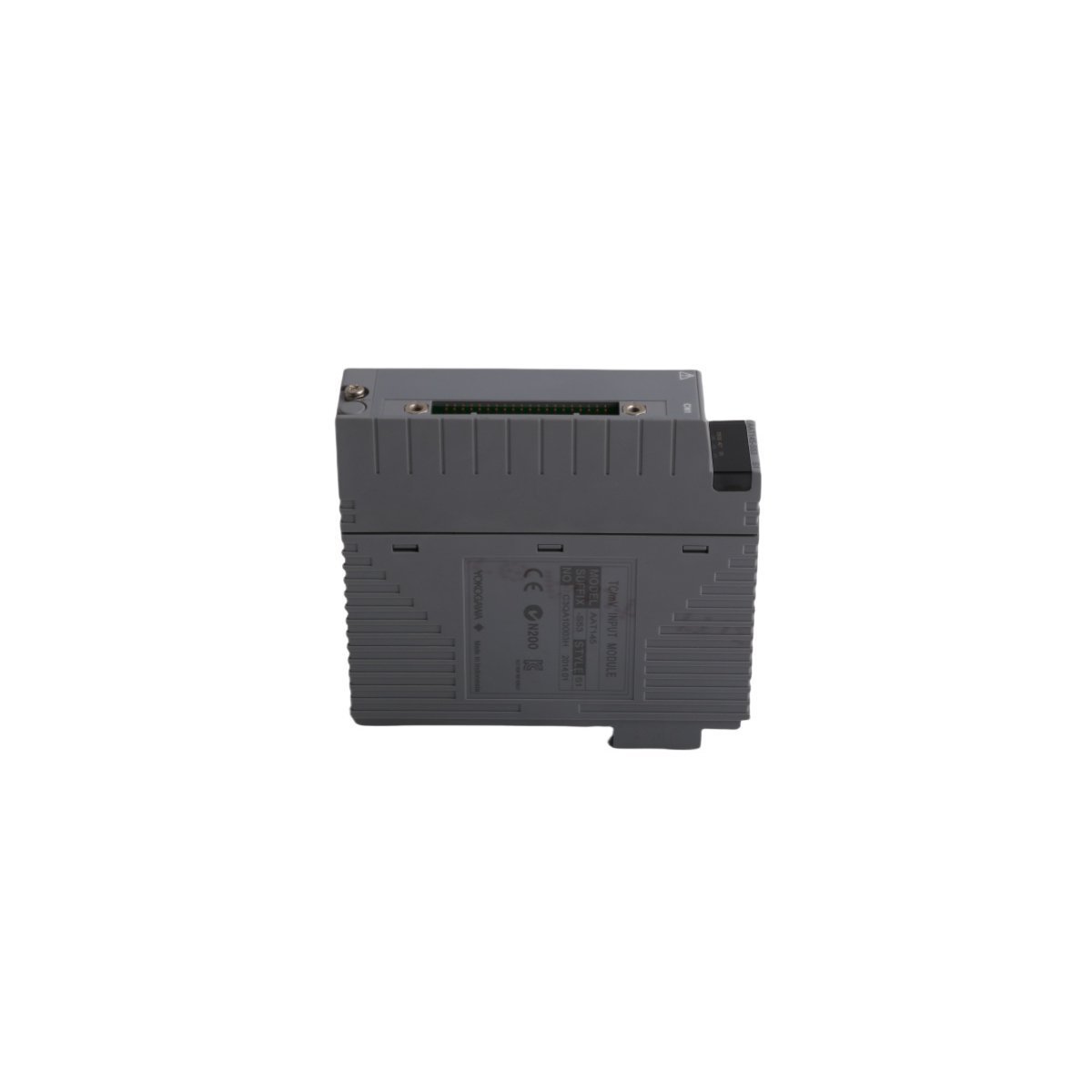

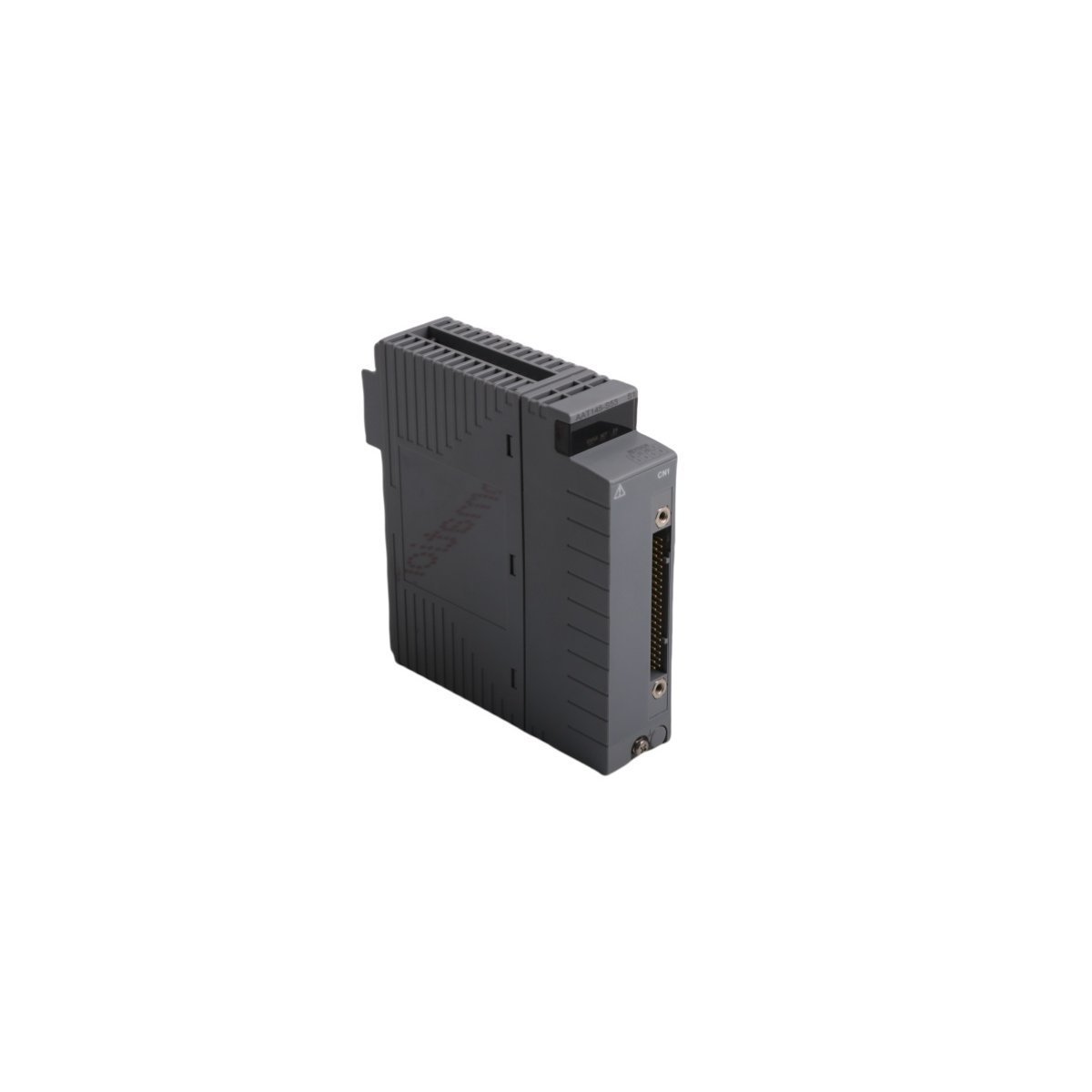

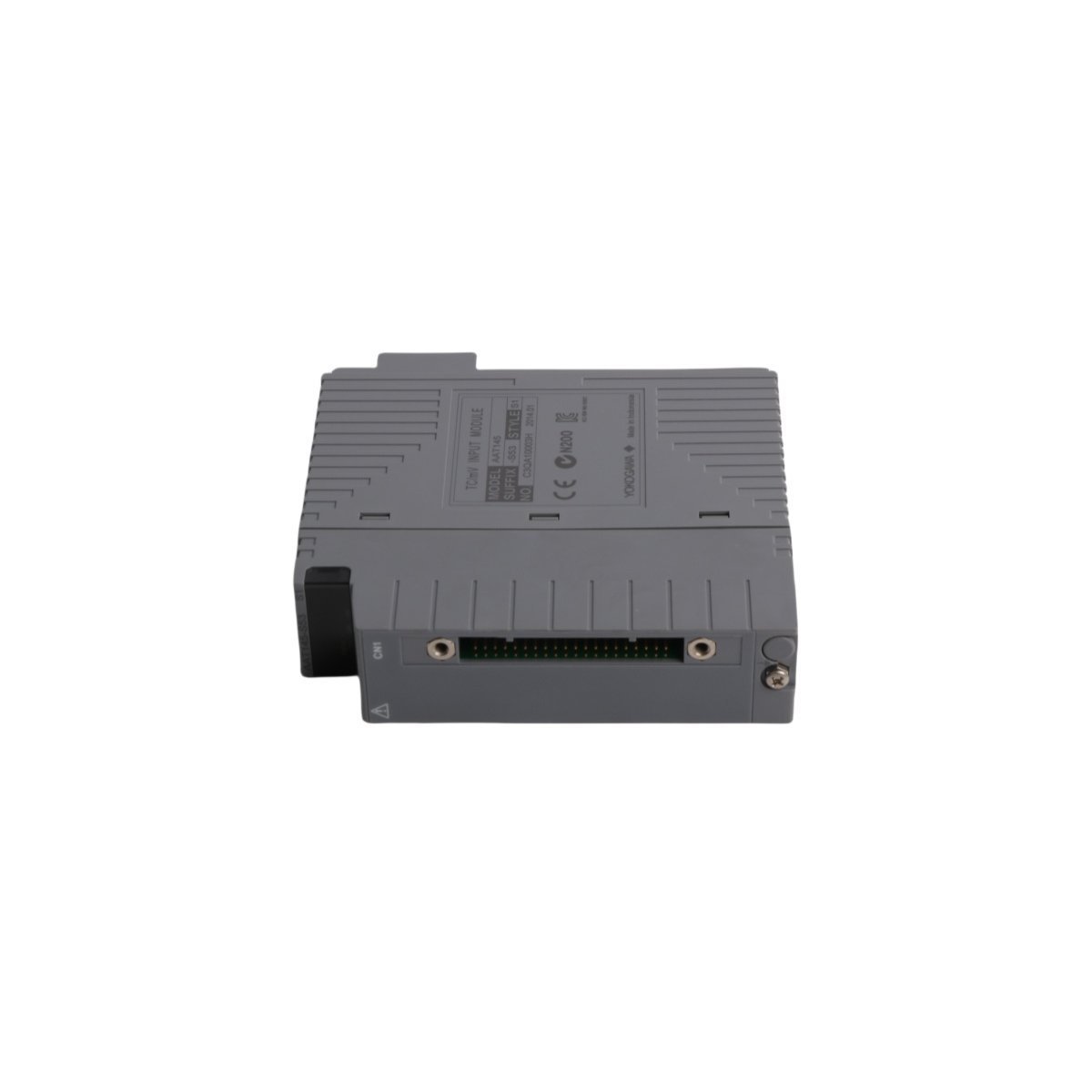

Yokogawa AAT145-S53 S1 TC/mV Input Module

The Yokogawa AAT145-S53 S1 serves as a high-density temperature measurement interface for the CENTUM VP DCS platform. This module effectively converts signals from thermocouples or millivolt (mV) sources into digital process data. It features 16 isolated input channels to ensure superior signal clarity across the system. Consequently, the hardware prevents ground loops and minimizes electrical noise in complex wiring environments. This module provides critical data for precise thermal management in automated facilities.

Comprehensive Technical Specifications

Advanced Hardware Characteristics

Reliability defines the design of the AAT145-S53 S1 analog input module. The unit utilizes high-quality components to withstand rigorous industrial conditions over long periods. Moreover, its channel-to-channel isolation architecture protects the system from field-side voltage surges. This isolation also improves the accuracy of low-level voltage measurements. The module includes internal cold-junction compensation for thermocouple inputs. Therefore, it maintains high measurement precision regardless of ambient temperature changes at the terminal.

Configuration and Safety Compliance

Yokogawa provides various suffix codes to meet diverse safety standards globally. This includes options for standard industrial use or specific explosion-proof certifications for hazardous areas. The “S53” designation indicates a specific functional version tailored for enhanced system stability. Furthermore, the module integrates seamlessly with CENTUM VP field control stations. Operators can configure input types and scaling through standard Yokogawa software tools. This flexibility simplifies the commissioning process for new automation projects.
